Migration AXIS to CXF Webserive

  • 1.  Migration AXIS to CXF Webserive

    Posted Jul 11, 2025 05:33 AM

    Hi,

    In the Dokumentation for the AXIS - CXF Migration I read following:


    Reload OOTB ITPAM content (which are CXF compatible) by manually importing the xml file into CA ITPAM.
    This xml file is located under the "filestore/PAM/PAMProcessFlows/SDM" in Common Installer DVD for 17.4 RU2 and above

    When I browse into the WIN_17_4_4_0.zip to this location, I find the file "CASDM129_CAProcAutoFlows_01272012.xml" which is for the old AXIS Webserives. Under the Path "WIN_17_4_4_0.zip\filestore\PAM CXF" I only find the "SLCM" folder for new Catalog Webservices.

    So my question is, where do I find the SDM PAM Operators for the CXF Wenserice?

    Thanks and best regards,

    Markus



  • 2.  RE: Migration AXIS to CXF Webserive

    Posted Jul 12, 2025 06:50 AM
    Edited by PauloAlexandre Pedrosa Jul 12, 2025 06:51 AM

    Hi Markus,

    At the same page you are looking

    https://techdocs.broadcom.com/us/en/ca-enterprise-software/business-management/ca-service-management/17-4/administering/axis-to-cxf-migration-for-casm/cxf-migration-for-ca-sdm.html#_ebb7d422-6e5b-4a98-828c-84def30c6729_sdmtoitpam

    you will find a "download it from here." pointing to:

    https://support.broadcom.com/web/ecx/solutiondetails?aparNo=99112069&os=WINDOWS-ALL

    Also, you will find more info on the CA Process Automation Connectors 2.0 page:

    https://techdocs.broadcom.com/us/en/ca-enterprise-software/intelligent-automation/automic-process-automation-connectors/2-0/ca-process-automation-connector-for-ca-service-desk/release-notes-ca-service-desk-connector.html

    Beware because I believe these PAM Operators will rewrite the axis ones.

    Paulo




  • 3.  RE: Migration AXIS to CXF Webserive

    Posted Jul 14, 2025 03:08 AM

    Hi Paolo,

    thanks for your answer. I already tried to install "PAM44_connector_installer_CA_ServiceDesk_CXF_Win.exe", but here the installer takes one second, tells it is finished, but nothing will be installed.

    The Link on the CA PAM Connectors 2.0 Page leads to the same Installfile, with the same result.

    Best Regards,

    Markus




  • 4.  RE: Migration AXIS to CXF Webserive

    Broadcom Employee
    Posted Jul 14, 2025 12:03 PM

    Hi Markus,

    Did you try to load "CASDM129_CAProcAutoFlows_01272012.xml" ? As far as I know the filename was kept the same, but the content was updated.

    I hope this help.

    Regards,
    Sebastian




  • 5.  RE: Migration AXIS to CXF Webserive

    Broadcom Employee
    Posted Jul 15, 2025 01:32 AM

    Hi Markus,
    As Sebastian noted, please load the file from the location provided below.
    "filestore/PAM/PAMProcessFlows/SDM/CASDM129_CAProcAutoFlows_01272012.xml" in Common Installer DVD for 17.4 RU2 and above

    Thanks,

    Seetharamaiah




  • 6.  RE: Migration AXIS to CXF Webserive

    Posted Jul 16, 2025 06:54 AM

    Hi Seetharamaiah,

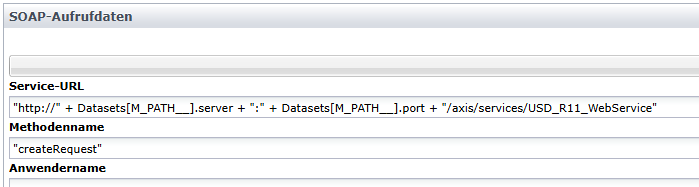

    as I answered Sebastian I did this already. But when i look into all 23 Operators unter SDM/Custom Operators/, than all these Operators have the old Service-URL

    For example:

    So at the moment, I have to edit all operators I need manually.

    Thanks and best regards,

    Markus




  • 7.  RE: Migration AXIS to CXF Webserive

    Broadcom Employee
    Posted Jul 17, 2025 12:34 AM

    Hi Markus,

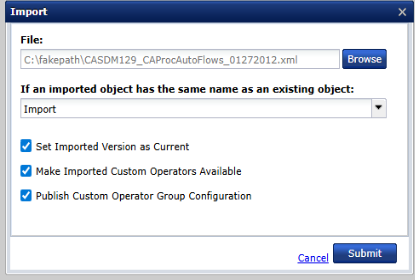

    You do not have to edit all the operators with the CXF web service. Please re-import the XML file "CASDM129_CAProcAutoFlows_01272012.xml," check all the options as shown in the screenshot below, and then verify.

    Hope this helps.

    Thanks,

    Seetharamaiah




  • 8.  RE: Migration AXIS to CXF Webserive

    Posted Jul 17, 2025 03:03 AM

    Hi Seetharamaiah,

    I did exactly this, but with no effect. But then I deleted the "old" Folder and reimported this file and now all Operators have the new URL.

    So it seems this was an issue with my import.

    Thanks and best regards,

    Markus




  • 9.  RE: Migration AXIS to CXF Webserive

    Posted Jul 15, 2025 01:34 AM

    Hi Sebastian,

    Yes, I imported this file, and I see on the date, that the operators are updated. But but every Operator I open has "http://" + Datasets[M_PATH__].server + ":" + Datasets[M_PATH__].port + "/axis/services/USD_R11_WebService" as Service URL, and this is wrong.

    So this is still for the old Webservice.

    Thanks and best regards,

    Markus
