Get-Stat -Disk Response

[Maj0rD]

Hi,

I have been reviewing the various threads for a discussion on the output from the Get-Stat '-disk' element as am trying to understand the IOPS of a VM. When running the below command I am returned 'disk.usage.average' where the 'Description' states that this is the average Disk I/O rate, however the 'Unit' field states that the measurement is in KBps.

I would have expected the unit field to be IOPS as this in itself is a unit of measurement? Or am I getting this wrong?

Command: Get-Stat -Entity SERVERx -Realtime -disk -MaxSamples 1 | Export-Csv ServerX.csv

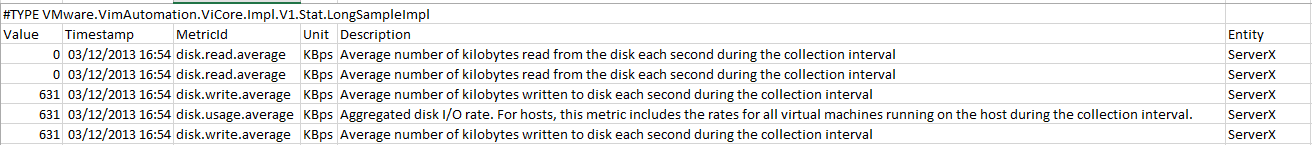

Output:

Thanks all in advance.

Danny

[LucD]

For IOPS have a look at my Get the maximum IOPS post.

In there I show how you calculate the IOPS rate

[Maj0rD]

Will take a look - thanks for the prompt response.

Danny

[Maj0rD]

Hi LucD / All,

Thanks for this, the link was a great help - I've continued working with this and I can export all of the information however it takes the attached format (Names down the first column and values down the second) where I want the values from left to right with as I iterate down through the various VM's.

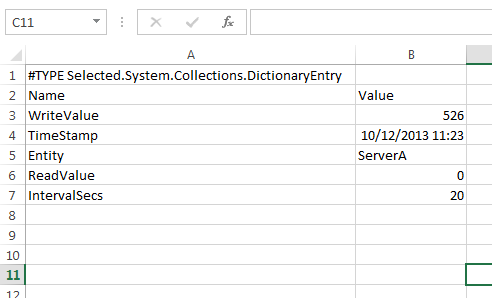

How it looks:

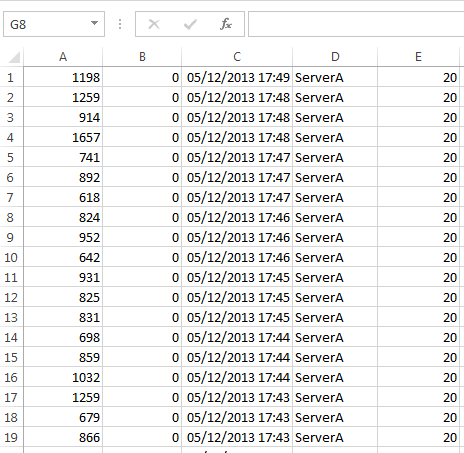

How I want it to look:

Code

_____________________________________________________________________________________________________________

$format = "-Property Entity, TimeStamp, IntervalSecs, ReadValue, WriteValue"

$Read = "disk.numberread.summation"

$Write = "disk.numberwrite.summation"

$IntervalSecs = 20

$MaxSamples = 1

$arrVM = Get-VM  | where-object {$_.PowerState -eq "PoweredOn"}

$arrVM = Get-VM  | where-object {$_.Name -eq "ServerA"}

foreach ($objVM in  $arrVM)

{



    $VMReadValue = Get-Stat -Entity $objVM -Realtime -Stat $Read -MaxSamples $MaxSamples -IntervalSecs $IntervalSecs

    $VMWriteValue = Get-Stat -Entity $objVM -Realtime -Stat $Write -MaxSamples $MaxSamples -IntervalSecs $IntervalSecs



    $rEntity = $VMReadValue.Entity.Name

    $rMetricId = $VMReadValue.MetricId

    $rTimestamp = $VMReadValue.Timestamp

    $IntervalSecs = $VMReadValue.IntervalSecs

    $rUnit = $VMReadValue.Unit

    $rValue = $VMReadValue.Value

    $wValue = $VMWriteValue.Value



    $VMStats =@{"Entity" = $rEntity; "TimeStamp" = $rTimestamp; "IntervalSecs" = $IntervalSecs; "ReadValue" = $rValue; "WriteValue" = $wValue}



    $VMStats.getEnumerator() | Select Name, Value | Export-Csv VMstat.csv

    $VMStats



}

[Maj0rD]

Managed to do it with a conversion function... very useful :smileyhappy:

function ConvertTo-Object($hashtable)

{

   $object = New-Object PSObject

   $hashtable.GetEnumerator() |

      ForEach-Object { Add-Member -inputObject $object `

    -memberType NoteProperty -name $_.Name -value $_.Value }

   $object | Export-Csv VMstat.csv

}

#$hash = @{Entity=$rEntity; TimeStamp=$rTimestamp; IntervalSecs=$IntervalSecs; ReadValue=$rValue; WriteValue=$wValue}

#$hash

#ConvertTo-Object $hash

################################

$format = "-Property Entity, TimeStamp, IntervalSecs, ReadValue, WriteValue"

$Read = "disk.numberread.summation"

$Write = "disk.numberwrite.summation"

#$IntervalSecs = 20

#$MaxSamples = 1

#$arrVM = Get-VM  | where-object {$_.PowerState -eq "PoweredOn"}

$arrVM = Get-VM  | where-object {$_.Name -eq "ServerA"}

foreach ($objVM in  $arrVM)

{



    $VMReadValue = Get-Stat -Entity $objVM -Realtime -Stat $Read -MaxSamples 1 -IntervalSecs 20

    $VMWriteValue = Get-Stat -Entity $objVM -Realtime -Stat $Write -MaxSamples 1 -IntervalSecs 20



    $rEntity = $VMReadValue.Entity.Name

    $rMetricId = $VMReadValue.MetricId

    $rTimestamp = $VMReadValue.Timestamp

    $IntervalSecs = $VMReadValue.IntervalSecs

    $rUnit = $VMReadValue.Unit

    $rValue = $VMReadValue.Value

    $wValue = $VMWriteValue.Value



    $VMStats =@{"Entity" = $rEntity; "TimeStamp" = $rTimestamp; "IntervalSecs" = $IntervalSecs; "ReadValue" = $rValue; "WriteValue" = $wValue}



    #$VMStats.getEnumerator() | Select Name, Value | Export-Csv VMstat.csv

    $VMStats

    ConvertTo-Object $VMStats



}

[LucD]

This is an alternative, without the extra function.

$format = "-Property Entity, TimeStamp, IntervalSecs, ReadValue, WriteValue"
$Read = "disk.numberread.summation"
$Write = "disk.numberwrite.summation"
$IntervalSecs = 20
$MaxSamples = 1
$arrVM = Get-VM  | where-object {$_.PowerState -eq "PoweredOn"}
$arrVM = Get-VM  | where-object {$_.Name -eq "ServerA"}

$report = @()
foreach ($objVM in  $arrVM)
{
    $VMReadValue = Get-Stat -Entity $objVM -Realtime -Stat $Read -MaxSamples $MaxSamples -IntervalSecs $IntervalSecs
    $VMWriteValue = Get-Stat -Entity $objVM -Realtime -Stat $Write -MaxSamples $MaxSamples -IntervalSecs $IntervalSecs

        $row = "" | Select Entity,MetricID,TimeStamp,IntervalSecs,Unit,ReadValue,WriteValue
    $row.Entity = $VMReadValue.Entity.Name
    $row.MetricId = $VMReadValue.MetricId
    $row.Timestamp = $VMReadValue.Timestamp
    $$row.IntervalSecs = $VMReadValue.IntervalSecs
    $row.Unit = $VMReadValue.Unit
    $row.ReadValue = $VMReadValue.Value
    $row.WriteValue = $VMWriteValue.Value

    $report += $row
}
$report | Export-Csv VMstat.csv -NoTypeInformation -UseCulture

[Maj0rD]

Thanks for this LucD - a much cleaner way of doing this. I have added in some calculations to yours out the IOPS also and its populating nicely.

Is there any reason the -Append won't work as I would rather keep this all within a single spreadsheet.

Thanks,

Danny

[LucD]

The Append switch should work, provided the rows in the CSV file have the same layout as the records you want to append.

Did you get an error message ?

[Maj0rD]

I just added it to the Export-CSV statment:

_________________________________________________________________

    $report += $row

}

$report | Export-Csv VMstat.csv -NoTypeInformation -UseCulture -Append

_________________________________________________________________

Error:

[vSphere PowerCLI] C:\Users\daniel.major\Storage\PowerShell> .\LucDStat.ps1

Export-Csv : A parameter cannot be found that matches parameter name 'Append'.

At C:\Users\daniel.major\Storage\PowerShell\LucDStat.ps1:28 char:71

+ $report | Export-Csv VMstat.csv -NoTypeInformation -UseCulture -Append <<<<

    + CategoryInfo          : InvalidArgument: (:) [Export-Csv], ParameterBindingException

    + FullyQualifiedErrorId : NamedParameterNotFound,Microsoft.PowerShell.Commands.ExportCsvCommand

[LucD]

It looks like you might be running an older PowerShell version.

Do a

$PSVersionTable

at the prompt.

If that variable doesn't exist, you're most probably running PowerShell v1.

Check with

$host.Version

The Append switch on the Export-Csv cmdlet was added in PowerShell v2.

[Maj0rD]

That was my initial thought as well - I checked teh versiona dn its definately V2.0 I assume the append switch worked on your system?

[vSphere PowerCLI] C:\Users\daniel.major\Storage\PowerShell> $PSVersionTable

Name                           Value

----                           -----

CLRVersion                     2.0.50727.5472

BuildVersion                   6.1.7601.17514

PSVersion                      2.0

WSManStackVersion              2.0

PSCompatibleVersions           {1.0, 2.0}

SerializationVersion           1.1.0.1

PSRemotingProtocolVersion      2.1

[vSphere PowerCLI] C:\Users\daniel.major\Storage\PowerShell> $host.Version

Major  Minor  Build  Revision

-----  -----  -----  --------

2      0      -1     -1

[vSphere PowerCLI] C:\Users\daniel.major\Storage\PowerShell>

[LucD]

My mistake, the Append switch was introduced in PowerShell v3, not v2

[Maj0rD]

ah - that makes sense. Off to the Change Control Team then for an upgrade...

Thanks a lot for the assistance - very much appreciated.

Danny
