When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

  • 1.  When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 16, 2015 07:40 PM

    Any ideas, this is explicitely speaking to the Intel Xeon D-1540 platforms that include 10G option? IE: SuperMicro X10SDV-TLN4F

    Any takers?  I'm hearing reports it does not work in vSphere but does in Hyper-V which is depressing.   Is there a custom vib or driver hack out there yet that anyone is aware of?



  • 2.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 18, 2015 01:08 AM

    Dang, these too obscure or not enough SKU's out in the vendor space yet?  Bummer that a network adapter that is so closely related to an Intel X520 (evolution of 10G LOM X520) seems to be unsupported ATM.



  • 3.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 19, 2015 07:37 AM

    There has been support for Linux for 2 driver releases now. ixgbe 4.0.3 (April 15 release) and now ixgbe 4.1.1 (June 17). For whatever reason, neither version has made it into a VIB driver package. The most recent VMWare driver is 3.23.21, which is from February.

    Not keeping up on the driver releases that support the Intel 10GbE adapter in the Xeon D-1540 SoC kills the product line for visualization, unless you're going with Hyper-V or some variant of Linux (KVM / Xen / etc.)

    The NIC driver is the only thing stopping me from deploying the D-1540 in my own cluster. Given that we now have native bandwidth hungry features like VSAN and 4 vCPU Fault Tolerance available to us, 10GbE is pretty much a staple for VMWare now. Have it, or pay the price - only we can't get it because the drivers haven't been updated in 4 months.



  • 4.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 19, 2015 02:34 PM

    Fully concur, VMware engineering, PLEASE update this driver w/in the ESXi codebase, really is a shame for us to not be able to drive adoption of this incredible platform due to a silly driver issue that will not even allow the nics to be detected by the latest 6.0 hypervisor.



  • 5.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 28, 2015 04:00 AM

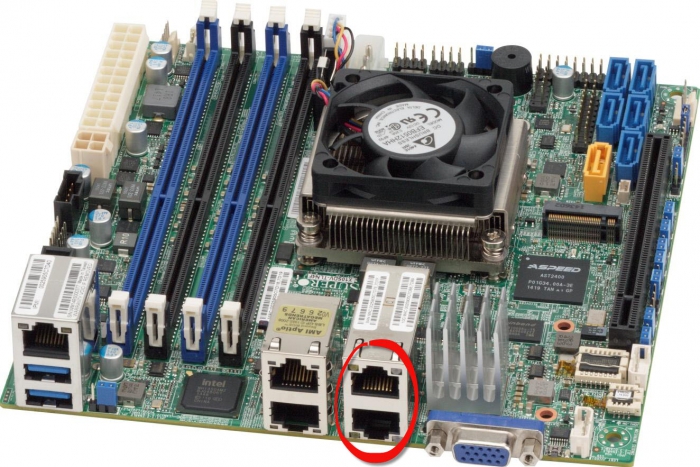

    Agreed, great little motherboard, but 10GbE support is sorely needed.

    See also Supermicro support for ESXi 6.0 listed here:

    Super Micro Computer, Inc. - Support | OS Compatibility Chart

    http://www.supermicro.com/support/resources/OS/Broadwell-DE.cfm




  • 6.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 28, 2015 04:12 AM

    Yeah, they show it as compatible, and it is, as long as you get the 4 x 1Gbps version of the board, and not the 2 x 1Gbps + 2 x 10Gbps version.

    I'm sure someone is running around like a chicken with it's head off, trying to get drivers together to make this happen. I hope so, anyway.



  • 7.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 30, 2015 08:45 PM

    As Supermicro promised, to me (and to others, such as roberthenderson), they updated their compatibility table appropriately, just as these servers are becoming widely available (mine arrived last week).


    I will attempt to reach out to an Intel networking contact (that I met at VMworld 2012), to see if we can learn more about when we can expect support.

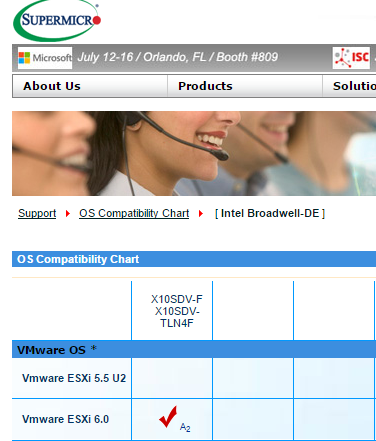

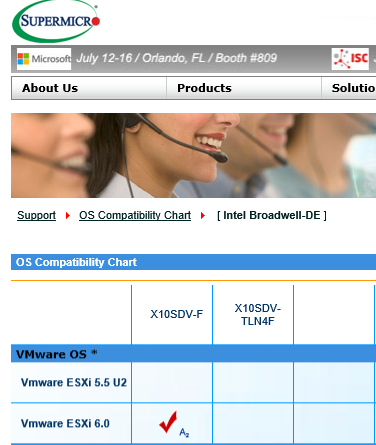

    Condensed, edited version of the Supermicro compatibility table at

    http://www.supermicro.com/support/resources/OS/Broadwell-DE.cfm

    Before (June 29th) at left, and after (June 30th) at right.



  • 8.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 30, 2015 08:53 PM

    That should clear up some confusion for Supermicro purchasers.

    I did speak to an Intel representative at a roadshow late last week, and he indicated that it was up to the vendor, Supermicro in this case, to push through drivers, which struck me as odd. Usually, in my experience, it's the manufacturer that produces the drivers, and the vendor simply redistributes them, sometimes with a few little tweaks for their specific hardware or a repackage into their own branded installer.

    From what I understand, the existing Linux drivers are compatible with ESXi, but may need a mild massage and a recompile, and of course put into VIB format. That all seems like a pretty small thing for Intel to do to reach an audience that is clamoring to get their latest processor offering. Hopefully your contact and Intel can provide some insight and maybe produce a little shove on the VMWare community's behalf.



  • 9.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 30, 2015 09:12 PM

    Interesting points you've made, PaulWestNet. Also interesting that the usual ways of determining which driver might work don't work for this motherboard (I tried).

    VMware KB: Identifying correct driver for ESXi/ESX host PCI devices (HBA) using VMware Hardware Compatibility Guide …

    For folks reading along, my contact at Intel is pretty thin, it's been years, and I'm not even sure he's still in that role. So if you know somebody at VMware or Intel who can weigh in here, by all means, don't wait for a (slight) chance for me to get somewhere with this in the near-term.

    Thanks!



  • 10.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 30, 2015 09:55 PM

    The driver we need is the ixgbe one, but a newer version than is currently available as a VIB. The one that's shipped with ESXi 6.0 is 3.7.13.7.14, which is pretty ancient now (November, 2011).

    The latest VIB for the ixgbe driver that I can find via VMWare's HCL is 3.21.6 from March, 2014. There have been a bunch of versions since then in the *nix world, but it's the 4.x series we need. I have found posts that 4.0.3‌‌ (April, 2015) worked fine in Linux for the new XEON D-1500 SoC's 10Gbps NICs on the very Supermicro board we're discussing. There's a 4.1.1‌ (June, 2015) now, as well.

    We just need a newer version made available as a VIB, and we'd be set.



  • 11.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jul 09, 2015 01:19 PM

    So I see we have ESXi 6.0.0b released two days ago. The ixgbe version looks to still  be 3.7.13.7.14 when I look at the vibs in the zip file. :-(



  • 12.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jul 22, 2015 01:00 AM

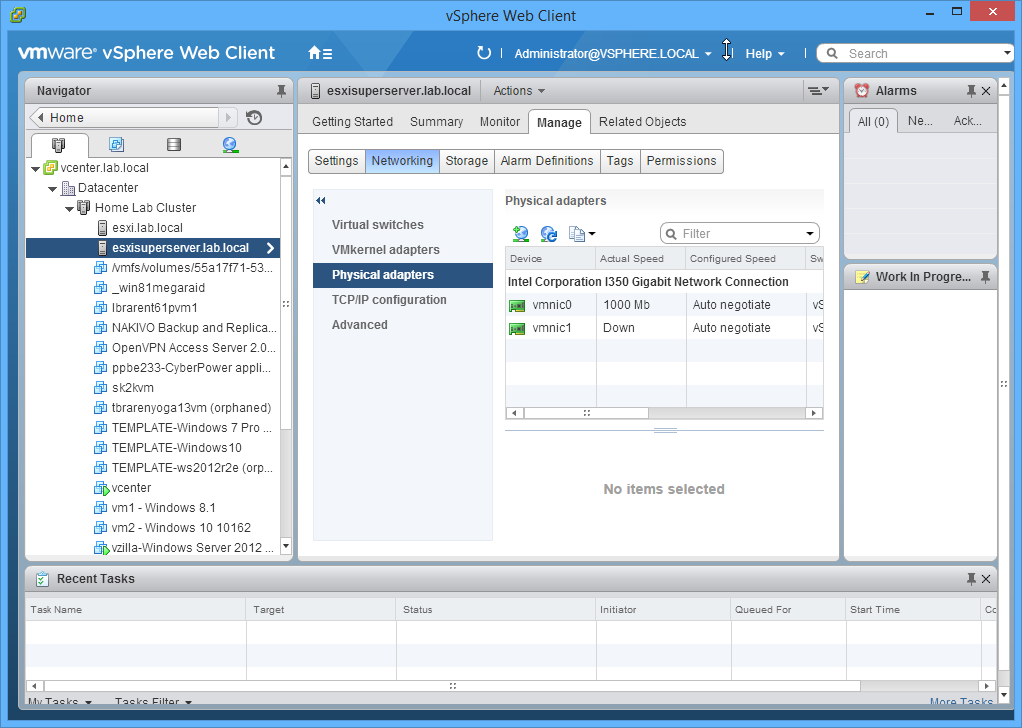

    Yeah, you're right, I did the 6.0.0b update patch, and the X552/X557 still isn't seen by this latest ESXi level.



  • 13.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Sep 21, 2015 01:46 PM

    Same goes for ESXi 6.0 Update 1, still no built-in x552/x557 support, unfortunately.



  • 14.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jun 30, 2015 09:08 PM

    Just for sport, of course I tried (and failed) with some other similar Intel VIBs, oh well. Given the X552/X557 are in the same family as the 82598/82599 (according to the below site), you'd think they might share VIBs, but they don't.

    Here's the Linux driver site at Intel:

    Intel® Download Center



  • 15.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Aug 09, 2015 01:06 AM

    Just for kicks, I decided to take a look at the release date of the Linux driver vs the release date of the VMWare driver for the same version. There was a 11 month spread between the two. That seems to imply to me that we won't see a 4.x series driver for VMWare until approximately March, 2016, if that time frame holds.

    I guess any of the D-1500 series servers coming out won't be selling a whole lot of them to VMWare users until somewhere late in the quarter next year, due to the missing driver problem. You'd think there'd be some significant pressure from OEMs like Supermicro and Intel to get drivers approved so product can flow. I wonder if there is...?



  • 16.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Aug 10, 2015 04:55 PM

    For what it's worth, I tried compiling the 4.1.1 drivers for 6.0 a month or so back and completely struck out.  The 4.x driver looks to be a substantial rewrite because there are large changes to the source, even for older NICs.  It may take a while to get it working under vSphere.



  • 17.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Aug 10, 2015 05:41 PM

    It's good to hear that someone with the necessary skill set has tried this. Thanks for the input.

    It's unfortunate the driver is so different and isn't compiling as easy as one would hope. Hopefully Intel and VMWare can collaborate and get something worked out.



  • 18.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?



  • 19.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Aug 10, 2015 03:56 PM

    Hi all, same problem here.

    VMware engineers, please add support for X552/X557-AT, the SuperMicro X10SDV-TLN4F motherboard is becoming very popular here too!

    Best regards

    Domenico



  • 20.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Sep 15, 2015 04:37 PM

    Hi There,

    I have bought this motherboard too in order to use VMware ESXi.

    Any news about the compatibility of this chipset?

    Thank you.



  • 21.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Sep 21, 2015 12:56 AM

    Still working on it! (I did meet Intel folks at VMworld 2015, and am keeping in touch)



  • 22.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Sep 21, 2015 01:45 PM

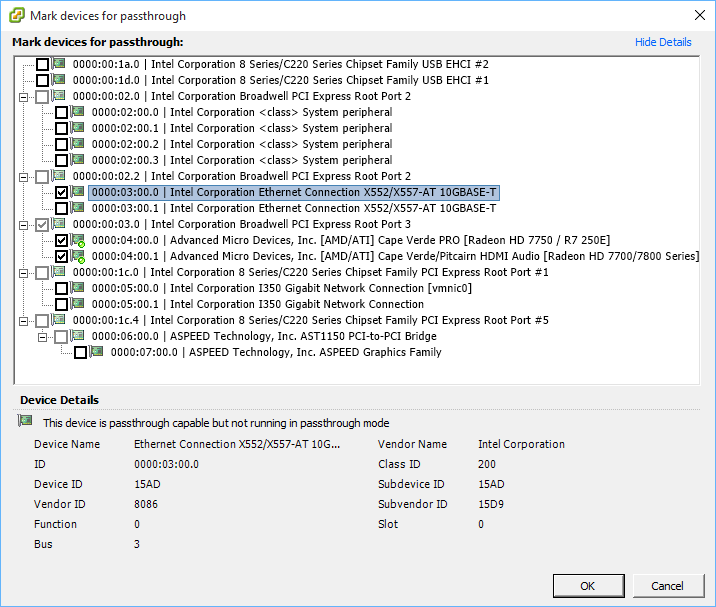

    While we wait for proper ESXi 6.x support, a workaround for me is to use VT-d, but I realize that approach has drawbacks, including disabling vMotion.

    I then assign one or two 10GbE interface(s) to a VM such as Windows Server 2012 R2 or Windows 8.1/10, which works just fine, using the driver found at "Drivers & Utilities" at Supermicro here:

    http://www.supermicro.com/products/system/midtower/5028/SYS-5028D-TN4T.cfm



  • 23.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 05, 2015 10:05 PM

    I tried the Twitter, no joy:

    Paul Braren on Twitter: "@IntelSupport When will X552/X557 drivers for @VMware arrive for those sweet 10GbE equippped Xe…

    and my VMware EVALExperience license has no support.

    Anybody got a X552/X557 mobo, and a legit way to reach out to VMware support, to inquire about support?



  • 24.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 09, 2015 05:11 PM

    I have created a Twitter timeline screenshot, because the thread was broken up in various chunks. Seen here, under my original article here.

    Net, still no new info.



  • 25.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 15, 2015 10:11 PM

    We ran into the same problem, we buy 4x SuperServer 5018D-FN4T with full RAM and SSD to test the VSAN 6.1.


    But now we have 4 server with only 1GBit nic's.


    There any chance to build the Intel ixgbe 4.1.2 driver into a VIB format ? (https://downloadcenter.intel.com/download/14687/Network-Adapter-Driver-for-PCI-E-10-Gigabit-Network-Connections-under-Li…)


    We try now try to set up a VMware ESXi toolchain build env. 6 like here (VMware Front Experience: How to build device drivers for ESXi 5.x) but we have problems that the toolchian build environment runs... :smileysad:


    It can't be so hard for Intel and VMware to build this drivers as VIB !?





  • 26.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 16, 2015 09:39 AM

    I've obtained a date estimate from Intel, woo hoo! We'll save the rejoicing until it actually arrives and we've tested it, but still, this is good news:

    Intel Xeon D-1540 10GbE X552/X557 driver/VIB for VMware ESXi 6 expected to arrive by early Nov. 2015 for Supermicro 5028D-TN4T system with X10SDV-TLN4F

    Have a great weekend everybody!



  • 27.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 20, 2015 07:19 AM

    Thank GOODNESS/good riddance/about time!!!  Thanks for the update pbraren and everyone else who contributed to a lively thread discussion and hopefully a resolution very soon.  Now to holdout for a SFP+ variant of this platform once this drops otherwise I may be in the market for a new switch which is 'weak sauce' in my book for a guy who already invested in a SFP+ 10GbE switch...not to mention the physical characteristic flaws in copper 10G...GRRR!



  • 28.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 28, 2015 02:03 AM

    Well, if SFP is your thing, then this might work for you:

    ASRock Rack Xeon D - ultimate motherboard spotted



  • 29.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 30, 2015 06:35 PM

    Hi,

    Same problem here... Any update ? Possible to download the vib in development ? I need to install the machine, but doesn't work on ESXi 6...

    Regards,



  • 30.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 30, 2015 08:46 PM

    Ravzone35Ravzone35Ravzone35, I have some (potentially) good news for you!

    Just a moment ago, I published this:

    Intel Xeon D-1540 10GbE X552/X557 driver/VIB for VMware ESXi 6 on Supermicro 5028D-TN4T/X10SDV-TLN4F is now available | …

    Looking forward to how others do with testing this new ixgbe version 4.1.1.1 VIB (sadly, I currently can't get to the VIB download site).

    Eventually, assuming it works well, it'd be great if it made its way into Andreas Peetz repository for super simple installs:

    http://www.v-front.de/2015/04/esxi-60-hits-vmware-online-depot-what.html

    This approach would also bring an end to our download/entitlement worries.



  • 31.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 30, 2015 11:42 PM

    Thanks for the update !

    I can't download it, there is no drivers for the product (esxi 6). A bug on the website ?

    Regards,



  • 32.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 31, 2015 06:06 AM

    Yeah, it seems nobody is able to download it.

    My VMware has been having all sorts of issues lately:

    https://twitter.com/paulbraren/status/660123084121358337

    I clicked the feedback button from the download site, and am attempting to work off an existing SR# for entitlement related access issues, with no luck reaching anybody. Will keep trying...



  • 33.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 02, 2015 10:54 PM

    Now it is for download !

    Choose 5.5 and then on the drivers and tools page :

    https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI55-INTEL-IXGBE-4111&productId=353

    Best regards

    JBBERLIN



  • 34.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 02, 2015 11:14 PM

    YES! :smileyhappy:



  • 35.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 02, 2015 11:52 PM

    Nicely done!

    Curious how you found it, and if that's ESXi 6.0 you're using with that 5.5 driver.



  • 36.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 02, 2015 11:57 PM

    Pretty nice timing, given I (temporarily) have 2 5028D-TN4T systems with 2 Cat 6a cables directly between them, and 2 Samsung 950 PRO NVMe M.2 drives on the way, arriving tomorrow.



  • 37.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 03, 2015 12:22 AM

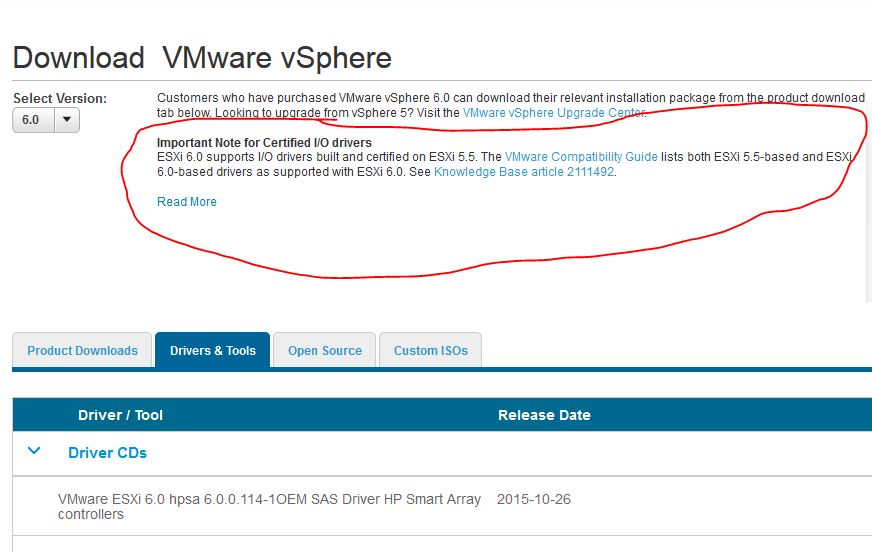

    Yes sure because every time I download something VMware shows me that:

    So I look at 5.5 :smileywink:



  • 38.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 03, 2015 12:26 AM

    Hi,

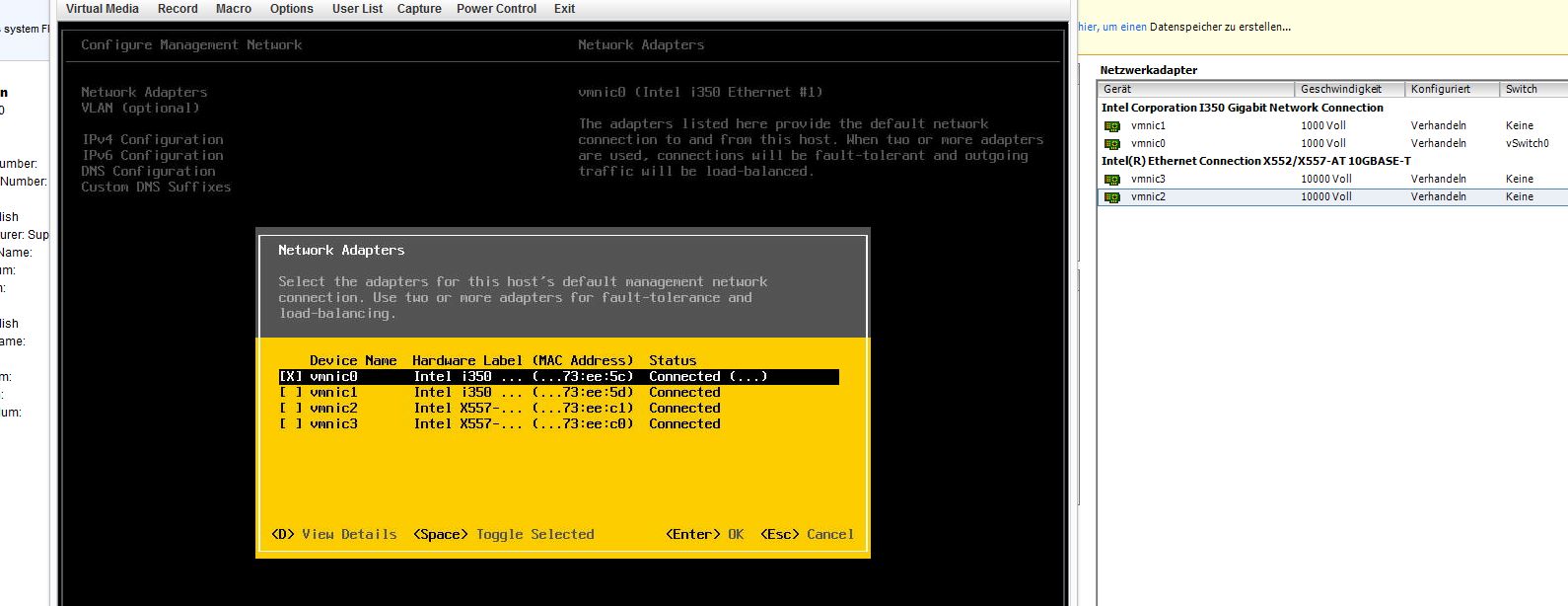

    yes I confirm, it's working fine, you have just to create a custom ISO of ESXi 6.0 (integrate de vib) and it's working fine now :smileywink:. I can upload it if you want,

    Thanks for  the update,

    Regards,



  • 39.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 03, 2015 02:38 AM

    Thanks for the offer!

    Actually, I'm all set now, downloaded and installed the 5.5 VIB on my ESXi 6.0 Update 1a just fine, wrote up simple method draft here:

    How to install the Intel Xeon D-1540 10GbE X552/X557 driver/VIB for VMware ESXi 6 on Supermicro 5028D-TN4T/X10SDV-TLN4F …

    Now that's how things should look!



  • 40.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Nov 04, 2015 02:16 AM

    VMware has now fixed the download links found at the X552/X557 download site:

    https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI55-INTEL-IXGBE-4111&productId=353

    and it turns out yes, they're all the same VIB:

    ixgbe-4.1.1.1-1331820-3187103.zip

    So ends this long story, 5.5 and 6.0 users are all set now, and any My VMware account login will allow you to access the drivers.

    This also marks a new chapter, testing this NIC out...



  • 41.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Oct 31, 2017 02:43 PM

    whitey1123, can you mark this old question as answered?

    Also note that 4.5.3 came out today, testing it now (un-officially, just tinkering in my Xeon D home lab):

    How to download and install the Intel Xeon D 10GbE X552/X557 driver/VIB for VMware ESXi 6.x, works for X540 too | Tinker…



  • 42.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jul 14, 2018 12:43 AM

    WAY late to the game but I finally got a Xeon-D system w/ ONLY 2 10GB copper ports and the 6.5U1 installer was balking/bombing, used my nested 6.7 vSphere vCenter on top of my 6.5 infra w/ Image Builder GUI to bundle in proper drivers and voila!  :-D

    Marked as 'Answered' pbraren



  • 43.  RE: When will Intel(R) Ethernet Connection X552/X557-AT 10GBASE-T be supported in vSphere 6?

    Posted Jul 14, 2018 01:32 AM

    OK, so I seem to have jumped the gun, custom image creation went soo smoothly that i assumed it was gonna work but if just stalls out here.  Left all vibs selected plus the X557 vib/offline depot.  vSphere ESXi 6.7 loads fine on this X10SDV-4C-TLN2F HW.  SOOOO frustrating.  Any help/assists/hints/tips.  I am at my wits end.
