  • 1.  vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 15, 2022 06:56 PM
      |   view attached

    Hello,

    We just completed an upgrade to vSphere ESXi 7.0U3. When I try
    to map the CD drive to an ISO image, I get the following error message, also attached.

    "Failed ro reconfigure virtual machine XXXXX. Connection control operation failed for disk "ide1:0'

    I have found a possible fix to be:

    Expand CD drive options and change the Device Mode to Passthrough CD-ROM

    However, when attempting to set the Device Mode to Passthrough CD-ROM, the
    Passthrough CD-ROM does not exist as an option.



    Thank you



  • 2.  RE: vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 15, 2022 08:38 PM

    Have you tried that KB?

    https://kb.vmware.com/s/article/79306





  • 3.  RE: vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 15, 2022 08:50 PM

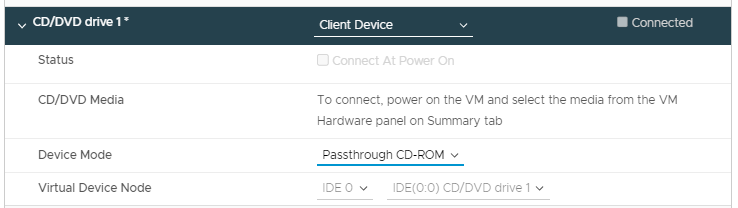

    , If you have a CD device on your ESXi host you can use Emulate CD-ROM mode for read-only.

    However, If you have an ISO on a CD-Drive on a Desktop from where you're accessing VM using the vSphere client, you will have to use Passthrough CD-ROM mode with CD/DVD Drive set to 'Client Device'. This allows both read and write.


    Regards,

    Shen



  • 4.  RE: vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 15, 2022 08:56 PM

    Thanks Shen..



    I have seen the link. The problem is:



    Passthrough CD-ROM does not exist as an option for me



  • 5.  RE: vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 15, 2022 10:39 PM

    Hmmm this is strange



  • 6.  RE: vSphere ESXi 7.0U3 fails to map ISO on CD ROM Drive

    Posted Dec 16, 2022 10:24 AM

    Hi,


    More than strange I would say questionable,


    Haven't tried all possible combinations but as far as I know with the most recent version of ESXi, the 7.0U3i (and if so much, even in ESXi 8.0x), with the "HOST Client" version 2.1.x the option "Passthrough CD-ROM" is not available and you cannot choose as CD-ROM a Client devices as well. The options I mentioned are instead available through the vCenter object.


    Regards,
    Ferdinando
