  • 1.  vSphere Distributed Switch teaming matched status Alarm

    Posted Apr 18, 2020 11:32 PM

    Hi,

    We are seeing vSphere Distributed Switch teaming matched status alarm after enabling VLAN and MTU / Teaming and failover Health Check.

    VMware Knowledge Base states that the alarm is a result of misconfiguration.

    We have 3 Port Groups on this DS and all 3 are set to route based on the originating virtual port.

    On the physical side the ports are not either channeled. Each port is a Trunk port with VLANs used by the port groups assigned.

    What could be triggering the alarm?

    Edit: VMware Knowledge Base​ describes our issue, however the KB was written for vCenter 5.1 and should be fixed in 5.5. We are on 6.7

    Thanks



  • 2.  RE: vSphere Distributed Switch teaming matched status Alarm

    Posted Apr 19, 2020 07:47 AM


  • 3.  RE: vSphere Distributed Switch teaming matched status Alarm

    Posted Apr 19, 2020 01:47 PM

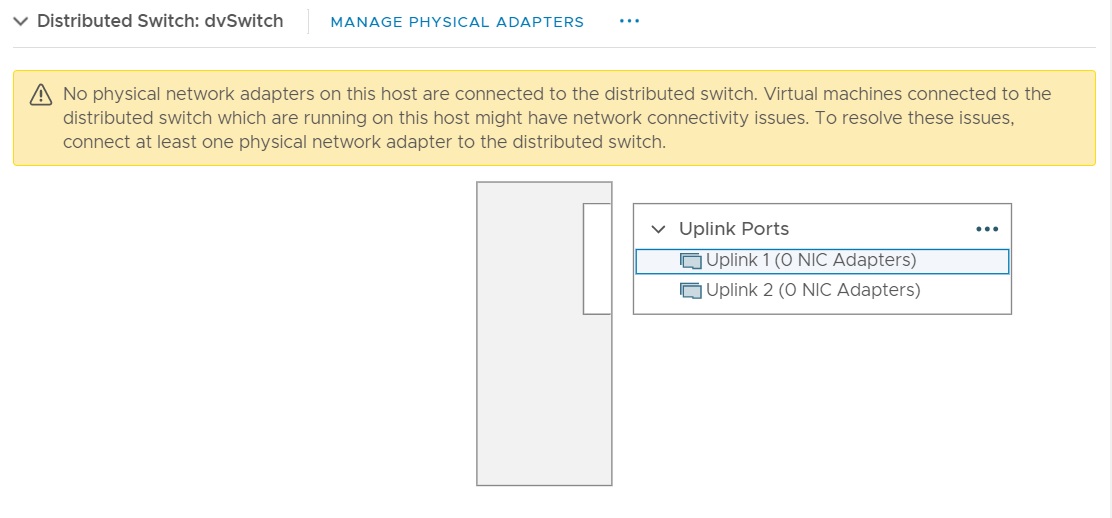

    With all VMs migrated to a standard switch and host removed and then added to dvSwitch the error didn't come up.

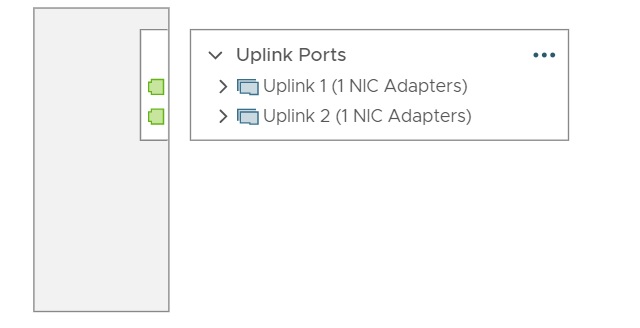

    The error comes back as soon as we add physical adapters to the uplink ports



  • 4.  RE: vSphere Distributed Switch teaming matched status Alarm

    Posted Apr 19, 2020 02:06 PM

    Unfortunately, I've found that health check to be very problematic over the years to the point where it's basically useless and is rarely turned on. If you absolutely must have it for the minuscule value it provides, it might be worth it to open a support case with GSS and have them investigate its wonkiness.



  • 5.  RE: vSphere Distributed Switch teaming matched status Alarm

    Posted Apr 19, 2020 03:00 PM

    daphnissov

    Thanks for the response. We had heath check disabled, but enabled it as we were adding a new host to the cluster. Based on your comment and other forum posts where vcenter reports a problem while there may not be an issue with the configuration, we will check with VMWare support.

    Thanks again



  • 6.  RE: vSphere Distributed Switch teaming matched status Alarm

    Posted Mar 28, 2025 05:59 AM

    We are now in 2025 and on vSphere 7u3s and those status Alarm still hits sometime , I have seen in the Past that VMWARE Errors are a good indicator that someone on the SwitchSide should check as there where always issues .

    As that is "THE THREAD" which pops up if searching for "vSphere Distributed Switch MTU supported status" or "Non-IP Hash Mismatch"
