vMotion VMkernel Network Migration

  • 1.  vMotion VMkernel Network Migration

    Posted Sep 23, 2021 02:03 PM

    I need to migrate our vMotion VMkernels to a different subnet which seems easy enough: change VLAN in Port Group and then update static IPv4 setting on each VMkernel.

    Before I proceed though, I wanted to see if anyone had done this procedure with a stretched vSAN cluster. We have 2 data centers in our internal network with the vSAN cluster stretched between and each DC has it's own IP range. We are running vCenter/ESXi 7.0 u2 btw. I was thinking I might have to do something with the static routes on the hosts but am not sure. Any advice would be appreciated. Thanks.



  • 2.  RE: vMotion VMkernel Network Migration

    Posted Sep 23, 2021 05:19 PM

    Please provide details about the configuration in both DCs to better understand the current state.
    How is vMotion configured right now? Is it set up as a dedicated IP-Stack?

    André



  • 3.  RE: vMotion VMkernel Network Migration

    Posted Sep 23, 2021 05:34 PM

    Yes, each host has a separate VMkernel adapter for vMotion with an IP from the subnet that is local to each DC's IP range, 10.100.x.x for one DC and 10.200.x.x for the other DC.



  • 4.  RE: vMotion VMkernel Network Migration

    Posted Sep 23, 2021 05:48 PM

    The question is whether vMotion uses it's own "IP Stack".

    André



  • 5.  RE: vMotion VMkernel Network Migration

    Posted Sep 23, 2021 06:13 PM
      |   view attached

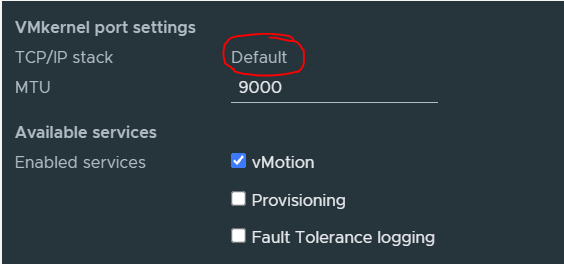

    I select vMotion in the VMkernel settings which I believe creates a separate TCP/IP stack, see attached screenshot. Is that what you are asking about?



  • 6.  RE: vMotion VMkernel Network Migration

    Posted Sep 23, 2021 09:14 PM

    Selecting vMotion at the point in your screenshot only marks the prot group as a vMotion port grou, but does not create a separate stack. Please see Place vMotion Traffic on the vMotion TCP/IP Stack of an ESXi Host for how to configure the vMotion stack to allow routing.

    André



  • 7.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 01:01 PM

    That screenshot is of the VMkernel not the Port Group. Thank you for providing that link, that is exactly how I created the VMkernels for vMotion on my hosts so I guess they do have a separate TCP/IP stack.



  • 8.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 01:52 PM

    Your screenshot shows that you may have missed to select the vMotion TCP/IP Stack from the drop down menu as mentioned in the documentation (step 7). You've created the vMotion VMkernel port group in the "Default" stack


    André



  • 9.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 02:50 PM

    Ah I see. Thank you for helping me understand how to create a separate TCP/IP stack in the VMkernel. Would it be best to create new VMkernels with separate stacks and the new subnet that I need to migrate the vMotion service over to?



  • 10.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 03:04 PM

    From what I understand so far about your network configuration, yes, you may create the vMotion VMkernel port group in its own stack, which allows you to specify a gateway address for that TCP/IP stack.

    André



  • 11.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 03:10 PM

    Is that the same as the "Override default gateway for this adapter" option available on the VMkernel settings?



  • 12.  RE: vMotion VMkernel Network Migration
    Best Answer

    Posted Sep 24, 2021 03:20 PM

    Yes, see step 9 in the documentation.

    Please  be careful that you do this only on the "vMotion" TCP/IP Stack. Overriding the default gateway on the "Default" Stack is not what you really want/need

    André



  • 13.  RE: vMotion VMkernel Network Migration

    Posted Sep 24, 2021 03:23 PM

    Awesome. Thank you for all of your help!
