VCSA memory configuration

[thomasross]

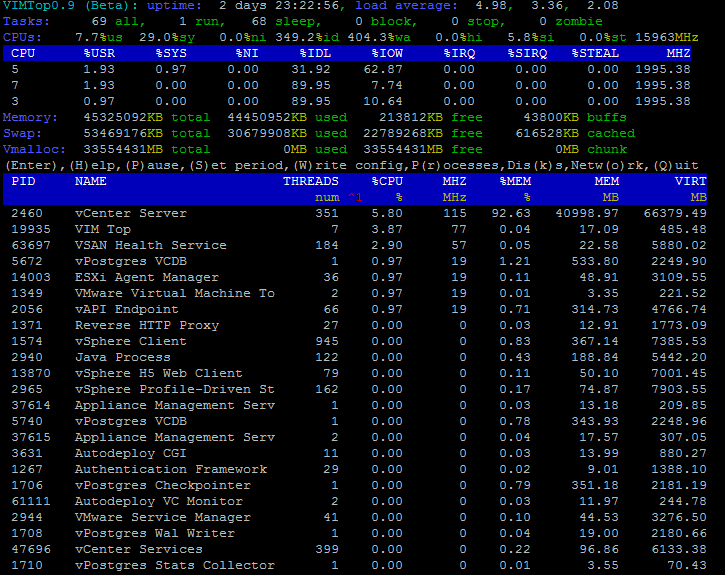

When I look at  VIMTOP  for the vcsa ,vCenter Server is using 90% of the memory.

How do  find out what is using all this memory ?

This is an upgrade form vcenter 6.0 with a Horizon 7.4  environment running on it. According to vmware's compatibility matrix, these are compatible

We started with 32 GB of memory, and I bumped it up to 44 GB. But that made little difference.

I looked in the vsphere-client logs, and the memory looks good there.

The database looks good.

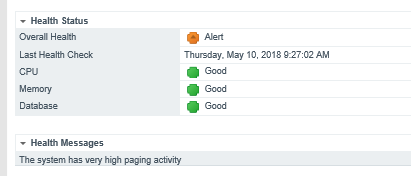

The only alert in the vcsa mgmt UI is the memory, which has a high paging alert.

What is using all this memory?

This is causing the web client to bog down after a few days and makes it impossible to manage vcenter or Horizon.

Best Regards

[Rohitsa]

Can you please list the output of

cloudvm-ram-size -S

Also since you are going towards non standard memory sizes, may be your JVM heap size is not adjusted properly for your vCenter Server Services: vSphere Web Client, Inventory Service and SPS (vSphere Profile-Driven Storage)

you can use the following commands for adjusting the heap size,

cloudvm-ram-size -C XXX vsphere-client

cloudvm-ram-size.bat -C XXX vspherewebclientsvc

follow it for other two processes too.

[thomasross]

output of cloudvm-ram-size -S:

#  [0mcloudvm-ram-size -S

Service-Name            AllocatedMB     MaxMB CurrentMB  Curr-RSS    Cache  MapFiles   MemoryLimit

-.mount                          -1        -1        -1        -1       -1        -1            -1

LinuxKernel                      -1     43517     43426         0       14         2 8796093022207

applmgmt                        358       264        46        43        3         1 8796093022207

auditd                           -1         5         0         0        0         0 8796093022207

boot.mount                       -1        -1        -1        -1       -1        -1            -1

cloud-config                     -1         0         0         0        0         0 8796093022207

cloud-final                      -1         0         0         0        0         0 8796093022207

cloud-init                       -1         0         0         0        0         0 8796093022207

cloud-init-local                 -1         0         0         0        0         0 8796093022207

cm                               -1       372        98        97        0         0 8796093022207

content-library                  -1       696       151       149        1         1 8796093022207

crond                            -1       845         1         0        1         0 8796093022207

dbus                             -1         1         0         0        0         0 8796093022207

dev-disk-by\x2did-dm\x2dname\x2dswap_vg\x2dswap1.swap        -1        -1        -1        -1       -1        -1            -1

dev-disk-by\x2did-dm\x2duuid\x2dLVM\x2dUt2S1ANggfk1F4MU1dwKAEnE0eFeu8db3Ze5R6JlG41UsMsLZA0gWgZQ3TpHxDUf.swap        -1        -1        -1        -1       -1        -1            -1

dev-disk-by\x2dpartuuid-cf62c174\x2dc051\x2d4432\x2d8e96\x2deea39e70c539.swap        -1        -1        -1        -1       -1        -1            -1

dev-disk-by\x2dpath-pci\x2d0000:00:10.0\x2dscsi\x2d0:0:0:0\x2dpart2.swap        -1        -1        -1        -1       -1        -1            -1

dev-disk-by\x2duuid-ad4ff4a3\x2df500\x2d444c\x2db128\x2d8da00f9b140f.swap        -1        -1        -1        -1       -1        -1            -1

dev-disk-by\x2duuid-d5e3b2e1\x2d4502\x2d4247\x2d98ee\x2dd2b4db9dd184.swap        -1        -1        -1        -1       -1        -1            -1

dev-dm\x2d6.swap                 -1        -1        -1        -1       -1        -1            -1

dev-hugepages.mount              -1        -1        -1        -1       -1        -1            -1

dev-mapper-swap_vg\x2dswap1.swap        -1        -1        -1        -1       -1        -1            -1

dev-mqueue.mount                 -1        -1        -1        -1       -1        -1            -1

dev-sda2.swap                    -1        -1        -1        -1       -1        -1            -1

dev-swap_vg-swap1.swap           -1        -1        -1        -1       -1        -1            -1

eam                              -1       466        45        41        3         1 8796093022207

haveged                          -1         5         0         0        0         0 8796093022207

irqbalance                       -1         0         0         0        0         0 8796093022207

kmod-static-nodes                -1         0         0         0        0         0 8796093022207

lsassd                           -1         0         0         0        0         0 8796093022207

lvm2-activate                    -1         0         0         0        0         0 8796093022207

lvm2-lvmetad                     -1         3         0         0        0         0 8796093022207

lvm2-monitor                     -1         0         0         0        0         0 8796093022207

lwsmd                            -1        52         9         7        2         2 8796093022207

ntpd                             -1         2         0         0        0         0 8796093022207

perfcharts                       -1       537        18        17        0         0 8796093022207

rbd                              -1       262        41        39        2         2 8796093022207

rhttpproxy                       -1        32         9         7        1         1 8796093022207

rpcbind                          -1         1         0         0        0         0 8796093022207

rsyslog                          -1         6         0         0        0         0 8796093022207

saslauthd                        -1         1         0         0        0         0 8796093022207

sca                              -1       260        94        93        1         0 8796093022207

sendmail                         -1         6         0         0        0         0 8796093022207

sps                              -1       629        65        64        0         0 8796093022207

sshd                             -1       142        30        25        4         3 8796093022207

statsmonitor                     -1        28        11         2        8         1 8796093022207

storage-autodeploy.mount         -1        -1        -1        -1       -1        -1            -1

storage-core.mount               -1        -1        -1        -1       -1        -1            -1

storage-db.mount                 -1        -1        -1        -1       -1        -1            -1

storage-dblog.mount              -1        -1        -1        -1       -1        -1            -1

storage-imagebuilder.mount        -1        -1        -1        -1       -1        -1            -1

storage-log.mount                -1        -1        -1        -1       -1        -1            -1

storage-netdump.mount            -1        -1        -1        -1       -1        -1            -1

storage-seat.mount               -1        -1        -1        -1       -1        -1            -1

storage-updatemgr.mount          -1        -1        -1        -1       -1        -1            -1

sys-kernel-debug.mount           -1        -1        -1        -1       -1        -1            -1

sysstat                          -1         0         0         0        0         0 8796093022207

system-getty.slice               -1        -1        -1        -1       -1        -1            -1

system-lvm2\x2dpvscan.slice        -1        -1        -1        -1       -1        -1            -1

system-systemd\x2dfsck.slice        -1        -1        -1        -1       -1        -1            -1

systemd-fsck-root                -1         0         0         0        0         0 8796093022207

systemd-journal-flush            -1         0         0         0        0         0 8796093022207

systemd-journald                 -1        83        15         0       14        10 8796093022207

systemd-logind                   -1         1         0         0        0         0 8796093022207

systemd-networkd                 -1         1         0         0        0         0 8796093022207

systemd-networkd-wait-online        -1         0         0         0        0         0 8796093022207

systemd-random-seed              -1         0         0         0        0         0 8796093022207

systemd-remount-fs               -1         0         0         0        0         0 8796093022207

systemd-resolved                 -1         0         0         0        0         0 8796093022207

systemd-sysctl                   -1         0         0         0        0         0 8796093022207

systemd-tmpfiles-setup           -1         0         0         0        0         0 8796093022207

systemd-tmpfiles-setup-dev        -1         0         0         0        0         0 8796093022207

systemd-udev-trigger             -1         0         0         0        0         0 8796093022207

systemd-udevd                    -1       112         0         0        0         0 8796093022207

systemd-update-utmp              -1         0         0         0        0         0 8796093022207

systemd-user-sessions            -1         0         0         0        0         0 8796093022207

systemd-vconsole-setup           -1         0         0         0        0         0 8796093022207

tmp.mount                        -1        -1        -1        -1       -1        -1            -1

updatemgr                        -1       430        33        30        3         2 8796093022207

vami-lighttp                     -1      1185         1         1        0         0 8796093022207

vaos                             -1         0         0         0        0         0 8796093022207

vapi-endpoint                    -1       485       231       230        1         0 8796093022207

vgauthd                          -1         9         1         0        1         1 8796093022207

vmafdd                           66         0         0         0        0         0 8796093022207

vmonapi                          15        24         3         1        2         2 8796093022207

vmtoolsd                         -1         9         1         0        0         0 8796093022207

vmware-firewall                  -1         0         0         0        0         0 8796093022207

vmware-vmon                       5       124        18         1       16         1 8796093022207

vmware-vpostgres               3956      9858       687       206      480       435 8796093022207

vpxd                             -1     42752     40897     40865       31        25 8796093022207

vpxd-svcs                        -1       839       135       134        1         0 8796093022207

vsan-health                      -1       446        14        12        1         1 8796093022207

vsm                              -1       334        33        33        0         0 8796093022207

vsphere-client                 2338      1988       675       673        1         0 8796093022207

vsphere-ui                     2338      1753        28        28        0         0 8796093022207

xinetd                           -1         0         0         0        0         0 8796093022207

TOTAL(RAM=44262MB)             9076     87032     86837     42770      577       465 8796093022207

Your recommendation?

Thanks!

[Rohitsa]

Apologies for delayed response

From the above  output I have few interesting observations

1) TOTAL(RAM=44262MB) 9076 87032 86837 42770 577 465 8796093022207

What is interesting here is , though you have alloated 44262, approx 44GB ram here, Allocation is for only 9076 MB, and rest are not getting allocated dynamically

Generally when you increase ram or what ever ram you using should be dynamically allocated among various processes

2) your postgressql is not behaving properly, as you can see Dynamic allocation for it is 3956, but it is already touching approx 10Gb , and it is creating a lot of

vmware-vpostgres 3956 9858 687 206 480 435

3) your linux kernel and vpxd is also taking out all juice of your environment, first they are not getting any memory dynamically allocated but are taking out

LinuxKernel -1 43517 43426 0 14 2 8796093022207

vpxd -1 42752 40897 40865 31 25 8796093022207

If i were you, I would do the following steps

1) follow the vcenter best practice document, for postgres and other services, there are some very good recomendations like increase initial thread pool for vpxd, putting log and some other disks on seperate luns etc

2) I will try to create a seperate vCenter VM as per recomendations and migrate to the new vCenter( basically you need to do advanced vCSA deployment)

2) I will try to add another vCenter vm, to existing PSC  to load balance the load on one vCenter VM or if PSC is also cramped i Will do 2vcenter 2 psc load balanced configuration as i am not currently aware of kind of I/O or size of your environment

[thomasross]

Thanks !

I think this points me in the right direction.

Do you have a good link for configuring the memory for vcsa 6.5 ? other than the different sizes.

Thanks again ,

Tom

[wreedps]

Did you ever get this resolved?
