vCenter Server: KMS option not available

[andisuti]

hello everyone,

currently I am trying to set up vSphere VM encryption. I have a working KMS server as well as a working vCenter Server(from my point of view). Now I would like to connect the vCenter Server to the KMS Server, but there is one small problem: the option "Key Management Servers" is not available.

I tried following the configuration guide:

1. Log in to the vCenter Server with the vSphere Web Client and select the vCenter Server in the inventory list.
2. Click Configure and click Key Management Servers.

On my System there is no such thing as Key Management Servers below the Configure Tab.

Does anybody know what I have to do?

kind regards

Andreas

[SupreetK]

1) Version and build number of the vCenter?

2) Are you logged in using the SSO admin account?

3) Are you able to see the 'Storage Providers' option under the Configure tab?

4) Are you using the Flash client or the HTML5 client?

5) If possible, share a screenshot from the Configure tab.

Cheers,

Supreet

[andisuti]

1) Version 6.5.0 Build 8815520

2) Yes, I am using the administrator account

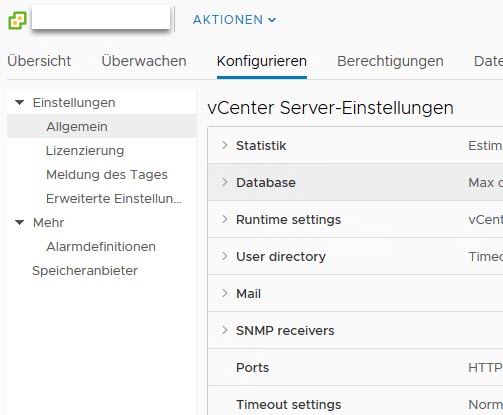

3) Yes I do, as you can see in the Screenshot below (Sorry, that everything is german. "Storage Providers" would be "Speicheranbieter")

4) I am using the HTML5 client

5)

[Vijay2027]

HTML5 does not have full functionality yet. Use Flex client to configure KMS Server.

[andisuti]

Thanks for your help, now I am seeing the option

kind regards

Andreas

[SupreetK]

With 6.7, the KMS option is available in the HTML5 client as well. That is the reason I asked you for the vCenter version and what client are you using :smileyhappy:

Cheers,

Supreet

[andisuti]

Ok, thats nice to know.

Thanks for your help

kind regards

Andreas

[Vijay2027]

Please use Flex client to configure KMS server.

Click on vCenter and navigate to Configure option. Make sure you are using vCenter 6.5 or later versions.
