Hi guys
in desperate need of some help here.
i am running VCenter 6.5 and SRM 6.5. I am using IBM storewise v5030 Storage.
i am in the process of completing the installation of SRM but i am stuck on creating and pairing my Array Managers.
Site Pairing- good
SRA Status- good
im using IBMSVCSRA 3.3.1 from the vmware site and configured as described in the documentation and different forums. (Yes, including the tricky test MDisk Group ID).

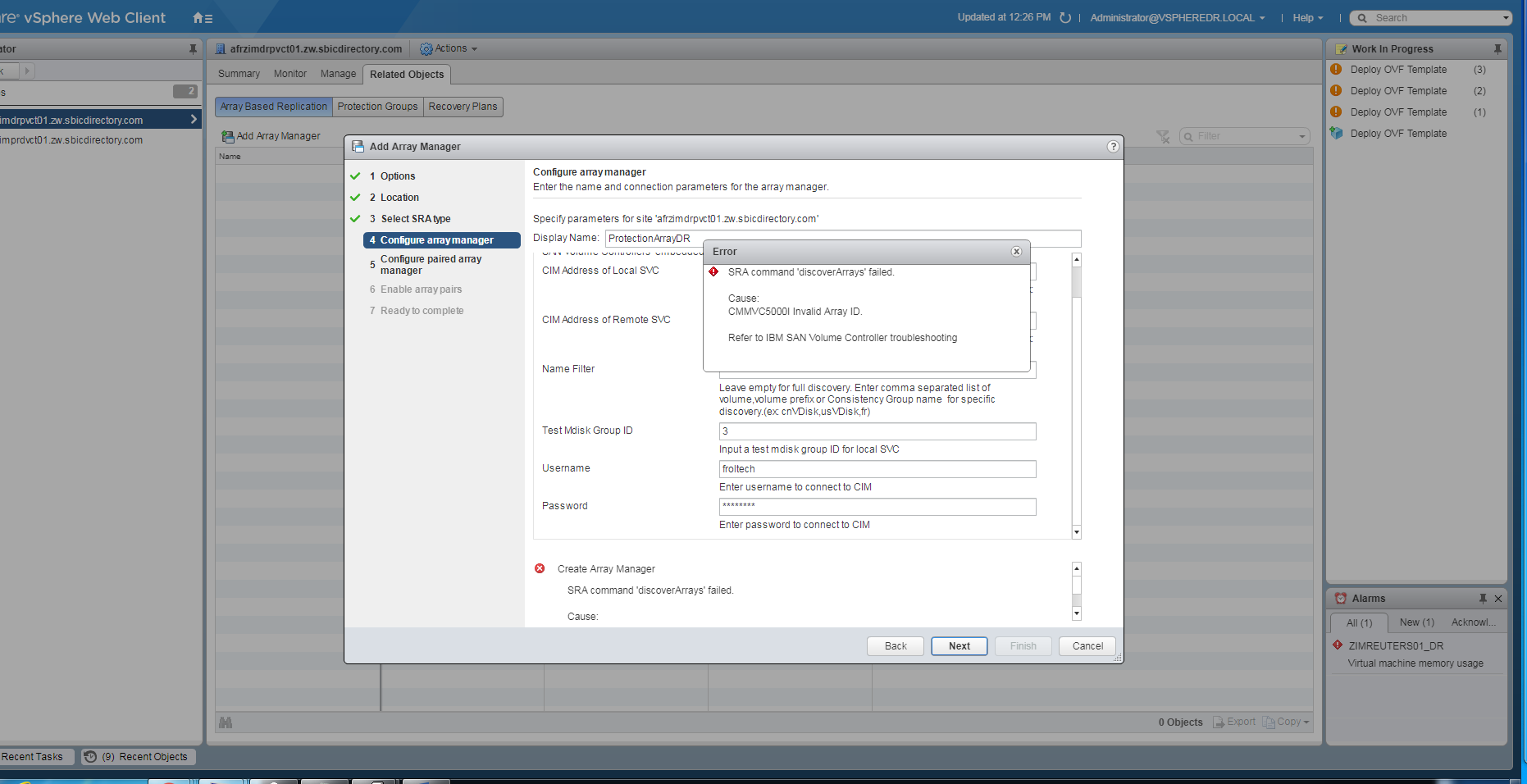

The next step is to Add Array Manager. This is where I cannot get past. I select the option to “Add a pair of array managers”. When I reach the Configure Array Manager portion of the wizard. For the CIM Address of Primary SVC. I fill in the necessary and get the below error:
"Unable to add array manager.
SRA command 'discoverArrays' failed. Invalid Array ID.
Refer to IBM SAN Volume Controller troubleshooting.”
i have used the following links with no luck what so ever:
VMware SRM and IBM Storwize SRA Issues - Spiceworks
Re: IBM V7000 SRA command 'discoverArrays' failed. Invalid Array ID. Refer to IBM SAN Volume Controller troubleshooting
VMware SRM and IBM Storwize SRA Issues
I Really dont know where im going wrong
