Unable to generate new SID

[Markus_VMware]

Hello Folks,

I have wrinkle. I would like to create Windows 10 Pro with different SID. As far as I know I have to create file within "VM Customization Specification". I have performed 3 option:

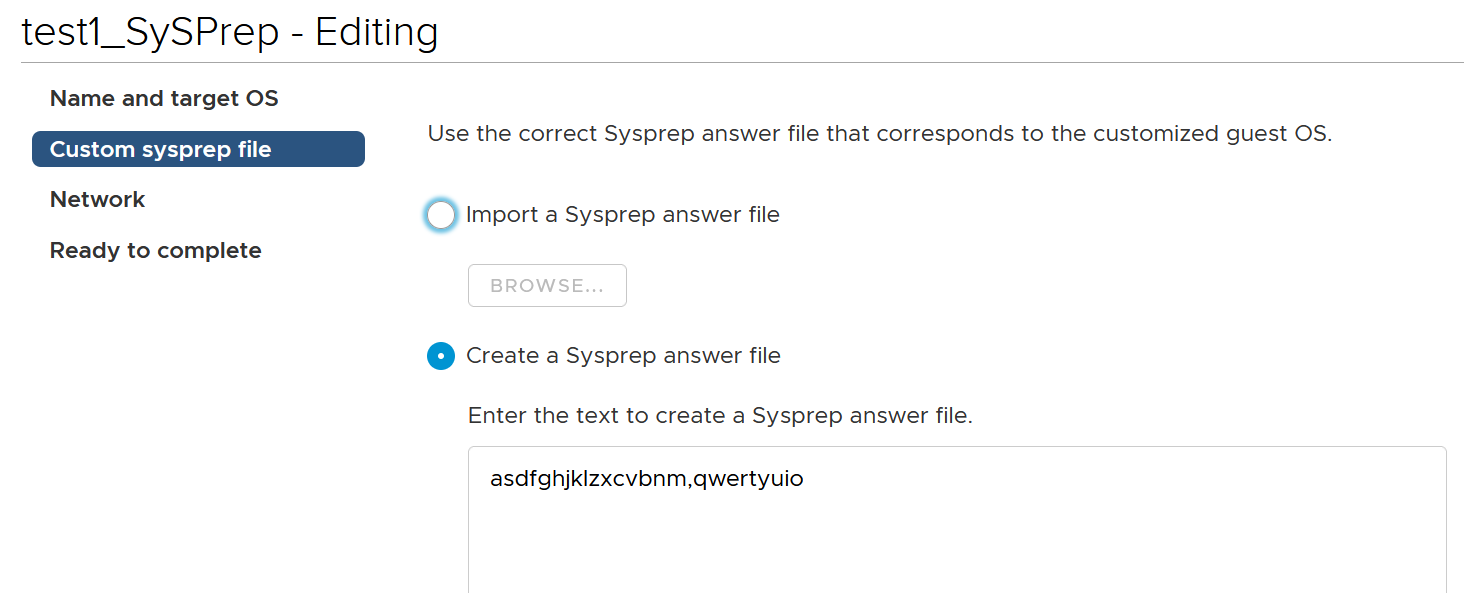

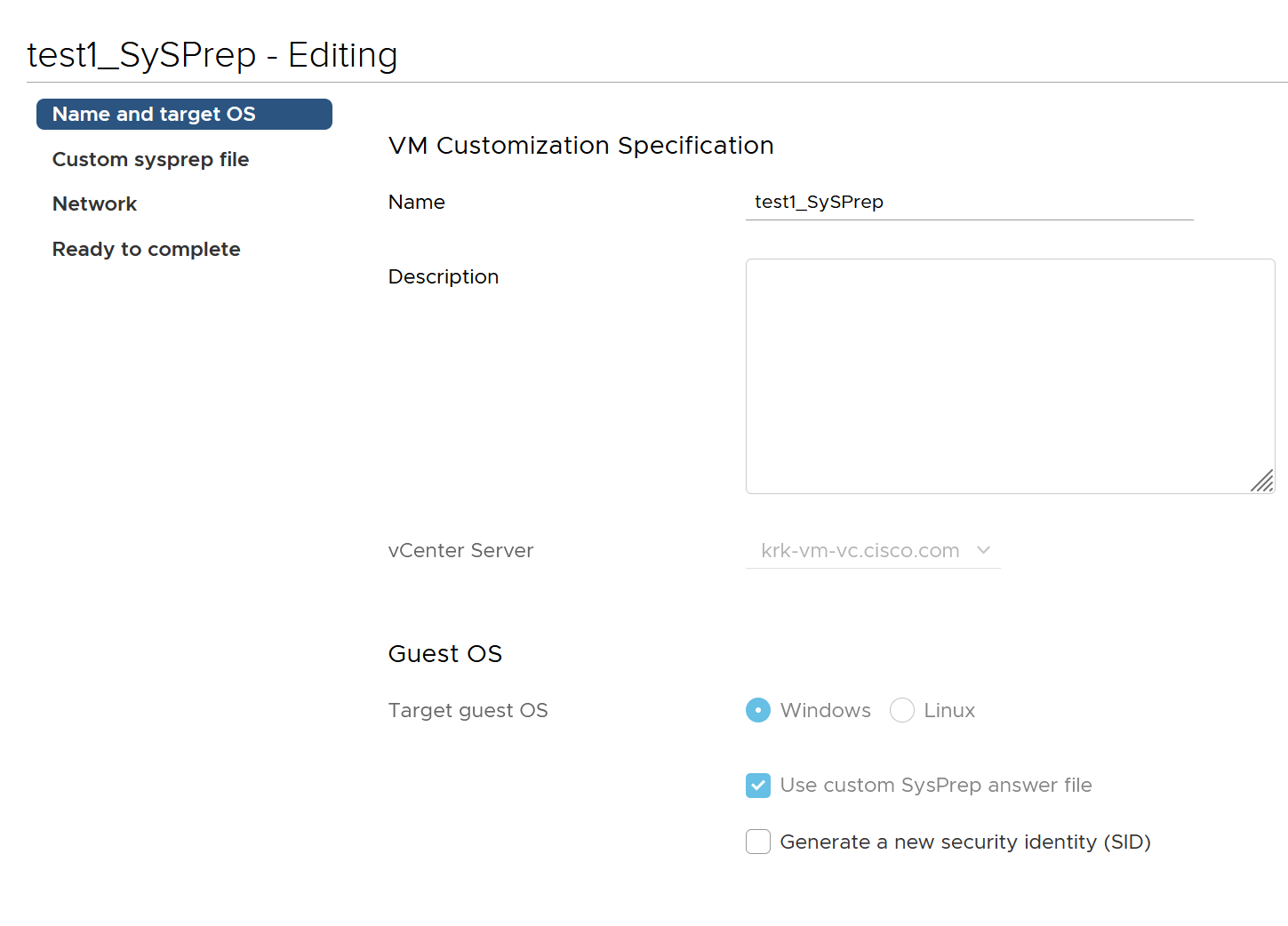

1. Use Custom SysPrep answer file

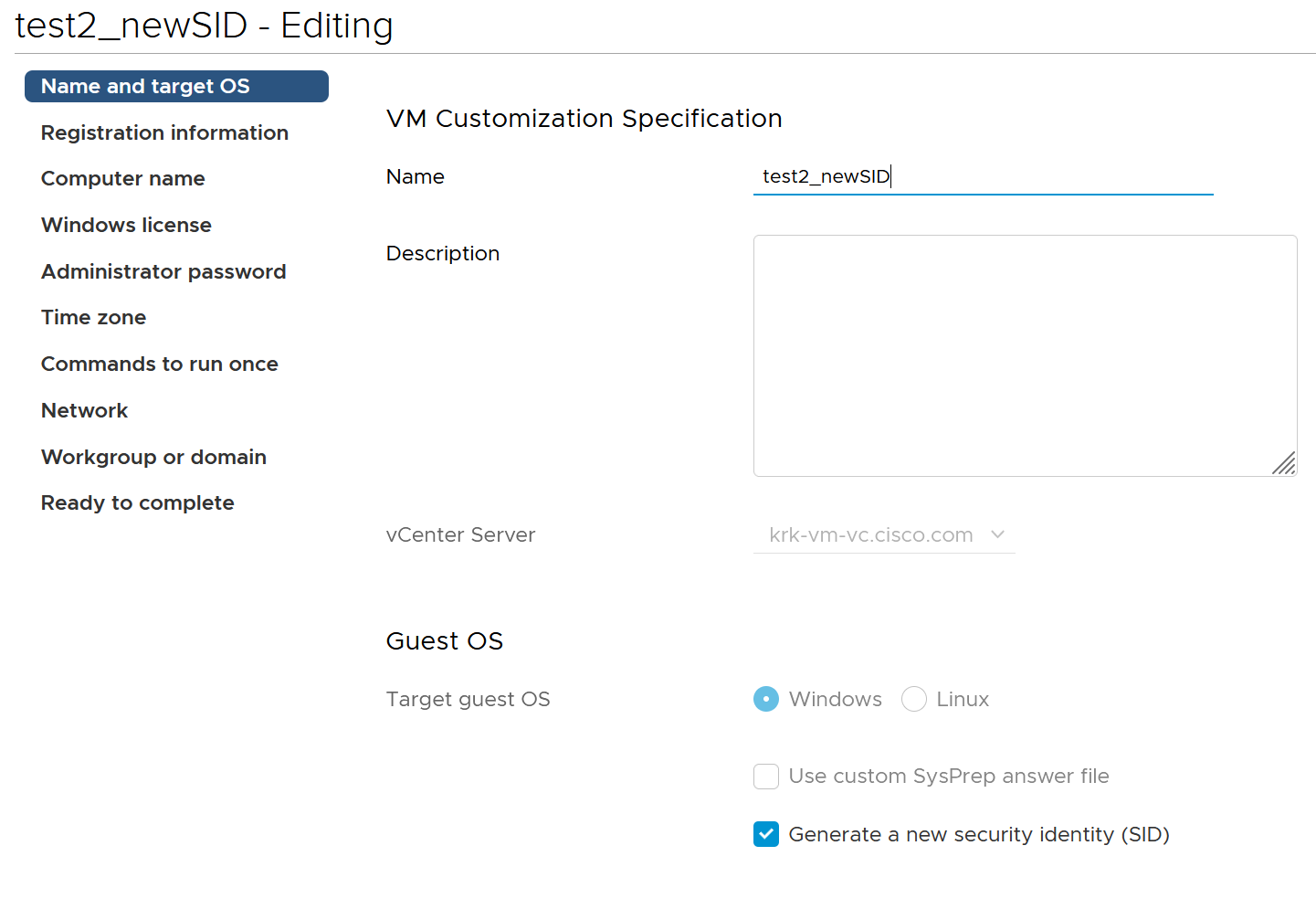

2. Generate a new security identity (SID)

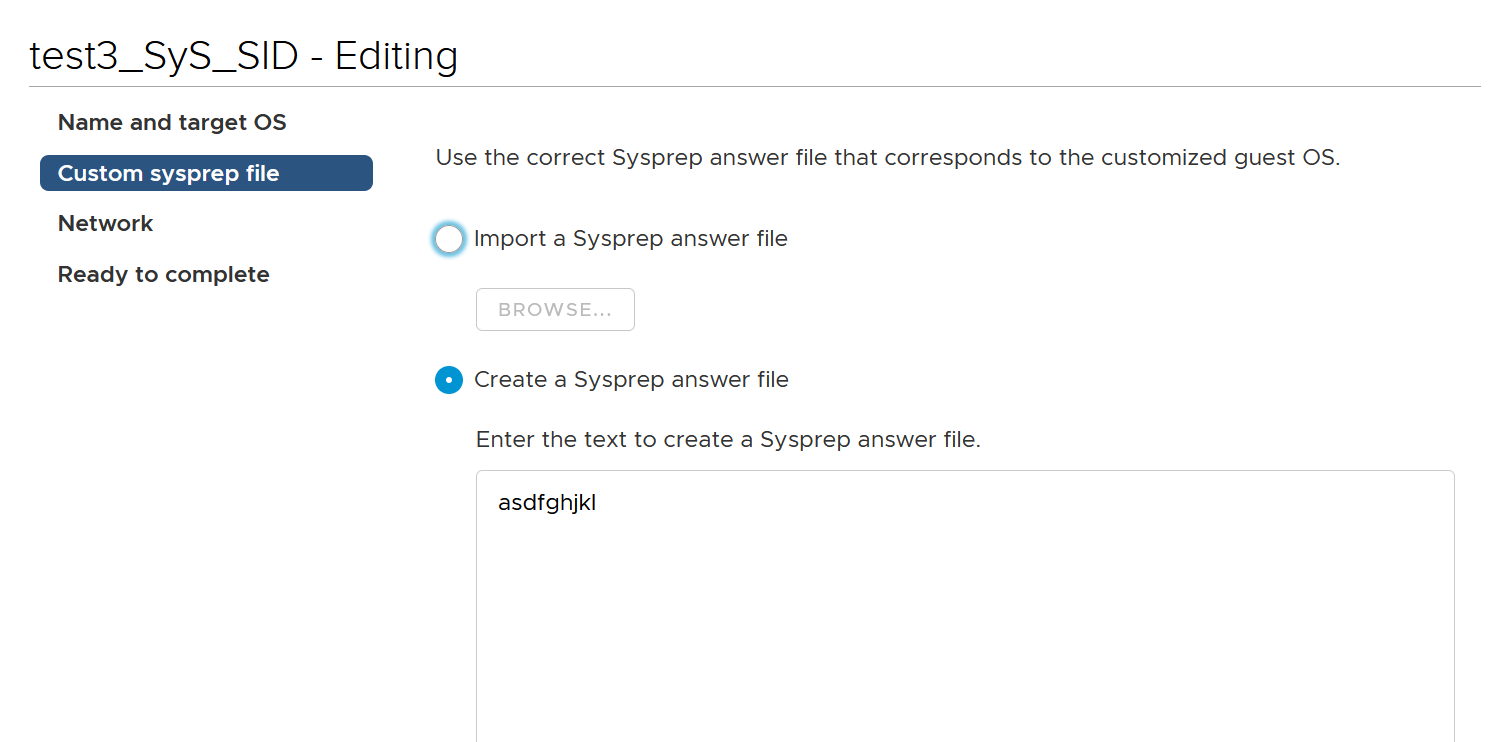

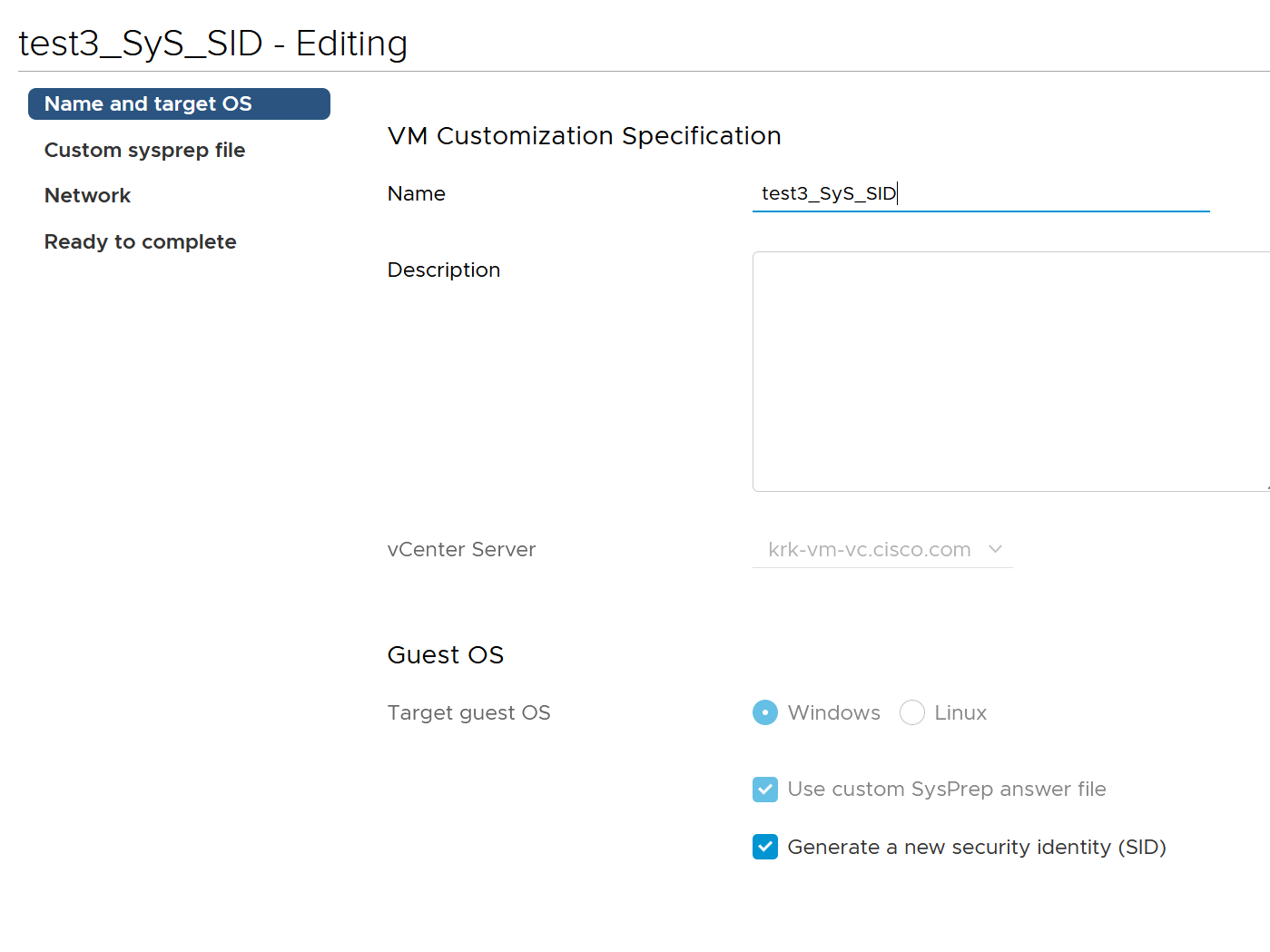

3. Both 1 option and 2 simultaneously



Unfortunately I got on my 3 test Windows machine the same SID.



I created from template using 3 different option but still nothing. Even name of PC should have append numeric value does not work. All 3 machines have the name of computer.

My Virtual Machine does not belong to domain but i think it does not matter. They should have different SID after using customization specification using either SysPrep or Generate new SID

Best Regards,

Markus

[Markus_VMware]

Any updates FOLKS

[EdwardlJaquay]

Exact same problem

[GeoPerkins]

Microsoft limits cloning to 3. You must use Microsoft SYSPREP for the 4th clone. This might be your problem.  Here is a procedure:



Introduction:

• When you clone an existing VM (and want to create an entirely new VM) using the VMware wizard option to run SYSPREP and generate a new SID will likely fail without any warning or errors generated. You get a new machine but it still has the same SID.  :^(



How-To Fix:



Disable network adapter



Restart VM. After a restart (Note: VMware may attempt sysprep and this takes a restart to complete and fail, so wait)

Rename computer and add to a workgroup, restart VM again.



Elevated CMD prompt reset MSDTC

     C:\Windows\System32\msdtc -uninstall

     C:\Windows\System32\msdtc -install



Deactivate and set for activation:

     REGEDIT HKLM\Software\Microsoft\Windows NT\CurrentVersion\SoftwareProtectionPlatform\SkipRearm to 1

     REGEDIT HKLM\SYSTEM\Setup\Status\SysprepStatus, change DWORD value of CleanupState to 2

     REGEDIT HKLM\SYSTEM\Setup\Status\SysprepStatus, change DWORD value of GeneralizationState to 7

     Use the volume license generic KMS client key to reset activation to “not activated” (see https://learn.microsoft.com/en-us/windows-server/get-started/kms-client-activation-keys for the generic KMS client setup keys)

     Elevated command prompt (for example, Win2012R2 generalized activation key):

          C:\Windows\System32\cscript.exe slmgr.vbs /ipk d2n9p-3p6x9-2r39c-7rtcd-mdvjx



Run SYSPREP in elevated CMD prompt:

     C:\Windows\System32\Sysprep\sysprep.exe /generalize /oobe /reboot



Bonus: Do it all again if you get error "Fatal error occurred while trying to sysprep the machine." This could be required because Microsoft allows an activated image to be cloned only 3 times. Running through the procedure twice seems to fix matters. D'oh!  :^/



Sysprep will restart and then prompt for initial values

Restart

Enable network adapter, rename computer and add to domain, restart

Move the computer object from the Computers OU to the appropriate OU, allow AD to replicate this move

Run elevated GPUPDATE /FORCE





Documentation:

• VMware is aware of the sysprep newSID limitation: https://kb.vmware.com/s/article/2014140





Display SID of a computer:

• Download SysInternals PsGetsid tool.

• Execute PsGetsid64.exe (you may target a remote computer or run locally)





List Duplicate SIDs of all computers:

• https://www.infrastructureheroes.org/microsoft-infrastructure/microsoft-windows/the-windows-sid-and-an-old-problem/
• https://learn.microsoft.com/en-us/sysinternals/downloads/psgetsid
• https://github.com/InfrastructureHeroes/Scipts/blob/master/Get-WindowsSid.ps1
