Unable to activate HDD Passthrough on HPE Proliant Microserver gen10+ v2

[waazdakka]

Hello,

I just received a HPE Proliant Microserver Gen10+ v2, and added a QM2-2P10G1TB QNAP PCIe card (2 NVMe SSD + 10Gb) to the server.

ESXI Hypervisor has been successfully installed on the NVMe disk (I just have installed one on the PCIe card for now), and have 4 disks on the SATA ports of the server.

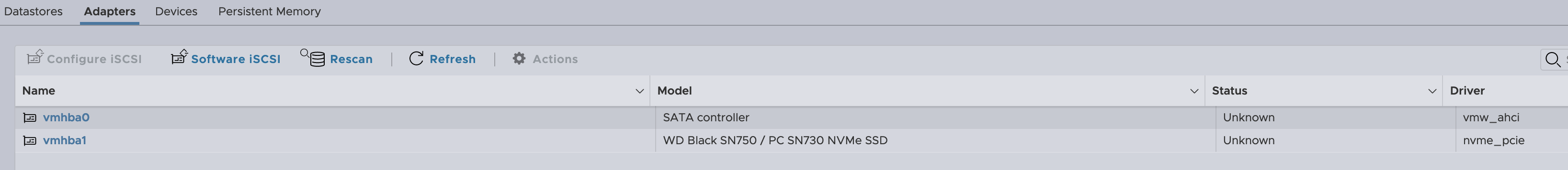

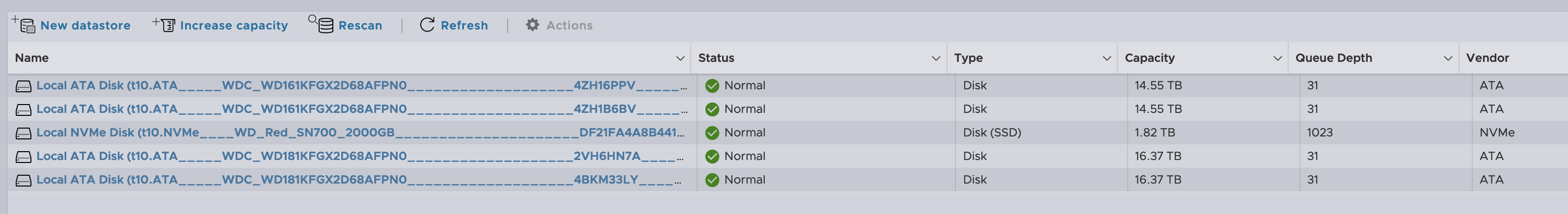

I can see the 4 SATA disks, but I'm not able to do anything with them and add them to a VM.

Since I want the 4 disks in passthrough mode, I followed these instructions to allow the SATA controller to be recognized: https://www.programmersought.com/article/53224542504/

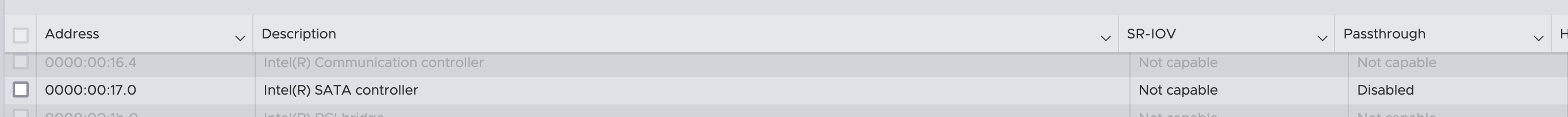

The controller shows well in black writing, but when I activate the passthrough, I get an error

And if I reboot my host, the 4 SATA disks.. disappear.

Did I miss something in the BIOS settings? Does the NVMe card cause all my problems?
I found a guy who may have the same issue, but not sure of where to go next... (Since I don't have any IOMMU option in my bios settings)
https://www.reddit.com/r/unRAID/comments/n8fk1f/hp_microserver_gen10_enabling_iommu_no_harddrives/?utm_source=embedv2&utm_medium=post_embed&utm_content=post_title&embed_host_url=https://xpenology.com/forum/index.php

Thanks for your help!

[DanRobinsonHPE]

1) Did you turn off the SW RAID in the BIOS of the machine, set the SATA to AHCI mode?

2) Post the results of the first command mentioned in the blog post.
lspci -v | grep "Class 0106" -B 1

[waazdakka]

Hello,

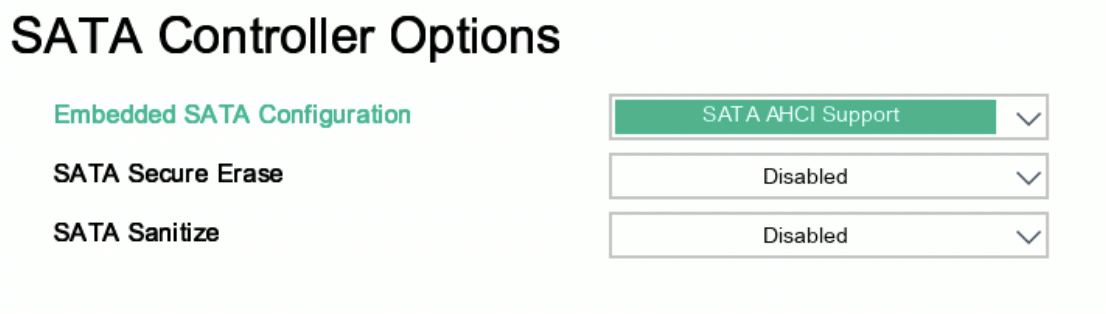

Here is my SATA controller options

 And the results of lspci -v | grep "Class 0106" -B 1 gives me:

0000:00:17.0 Mass storage controller SATA controller: Intel Corporation Device 43d2
	 Class 0106: 8086:43d2

[DanRobinsonHPE]

So in your map file did you do

8086 8d02

or

8086 43d2

Map file should match the output so it should be the 43d2 one.





AHCI = Good

[waazdakka]

Here is what I put on the passtrhu.map file:

# Intel Corporation Device 43d2
8086  43d2  d3d0     false

Then I reboot the server, I when I try to activate the passthrough, I got the error I put on the first post...
