The token authority rejected an issue request for TimePeriod

[Celso_Finti]

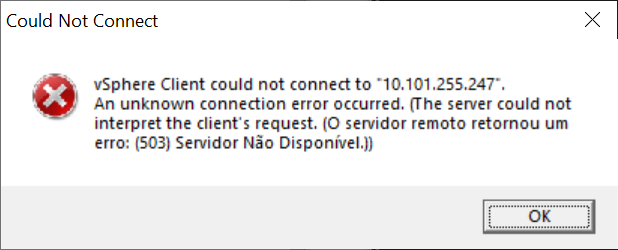

When I try to login on my vCenter Server Appliance 6.0.0 with VMWare vSphere Client I am getting this error:

I have space:

Filesystem                            Size  Used Avail Use% Mounted on
/dev/sda3                              11G  5.7G  4.6G  56% /
udev                                  4.0G  164K  4.0G   1% /dev
tmpfs                                 4.0G   84K  4.0G   1% /dev/shm
/dev/sda1                             128M   38M   84M  31% /boot
/dev/mapper/core_vg-core               27G  277M   25G   2% /storage/core
/dev/mapper/log_vg-log                 40G  9.3G   29G  25% /storage/log
/dev/mapper/db_vg-db                   16G  1.1G   14G   7% /storage/db
/dev/mapper/dblog_vg-dblog             22G  847M   20G   5% /storage/dblog
/dev/mapper/seat_vg-seat               18G  777M   17G   5% /storage/seat
/dev/mapper/netdump_vg-netdump        2.0G   18M  1.9G   1% /storage/netdump
/dev/mapper/autodeploy_vg-autodeploy   17G  170M   16G   2% /storage/autodeploy
/dev/mapper/invsvc_vg-invsvc          8.9G  185M  8.3G   3% /storage/invsvc



The problem looks like to be an expired cert:

/var/log/vmware/sso/vmware-identity-sts.log

        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.validateSigningCert(TokenLifetimeRemediator.java:92)
        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.remediateTokenValidity(TokenLifetimeRemediator.java:66)
        at com.vmware.identity.saml.impl.TokenAuthorityImpl.issueToken(TokenAuthorityImpl.java:191)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:48)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.performanceSupport.PerformanceDecorator.exec(PerformanceDecorator.java:36)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator.issueToken(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.sts.impl.STSImpl.issueToken(STSImpl.java:342)
        ... 48 more
[2023-02-13T12:01:36.047Z tomcat-http--27 vsphere.local        0fc7d54d-516e-41b9-8cb4-e3ee88766677 INFO  com.vmware.identity.sts.ws.SOAPFaultHandler] Returning a SOAP Fault with code: ns0:InvalidTimeRange and description: The token authority rejected an issue request for TimePeriod [startTime=Mon Feb 13 12:01:36 UTC 2023, endTime=Tue Feb 14 12:01:36 UTC 2023] :: Signing certificate is not valid at Mon Feb 13 12:01:36 UTC 2023, cert validity: TimePeriod [startTime=Wed Dec 12 16:59:36 UTC 2012, endTime=Sun Dec 11 16:59:36 UTC 2022]



This certs looks OK:

for store in $(/usr/lib/vmware-vmafd/bin/vecs-cli store list | grep -v TRUSTED_ROOT_CRLS); do echo "[*] Store :" $store; /usr/lib/vmware-vmafd/bin/vecs-cli entry list --store $store --text | grep -ie "Alias" -ie "Not After";done;

[*] Store : MACHINE_SSL_CERT
Alias : __MACHINE_CERT
            Not After : Mar 31 17:13:39 2024 GMT
[*] Store : TRUSTED_ROOTS
Alias : 3c05e1fd963e4fb30f87618ebcd549bc03c6216a
            Not After : Mar  7 12:49:07 2025 GMT
Alias : d13256cbcbbee2d364c1d53eaf377b225d130ce5
            Not After : Mar 31 17:13:39 2024 GMT
[*] Store : machine
Alias : machine
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vpxd
Alias : vpxd
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vpxd-extension
Alias : vpxd-extension
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vsphere-webclient
Alias : vsphere-webclient
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : SMS
Alias : sms_self_signed
            Not After : Dec 13 17:05:18 2022 GMT





I didn't find a proper KB for my version, but I followed this one:
https://kb.vmware.com/s/article/76719

Every thing looks fine till this point:

./fixsts.sh

NOTE: This works on external and embedded PSCs
This script will do the following
1: Regenerate STS certificate
What is needed?
1: Offline snapshots of VCs/PSCs
2: SSO Admin Password
IMPORTANT: This script should only be run on a single PSC per SSO domain
==================================
Resetting STS certificate for vcenter55 started on Mon Feb 13 12:30:48 UTC 2023


Detected DN: cn=vcenter55,ou=Domain Controllers,dc=vsphere,dc=local
Detected PNID: vcenter55
Detected PSC: vcenter55
Detected SSO domain name: vsphere.local
Detected Machine ID: 06887578-2176-4dec-a243-127ebd2fd6af
Detected IP Address: 10.101.255.247
Domain CN: dc=vsphere,dc=local
./fixsts.sh: line 55: administrator@${DOMAIN^^}: bad substitution
==================================
==================================

Detected Root's certificate expiration date: 2025 Mar 7
Detected today's date: 2023 Feb 13
==================================

Exporting and generating STS certificate

Status : Success
Using config file : /tmp/vmware-fixsts/certool.cfg
Status : Success


Enter password for [e-mail]:
Amount of tenant credentials:

Amount of trustedcertchains:


Applying newly generated STS certificate to SSO domain
ldap_add: No such object (32)
        additional info: parent (cn=TrustedCertificateChains,cn=vsphere.local,cn=Tenants,cn=IdentityManager,cn=Services,dc=vsphere,dc=local) not found, ((MDB_NOTFOUND: No matching key/data pair found)(cn=trustedcertificatechains,cn=vsphere.local,cn=tenants,cn=identitymanager,cn=services,dc=vsphere,dc=local))
adding new entry "cn=TenantCredential-1,cn=vsphere.local,cn=Tenants,cn=IdentityManager,cn=Services,dc=vsphere,dc=local"

adding new entry "cn=TrustedCertChain-1,cn=TrustedCertificateChains,cn=vsphere.local,cn=Tenants,cn=IdentityManager,cn=Services,dc=vsphere,dc=local"


Replacement finished - Please restart services on all vCenters and PSCs in your SSO domain
==================================
IMPORTANT: In case you're using HLM (Hybrid Linked Mode) without a gateway, you would need to re-sync the certs from Cloud to On-Prem after following this procedure
==================================
==================================



I dint't have problem on this command:

service-control --stop --all

But when I do start...

service-control --start --all

I get this error:

INFO:root:Service: vmafdd, Action: start
Service: vmafdd, Action: start
2023-02-13T12:34:57.560Z   Running command: ['/sbin/chkconfig', u'vmafdd']
2023-02-13T12:34:57.599Z   Done running command
2023-02-13T12:34:57.599Z   Running command: ['/sbin/service', u'vmafdd', 'status']
2023-02-13T12:34:57.616Z   Done running command
2023-02-13T12:34:57.616Z   Running command: ['/sbin/chkconfig', '--force', u'vmafdd', 'on']
2023-02-13T12:34:57.652Z   Done running command
2023-02-13T12:34:57.652Z   Running command: ['/sbin/service', u'vmafdd', 'start']
2023-02-13T12:34:57.699Z   Done running command
2023-02-13T12:34:57.699Z   Successfully started service vmafdd
INFO:root:Service: vmware-rhttpproxy, Action: start
Service: vmware-rhttpproxy, Action: start
2023-02-13T12:34:57.700Z   Running command: ['/sbin/chkconfig', u'vmware-rhttpproxy']
2023-02-13T12:34:57.737Z   Done running command
2023-02-13T12:34:57.737Z   Running command: ['/sbin/service', u'vmware-rhttpproxy', 'status']
2023-02-13T12:34:57.812Z   Done running command
2023-02-13T12:34:57.812Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-rhttpproxy', 'on']
2023-02-13T12:34:57.847Z   Done running command
2023-02-13T12:34:57.847Z   Running command: ['/sbin/service', u'vmware-rhttpproxy', 'start']
2023-02-13T12:34:57.871Z   Done running command
2023-02-13T12:34:57.871Z   Successfully started service vmware-rhttpproxy
INFO:root:Service: vmdird, Action: start
Service: vmdird, Action: start
2023-02-13T12:34:57.872Z   Running command: ['/sbin/chkconfig', u'vmdird']
2023-02-13T12:34:57.907Z   Done running command
2023-02-13T12:34:57.907Z   Running command: ['/sbin/service', u'vmdird', 'status']
2023-02-13T12:34:57.925Z   Done running command
2023-02-13T12:34:57.925Z   Running command: ['/sbin/chkconfig', '--force', u'vmdird', 'on']
2023-02-13T12:34:57.960Z   Done running command
2023-02-13T12:34:57.960Z   Running command: ['/sbin/service', u'vmdird', 'start']
2023-02-13T12:34:59.126Z   Done running command
2023-02-13T12:34:59.126Z   Successfully started service vmdird
INFO:root:Service: vmcad, Action: start
Service: vmcad, Action: start
2023-02-13T12:34:59.127Z   Running command: ['/sbin/chkconfig', u'vmcad']
2023-02-13T12:34:59.164Z   Done running command
2023-02-13T12:34:59.164Z   Running command: ['/sbin/service', u'vmcad', 'status']
2023-02-13T12:34:59.179Z   Done running command
2023-02-13T12:34:59.180Z   Running command: ['/sbin/chkconfig', '--force', u'vmcad', 'on']
2023-02-13T12:34:59.217Z   Done running command
2023-02-13T12:34:59.217Z   Running command: ['/sbin/service', u'vmcad', 'start']
2023-02-13T12:35:00.259Z   Done running command
2023-02-13T12:35:00.259Z   Successfully started service vmcad
INFO:root:Service: vmware-sts-idmd, Action: start
Service: vmware-sts-idmd, Action: start
2023-02-13T12:35:00.260Z   Running command: ['/sbin/chkconfig', u'vmware-sts-idmd']
2023-02-13T12:35:00.295Z   Done running command
2023-02-13T12:35:00.295Z   Running command: ['/sbin/service', u'vmware-sts-idmd', 'status']
2023-02-13T12:35:00.307Z   Done running command
2023-02-13T12:35:00.307Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-sts-idmd', 'on']
2023-02-13T12:35:00.344Z   Done running command
2023-02-13T12:35:00.344Z   Running command: ['/sbin/service', u'vmware-sts-idmd', 'start']
2023-02-13T12:35:00.423Z   Done running command
2023-02-13T12:35:00.423Z   Successfully started service vmware-sts-idmd
INFO:root:Service: vmware-stsd, Action: start
Service: vmware-stsd, Action: start
2023-02-13T12:35:00.424Z   Running command: ['/sbin/chkconfig', u'vmware-stsd']
2023-02-13T12:35:00.462Z   Done running command
2023-02-13T12:35:00.462Z   Running command: ['/sbin/service', u'vmware-stsd', 'status']
2023-02-13T12:35:00.488Z   Done running command
2023-02-13T12:35:00.488Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-stsd', 'on']
2023-02-13T12:35:00.545Z   Done running command
2023-02-13T12:35:00.545Z   Running command: ['/sbin/service', u'vmware-stsd', 'start']
2023-02-13T12:35:05.223Z   Done running command
2023-02-13T12:35:05.223Z   Successfully started service vmware-stsd
INFO:root:Service: vmware-cm, Action: start
Service: vmware-cm, Action: start
2023-02-13T12:35:05.224Z   Running command: ['/sbin/chkconfig', u'vmware-cm']
2023-02-13T12:35:05.262Z   Done running command
2023-02-13T12:35:05.262Z   Running command: ['/sbin/service', u'vmware-cm', 'status']
2023-02-13T12:35:05.374Z   Done running command
2023-02-13T12:35:05.374Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-cm', 'on']
2023-02-13T12:35:05.412Z   Done running command
2023-02-13T12:35:05.412Z   Running command: ['/sbin/service', u'vmware-cm', 'start']
2023-02-13T12:35:22.263Z   Done running command
2023-02-13T12:35:22.264Z   Successfully started service vmware-cm
INFO:root:Service: vmware-cis-license, Action: start
Service: vmware-cis-license, Action: start
2023-02-13T12:35:22.264Z   Running command: ['/sbin/chkconfig', u'vmware-cis-license']
2023-02-13T12:35:22.301Z   Done running command
2023-02-13T12:35:22.301Z   Running command: ['/sbin/service', u'vmware-cis-license', 'status']
2023-02-13T12:35:22.403Z   Done running command
2023-02-13T12:35:22.403Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-cis-license', 'on']
2023-02-13T12:35:22.439Z   Done running command
2023-02-13T12:35:22.439Z   Running command: ['/sbin/service', u'vmware-cis-license', 'start']
2023-02-13T12:35:27.099Z   Done running command
2023-02-13T12:35:27.099Z   Successfully started service vmware-cis-license
INFO:root:Service: vmware-sca, Action: start
Service: vmware-sca, Action: start
2023-02-13T12:35:27.100Z   Running command: ['/sbin/chkconfig', u'vmware-sca']
2023-02-13T12:35:27.136Z   Done running command
2023-02-13T12:35:27.136Z   Running command: ['/sbin/service', u'vmware-sca', 'status']
2023-02-13T12:35:27.237Z   Done running command
2023-02-13T12:35:27.237Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-sca', 'on']
2023-02-13T12:35:27.274Z   Done running command
2023-02-13T12:35:27.275Z   Running command: ['/sbin/service', u'vmware-sca', 'start']
2023-02-13T12:35:31.930Z   Done running command
2023-02-13T12:35:31.930Z   Successfully started service vmware-sca
INFO:root:Service: applmgmt, Action: start
Service: applmgmt, Action: start
2023-02-13T12:35:31.931Z   Running command: ['/sbin/chkconfig', u'applmgmt']
2023-02-13T12:35:31.969Z   Done running command
2023-02-13T12:35:31.969Z   Running command: ['/sbin/service', u'applmgmt', 'status']
2023-02-13T12:35:32.017Z   Done running command
2023-02-13T12:35:32.017Z   Running command: ['/sbin/chkconfig', '--force', u'applmgmt', 'on']
2023-02-13T12:35:32.053Z   Done running command
2023-02-13T12:35:32.053Z   Running command: ['/sbin/service', u'applmgmt', 'start']
2023-02-13T12:35:32.273Z   Done running command
2023-02-13T12:35:32.273Z   Successfully started service applmgmt
INFO:root:Service: vmware-netdumper, Action: start
Service: vmware-netdumper, Action: start
2023-02-13T12:35:32.274Z   Running command: ['/sbin/chkconfig', u'vmware-netdumper']
2023-02-13T12:35:32.312Z   Done running command
'vmware-netdumper' startMode is Manual, skipping to start:
INFO:root:'vmware-netdumper' startMode is Manual, skipping to start:
INFO:root:Service: vmware-syslog, Action: start
Service: vmware-syslog, Action: start
2023-02-13T12:35:32.313Z   Running command: ['/sbin/chkconfig', u'vmware-syslog']
2023-02-13T12:35:32.351Z   Done running command
2023-02-13T12:35:32.351Z   Running command: ['/sbin/service', u'vmware-syslog', 'status']
2023-02-13T12:35:32.403Z   Done running command
2023-02-13T12:35:32.403Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-syslog', 'on']
2023-02-13T12:35:32.442Z   Done running command
2023-02-13T12:35:32.442Z   Running command: ['/sbin/service', u'vmware-syslog', 'start']
2023-02-13T12:35:35.339Z   Done running command
2023-02-13T12:35:35.339Z   Successfully started service vmware-syslog
INFO:root:Service: vmware-syslog-health, Action: start
Service: vmware-syslog-health, Action: start
2023-02-13T12:35:35.340Z   Running command: ['/sbin/chkconfig', u'vmware-syslog-health']
2023-02-13T12:35:35.376Z   Done running command
2023-02-13T12:35:35.376Z   Running command: ['/sbin/service', u'vmware-syslog-health', 'status']
2023-02-13T12:35:35.492Z   Done running command
2023-02-13T12:35:35.493Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-syslog-health', 'on']
2023-02-13T12:35:35.529Z   Done running command
2023-02-13T12:35:35.529Z   Running command: ['/sbin/service', u'vmware-syslog-health', 'start']
2023-02-13T12:35:37.186Z   Done running command
2023-02-13T12:35:37.186Z   Successfully started service vmware-syslog-health
INFO:root:Service: vmware-vapi-endpoint, Action: start
Service: vmware-vapi-endpoint, Action: start
2023-02-13T12:35:37.187Z   Running command: ['/sbin/chkconfig', u'vmware-vapi-endpoint']
2023-02-13T12:35:37.225Z   Done running command
2023-02-13T12:35:37.225Z   Running command: ['/sbin/service', u'vmware-vapi-endpoint', 'status']
2023-02-13T12:35:37.271Z   Done running command
2023-02-13T12:35:37.271Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-vapi-endpoint', 'on']
2023-02-13T12:35:37.306Z   Done running command
2023-02-13T12:35:37.306Z   Running command: ['/sbin/service', u'vmware-vapi-endpoint', 'start']
2023-02-13T12:35:41.118Z   Done running command
2023-02-13T12:35:41.118Z   Successfully started service vmware-vapi-endpoint
INFO:root:Service: vmware-vpostgres, Action: start
Service: vmware-vpostgres, Action: start
2023-02-13T12:35:41.119Z   Running command: ['/sbin/chkconfig', u'vmware-vpostgres']
2023-02-13T12:35:41.155Z   Done running command
2023-02-13T12:35:41.155Z   Running command: ['/sbin/service', u'vmware-vpostgres', 'status']
2023-02-13T12:35:41.241Z   Done running command
2023-02-13T12:35:41.241Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-vpostgres', 'on']
2023-02-13T12:35:41.278Z   Done running command
2023-02-13T12:35:41.278Z   Running command: ['/sbin/service', u'vmware-vpostgres', 'start']
2023-02-13T12:35:42.413Z   Done running command
2023-02-13T12:35:42.413Z   Successfully started service vmware-vpostgres
INFO:root:Service: vmware-invsvc, Action: start
Service: vmware-invsvc, Action: start
2023-02-13T12:35:42.414Z   Running command: ['/sbin/chkconfig', u'vmware-invsvc']
2023-02-13T12:35:42.456Z   Done running command
2023-02-13T12:35:42.456Z   Running command: ['/sbin/service', u'vmware-invsvc', 'status']
2023-02-13T12:35:42.558Z   Done running command
2023-02-13T12:35:42.558Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-invsvc', 'on']
2023-02-13T12:35:42.597Z   Done running command
2023-02-13T12:35:42.597Z   Running command: ['/sbin/service', u'vmware-invsvc', 'start']
2023-02-13T12:35:56.388Z   Done running command
2023-02-13T12:35:56.388Z   Successfully started service vmware-invsvc
INFO:root:Service: vmware-mbcs, Action: start
Service: vmware-mbcs, Action: start
2023-02-13T12:35:56.389Z   Running command: ['/sbin/chkconfig', u'vmware-mbcs']
2023-02-13T12:35:56.425Z   Done running command
'vmware-mbcs' startMode is Manual, skipping to start:
INFO:root:'vmware-mbcs' startMode is Manual, skipping to start:
INFO:root:Service: vmware-vpxd, Action: start
Service: vmware-vpxd, Action: start
2023-02-13T12:35:56.426Z   Running command: ['/sbin/chkconfig', u'vmware-vpxd']
2023-02-13T12:35:56.462Z   Done running command
2023-02-13T12:35:56.462Z   Running command: ['/sbin/service', u'vmware-vpxd', 'status']
2023-02-13T12:35:56.813Z   Done running command
2023-02-13T12:35:56.813Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-vpxd', 'on']
2023-02-13T12:35:56.847Z   Done running command
2023-02-13T12:35:56.847Z   Running command: ['/sbin/service', u'vmware-vpxd', 'start']
2023-02-13T12:42:19.467Z   Done running command
2023-02-13T12:42:19.467Z   Invoked command: ['/sbin/service', u'vmware-vpxd', 'start']
2023-02-13T12:42:19.467Z   RC = 1
Stdout = vmware-vpxd: VC SSL Certificate does not exist, it will be generated by vpxd
Waiting for the embedded database to start up: success
Executing pre-startup scripts...
vmware-vpxd: Starting vpxd by administrative request.
success
vmware-vpxd: Waiting for vpxd to start listening for requests on 8089
Waiting for vpxd to initialize: ......................................failed
failed
vmware-vpxd: vpxd failed to initialize in time.
vpxd is already starting up. Aborting the request.

Stderr =
2023-02-13T12:42:19.467Z   {
    "resolution": null,
    "detail": [
        {
            "args": [
                "Command: ['/sbin/service', u'vmware-vpxd', 'start']\nStderr: "
            ],
            "id": "install.ciscommon.command.errinvoke",
            "localized": "An error occurred while invoking external command : 'Command: ['/sbin/service', u'vmware-vpxd', 'start']\nStderr: '",
            "translatable": "An error occurred while invoking external command : '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}
ERROR:root:Unable to start service vmware-vpxd, Exception: {
    "resolution": null,
    "detail": [
        {
            "args": [
                "vmware-vpxd"
            ],
            "id": "install.ciscommon.service.failstart",
            "localized": "An error occurred while starting service 'vmware-vpxd'",
            "translatable": "An error occurred while starting service '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}
Unable to start service vmware-vpxd, Exception: {
    "resolution": null,
    "detail": [
        {
            "args": [
                "vmware-vpxd"
            ],
            "id": "install.ciscommon.service.failstart",
            "localized": "An error occurred while starting service 'vmware-vpxd'",
            "translatable": "An error occurred while starting service '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}



service-control --status --all

INFO:root:Service: vmafdd, Action: status
Service: vmafdd, Action: status
2023-02-13T12:45:28.047Z   Running command: ['/sbin/service', u'vmafdd', 'status']
2023-02-13T12:45:28.062Z   Done running command
INFO:root:Service: vmware-rhttpproxy, Action: status
Service: vmware-rhttpproxy, Action: status
2023-02-13T12:45:28.063Z   Running command: ['/sbin/service', u'vmware-rhttpproxy', 'status']
2023-02-13T12:45:28.119Z   Done running command
INFO:root:Service: vmdird, Action: status
Service: vmdird, Action: status
2023-02-13T12:45:28.120Z   Running command: ['/sbin/service', u'vmdird', 'status']
2023-02-13T12:45:28.135Z   Done running command
INFO:root:Service: vmcad, Action: status
Service: vmcad, Action: status
2023-02-13T12:45:28.135Z   Running command: ['/sbin/service', u'vmcad', 'status']
2023-02-13T12:45:28.150Z   Done running command
INFO:root:Service: vmware-sts-idmd, Action: status
Service: vmware-sts-idmd, Action: status
2023-02-13T12:45:28.150Z   Running command: ['/sbin/service', u'vmware-sts-idmd', 'status']
2023-02-13T12:45:28.161Z   Done running command
INFO:root:Service: vmware-stsd, Action: status
Service: vmware-stsd, Action: status
2023-02-13T12:45:28.162Z   Running command: ['/sbin/service', u'vmware-stsd', 'status']
2023-02-13T12:45:28.192Z   Done running command
INFO:root:Service: vmware-cm, Action: status
Service: vmware-cm, Action: status
2023-02-13T12:45:28.193Z   Running command: ['/sbin/service', u'vmware-cm', 'status']
2023-02-13T12:45:28.313Z   Done running command
INFO:root:Service: vmware-cis-license, Action: status
Service: vmware-cis-license, Action: status
2023-02-13T12:45:28.314Z   Running command: ['/sbin/service', u'vmware-cis-license', 'status']
2023-02-13T12:45:28.428Z   Done running command
INFO:root:Service: vmware-sca, Action: status
Service: vmware-sca, Action: status
2023-02-13T12:45:28.428Z   Running command: ['/sbin/service', u'vmware-sca', 'status']
2023-02-13T12:45:28.536Z   Done running command
INFO:root:Service: applmgmt, Action: status
Service: applmgmt, Action: status
2023-02-13T12:45:28.537Z   Running command: ['/sbin/service', u'applmgmt', 'status']
2023-02-13T12:45:28.583Z   Done running command
INFO:root:Service: vmware-netdumper, Action: status
Service: vmware-netdumper, Action: status
2023-02-13T12:45:28.584Z   Running command: ['/sbin/service', u'vmware-netdumper', 'status']
2023-02-13T12:45:28.629Z   Done running command
INFO:root:Service: vmware-syslog, Action: status
Service: vmware-syslog, Action: status
2023-02-13T12:45:28.630Z   Running command: ['/sbin/service', u'vmware-syslog', 'status']
2023-02-13T12:45:28.680Z   Done running command
INFO:root:Service: vmware-syslog-health, Action: status
Service: vmware-syslog-health, Action: status
2023-02-13T12:45:28.681Z   Running command: ['/sbin/service', u'vmware-syslog-health', 'status']
2023-02-13T12:45:28.793Z   Done running command
INFO:root:Service: vmware-vapi-endpoint, Action: status
Service: vmware-vapi-endpoint, Action: status
2023-02-13T12:45:28.794Z   Running command: ['/sbin/service', u'vmware-vapi-endpoint', 'status']
2023-02-13T12:45:28.851Z   Done running command
INFO:root:Service: vmware-vpostgres, Action: status
Service: vmware-vpostgres, Action: status
2023-02-13T12:45:28.852Z   Running command: ['/sbin/service', u'vmware-vpostgres', 'status']
2023-02-13T12:45:28.936Z   Done running command
INFO:root:Service: vmware-invsvc, Action: status
Service: vmware-invsvc, Action: status
2023-02-13T12:45:28.937Z   Running command: ['/sbin/service', u'vmware-invsvc', 'status']
2023-02-13T12:45:29.052Z   Done running command
INFO:root:Service: vmware-mbcs, Action: status
Service: vmware-mbcs, Action: status
2023-02-13T12:45:29.053Z   Running command: ['/sbin/service', u'vmware-mbcs', 'status']
2023-02-13T12:45:29.152Z   Done running command
INFO:root:Service: vmware-vpxd, Action: status
Service: vmware-vpxd, Action: status
2023-02-13T12:45:29.153Z   Running command: ['/sbin/service', u'vmware-vpxd', 'status']
2023-02-13T12:45:29.489Z   Done running command
INFO:root:Service: vmware-eam, Action: status
Service: vmware-eam, Action: status
2023-02-13T12:45:29.489Z   Running command: ['/sbin/service', u'vmware-eam', 'status']
2023-02-13T12:45:29.541Z   Done running command
INFO:root:Service: vmware-rbd-watchdog, Action: status
Service: vmware-rbd-watchdog, Action: status
2023-02-13T12:45:29.542Z   Running command: ['/sbin/service', u'vmware-rbd-watchdog', 'status']
2023-02-13T12:45:29.589Z   Done running command
INFO:root:Service: vmware-sps, Action: status
Service: vmware-sps, Action: status
2023-02-13T12:45:29.590Z   Running command: ['/sbin/service', u'vmware-sps', 'status']
2023-02-13T12:45:29.706Z   Done running command
INFO:root:Service: vmware-vdcs, Action: status
Service: vmware-vdcs, Action: status
2023-02-13T12:45:29.706Z   Running command: ['/sbin/service', u'vmware-vdcs', 'status']
2023-02-13T12:45:29.804Z   Done running command
INFO:root:Service: vmware-vpx-workflow, Action: status
Service: vmware-vpx-workflow, Action: status
2023-02-13T12:45:29.805Z   Running command: ['/sbin/service', u'vmware-vpx-workflow', 'status']
2023-02-13T12:45:29.856Z   Done running command
INFO:root:Service: vmware-vsm, Action: status
Service: vmware-vsm, Action: status
2023-02-13T12:45:29.857Z   Running command: ['/sbin/service', u'vmware-vsm', 'status']
2023-02-13T12:45:29.911Z   Done running command
INFO:root:Service: vsphere-client, Action: status
Service: vsphere-client, Action: status
2023-02-13T12:45:29.911Z   Running command: ['/sbin/service', u'vsphere-client', 'status']
2023-02-13T12:45:30.009Z   Done running command
INFO:root:Service: vmware-perfcharts, Action: status
Service: vmware-perfcharts, Action: status
2023-02-13T12:45:30.010Z   Running command: ['/sbin/service', u'vmware-perfcharts', 'status']
2023-02-13T12:45:30.064Z   Done running command
INFO:root:Service: vmware-vws, Action: status
Service: vmware-vws, Action: status
2023-02-13T12:45:30.065Z   Running command: ['/sbin/service', u'vmware-vws', 'status']
2023-02-13T12:45:30.125Z   Done running command
INFO:root:Running:
 applmgmt (VMware Appliance Management Service) vmafdd (VMware Authentication Framework) vmcad (VMware Certificate Service) vmdird (VMware Directory Service) vmware-cis-license (VMware License Service) vmware-cm (VMware Component Manager) vmware-invsvc (VMware Inventory Service) vmware-rhttpproxy (VMware HTTP Reverse Proxy) vmware-sca (VMware Service Control Agent) vmware-sts-idmd (VMware Identity Management Service) vmware-stsd (VMware Security Token Service) vmware-syslog (VMware Common Logging Service) vmware-syslog-health (VMware Syslog Health Service) vmware-vapi-endpoint (VMware vAPI Endpoint) vmware-vpostgres (VMware Postgres)
Running:
 applmgmt (VMware Appliance Management Service) vmafdd (VMware Authentication Framework) vmcad (VMware Certificate Service) vmdird (VMware Directory Service) vmware-cis-license (VMware License Service) vmware-cm (VMware Component Manager) vmware-invsvc (VMware Inventory Service) vmware-rhttpproxy (VMware HTTP Reverse Proxy) vmware-sca (VMware Service Control Agent) vmware-sts-idmd (VMware Identity Management Service) vmware-stsd (VMware Security Token Service) vmware-syslog (VMware Common Logging Service) vmware-syslog-health (VMware Syslog Health Service) vmware-vapi-endpoint (VMware vAPI Endpoint) vmware-vpostgres (VMware Postgres)
INFO:root:Stopped:
 vmware-eam (VMware ESX Agent Manager) vmware-mbcs (VMware Message Bus Configuration Service) vmware-netdumper (VMware vSphere ESXi Dump Collector) vmware-perfcharts (VMware Performance Charts) vmware-rbd-watchdog (VMware vSphere Auto Deploy Waiter) vmware-sps (VMware vSphere Profile-Driven Storage Service) vmware-vdcs (VMware Content Library Service) vmware-vpx-workflow (VMware vCenter Workflow Manager) vmware-vpxd (VMware vCenter Server) vmware-vsm (VMware vService Manager) vmware-vws (VMware System and Hardware Health Manager) vsphere-client ()
Stopped:
 vmware-eam (VMware ESX Agent Manager) vmware-mbcs (VMware Message Bus Configuration Service) vmware-netdumper (VMware vSphere ESXi Dump Collector) vmware-perfcharts (VMware Performance Charts) vmware-rbd-watchdog (VMware vSphere Auto Deploy Waiter) vmware-sps (VMware vSphere Profile-Driven Storage Service) vmware-vdcs (VMware Content Library Service) vmware-vpx-workflow (VMware vCenter Workflow Manager) vmware-vpxd (VMware vCenter Server) vmware-vsm (VMware vService Manager) vmware-vws (VMware System and Hardware Health Manager) vsphere-client ()



And I still get this error on my log:

vcenter55:/tmp # tail /var/log/vmware/sso/vmware-identity-sts.log
        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.validateSigningCert(TokenLifetimeRemediator.java:92)
        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.remediateTokenValidity(TokenLifetimeRemediator.java:66)
        at com.vmware.identity.saml.impl.TokenAuthorityImpl.issueToken(TokenAuthorityImpl.java:191)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:48)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.performanceSupport.PerformanceDecorator.exec(PerformanceDecorator.java:36)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator.issueToken(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.sts.impl.STSImpl.issueToken(STSImpl.java:342)
        ... 48 more
[2023-02-13T12:47:05.431Z tomcat-http--24 vsphere.local        3a8ff080-93d6-4453-9bd3-f648ed90b1aa INFO  com.vmware.identity.sts.ws.SOAPFaultHandler] Returning a SOAP Fault with code: ns0:InvalidTimeRange and description: The token authority rejected an issue request for TimePeriod [startTime=Mon Feb 13 12:47:05 UTC 2023, endTime=Mon Feb 13 14:27:05 UTC 2023] :: Signing certificate is not valid at Mon Feb 13 12:47:05 UTC 2023, cert validity: TimePeriod [startTime=Wed Dec 12 16:59:36 UTC 2012, endTime=Sun Dec 11 16:59:36 UTC 2022]



I don't know what to do.

What certificate is this it is complaining about? Does anyone know?

How do I solve that?

Please, if anyone know, tell me.

[virtual-power]

VC 6.0 really. These are legacy versions.  STS is indeed expired . I have never used that script to replace STS on 6.0 version. The kB even says for 6.5 and above versions. But looks like the script succeeded .

Signing certificate is not valid at Mon Feb 13 12:01:36 UTC 2023


Can you also check vmdird cert if its expired > /usr/lib/vmware-vmdir/share/config/vmdircert.pem
Also renew SMS certs : https://kb.vmware.com/s/article/2120105

[Celso_Finti]

Hi, thanks for reply.

I just used the script to replace STS for version 6.0  knowing that was made for 6.5 above only because I could not find a KB that explains how to do it for 6.0. Even though it didn't generate any error messages, it looks like didn't have any effect because the error in /var/log/vmware/sso/vmware-identity-sts.log didn't change.

If is there a proper KB for it let me know and I can revert my snapshot and try again.

I checked the expiration time of vmdircert.pem, and it still valid, here is the return:



vcenter55:/ # openssl x509 -enddate -noout -in /usr/lib/vmware-vmdir/share/config/vmdircert.pem
notAfter=Mar  7 12:49:07 2025 GMT





I follow the steps in https://kb.vmware.com/s/article/2120105



vcenter55:/ # cd /usr/lib/vmware-vmafd/bin
vcenter55:/usr/lib/vmware-vmafd/bin # ./vecs-cli store list
MACHINE_SSL_CERT
TRUSTED_ROOTS
TRUSTED_ROOT_CRLS
machine
vpxd
vpxd-extension
vsphere-webclient
SMS
vcenter55:/usr/lib/vmware-vmafd/bin # ./vecs-cli entry list --store sms --text | more
Number of entries in store :    1
Alias : sms_self_signed
Entry type :    Private Key
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number: 1355418318468 (0x13b953a3684)
    Signature Algorithm: sha1WithRSAEncryption
        Issuer: O=VMware, CN=SMS-121213170518468
        Validity
            Not Before: Dec 13 17:05:18 2011 GMT
            Not After : Dec 13 17:05:18 2022 GMT
        Subject: O=VMware, CN=SMS-121213170518468
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (1024 bit)
                Modulus:
                    00:91:30:cd:e3:12:c5:93:1e:a4:d6:1d:0c:e3:b3:
                    4d:be:b7:b9:b8:ab:a2:d3:0c:7c:6b:ce:3b:0a:f1:
                    db:53:c3:6b:6f:ba:44:b6:23:49:e8:61:63:a1:9b:
                    0e:f3:a0:9a:0a:92:ff:5b:eb:db:68:2a:c0:8d:60:
                    05:fe:5f:a7:79:99:7a:74:d5:4b:82:c8:c9:a3:d7:
                    c9:c7:4e:a2:b8:f1:4f:24:d6:13:ec:86:26:e3:e3:
                    fd:16:33:ac:d9:d4:a1:48:a8:f2:ef:ec:33:94:41:
                    6b:77:2e:49:ac:e0:b0:04:ca:f3:2b:0f:9f:0f:64:
                    76:09:42:ea:0c:e4:3d:92:61
                Exponent: 65537 (0x10001)
    Signature Algorithm: sha1WithRSAEncryption
         80:2d:65:1e:74:57:1b:29:1b:7b:29:d2:d2:68:cf:27:db:6a:
         ea:c3:46:84:b3:b2:9b:9b:5d:40:a1:4a:83:f0:a6:b2:c5:5e:
         a7:0b:2c:ee:df:82:54:9e:33:83:31:78:29:d0:d4:9e:e1:46:
         10:8c:1b:71:d0:e6:cc:32:06:57:cb:b0:28:c5:a3:c5:0f:72:
         40:31:68:5e:1a:47:f6:ef:9e:22:b0:16:bb:e0:23:24:ca:04:
         bb:b3:10:ae:87:bc:3b:81:6d:82:be:6a:83:ad:ae:cd:16:33:
         9d:8e:16:82:8b:f6:da:9e:6a:26:ce:1d:9f:66:ba:d1:1c:c5:
         17:0c
vcenter55:/usr/lib/vmware-vmafd/bin # ./vecs-cli entry delete --store sms --alias sms_self_signed
Warning: This operation will delete entry [sms_self_signed] from store [sms]
Do you wish to continue? Y/N [N]
y
Deleted entry with alias [sms_self_signed] in store [sms] successfully
 vcenter55:/usr/lib/vmware-vmafd/bin # service-control --stop vmware-sps
INFO:root:Service: vmware-sps, Action: stop
Service: vmware-sps, Action: stop
2023-02-16T11:12:03.216Z   Running command: ['/sbin/service', u'vmware-sps', 'stop']
2023-02-16T11:12:03.354Z   Done running command
2023-02-16T11:12:03.354Z   Successfully stopped service vmware-sps
vcenter55:/usr/lib/vmware-vmafd/bin # service-control --start vmware-sps
INFO:root:Service: vmware-sps, Action: start
Service: vmware-sps, Action: start
2023-02-16T11:12:18.493Z   Running command: ['/sbin/chkconfig', u'vmware-sps']
2023-02-16T11:12:18.529Z   Done running command
2023-02-16T11:12:18.529Z   Running command: ['/sbin/service', u'vmware-sps', 'status']
2023-02-16T11:12:18.643Z   Done running command
2023-02-16T11:12:18.643Z   Running command: ['/sbin/chkconfig', '--force', u'vmware-sps', 'on']
2023-02-16T11:12:18.677Z   Done running command
2023-02-16T11:12:18.678Z   Running command: ['/sbin/service', u'vmware-sps', 'start']
2023-02-16T11:12:22.376Z   Done running command
2023-02-16T11:12:22.376Z   Successfully started service vmware-sps





I waited more than ten minutes and run: ./vecs-cli entry list --store sms



Number of entries in store :    0





After that I try stop and when I started it aborted and exited with an error:



2023-02-16T11:38:58.013Z   Done running command
2023-02-16T11:38:58.013Z   Invoked command: ['/sbin/service', u'vmware-vpxd', 'start']
2023-02-16T11:38:58.013Z   RC = 1
Stdout = vmware-vpxd: VC SSL Certificate does not exist, it will be generated by vpxd
Waiting for the embedded database to start up: success
Executing pre-startup scripts...
vmware-vpxd: Starting vpxd by administrative request.
success
vmware-vpxd: Waiting for vpxd to start listening for requests on 8089
Waiting for vpxd to initialize: ......................................failed
failed
vmware-vpxd: vpxd failed to initialize in time.
vpxd is already starting up. Aborting the request.

Stderr =
2023-02-16T11:38:58.014Z   {
    "resolution": null,
    "detail": [
        {
            "args": [
                "Command: ['/sbin/service', u'vmware-vpxd', 'start']\nStderr: "
            ],
            "id": "install.ciscommon.command.errinvoke",
            "localized": "An error occurred while invoking external command : 'Command: ['/sbin/service', u'vmware-vpxd', 'start']\nStderr: '",
            "translatable": "An error occurred while invoking external command : '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}
ERROR:root:Unable to start service vmware-vpxd, Exception: {
    "resolution": null,
    "detail": [
        {
            "args": [
                "vmware-vpxd"
            ],
            "id": "install.ciscommon.service.failstart",
            "localized": "An error occurred while starting service 'vmware-vpxd'",
            "translatable": "An error occurred while starting service '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}
Unable to start service vmware-vpxd, Exception: {
    "resolution": null,
    "detail": [
        {
            "args": [
                "vmware-vpxd"
            ],
            "id": "install.ciscommon.service.failstart",
            "localized": "An error occurred while starting service 'vmware-vpxd'",
            "translatable": "An error occurred while starting service '%(0)s'"
        }
    ],
    "componentKey": null,
    "problemId": null
}





When the machine reboot, I try to login, but I still with the same problem from the beginning:



vcenter55:~ # tail  /var/log/vmware/sso/vmware-identity-sts.log
        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.validateSigningCert(TokenLifetimeRemediator.java:92)
        at com.vmware.identity.saml.impl.TokenLifetimeRemediator.remediateTokenValidity(TokenLifetimeRemediator.java:66)
        at com.vmware.identity.saml.impl.TokenAuthorityImpl.issueToken(TokenAuthorityImpl.java:191)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:48)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator$1.call(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.performanceSupport.PerformanceDecorator.exec(PerformanceDecorator.java:36)
        at com.vmware.identity.saml.impl.TokenAuthorityImplPerformanceDecorator.issueToken(TokenAuthorityImplPerformanceDecorator.java:45)
        at com.vmware.identity.sts.impl.STSImpl.issueToken(STSImpl.java:342)
        ... 48 more
[2023-02-16T12:37:00.526Z tomcat-http--1 vsphere.local        39eb9793-c92e-44bb-babd-b4eb2147cca4 INFO  com.vmware.identity.sts.ws.SOAPFaultHandler] Returning a SOAP Fault with code: ns0:InvalidTimeRange and description: The token authority rejected an issue request for TimePeriod [startTime=Thu Feb 16 12:37:00 UTC 2023, endTime=Fri Feb 17 12:37:00 UTC 2023] :: Signing certificate is not valid at Thu Feb 16 12:37:00 UTC 2023, cert validity: TimePeriod [startTime=Wed Dec 12 16:59:36 UTC 2012, endTime=Sun Dec 11 16:59:36 UTC 2022]





I checked the certs againg and looks good:



vcenter55:~ # for store in $(/usr/lib/vmware-vmafd/bin/vecs-cli store list | grep -v TRUSTED_ROOT_CRLS); do echo "[*] Store :" $store; /usr/lib/vmware-vmafd/bin/vecs-cli entry list --store $store --text | grep -ie "Alias" -ie "Not After";done;
[*] Store : MACHINE_SSL_CERT
Alias : __MACHINE_CERT
            Not After : Mar 31 17:13:39 2024 GMT
[*] Store : TRUSTED_ROOTS
Alias : 3c05e1fd963e4fb30f87618ebcd549bc03c6216a
            Not After : Mar  7 12:49:07 2025 GMT
Alias : d13256cbcbbee2d364c1d53eaf377b225d130ce5
            Not After : Mar 31 17:13:39 2024 GMT
[*] Store : machine
Alias : machine
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vpxd
Alias : vpxd
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vpxd-extension
Alias : vpxd-extension
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : vsphere-webclient
Alias : vsphere-webclient
            Not After : Mar  7 12:49:07 2025 GMT
[*] Store : SMS





What to do next?

[virtual-power]

STS certificate is still expired. That command doesn't pull STS certificate info . I think VMware also pulled down all docs related to 5.x so cannot find any STS replacement docs .
Better to reinstall VC and get a supported version up .

[Celso_Finti]

Hi, I will try reinstall, two questions:

1. I have installed before VCSA 6.0.0 will my license work in a VCSA 6.5.0 and 6.7.0?
   I am asking that because instead of I am install VCSA 6.0.0 I can go strait to a newer VCSA.
2. If the answer is Yes, VCSA 6.5.0 or 6.7.0 can be install in a VMware vSphere 6 Enterprise Plus or it will only work in only on vSphere 6.5 and 6.7 respectively.

[virtual-power]

1.  YES . Same like can be for 6.5/6.7
2. vCSA 6.5/6.7 VM where is it deployed , that ESXi can be 6.0. But you should plan to upgrade them even soon. And subsequently move to 7.0/8.0 as they are the only versions supported .

[Celso_Finti]

Thanks ,

first I tried to keep the installed version, because I wasn't sure if my key would work on a hight version so I installed version 6.0.0a and the fresh install started with an error, VC do not even started and produce some errors, so I tried VCSA 6.0U3j, then I could login, I was saing that my password was wrong.

You don't now how happy I was when you told me that I could use the same key on a version 6.7. I installed VCSA 7.5 without problems and put my key. Finally I could let behind the VMS Client becouse I couldn't use the web version after flash was discontiued from browsers.

Now I am looking for a window to upgrade vSphere 6 to 6.7 at least until we can buy a licence for version 7 or 8.

Can I use my actual key on a version 7 or 8?

[virtual-power]

6.x license would wok on 6.0/6.5/6.7  . For 7.0  or 8.0 you need new license .

I think if your license is still valid you can upgrade license leys from portal > https://kb.vmware.com/s/article/81665
Better to have word with VMware licensing Team .
