  • 1.  Support for Dell Poweredge R210 II

    Posted Jul 20, 2011 11:25 PM

    I have a Dell Poweredge R210 II.  I downloaded the installbler ESX1 4.1 u1 from Dell's website.  The Poweredge R210 II is listed there as compatible.  I installed on a memory stick as sugested here.

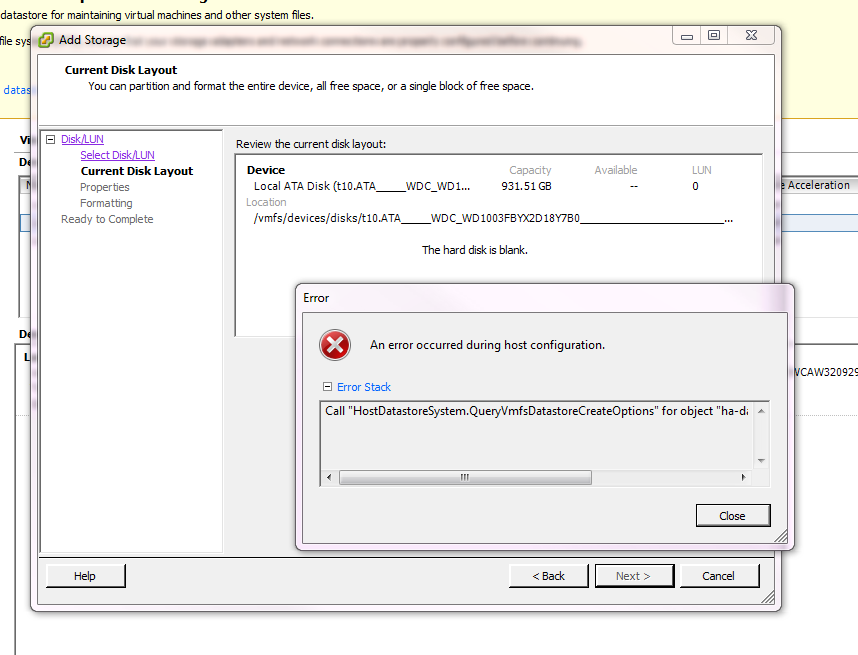

    However, when I go into the vshpere client, I am unable to create a datastore.  The LUNs are visible, but I get an error message on creation.  Does anyone have familiarity with this model system or error?



  • 2.  RE: Support for Dell Poweredge R210 II

    Posted Jul 21, 2011 06:59 PM

    Additional info.

    The SATA controller is the S100, I do not have this configured in RAID.  There are two 1 TB drives in the system configured as individual drives.  I am fine with using a script to copy an image over each night.  However, I cannot get VMWare to allow me to use either as a storage device.



  • 3.  RE: Support for Dell Poweredge R210 II

    Broadcom Employee
    Posted Jul 21, 2011 07:04 PM

    Which size of this LUN ?



  • 4.  RE: Support for Dell Poweredge R210 II

    Posted Jul 21, 2011 07:06 PM

    Each physical disk is 931 Gigabytes.



  • 5.  RE: Support for Dell Poweredge R210 II

    Broadcom Employee
    Posted Jul 21, 2011 07:13 PM

    OK. You need create two Luns with 931GB each ?!

    Both Luns are empty ?

    If yes, you can try format this Lun manually http://kb.vmware.com/kb/1009829

    check too this discussion, maybe helpful http://communities.vmware.com/thread/279125?tstart=0

    Good Luck


    Please, don't forget the awarding points for "helpful" and/or "correct" answers.

    Mauro Bonder - Moderator
