Running out of space inexplicably

[uvdevnull]

datastore1 is 9TB in size. I only have one Windows server in there that I created with two drives, C=50GB and D=8TB. Twice already it ran out of space and made the server inaccessible. I did some digging around and followed a suggestion to remove any snapshots, which I did and that cleared enough storage up so the server returned to normalcy. Today it happened again even though there are no snapshots. Looking into the datastore, there is the server.vmdk at 50GB and server_1.vmdk at 8TB, as expected, but I don't understand what server_1-000001.vmdk is? Is it some old snapshot file that remained even after all snapshots were removed? I left for lunch wanting to recharge before getting back into it and the server is up and running upon my return but I imagine it will happen again soon since the datastore is maxed out at 9TB.

[Scott Vessey]

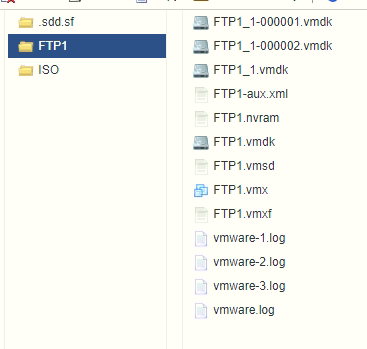

Can you post a screenshot of a full folder listing?

[uvdevnull]

scott28tt

Per some suggestions I've seen to others in identical situations, I created another snapshot, which made 000002 and then attempted to Delete-All but that has been stuck at 50% for several hours. I can't stop the task or start another. The two snapshot files still exist.

[IRIX201110141]

The _00000x File indicates that your VM is running on a Snapshot which means all writes aka "data changes" goes into this files. In a worst case with a lot of changes or over a looooong time the size of the _00000x file can be the same as your origin base  -flat.vmdk.  This is the reason why your running out of space because 8TB base + XXTB snapshot >= size if datastore.

From you screenshot there are 2 snapshots.

Regards,
Joerg

[IRIX201110141]

The snaps of your FTP1.vmdk are already committed and most likely its working on FTP1_1.   To check if its do something i use esxtop on ESXi shell and take a look to the device/hba/lun stats of my storage. I do this before i commit a large snap to see the difference in CMD/s and Write MB/s. With the size of my snap i can calculate how long it would take.

Regards,
Joerg

[uvdevnull]

Snapshots got removed but the files 00000x did not and they take up more space than is available so the guest cannot start up and operate. I read somewhere to not remove those files manually so how do I get rid of them, if the snapshots were already removed but the files remain?

[a_p_]

I read somewhere to not remove those files manually so how do I get rid of them, ...

Caution: There are only a few situations where snapshot files are not deleted automatically, so that should only be considered after verifying that they are indeed orphaned!

To get an overview, please attach the VM's configuration (.vmx) file to your next reply, and post another file listing, but this time from the command line, i.e. the output of the command ls -lisa

The command's output will show the provisioned as well as the currently used disk space for each file.

André

[uvdevnull]

vmx attached.

[root@localhost:/vmfs/volumes/5ee0d4c7-3fb9a1c4-80ba-001e673428cd/FTP1] ls -lisa

total 9736992960

   2244    128 drwxr-xr-x    1 root     root         77824 Sep 12 07:01 .

      4   1024 drwxr-xr-t    1 root     root         73728 Jun 24 22:10 ..

205524228      0 -rw-r--r--    1 root     root            13 Sep 12 07:01 FTP1-aux.xml

4197636 52428800 -rw-------    1 root     root     53687091200 Sep 11 22:14 FTP1-flat.vmdk

37752068     64 -rw-------    1 root     root          8684 Sep 11 22:14 FTP1.nvram

8391940      0 -rw-------    1 root     root           499 Sep 10 17:58 FTP1.vmdk

12586244      0 -rw-r--r--    1 root     root            77 Sep 11 22:20 FTP1.vmsd

   3332      0 -rwxr-xr-x    1 root     root          3583 Sep 11 22:20 FTP1.vmx

75500804      0 -rw-------    1 root     root          3444 Jun 25 19:36 FTP1.vmxf

138415364 1094621184 -rw-------    1 root     root     1136152346624 Sep 12 07:01 FTP1_1-000001-sesparse.vmdk

142609668      0 -rw-------    1 root     root           311 Sep 10 20:30 FTP1_1-000001.vmdk

197135620   1024 -rw-------    1 root     root     34634465280 Sep 12 07:01 FTP1_1-000002-sesparse.vmdk

201329924      0 -rw-------    1 root     root           318 Sep 11 22:19 FTP1_1-000002.vmdk

100666628 8589934592 -rw-------    1 root     root     8796093022208 Sep 12 07:01 FTP1_1-flat.vmdk

104860932      0 -rw-------    1 root     root           452 Sep 11 22:20 FTP1_1.vmdk

29363460   1024 -rw-r--r--    1 root     root        493823 Jun 25 04:29 vmware-1.log

67112196   2048 -rw-r--r--    1 root     root       1224285 Jul  1 17:33 vmware-2.log

121638148   1024 -rw-r--r--    1 root     root        372676 Jul  1 18:27 vmware-3.log

159386884   2048 -rw-r--r--    1 root     root       1470715 Sep 11 22:14 vmware.log

[a_p_]

The snapshot for the 50GB disk has been removed, but the snapshot for the second virtual disk still exists, and is active (as you can see in the configuration file).

The snapshot has a size of ~1TB which may require some time (hours) to be deleted, depending on your physical disk subsystem.

Since the base disks have been created as Thick Provisioned, and the VM is powered off, deleting the snapshot should work even with low free disk space on the datastore.

Can you confirm that the Delete Snapshot task already ended successfully?

André

[uvdevnull]

It was taking hours so the Web UI timed out and did not have task result listed in "recent tasks" after that. I don't know if they should still be there.

But the snapshots are gone:

[a_p_]

Never trust the Snapshot Manager!

Please follow the steps in https://kb.vmware.com/s/article/2146185​ to see whether a remove snapshot deletion/consolidation task is still running.

André

[uvdevnull]

I took yet another snapshot with guest shut down and then started a consolidation task. It's been 24 hours and I'm at 6% completion so this will take two weeks before I can give an update. Seems excessive, no? I swear my hard drives are not solar powered. Although even if they were, it's summer time in California so they should have enough juice.

[a_p_]

Wow, that really seems to be too slow.

Do you see any Controller/HDD related messages in the ESXi host's vmkernel.log?

What type of datastore is this, i.e. is it create on a single local disk, on a RAID LUN, or on shared storage? With a local disk, or a RAID LUN that operates in write-trough mode speed may be slow, but again, what you see is not what I would expect (except that the shown percentage will not count all the way up to 100%).

André

[uvdevnull]

This is on a Supermicro server with RAID of SAS drives. I did not experience any slowness on the guest.

The only "errors" or "warnings" in the log is this which I do not understand:

2020-09-17T15:29:09.774Z cpu0:2097711)ScsiDeviceIO: 3435: Cmd(0x459abcfac7c0) 0x4d, CmdSN 0x5420 from world 2098973 to dev "naa.600605b0038bf1f026738f15a6be2836" failed H:0x0 D:0x2 P:0x0 Valid sense data: 0x5 0x20 0x0.

Attached are some screenshots of storage performance. The process is at 15% so I'm moving up in the world :-D

[uvdevnull]

Took about a week but it finished and removed the snapshot files. Hardware performance seems on par for the guest so I don't know why consolidation was taking so incredibly long. Gotta remember not to use the snapshot feature again.
