  • 1.  Remove old vCenter from licensed assets

    Posted Sep 05, 2019 07:23 PM

    Hi all,

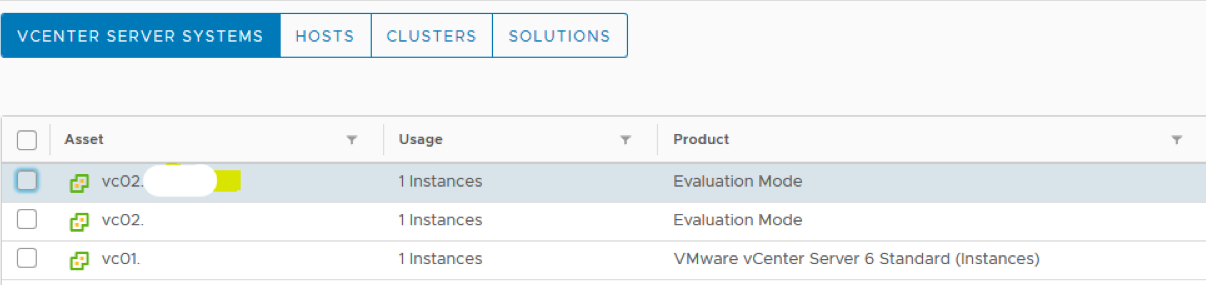

    I had to reinstall a vCenter (6.7 U3 with embedded PSC) that was in ELM mode. Now when I go to licensed assets, I have two vCenters with the same name. Any clues on how to remove the old decommissioned vCenter from licensed assets? Thanks!



  • 2.  RE: Remove old vCenter from licensed assets

    Posted Sep 06, 2019 08:19 AM

    You can remove it from vCenter Server database anyway, you need to know how to remove it from Microsoft SQL for window-based vCenter Server or PostgreSQL for VCSA.

    Check the following VMware KB, I think it can help you how to do it:

    VMware Knowledge Base



  • 3.  RE: Remove old vCenter from licensed assets

    Posted Sep 06, 2019 09:08 AM

    It turned out that even though I unregistered the old vCenter with "cmsso-util unregister" prior to reinstall, a lot of stale services from the decommissioned vCenter were still present in PSC. This KB - VMware Knowledge Base  - gives a hint, but it's not just vcenterserver service type that needs to be removed.

    Just in case someone else would hit this issue:

    1) you need to figure out the Node ID of your old stale vCenter, the KB referenced above gives you a clue how to do that.

    2) Find the Service IDs of all stale services matching the old Node ID (in my case the stale Node ID was 0f3616d1-65cc-4a66-aa34-8d1bd5e44586):

    /usr/lib/vmidentity/tools/scripts/lstool.py list --url http://localhost:7080/lookupservice/sdk > /tmp/psc_services.txt

    services=($(cat /tmp/psc_services.txt | grep -B 3 0f3616d1-65cc-4a66-aa34-8d1bd5e44586 | grep -i "Service id" | cut -d " " -f 3))

    3) Now that the Service IDs that you need to remove are in the $services bash variable, you can do the removal:

    for i in "${services[@]}"

    do

       /usr/lib/vmidentity/tools/scripts/lstool.py unregister --url http://localhost:7080/lookupservice/sdk --id $i --user 'administrator@vsphere.local' --password 'your_password' --no-check-cert

    done

    4) restart vCenter services and once you log back in, the stale licensed asset entry for the old vCenter should be gone.



  • 4.  RE: Remove old vCenter from licensed assets

    Posted Aug 03, 2023 10:19 PM

    Thanks  ! I was having a problem where a reference to an old linked-mode vCenter was sticking around in the licensing screens. It would show up as a vCenter asset, even though that vCenter was long ago unregistered. There was a single service reference keeping it around. After running the unregister command, I restarted all of the license services using the vCenter VAMI on my remaining vCenters. The reference properly disappeared after I logged off and back on.
