Problem with s2600wtt

[Spaccatutto]

Good morning people.

I have an ONE BIG problem.

I just buy a new server with new intel mainboard s2600wtt.

When start the installation of esxi 5.5 u2, acpi module freeze, and the server restart.

I called the technical assistance of INTEL, but now, i doesn't have resolution.

Any idea?

Thank you.

Sorry for my bad english

Andrea

[weinstein5]

Did you confirm the Motherboard on VMware's Hardware Compatability List?

[JagadeeshDev]

Andrea ,

Please check if you using the compatible model of hardware to install esxi .

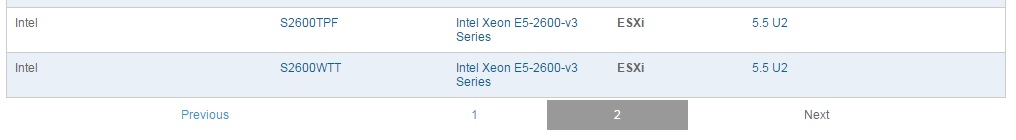

VMware Compatibility Guide: System Search

Also try the steps mentioned in the below thread.

Re: Loading ESXi installer issue " Relocating modules and starting up the kernel"

Thanks

[vervoortjurgen]

hello

i have the intel mainbord S2600 ip4

i had to upgrade the bios first before i could install the esxi 5.5

is your bios up to date?

[Spaccatutto]

s2600wt have only one bios on web...and the same on mainboard.

I just reinstall the bios, but not work.

[vervoortjurgen]

your board is supported though

i think it might be other hardware

bad memory module, raid controller card, vga card,bad power supply,etc....

[LepesicG]

I have the exact same problem, but I doubt it's a hardware error, as I installed Hyper-V with no issues whatsoever.

I thought the problem was in my RAID module (Intel RMS25KB040), but I added the drivers to ESXi instalation and got the same result...

[Spaccatutto]

The problem was memory mapped io in bios.

The intel support suggest me to disable and now all sevrer work.

Thank you all for support

berst regards

andrea

[LepesicG]

Thanks, it worked for me too! :smileyplus:

But still, I couldn't install ESXi 5.5, kept getting error during installation on tools.t00, but it worked with ESXi 5.1, and I'm OK with that...as long as I don't have to work with Hyper - V :smileycool:
