  • 1.  Port Groups & VMKernel

    Posted Jan 25, 2019 10:30 AM

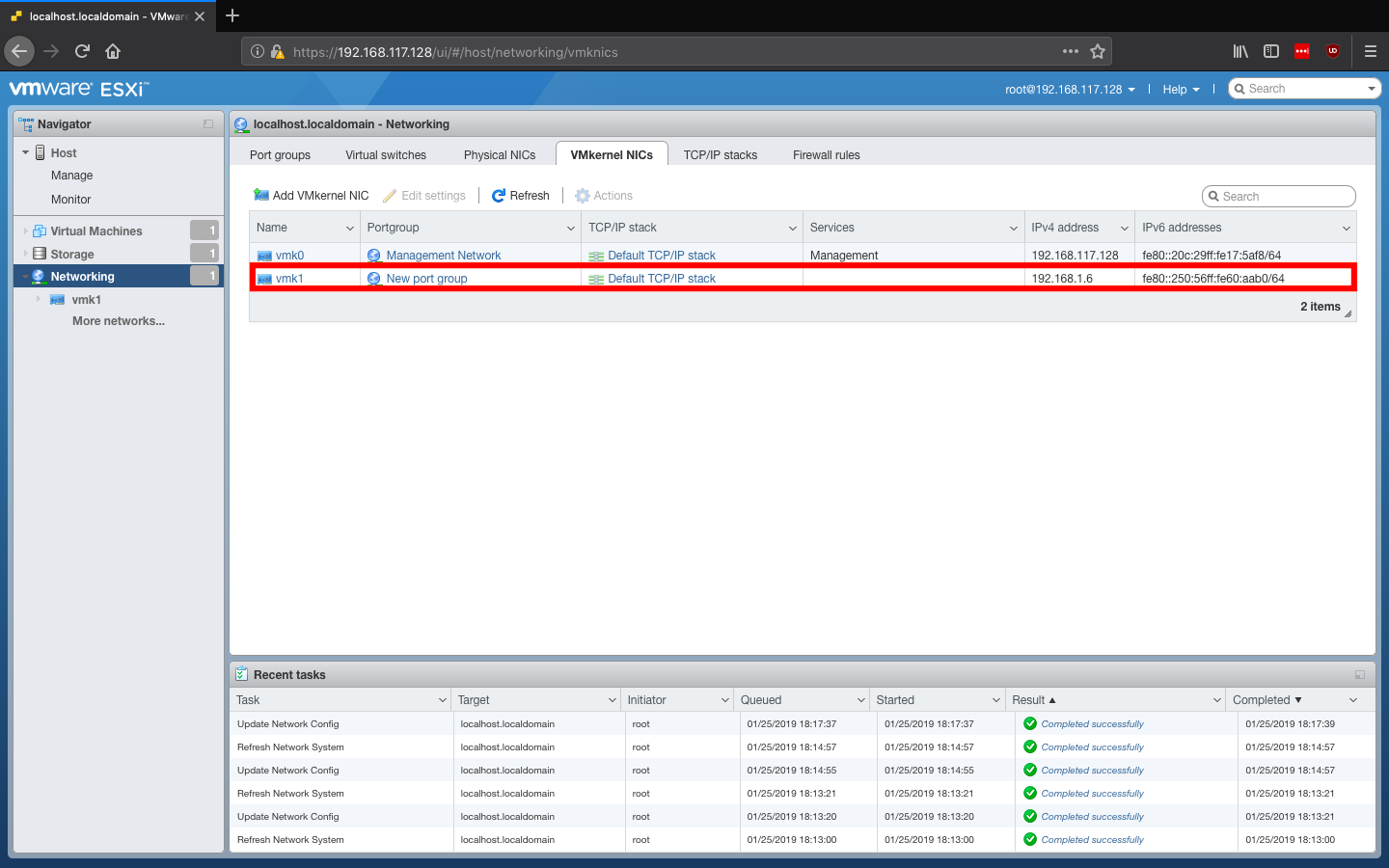

    I've been following here, in order to get 2 subnets working on ESxi 6, you must put VMKernal Nic in "VM Network"port group, however only when i put it in a new port group i created does it actually reflect the external network:  Is this right?

    In ether case, the source i can select when editing VM setting is "VM Network" which wouldn't equal to 2nd screenshot.

    What am I missing..?



  • 2.  RE: Port Groups & VMKernel

    Posted Jan 25, 2019 10:49 AM

    Dear TECH198​ You need to understand the difference in VMK and VMnetwork, whenever we have a network where ESXi will communicate as its own identity we create VMkernal port group which has a IP assigned, that IP will represent ESXi in that network.

    Now VM network is a subnet on which Virtual machines will be communicating, hence it doesnt have a VMK, as IP will be assigned to the NIC card of the VM.

    Now, if you want 2 subnets VMs to talk to each other then, add vm network port group with (vLan ID), and these vLans should be route able.

    Regards

    Pradhuman

    VCIX-NV,VCP2X-DCVNV,VCAP_NV



  • 3.  RE: Port Groups & VMKernel

    Posted Jan 27, 2019 10:17 AM

    Silly me...

    It took me ages to get this to work but the solution ended up be very simple.. All i needed was ad a second uplink.

    No port groups or anything,, just add uplink..

    However, i think now know why it was recommended to set as "bridged" mode. I tried to use NAT, to use Mac's internet connection along with Host only, and had Windows issues on reboot. it lost connection, but the moment disables adapter 1 from device manager, internet started working again, so i changed second NIC in Esxi to "Bridged" and cleared that up.

    I should listen here more often :smileyhappy:
