  • 1.  Not able to passthrough a Yubikey

    Posted Nov 11, 2020 07:54 PM

    I plugged in the key and it is available in USB devices

    Bus 001 Device 004: ID 1050:0407 Yubico.com Yubikey 4 OTP+U2F+CCID
    Bus 001 Device 003: ID 0bda:0329 Realtek Semiconductor Corp.
    Bus 001 Device 002: ID 0424:2660 Standard Microsystems Corp. Hub
    Bus 002 Device 001: ID 0e0f:8002 VMware, Inc. Root Hub
    Bus 001 Device 001: ID 0e0f:8003 VMware, Inc. Root Hub

     and

     lsusb -s 1:4 -v

    Bus 001 Device 004: ID 1050:0407 Yubico.com Yubikey 4 OTP+U2F+CCID
    Device Descriptor:
      bLength                18
      bDescriptorType         1
      bcdUSB               2.00
      bDeviceClass            0 (Defined at Interface level)
      bDeviceSubClass         0
      bDeviceProtocol         0
      bMaxPacketSize0        64
      idVendor           0x1050 Yubico.com
      idProduct          0x0407 Yubikey 4 OTP+U2F+CCID
      bcdDevice            5.27
      iManufacturer           1 Yubico
      iProduct                2 YubiKey OTP+FIDO+CCID
      iSerial                 0
      bNumConfigurations      1
      Configuration Descriptor:
        bLength                 9
        bDescriptorType         2
        wTotalLength          150
        bNumInterfaces          3
        bConfigurationValue     1
        iConfiguration          0
        bmAttributes         0x80
          (Bus Powered)
        MaxPower               30mA
        Interface Descriptor:
          bLength                 9
          bDescriptorType         4
          bInterfaceNumber        0
          bAlternateSetting       0
          bNumEndpoints           1
          bInterfaceClass         3 Human Interface Device
          bInterfaceSubClass      1 Boot Interface Subclass
          bInterfaceProtocol      1 Keyboard
          iInterface              0
            HID Device Descriptor:
              bLength                 9
              bDescriptorType        33
              bcdHID               1.10
              bCountryCode            0 Not supported
              bNumDescriptors         1
              bDescriptorType        34 Report
              wDescriptorLength      71
             Report Descriptors:
               ** UNAVAILABLE **
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x81  EP 1 IN
            bmAttributes            3
              Transfer Type            Interrupt
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0008  1x 8 bytes
            bInterval              10
        Interface Descriptor:
          bLength                 9
          bDescriptorType         4
          bInterfaceNumber        1
          bAlternateSetting       0
          bNumEndpoints           2
          bInterfaceClass         3 Human Interface Device
          bInterfaceSubClass      0 No Subclass
          bInterfaceProtocol      0 None
          iInterface              0
            HID Device Descriptor:
              bLength                 9
              bDescriptorType        33
              bcdHID               1.10
              bCountryCode            0 Not supported
              bNumDescriptors         1
              bDescriptorType        34 Report
              wDescriptorLength      34
             Report Descriptors:
               ** UNAVAILABLE **
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x04  EP 4 OUT
            bmAttributes            3
              Transfer Type            Interrupt
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0040  1x 64 bytes
            bInterval               2
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x84  EP 4 IN
            bmAttributes            3
              Transfer Type            Interrupt
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0040  1x 64 bytes
            bInterval               2
        Interface Descriptor:
          bLength                 9
          bDescriptorType         4
          bInterfaceNumber        2
          bAlternateSetting       0
          bNumEndpoints           3
          bInterfaceClass        11 Chip/SmartCard
          bInterfaceSubClass      0
          bInterfaceProtocol      0
          iInterface              0
          ChipCard Interface Descriptor:
            bLength                54
            bDescriptorType        33
            bcdCCID              1.00
            nMaxSlotIndex           0
            bVoltageSupport         7  5.0V 3.0V 1.8V
            dwProtocols             2  T=1
            dwDefaultClock       4000
            dwMaxiumumClock      4000
            bNumClockSupported      0
            dwDataRate         307200 bps
            dwMaxDataRate      307200 bps
            bNumDataRatesSupp.      0
            dwMaxIFSD            3062
            dwSyncProtocols  00000000
            dwMechanical     00000000
            dwFeatures       000400FE
              Auto configuration based on ATR
              Auto activation on insert
              Auto voltage selection
              Auto clock change
              Auto baud rate change
              Auto parameter negotation made by CCID
              Short and extended APDU level exchange
            dwMaxCCIDMsgLen      3072
            bClassGetResponse    echo
            bClassEnvelope       echo
            wlcdLayout           none
            bPINSupport             0
            bMaxCCIDBusySlots       1
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x02  EP 2 OUT
            bmAttributes            2
              Transfer Type            Bulk
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0040  1x 64 bytes
            bInterval               0
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x82  EP 2 IN
            bmAttributes            2
              Transfer Type            Bulk
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0040  1x 64 bytes
            bInterval               0
          Endpoint Descriptor:
            bLength                 7
            bDescriptorType         5
            bEndpointAddress     0x83  EP 3 IN
            bmAttributes            3
              Transfer Type            Interrupt
              Synch Type               None
              Usage Type               Data
            wMaxPacketSize     0x0008  1x 8 bytes
            bInterval              32
    Device Status:     0x0000
      (Bus Powered)

     But the esxcli does not list it:

    ~] esxcli hardware usb passthrough device list
    Bus  Dev  VendorId  ProductId  Enabled  Can Connect to VM  Name
    ---  ---  --------  ---------  -------  -----------------  ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    1    3    bda       329           true  yes                Realtek Semiconductor Corp.

     I restarted usbarbitrator and hostd results are same.

    Why would this be happening?

    Thanks!



  • 2.  RE: Not able to passthrough a Yubikey

    Posted Nov 11, 2020 11:33 PM

    Try the steps outlined here

    https://kb.vmware.com/s/article/55789

    YubiKey technology is not much different from smart cards.





  • 3.  RE: Not able to passthrough a Yubikey
    Best Answer

    Posted Nov 12, 2020 09:34 AM

    thanks for the link, but as you can see VMWARE did not even recognize the drive in passthrough device list. So it can't even attempt to connect to VM, therefore VMX settings are sort of useless.

    Yubikey has several USB modes. [OTP|U2F|OPGP|PIV|OATH|FIDO2]. I found out that if OTP, U2F or FIDO2 are enabled then the key does not appear in passthrough device list. I did not try every combination, but disabling these 3 fixed the issue partly at least...

    Now I see:



    ] esxcli hardware usb passthrough device list
    Bus  Dev  VendorId  ProductId  Enabled  Can Connect to VM  Name
    ---  ---  --------  ---------  -------  -----------------  ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    1    4    1050      404           true  yes                Yubico.com Yubikey 4 CCID
    1    3    bda       329           true  yes                Realtek Semiconductor Corp.



     So next step is to connect it to a VM. If that doesn't work, then the link you provided may be of some use.

    Update:

    Connecting device to VM requires:

    usb.generic.allowCCID = "TRUE"


  • 4.  RE: Not able to passthrough a Yubikey

    Posted Nov 12, 2020 09:52 AM

    thanks again, I also needed to set

    usb.generic.allowCCID = "TRUE"

    to be able to connect the yubikey to VM



  • 5.  RE: Not able to passthrough a Yubikey

    Posted Nov 12, 2020 10:51 AM

    I didn't pay attention earlier to the details of the lsusb -s 1:4 -v output. It looks like it is a compound device and two of them are classified as Human Interface Device (HID).

    You could try adding these 3 lines to the vmx configuration file aside from the allowCCID and see if it resolves the issue with OTP, U2F or FIDO2 modes. Just be careful with the allowHID="TRUE" as it will make keyboard/mouse also available for connection.

    usb.generic.allowHID = "TRUE"
    usb.generic.allowLastHID = "TRUE"
    usb.ccid.disable = "TRUE"



  • 6.  RE: Not able to passthrough a Yubikey

    Posted Dec 27, 2020 11:24 AM

    unfortunately I am not able to debug issue anymore on this hardware. However aren't those set in VM config? How can those settings help if I can't see the device globally in device list?

    esxcli hardware usb passthrough device list


    That said... I think (I am not 100% sure now) I had those settings in my VM config at some point. I enabled everything from several different instructions I found online. I guess it really does not work if the device is not in the passthrough device list.



  • 7.  RE: Not able to passthrough a Yubikey

    Posted Apr 26, 2022 10:28 PM

     we just recently went through this. And here is what we discovered

    https://support.yubico.com/hc/en-us/articles/360016614920-YubiKey-USB-ID-Values us a full list of the PIDs

    I personally tried 404 to 407, and 405-407 all had the the HID interface descriptor. So even without otp, the u2f was an HID class.

    As long as it was an HID device, I was not able to get it to show up in the

    esxcli hardware usb passthrough device list

    and I was not able to add it as a usb device in ESXi. Only 404 (CCID only) worked.

    According to my notes, we were able to get this to work in VMware Fusion (Not ESXi):

    usb.generic.allowHID = "TRUE"
    usb.generic.allowLastHID = "TRUE"
    # and sometimes
    usb.quirks.device0 = "0x1050:0x0407 allow"

    However, adding to the same to the .vmx files in ESXi did not work.

    This would not be enough, as it was never listed in "esxcli hardware usb passthrough device list", so even if the VM allowed it, its not there to be allowed. So I tried following directions from here: https://blog.rylander.io/2020/06/26/Passthrough-USB-Keyboard-and-Mouse-to-VM-using-ESXi-V7/

    However, I never got it to show up in "esxcli hardware usb passthrough device list", and was also unable to add it as a USB Device.

    Summary:

    In addition to all the other setting mentioned, I also edited /etc/vmware/config

    usb.quirks.device0 = "0x1050:0x0407 allow"

    I wasn't sure if that needed a reboot, so I rebooted ESXi, no dice

    I then edited /bootbank/boot.cfg and changed the kernelopt line to

    kernelopt=autoPartition=FALSE CONFIG./USB/quirks=0x1050:0x0407::0xffff:UQ_KBD_IGNORE

    I wasn't sure if that needed a reboot, so I rebooted ESXi, no dice

    and I repeated for 0x0406 and 0x0405, and none of them worked. In the end I could only get CCID only mode to work. Any way I can get this to work without disabling OTP/U2F mode?



  • 8.  RE: Not able to passthrough a Yubikey

    Posted Apr 27, 2022 09:32 PM

    I reached out to Yubico, and they got back very quickly to me with a solution!

    It turns out I was trying too many things, and screwing something up because of it. Here is All you need to get the yubikey working in ESXi with OTP and U2F enabled alongside CCID.

    1. Edit /etc/vmware/config

    usb.quirks.device0 = "0x1050:0x0407 allow"

    2. Edit /bootbank/boot.cfg and changed the kernelopt line to

    kernelopt=autoPartition=FALSE CONFIG./USB/quirks=0x1050:0x0407::0xffff:UQ_KBD_IGNORE

    Both of these settings do require a reboot. So I would change both of them and restart the ESXi server once

    Now, once you reboot, the yubikey will not show up in the "esxcli hardware usb passthrough device list", however the yubikey is indeed available when you go to the ESXi or vCenter Web interface.

    1. Right click VM
    2. Edit Settings.
    3. ESXi: Add other device ➡ USB Device. vCenter: Add new device ➡ Host USB Device

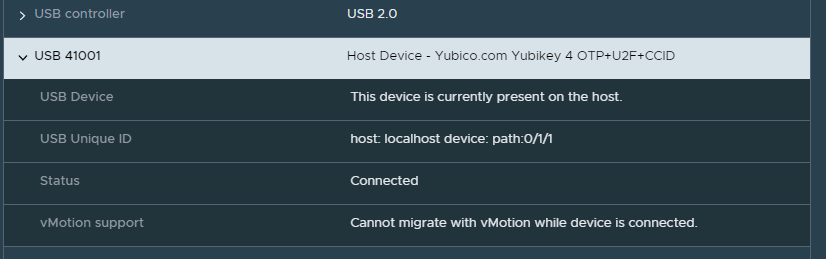

    4. Scroll down to the newly added USB device, and make sure Yubikey is selected
    5. You should now have a fancy yubikey in ESXi


    As far as my tests show me now, "usb.generic.allowCCID" is not needed for Yubikeys in this mode with these settings.



  • 9.  RE: Not able to passthrough a Yubikey

    Posted Sep 25, 2023 11:19 AM

    working ! thanks
