LACP from VDS not working to Mlag-Port-Channel (Mellanox)

  • 1.  LACP from VDS not working to Mlag-Port-Channel (Mellanox)

    Posted May 30, 2025 03:48 PM

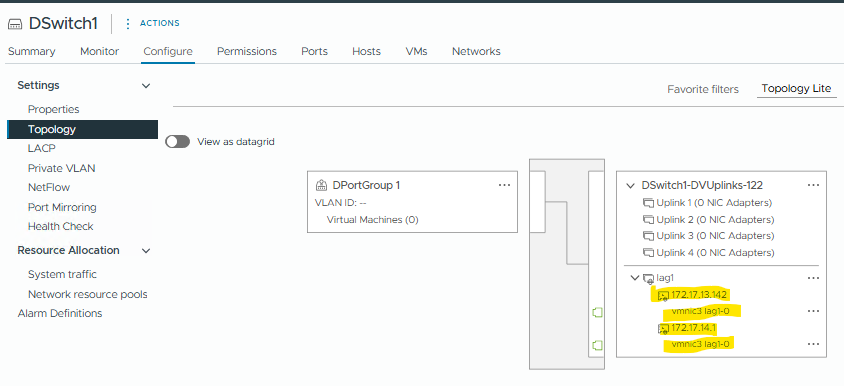

    LACP configured on a VDS - connected to an mlag-port-channel (Onyx, i.e. Mellanox, SN2010M switch)

    Both sides say that one connection is fine.

    Both sides say the other connection isn't getting LACP hammered out.

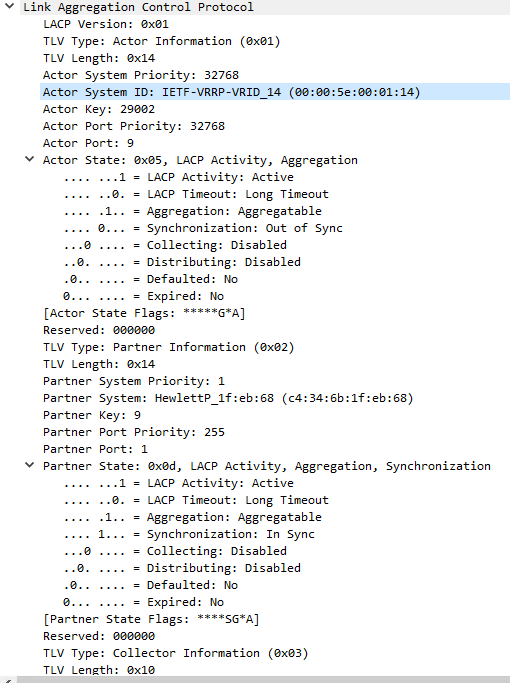

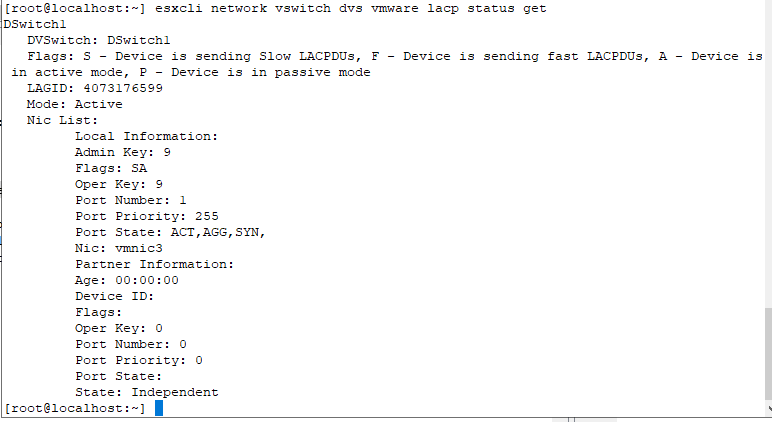

    Here's what the esxi side sends:

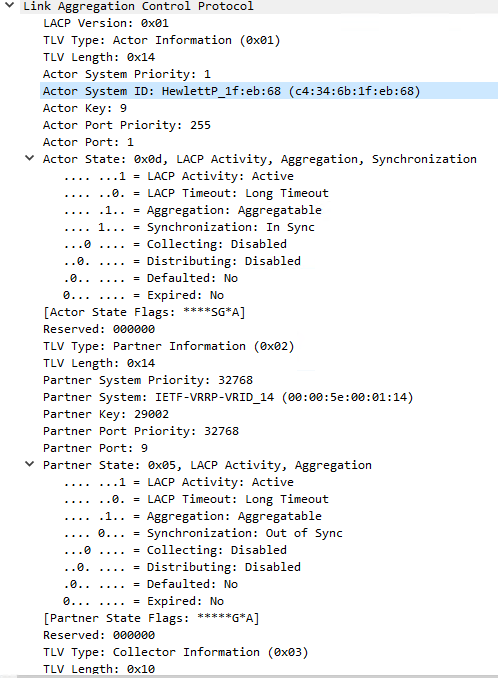

    Here's what the Mellanox side sends:

    Looks like the Mellanox is saying "out of synch" but after a lot of searching, that doesn't lead me anywhere.

    Any suggestions are welcomed.
