How to check whether my server is Raid configured or not?

[Enerren]

Hi,

I have HP Proliant DL 360 G6 Server.
My colleague, installed VMware ESXi 5.5.0 on it.
now, he has already resigned, and can not be contacted.

How do i know whether, that server has already configured with RAID or not?

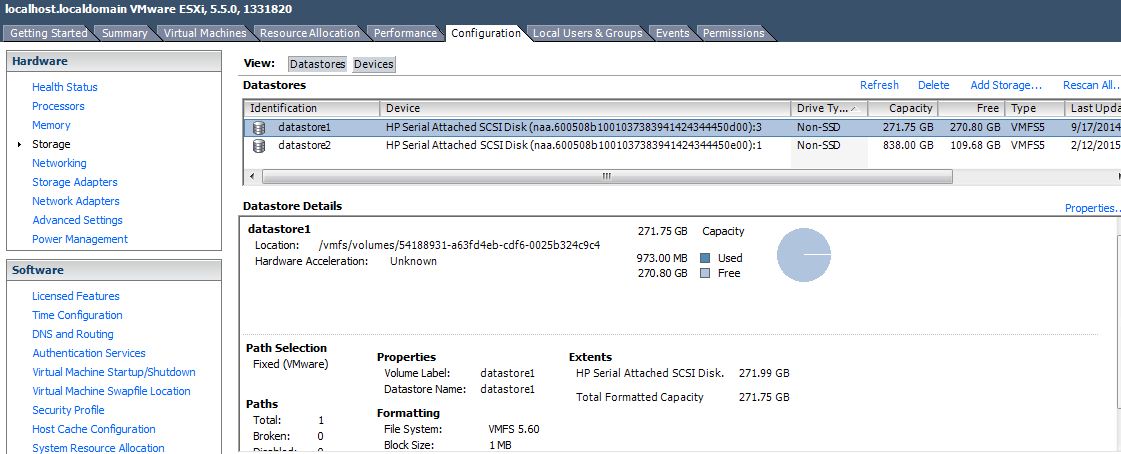

And these are screenshots from my system:

Best Regards

HF

[CoolRam]

Since the RAID is configured by the RAID Controller so you need to reboot the host and go the RAID Controller Utility by Pressing ALT+E or ALT+Q based on the Controller. There you can check your disk is configured  with which RAID Level.

From ESXi Level you can not find this.

[vlho]

Hi HF,

you install HP custom version ESXi:

VMware vSphere 5: Private Cloud Computing, Server and Data Center Virtualization

After see sensor of Storage.

[Nithy07cs055]

You should be able to see the RAID information from HP ILO, you can see the status and the configured RAID details .

[akarydas2]

Assuming you have used an HP customized image with the HP utilities you can ssh to the ESX host and give:

/opt/hp/hpssacli/bin/hpssacli ctrl all show config

The HP utils can be found:

Index of /hpq/mar.30.2015/esxi-5x-bundles

Best Regards

[bondsourajit]

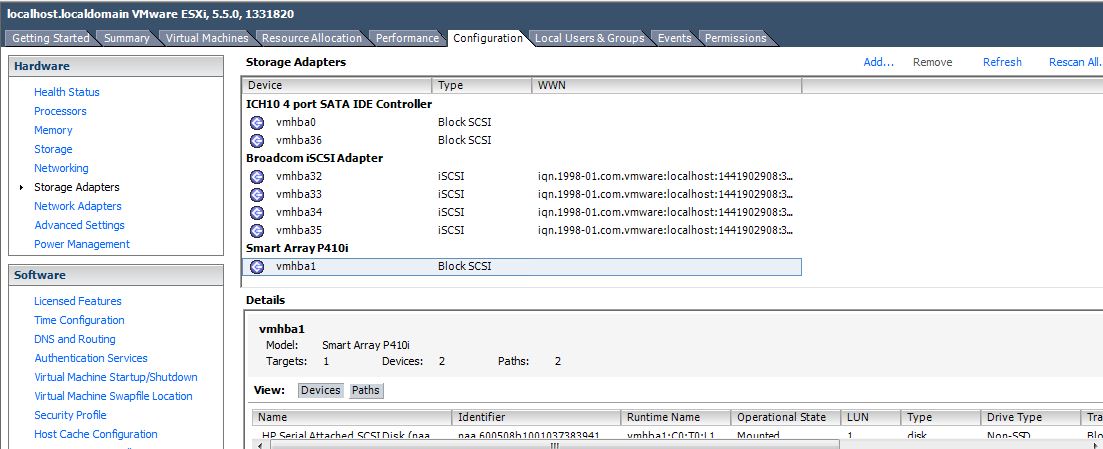

vmhba1 is showing HP Smart Array P410i which is the RAID Controller Card that means your server is RAID configured.

Else you can reboot the server & press F5 during initialization of the RAID controller you can view from there

[Paltelkalpesh]

Yes, you can easily find out through BIOS, which RAID is configured in Server.
