how to check if the VM has thin or thick disk mode ?

[oudmaster]

hi,

I want to make sure some of the VMs installed in ESXi 5.5 if they are thin or thick provisioned,

can someone guide me please ?

[a_p_]

There are several options available. You can e.g. run RVTools and check the "Thin" coulumn in the vDisk tab, or simply open the Datastore Browser and check the VM's file sizes. For thin provisioned virtual disks you'll see the Provisioned Size in addition to the Size column.

André

[narenotpp]

you can also check this easily by going in vSphere Web Client (if your host is managed by vCenter)

select your Host in Host and Cluster inventory -> Related Objects -> Virtual machines tab

this is where it will list out all the VMs in your ESXi host, along with their Actual and Provisioned Size parameters, if you see both the columns reporting same size, that means it's Thick provisioned vdisk vm. if actual size is less than provisioned size, than it's thin provisioned vdisk vm.

[Nithy07cs055]

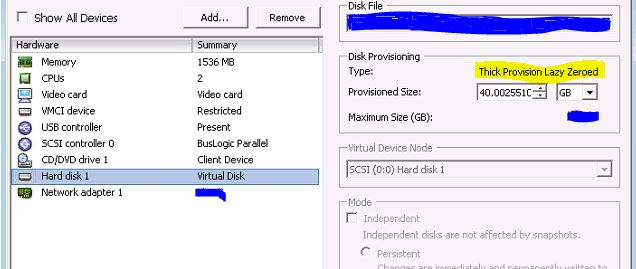

you can simply see this from edit setting option on the VM,

if you want to view it for all Virtual machine at a slot .. use RVtools

[homerzzz]

There is always the PowerCLI way also if you need to check many VMs. Something like this:

foreach ($vm in get-vm) { "{0} disk is {1}" -f $vm.Name,$vm.HardDisks.StorageFormat}

[CoolRam]

Login to the datacenter and get all the VM list using powercli command . iterate all the VM and run Get-HardDisk - vSphere PowerCLI Cmdlets Reference command with option.
