VMware vSphere

 View Only
  • 1.  How to Boot a VM in mapped ISO or PXE Boot

    Posted Dec 13, 2021 03:42 PM
      |   view attached

    Hello,

    Please refer the attached image.

    1. VM is Powered ON
    2. It opens in new tab
    3. I am trying to boot the VM from Network (PXE) or an ISO file mapped to it
    4. But it quickly Boots to Windows 10 before I select the tab where VM Device opened

    Please help how to boot VM using Network (PXE) or Mapped ISO.



  • 2.  RE: How to Boot a VM in mapped ISO or PXE Boot

    Posted Dec 13, 2021 04:02 PM

    Ciao

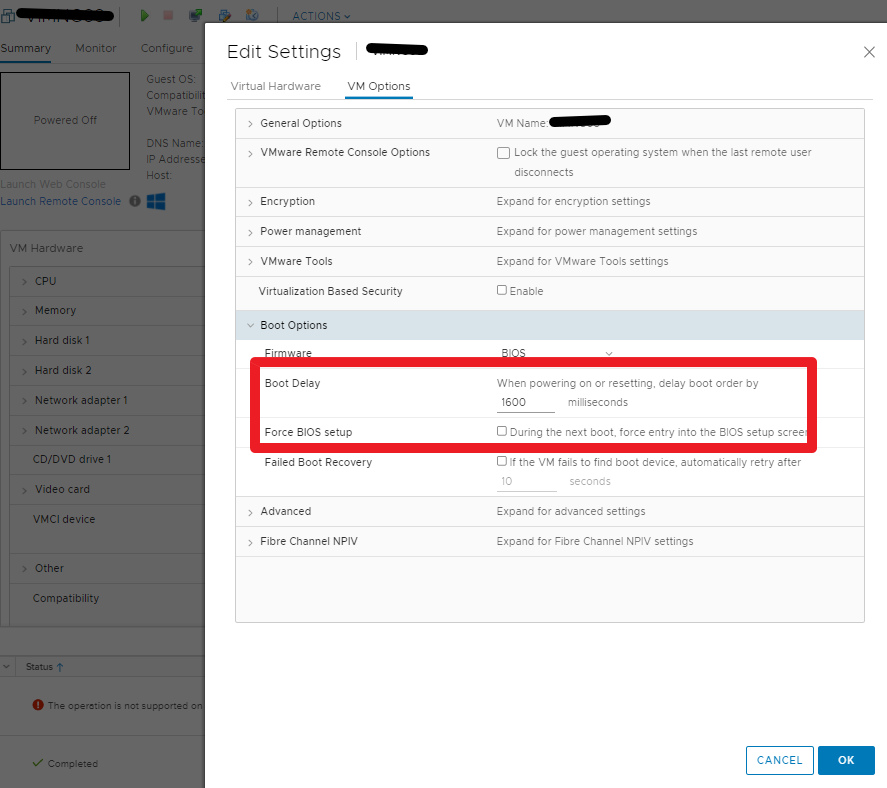

    You can force the VM to start in the Bios and then change the boot order, or change the boot delay

    Set the value  Edit Settings --> VM Options
