ESXi intel 219-v ASROCK H470

[duped]

Hello,

I try to install ESXi on an Asrock H470m ITX, which has 2 lan

- intel 219-v

- RTL8125BG

I know there is no driver for the RTL, but for the intel it should be ok.

But, when I launch ESXi 7.0U1c there is no network card.

Can you help me ?



Thank you

[Scott Vessey]

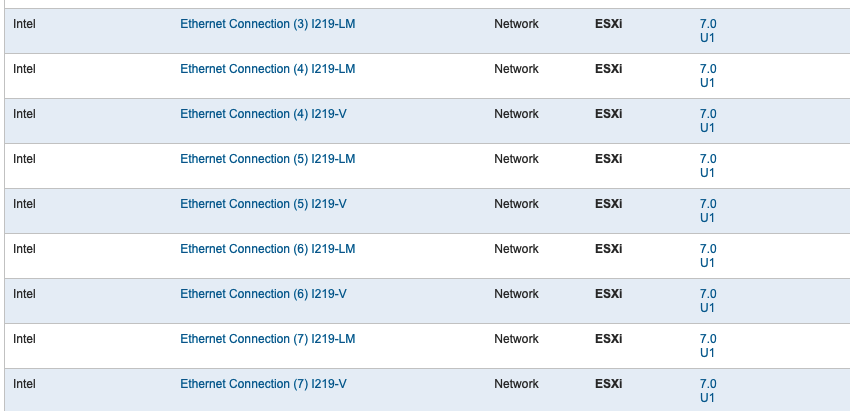

This tool can be used to check: https://www.vmware.com/resources/compatibility/search.php?deviceCategory=io



[duped]

Thanks for your answer, but I've already checked this tools.



And the intel 219-v is supported....so I don't know what to do

[duped]

 

[mrsidd]

Hi,

Get a $15 USB NIC that uses one of the listed chipsets in this Fling https://flings.vmware.com/usb-network-native-driver-for-esxi

Then, just follow the step-by-step instructions to make a custom iso here: https://www.virten.net/2020/04/how-to-add-the-usb-nic-fling-to-esxi-7-0-base-image/



[duped]

yes thank you for your answer, but I would prefer not using an usb Nic.

My mistake was not verifying before buy if my motherboard was compatible.

[JonErikB]

Have you managed to make it work?

[duped]

No, just buy an USB NIC unfortunately.

But I don't spend a lot of time. May I should retry.

[fradp97]

Edit: rewrite here: https://communities.vmware.com/t5/ESXi-Discussions/ESXi-intel-219-v-ASUS-PRIME-B560M-A/m-p/2888203#M279826

[Simpkins1]

It was very well authored and easy to understand. Unlike additional blogs I have read which are really not that good.

[fradp97]

I solve the issue here: https://communities.vmware.com/t5/ESXi-Discussions/ESXi-intel-219-v-ASUS-PRIME-B560M-A/m-p/2888203/highlight/false#M279826

[duped]

Hi fradp97,



Thank you

I've already find this solution already, and now I added it to my esxi's ISO. So I don't need any extra conf.
