  • 1.  esxi desing draw

    Posted Jul 25, 2014 12:21 PM

    i have 4 host and san and two storages . i want to draw my infrastructure so which is the best software

    smartdraw or visio or any software. i cant find any symbol in smartdraw or visio

    or is there any example



  • 2.  RE: esxi desing draw

    Posted Jul 25, 2014 12:28 PM

    Visio is probably best as you will find plenty of stencils online, here is VMware stencils from veeam to get you started.  Free VMware ESX, Microsoft Hyper-V stencils for Visio you will plenty more stencils for different vendors here VisioCafe free visio stencils download site



  • 3.  RE: esxi desing draw

    Posted Jul 25, 2014 01:00 PM

    is there any example ?



  • 4.  RE: esxi desing draw

    Posted Jul 29, 2014 04:42 PM

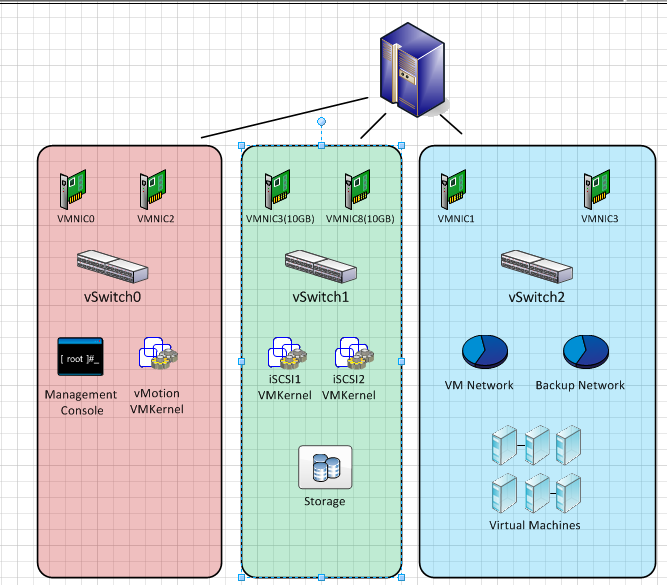

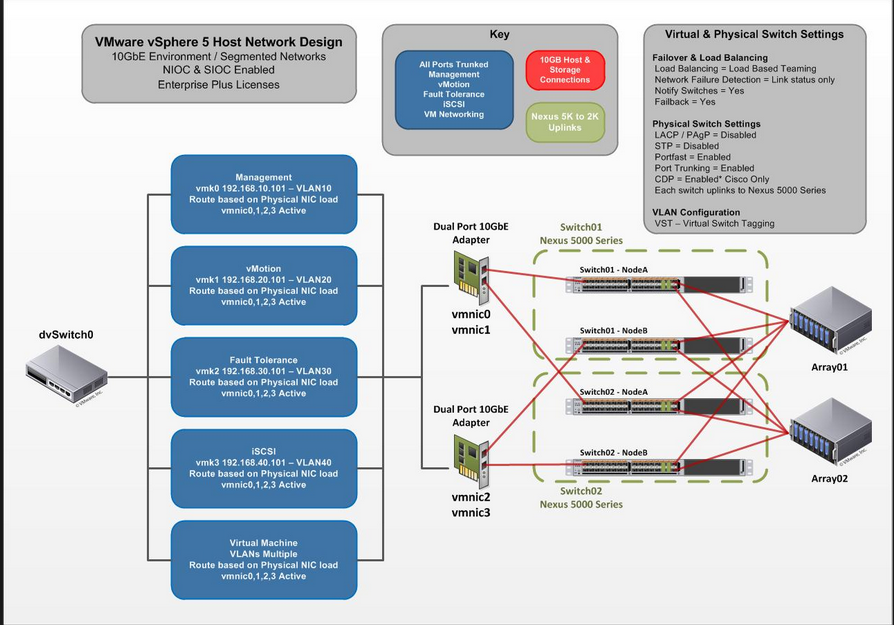

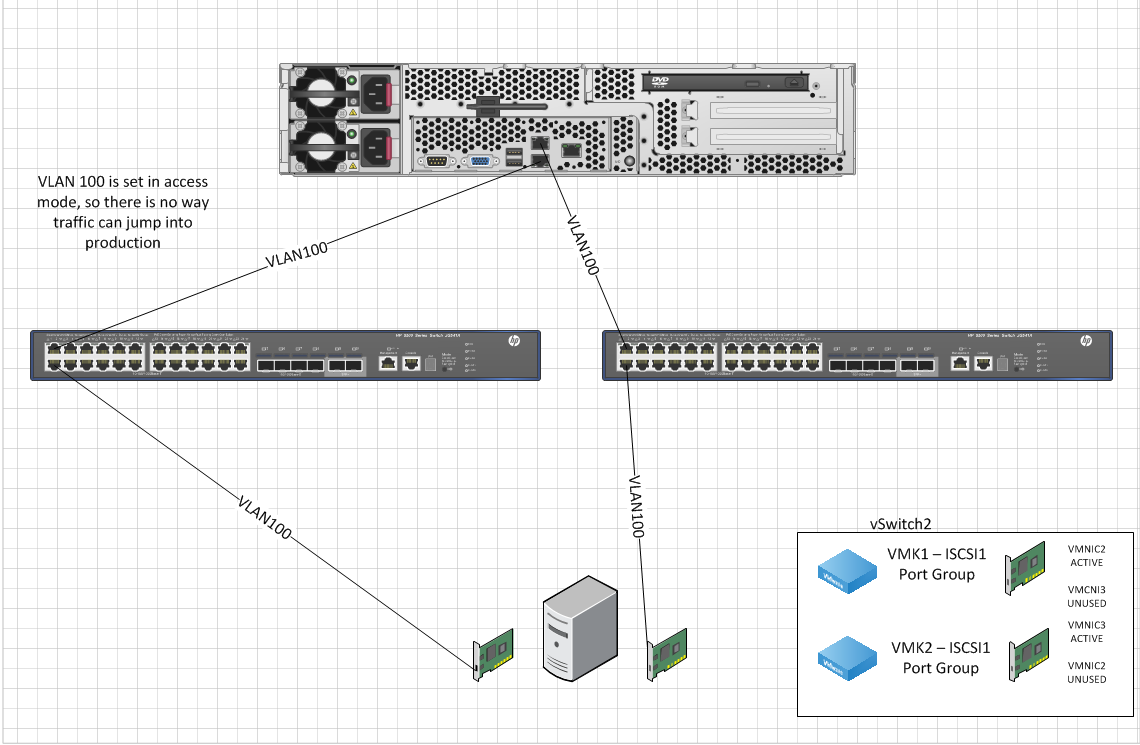

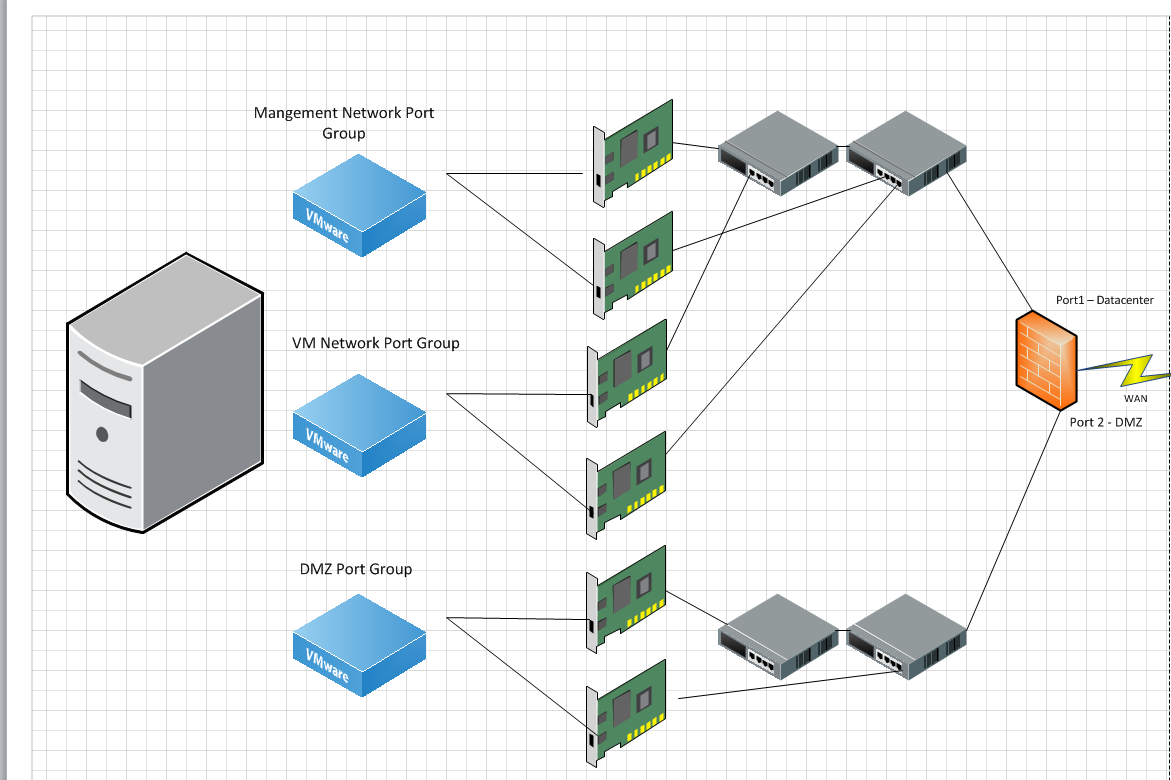

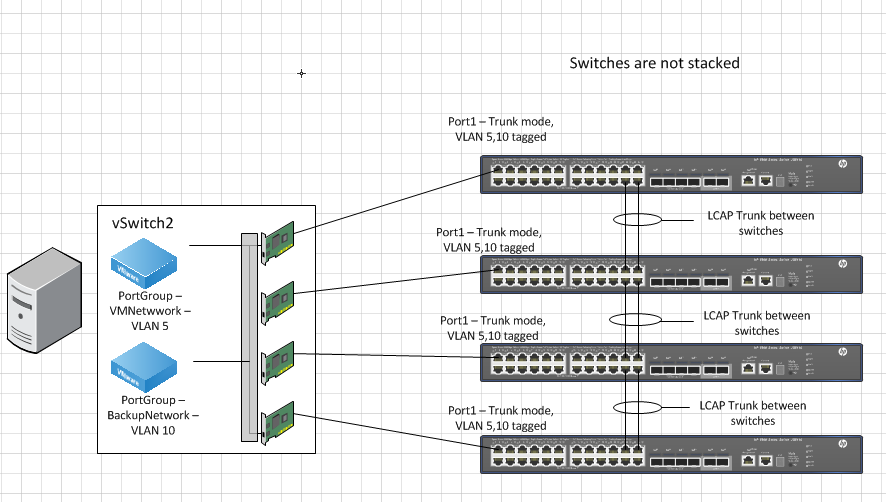

    Here are some quick examples I used to help other people on the forums and 1 other example I found just for reference



  • 5.  RE: esxi desing draw

    Posted Jul 25, 2014 12:29 PM

    Here are the official VMware Visio Stencils:

    VMware Icons and Diagrams - Visio Stencils
