  • 1.  Error: Virtualized Intel VT-x/EPT is not supported on this platform.

    Posted Jun 22, 2025 09:17 PM

    I get the error "Virtualized Intel VT-x/EPT is not supported on this platform." when attempting to launch a Window Server 2022 VM with VMWare Workstation Pro 17.6.3.

    Setup:

    Lenovo ThinkPad P1 Gen 7

    Intel Core Ultra 9 185H (Meteor Lake-based, new generation)

    Windows 11 Pro (Host)

    I have turned off and verified none of the Hyper-V services are running.

    I confirmed there are not any nested VMs.

    These lines are present in the vmx file:

    vhv.enable = "TRUE"
    hypervisor.cpuid.v0 = "FALSE"
    mce.enable = "TRUE"

    I created a new Ubunto VM and confirmed VT-x is not visible to the Ubuntu guest.

    I exported the VM to an OVF and imported it into VirtualBox and the Windows VM will launch in VirtualBox.   I've tried everything I can find to fix this issue, including everything from ChatGPT.

    Does anyone have know how to resolve this issue or have any additional troubleshooting suggestion?

    Thanks in advance,

    Rob



  • 2.  RE: Error: Virtualized Intel VT-x/EPT is not supported on this platform.

    Broadcom Employee
    Posted Jun 23, 2025 06:21 AM

    Hi,

    Please share the support bundle including the Windows Server 2022 guest OS logs.

    Thanks.




  • 3.  RE: Error: Virtualized Intel VT-x/EPT is not supported on this platform.

    Posted Jun 23, 2025 07:00 AM

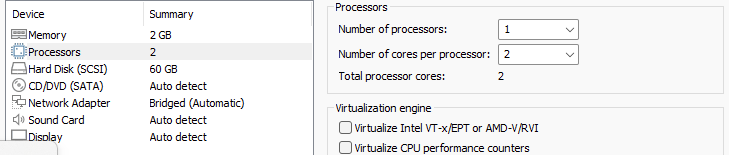

    Did you check whether VBS (Virtualization Based Security) is off. Here, on this forum, there are discussions describing how to disable the invisible virtualization layer in Windows. Hyper-V services are not enough. You VM's configuration has these two checkboxes checked:

    Unless you want to run Hyper-V inside the VM, you don't need these. Uncheck, then try again. If you need hardware virtualization features within the VM, you'll need to disable VBS.
