Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

  • 1.  Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jun 13, 2021 07:37 PM

    Hi everyone, I've tried to patch my lab instance of the VCSA multiple times since originally upgrading to 7.0.1.00300 and it's been rough. I must say that the VMware 6.5 and 6.7 builds were much easier to maintain thus far.

    Anyway, the latest issue occurred while using the VAMI to stage the 7.0.2.00200 update first, then ran install after stage was completed.  I got this error and after about an hour of waiting, no change.


    Revert snapshot, disable HA for my single cluster, disable DRS, apply "config.vcls.clusters" hack to get vCLS VMs redeployed.  Enable HA, Enable DRS, all normal again.  That was fun... NOT.

    It is worth noting that my original upgrade to this version of the VSCA 7 was really rough too, I have a post about there here:
    https://tylercrew.com/?p=428

    Regards,
    Adam Tyler



  • 2.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jun 13, 2021 08:31 PM

    Tried to update via the CLI just now, still failed.  Love how it asks you to go grab the log file but gives you no information about the file name or where it is stored.  Garbage...

    ---

    Command> software-packages install --staged
    [2021-06-13T20:09:12.164] : For the first instance of the identity domain, this is the password given to the Administrator account. Otherwise, this is the password of the Administrator account of the replication partner.
    Enter Single Sign-On administrator password:

    [2021-06-13T20:09:19.164] : Validating software update payload
    [2021-06-13T20:09:19.164] : UpdateInfo: Using product version 7.0.1.00300 and build 17491101
    [2021-06-13 20:09:19,718] : Running validate script.....
    [2021-06-13T20:09:26.164] : Validation successful
    [2021-06-13 20:09:26,748] : Copying software packages [2021-06-13T20:09:26.164] : ISO mounted successfully
    152/152
    [2021-06-13T20:10:55.164] : ISO unmounted successfully
    [2021-06-13 20:10:55,368] : Running system-prepare script.....
    [2021-06-13 20:11:04,402] : Running test transaction ....
    [2021-06-13 20:11:13,443] : Running prepatch script.....
    [2021-06-13 20:14:23,781] : Upgrading software packages ....
    [2021-06-13T20:18:37.164] : Setting appliance version to 7.0.2.00200 build 17958471
    [2021-06-13 20:18:37,424] : Running patch script.....
    [2021-06-13T20:28:22.164] : Patch command patch failed
    [2021-06-13T20:28:22.164] :
    Mismatch:
    summary: Internal error occurs during execution of update process .
    resolution: Send upgrade log files to VMware technical support team for further assistance.



  • 3.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Broadcom Employee
    Posted Jun 14, 2021 03:47 PM


    Thank you for posting on VMware Communities.

    There are many ways through which vCenter Server support bundle can be collected which are discussed in the below KB:
    https://kb.vmware.com/s/article/1011641



    Arun Kumar

    Install Upgrade Specialist

    "Did you find this helpful? Let us know by completing this survey (takes 1 minute!)



  • 4.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jun 14, 2021 07:07 PM

    I created a support package after the failed install using the bash cli.  Downloaded via WinSCP.  Can't find anything helpful.  Tried deploying an older build of vCenter 7.0.2u2a, failed with same error.  This is going well...



  • 5.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jun 16, 2021 02:49 PM

    software-packages.log entries to note....

    ---------------------

    2021-06-15T21:03:09.166 [60667]DEBUG:vmware.vherd.base.software_update:Restored software update
    Staged status = True
    Staged packages:

    {'libsolv': {'type': 'rpm', 'relativepath': 'libsolv-0.6.35-5.ph3.x86_64.rpm', 'epoch': '(none)', 'version': '0.6.35', 'sha1val':

    Installed packages:
    {}
    Payload packages:
    {}
    MetaData:
    {'category': 'Bugfix', 'kb': 'https://docs.vmware.com/en/VMware-vSphere/7.0/rn/vsphere-vcenter-server-70u2b-release-notes.html', 'leaf_services': ['vmware-pod', 'vsphere-ui', 'wcp', 'vlcm'], 'vendor': 'VMware, Inc.', 'name': 'VC-7.0U2b', 'tags': '[]', 'type': 'Update', 'version_supported': '[]', 'size in MB': 5142, 'releasedate': 'May 25, 2021', 'executeurl': 'https://my.vmware.com/group/vmware/get-download?downloadGroup=VC70U2B', 'version': '7.0.2.00200', 'updateversion': True, 'allowedSourceVersions': '[7.0.0.0,]', 'buildnumber': '17958471', 'rebootrequired': False, 'productname': 'VMware vCenter Server', 'changesetnumber': '8919831', 'summary': {'id': 'patch.summary', 'translatable': 'In-place upgrade for vCenter appliances.', 'localized': 'In-place upgrade for vCenter appliances.'}, 'severity': 'Critical', 'TPP_ISO': False, 'thirdPartyInstallation': False, 'timeToInstall': 0, 'requiredDiskSpace': {'/storage/core': 13.506058044433594, '/storage/seat': 58.03203125}, 'eulaAcceptTime': '2021-06-15 20:40:21 UTC', 'installdate': '2021-06-15T20:51:51.677Z'}
    Script results:
    CollectRequirementsHook {'requirements': {'requiredDiskSpace': {'/storage/core': 13.506058044433594, '/storage/seat': 58.03203125}, 'rpmIgnoreList': [], 'questions': [{'userDataId': 'vmdir.password', 'text': {'id': 'vmdir.password.text', 'translatable': 'Single Sign-On administrator password', 'localized': 'Single Sign-On administrator password'}, 'description': {'id': 'vmdir.password.desc', 'translatable': 'For the first instance of the identity domain, this is the password given to the Administrator account. Otherwise, this is the password of the Administrator account of the replication partner.', 'localized': 'For the first instance of the identity domain, this is the password given to the Administrator account. Otherwise, this is the password of the Administrator account of the replication partner.'}, 'kind': 'password', 'allowedValues': [], 'defaultAnswer': None}], 'rebootRequired': False}, 'patchInfo': {'timeToInstall': 0, 'patchSummary': {'id': 'patch.summary', 'translatable': 'In-place upgrade for vCenter appliances.', 'localized': 'In-place upgrade for vCenter appliances.'}}, 'mismatches': []}
    ValidationHook {'mismatches': []}
    PrepareProductInstallationHook {}
    PrepatchHook {}
    PatchHook {'mismatches': [{'severity': 'error', 'text': {'id': 'patch.internal.error.text', 'translatable': 'Internal error occurs during execution of update process %(0)s.', 'args': [''], 'localized': 'Internal error occurs during execution of update process .'}, 'description': None, 'resolution': {'id': 'patch.internal.error.resolution', 'translatable': 'Send upgrade log files to VMware technical support team for further assistance.', 'localized': 'Send upgrade log files to VMware technical support team for further assistance.'}}]}

    2021-06-15T21:03:09.166 [60667]ERROR:root:
    Mismatch:
    summary: Internal error occurs during execution of update process .
    resolution: Send upgrade log files to VMware technical support team for further assistance.

    2021-06-15T21:03:09.166 [60667]DEBUG:vmware.vherd.base.software_update:Destroyed software update state

    2021-06-15T21:03:09.166 [60667]DEBUG:vmware.vherd.base.software_update:Destroyed software update state

    2021-06-15T21:03:09.166 [60667]DEBUG:vmware.vherd.base.software_update:Initialized software update state



  • 6.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jul 06, 2021 03:29 PM

    Never could get this figured out, ended up deploying a new vCenter instance on the latest build.

    Regards,

    Adam Tyler



  • 7.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jul 16, 2021 08:36 PM

    I get same error after I had to spend 3 days with vmWare support to fix the problems with the previous version upgrade mess.

    Still no resolution. And just in time a vmaware rep called to "check up" and got an earful. What does she ask? Did you send a support request? VMware is on the slide.



  • 8.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jul 16, 2021 09:00 PM

    Bro, you said it.  I'm not amused with VMware as of late at all.  Tons of problems with the vSphere 7 upgrade.  Nothing like administering 5.x or 6.x.  Support has taken a real turn too.  No one in support that I've interacted with can really assist.  They just ask you for logs and sit on the issue for days/weeks until you figure it out yourself.  Yikes.

    Regards,

    Adam Tyler



  • 9.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Aug 03, 2021 11:58 AM

    Ha-ha ... I wondered if I only one who always sending tons of logs to helpless tech support from VMware last few years. Got that error too.



  • 10.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Aug 03, 2021 03:09 PM

    It's so bad.  I can't believe I am saying it, but Hyper-V is looking better all the time.

    Latest outrage is this: https://www.provirtualzone.com/vsphere-7-update-2-loses-connection-with-sd-cards-workaround/

    Tried upgrading some hosts to vSphere 7u2 and the USB/SD cards used for the OS just go offline randomly.  Opened a case with support and they want to start with logs.  Many customers experiencing this across many different server brand/models.  Crazy.  We're unpaid beta testers now.

    Regards,

    Adam Tyler



  • 11.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Aug 03, 2021 05:38 PM

    Latest error: 7.02 patch! "Unexpected error occurred while fetching the updates". I'm afraid to even touch the platform anymore. We run mission critical apps for our business on this software. Should not have to call a technical support that has no answers to the problems of applying patches for vulnerabilites that increase risk and cost.

    Did DELL do this to VMware? I think so.

    • 7.0.2 Updates Available
    • Build:17958471


  • 12.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Broadcom Employee
    Posted Aug 04, 2021 07:06 AM



    Regarding the "Unexpected error occurred while fetching the updates"

    Please refer to the VMware vCenter Server 7.0 Update 2b Release Notes

    https://docs.vmware.com/en/VMware-vSphere/7.0/rn/vsphere-vcenter-server-70u2b-release-notes.html



    Which discusses the below information:



    • When you use the Update Planner, in the vSphere Client you might see Unexpected error occurred while fetching the updates

    When you use Update Planner, which is part of vSphere Lifecycle Manager, used to facilitate vCenter Server updates, you might see the following error in the vSphere Client:
    Unexpected error occurred while fetching the updates


    The issue occurs when you use a custom HTTPS port that prevents you from running interoperability reports by using the vSphere Client.

    Workaround: Manually invoke the API. For more details, see the vSphere Automation API.



    Regards,
    Arun Kumar Sharma
    Install Upgrade Specialist
    "Did you find this helpful? Let us know by completing this survey (takes 1 minute!)





  • 13.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Sep 08, 2021 03:11 PM

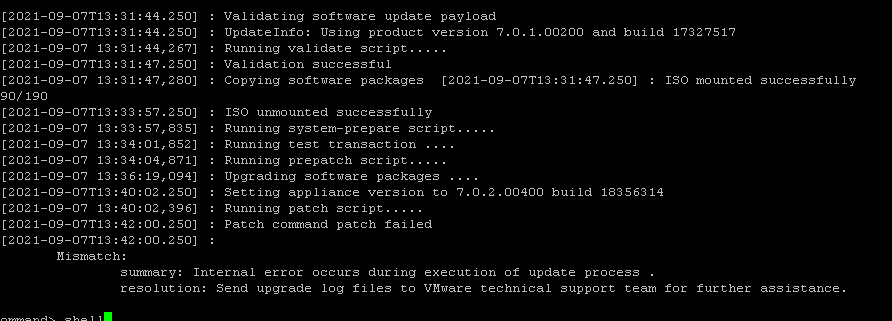

    I ran into the same issue trying to upgrade from 7.0.1.0020 to 7.0.2.00400.  We were doing the upgrade from the appliance shell with the ISO mounted from a datastore to the vcenter vm.  The error message was less than helpful




    In our case, this vcenter had been upgraded from 6.7 to 7.0 and were originally part of an external PSC and then converted to embedded  as part of the upgrade.  Clues to the issue were found near the end of  /storage/log/vmware/support/applmgt/PatchRunner.log file on the vcenter appliance.

    vmdir: Patch ERROR faled to delete the legacy schema tombstone entry on DC testdc.mydomain.com.

    vmdir .Patch ERROR ldap_delete: No such object (32)

    additional info : (9703) ( MDB_NOTFOUND: No Matching key/data pair found

    There were remnants of and old sso domain (testdc.mydomain.com) members remaining in the PSC and we were able to identify and delete from sections

    'Domain Controllers', DomainDNSZones'  using  jxplorer tool before attempting the upgrade to 7.0.2.00400.

    After reverting the vcenter snapshot, using jxplorer to clean up the orphaned entries, the next upgrade attempt was successful.



    Hopefully, this is helpful .





  • 14.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Feb 02, 2022 12:23 AM

    I just hit the same issue today going from 7.0U2 (7.0.2.00000) to 7.0U3c(7.0.3.00300).



    Enterprise eh?



  • 15.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Feb 02, 2022 02:03 AM

    the vSphere 7 product is garbage.  Will be interesting to see what happens when 6.5 and 6.7 go EOL later this year and tons of customers are forced to face an inferior "upgrade"..  Maybe it will force their dev teams to start actually resolving these problems.  Don't hold your breath...



  • 16.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Feb 02, 2022 07:48 PM


  • 17.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Feb 02, 2022 09:59 PM

    Same. But I was able to fix it.

    During the upgrade, envoy proxy was not able to start. Reverted back to my snapshot and before I started the upgrade again, I had to change the envoy config (/etc/vmware-envoy/config.cfg).

    SERVICE_DEFAULT_ARGS=(
    -c /etc/vmware-envoy/config.yaml
    -l $SERVICE_LOG_LEVEL
    --log-format "$SERVICE_LOG_FORMAT"
    --service-cluster vmw_cluster
    --drain-time-s 60
    --disable-hot-restart
    --bootstrap-version 3
    )

    The last line "bootstrap-version 3" is essential.

    Maybe this helps others for the upgrade.

    br,

    Reto



  • 18.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Apr 22, 2022 02:22 PM

    I solved the problem with LSdoctor.



  • 19.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Sep 08, 2021 03:56 PM

    We are facing the exact same issue - and this is from an freshly installed 7.0.2.00200!

    The amount of issues and bugs introduced in 7.0 (both vCenter and ESXi), is massive!

    Really not impressed!



  • 20.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Sep 21, 2021 09:25 AM

    In my case it were problems with trust for some solution user certificates.

    I've been guided to Lsdoctor KB https://kb.vmware.com/s/article/80469 , so it fixed some errors and update processed smoothly.



  • 21.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Sep 30, 2021 05:16 PM

    Hi, In the VCF solution we got the same VCSA upgrade error in the "Converting data as part of post install" around 93% mark. The issue according to support was missing version.txt file in /etc/vmware-vlcm folder. The file must contain the expected version number. We were upgrading from VCSA 7.0.1.00301-17956102 so in our case the file had to contain 0.0.2.



  • 22.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Oct 09, 2021 11:23 PM

    Having upgrade issues here as well.



    Trying from a clean install 7.0.2.00500 to 7.0.3.00000 build 1870043

    [2021-10-09T23:01:11.282] : Validating software update payload
    [2021-10-09T23:01:11.282] : UpdateInfo: Using product version 7.0.2.00500 and build 18455184
    [2021-10-09 23:01:11,115] : Running validate script.....
    [2021-10-09T23:01:15.282] : Validation successful
    [2021-10-09 23:01:15,136] : Copying software packages [2021-10-09T23:01:15.282] : ISO mounted successfully
    133/133
    [2021-10-09T23:04:05.282] : ISO unmounted successfully
    [2021-10-09 23:04:05,236] : Running system-prepare script.....
    [2021-10-09 23:04:10,259] : Running test transaction ....
    [2021-10-09 23:04:12,281] : Running prepatch script.....
    [2021-10-09 23:05:46,435] : Upgrading software packages ....
    [2021-10-09T23:07:57.282] : Setting appliance version to 7.0.3.00000 build 18700403
    [2021-10-09 23:07:57,663] : Running patch script.....
    [2021-10-09T23:09:53.282] : Patch command patch failed
    [2021-10-09T23:09:53.282] :
    Mismatch:
    summary: Internal error occurs during execution of update process Traceback (most recent call last):
    File "/storage/core/software-packages/scripts/patches/py/vmware_b2b/patching/phases/patcher.py", line 203, in patch
    _patchComponents(ctx, userData, statusAggregator.reportingQueue)
    File "/storage/core/software-packages/scripts/patches/py/vmware_b2b/patching/phases/patcher.py", line 84, in _patchCompo
    _startDependentServices(c)
    File "/storage/core/software-packages/scripts/patches/py/vmware_b2b/patching/phases/patcher.py", line 53, in _startDepen
    serviceManager.start(depService)
    File "/storage/core/software-packages/scripts/patches/libs/sdk/service_manager.py", line 901, in wrapper
    return getattr(controller, attr)(*args, **kwargs)
    File "/storage/core/software-packages/scripts/patches/libs/sdk/service_manager.py", line 794, in start
    super(VMwareServiceController, self).start(serviceName)
    File "/storage/core/software-packages/scripts/patches/libs/sdk/service_manager.py", line 665, in start
    raise IllegalServiceOperation(errorText)
    service_manager.IllegalServiceOperation: Service cannot be started. Error:

    .
    resolution: Send upgrade log files to VMware technical support team for further assistance.



    Anyone any idea? I tried setting the start Timeout in the json files to 1500, but did not help



  • 23.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Nov 09, 2021 05:31 PM

    Hi AnyykeNY, did you fixed this error?

    I'm having the same issue when tried to update from 7 u2b to 7 u3a.

    Did some tricks without success.



  • 24.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Nov 12, 2021 04:30 PM

    Did you find a solution for this one? I am running into same issue.



  • 25.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Nov 17, 2021 09:57 AM

    This is so annoying. I noticed there is a new update 7.0.3.00200 (November 11th) and with that I still get the same installhook error



  • 26.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Dec 13, 2021 07:58 PM

    Seeing the same error message myself in production unfortunately. Though mine's at the 93% mark from 7.0.1.00200 to 7.0.2.00500.

    Creating a Sev 1 ticket with support and no response at all for 2 hours. So much for the 30 min SLA

    Very disappointing.



  • 27.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Dec 13, 2021 09:25 PM

    Yep, I'm willing to bet real $$ that the first couple of support resources you speak with are going to be zero help too.  Took me 4 weeks recently to get a VMware engineer on the phone capable of answering some basic questions about logging and partitions in ESXi.  Company is going to crap.....



  • 28.  RE: Can't patch beyond VCSA 7.0.1.00300: Invalid Type,expected String, instead got NoneType

    Posted Jan 03, 2022 08:56 AM

    Hi actyler1001,

    Do you have any updates on the error "Invalid Type,expected String, instead got NoneType" ?

    I am unable to update to 7.0.3.00100 and cannot find any relevant information online
