  • 1.  Siteminder Authentication to Office365 fails with error code AADSTS51004

    Posted Mar 23, 2024 06:04 AM

    Hello Community.

    I configured all parameters for WSFed partnership between Siteminder (v12.8) and Office365. When I test the Authentication process, it fails with error code AADSTS51004 from MS o365 side. I checked the attribute ImmutableId and it's encoded (I guess it's Base64). Is this the root cause for this issue?

    When I check my lab environment ImmutableId, it is plain text (user@domain.com) and my lab works fine. Additionally, I know there's a way to change the ImmutableId to store its value with no encoding. But it would be great to make it works encoded.

    Is it some way to make Authentication works preserving ImmutableId encoded?

    What else can I do to solve this issue?

    Thanks in advance for your help.

    Best,

    Mauricio.



  • 2.  RE: Siteminder Authentication to Office365 fails with error code AADSTS51004

    Broadcom Employee
    Posted Mar 25, 2024 01:29 PM

    Hi Mauricio,

    If your environment has Entra Connect/Azure AD Sync configured, in many cases ImmutableID is based on ObjectGUID in AD.

    Please take a look at https://broadcomcms-software-agent.wolkenservicedesk.com/wolken/esd/knowledge-base-view/view-kb-article?articleNumber=41733 to see if that helps to resolve the issue.

    Regards,

    Richard


    Original Message


  • 3.  RE: Siteminder Authentication to Office365 fails with error code AADSTS51004

    Posted Mar 25, 2024 04:54 PM

    Hi Richard.

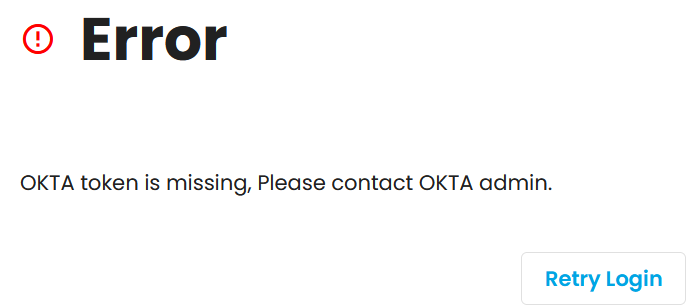

    Is there some other way to access the link you shared? I'm having an issue when I try to follow the link:

    Maybe it's a protected resource. Please your help on this. Thanks in advance.

    Best,

    Mauricio.


    Original Message


  • 4.  RE: Siteminder Authentication to Office365 fails with error code AADSTS51004
    Best Answer

    Broadcom Employee
    Posted Mar 25, 2024 06:03 PM

    Apologies Mauricio. I had mistaken that customers with support access would be able to access the KB article. The key piece of information in the article indicates you can use the following syntax in the partnership to pass binary attributes such as ObjectGUID:

    Assertion Attributes:

    Type: User Attribute

    Value: 'ObjectGUID;binary'

    This assumes you are using ObjectGUID as the sourceAnchor attribute in Azure AD Connect.

    Regards,

    Richard


    Original Message


  • 5.  RE: Siteminder Authentication to Office365 fails with error code AADSTS51004

    Posted Mar 25, 2024 09:01 PM

    Hi Richard.

    Thanks a lot for your help. I'm going to test this setting tomorrow and I'll let you know to close this post with good news. Can you please share the complete KB to have the full picture? (I'm sorry to bother).

    Best regards,

    Mauricio.
