Problem to observer all properties at DX Topology

[ISAAC VELASCO]

I've implemented the new DX Topology app.

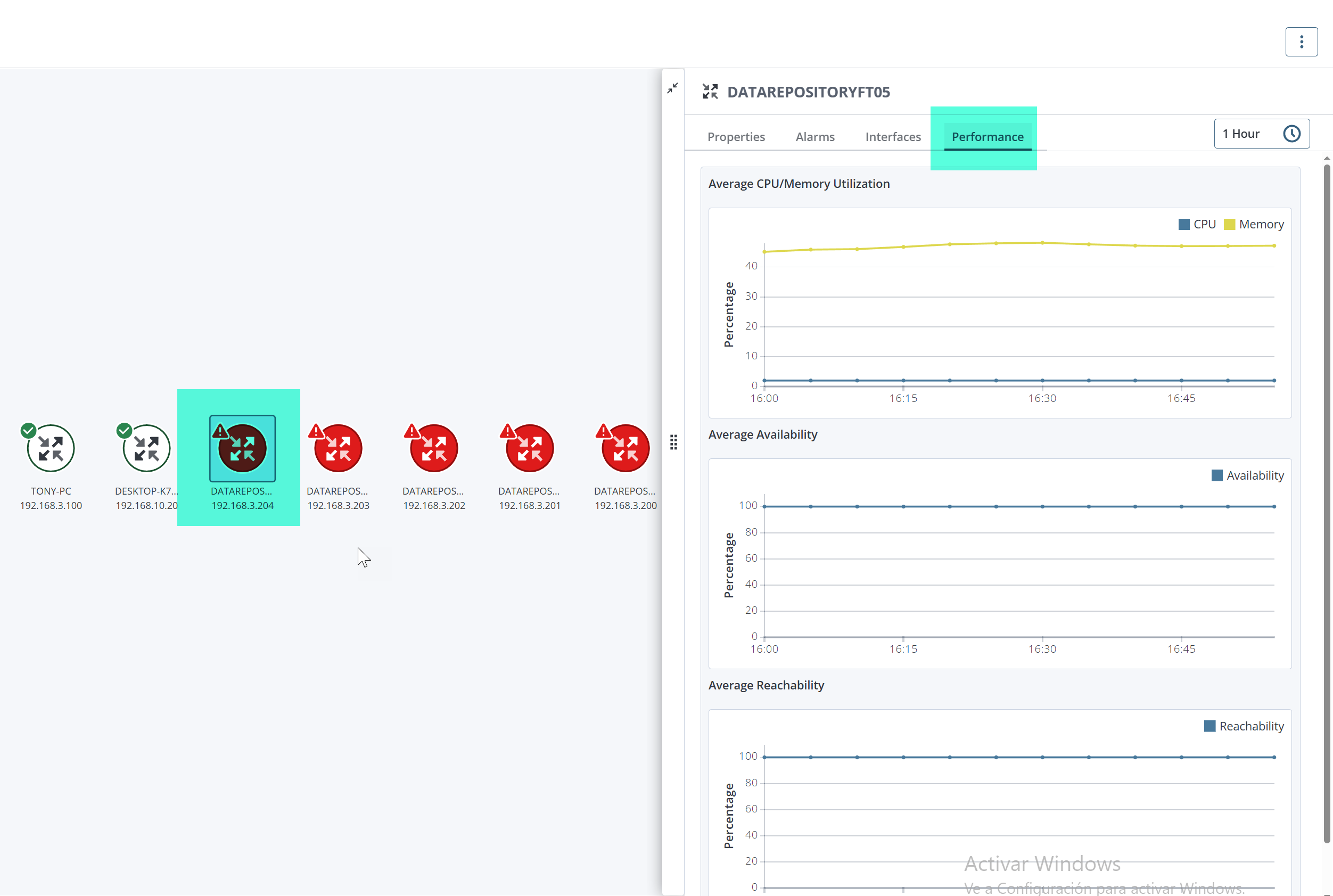

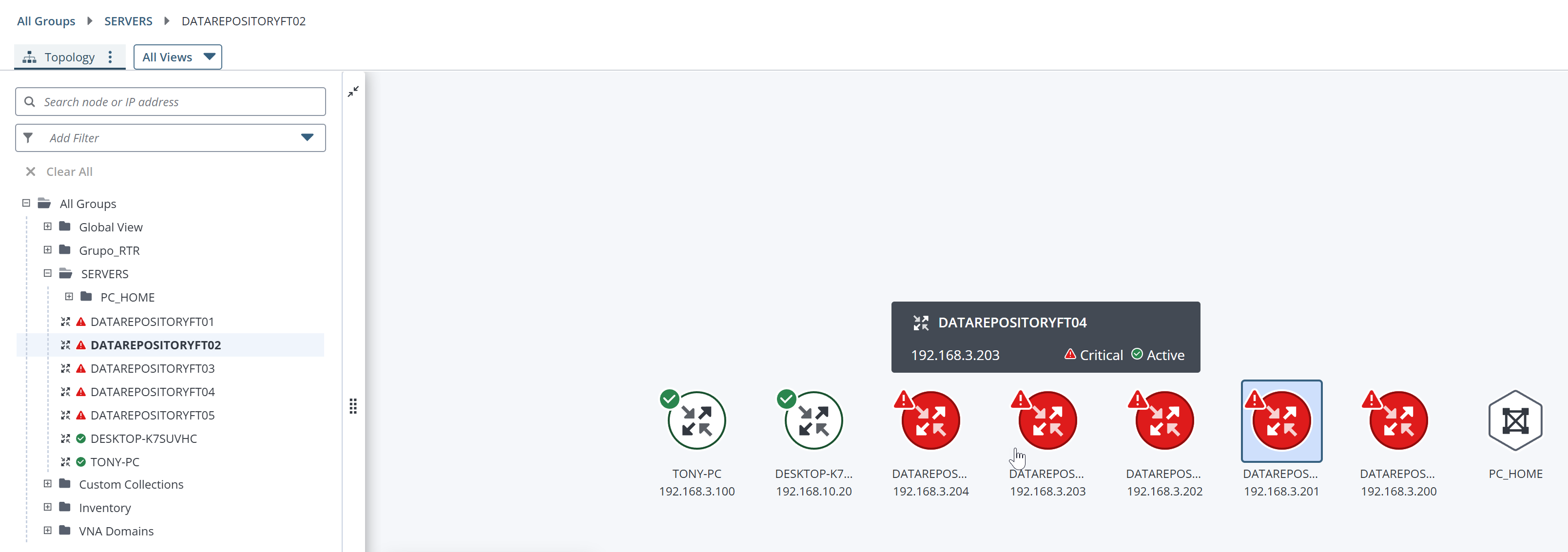

I see that the devices are now visible in the DX Topology console, and alerts and CPU/MEMORY/AVAILABILITY usage are displayed. However, I can't see the connections between the network devices or the metrics for the interfaces themselves, as shown in the DX Topology dashboard.




If you could help me get to the result where the topologies and connections are observed in DX Topology

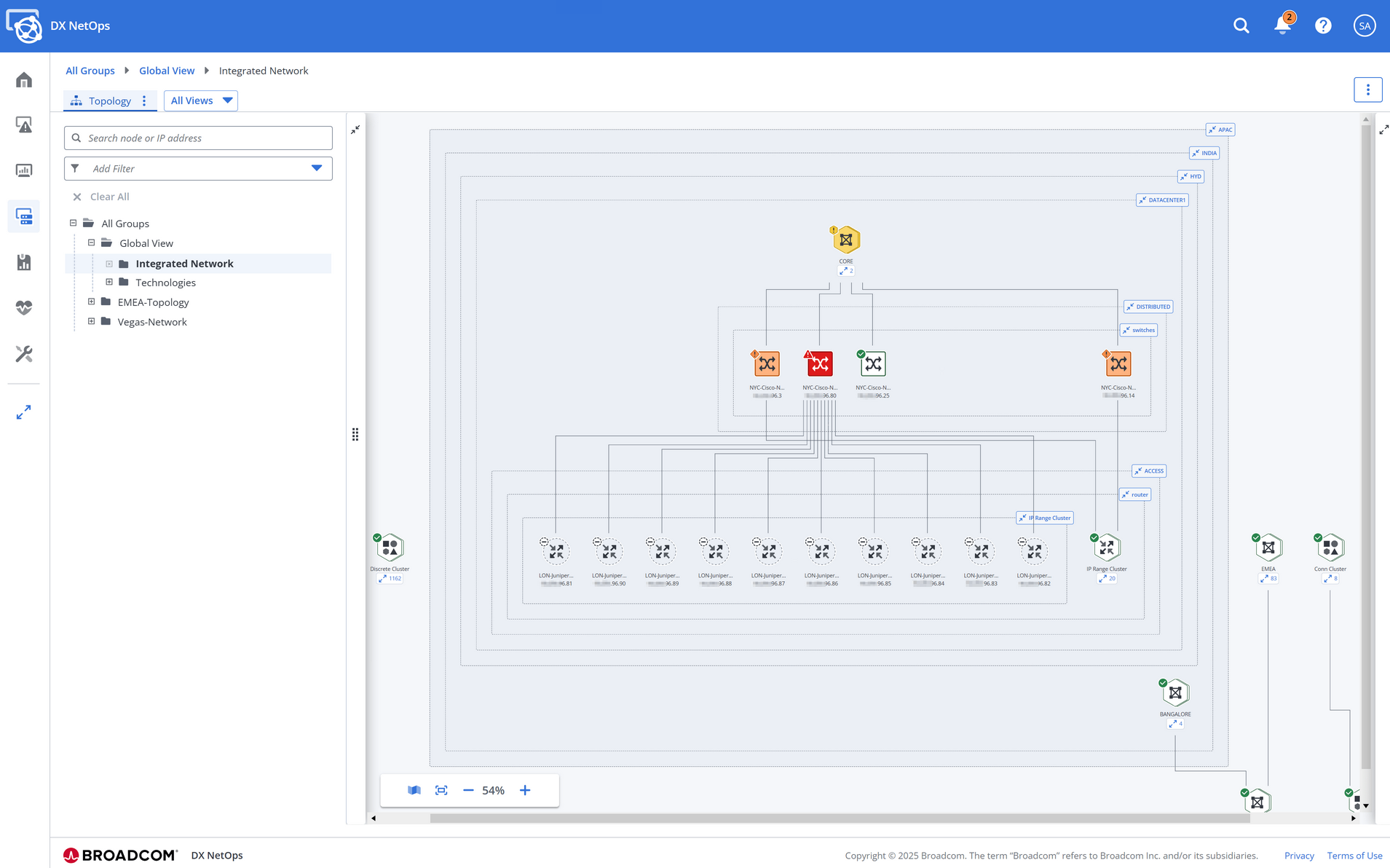

I want to observer some similar to

Thanks community,

Best Regards,
Isaac Velasco

[Poornachander Rao Kolugoori]

Hi Isaac,

To see the connections in the topology, you need to run the discovery profile of the connected devices by enabling the "Discover Connections" checkbox. The document link below should help with this process.

https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/dx-netops/24-3/Performance-Monitoring-with-DX-Performance-Management/installing/install-ifm/post-installation-configuration/discover-connections.html

At present, topology supports CDP and LLDP protocols for connection discovery.
