How to create a filter for capture alarms specific with UIMAPI

[Miller Echagarreta]

Hello everyone, how are you?



I need to share to another system through UIMAPI only some alarms specific, how can i to create the filter ?



I tested different options but isn't work... returns all alarms

Alarm one:

curl -X GET "https://operatorconsole.host.local:443/uimapi/alarms" \
     -H "Authorization: Authorization: Basic <base64_encoded_credentials>" \
     -H "Content-Type: application/json" \
     -k \
     -G \
     --data-urlencode "filter=robot eq 'servldap01' and probe eq 'logmon' and message like '%Conexion%' and message like '%NO ESTABLECIDO%'" \
     -o testApiFilter1.log

Alarm two:

curl -X GET "https://operatorconsole.host.local:443/uimapi/alarms" \
     -H "Authorization: Authorization: Basic <base64_encoded_credentials>" \
     -H "Content-Type: application/json" \
     -k \
     -G \
     --data-urlencode "filter=robot eq 'srvapp22-p10' and probe eq 'oracle' and message like '%El ID de conexion%'" \
     -o testApiFilter2.log

or a combination

curl -X GET "https://operatorconsole.host.local:443/uimapi/alarms" \
     -H "Authorization: Authorization: Basic <base64_encoded_credentials>" \
     -H "Content-Type: application/json" \
     -k \
     -G \
     --data-urlencode "filter=(robot eq 'servldap01' and probe eq 'logmon' and message like '%Conexion%' and message like '%NO ESTABLECIDO%') or (robot eq 'srvapp22-p10' and probe eq 'oracle' and message like '%El ID de conexion')" \
     -o testApiFilter.log

Any idea ?

[Christopher Pearson]

This looks like you would actually want to use the Post /uimapi/alarms method to perform filtered queries:

I took the payload that I had from F12 in OC, and was able to return the boot alarms that I had using the following:

{"pageNumber":0,"pageNumberOnResponse":0,"pageSize":50,"quickFilter":"","filters":["visible = true"],"colFilters":[{"column":"message","operator":"CONTAINS","value":"boot","negated":false}],"showHistorical":false,"showInvisible":true,"sort":[{"sortColumn":"alarmId","sortDirection":"asc"}],"context":{},"selectedAlarmId":null,"customFilters":0}

[Stephen Danseglio]

{
  "assigned_to": "string",
  "custom1": "string",
  "custom2": "string",
  "custom3": "string",
  "custom4": "string",
  "custom5": "string",
  "deviceIds": "string",
  "domain": "string",
  "hostname": "string",
  "hub": "string",
  "id": "string",
  "includeClosed": "string",
  "level": "string",
  "message": "string",
  "message_count": "string",
  "origin": "string",
  "probe": "string",
  "robot": "string",
  "source": "string",
  "subsystem": "string",
  "subsystem_id": "string",
  "timeArrival": "2025-07-17T23:36:59.273Z",
  "timeLast": "2025-07-17T23:36:59.273Z",
  "userTag1": "string",
  "userTag2": "string",
  "visible": true
}


or

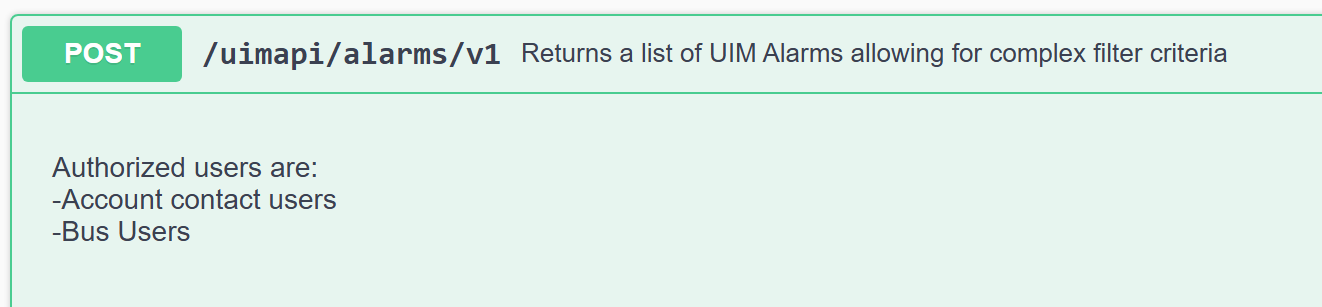

/uimapi/alarms/v1   #doesnt seem to any obvious difference between the two versions.

{
  "assigned_to": "string",
  "custom1": "string",
  "custom2": "string",
  "custom3": "string",
  "custom4": "string",
  "custom5": "string",
  "deviceIds": "string",
  "domain": "string",
  "hostname": "string",
  "hub": "string",
  "id": "string",
  "includeClosed": "string",
  "level": "string",
  "message": "string",
  "message_count": "string",
  "origin": "string",
  "probe": "string",
  "robot": "string",
  "source": "string",
  "subsystem": "string",
  "subsystem_id": "string",
  "timeArrival": "2025-07-17T23:36:59.286Z",
  "timeLast": "2025-07-17T23:36:59.286Z",
  "userTag1": "string",
  "userTag2": "string",
  "visible": true
}

------------------------------
