How to bring number of alarms by severity between dashboards

[Miller Echagarreta]

Hi Everyone.

How to bring number of alarms by severity between dashboards?

I have a principal dashboard (level #01), this dahsboard has called to another dashboards (level #02, 03 and 04).

The dashborad (level #01) show the alarms color. Is possible to bring number of alarms by severity from the other levels?

I know that can to create a sql query with all this filters, but how we have many dashboards, the query becomes complicated

Any idea ?

[Rajesh Banuka]

Hi Miller,

I'm not really clear on workflow you are describing with principal dashboard (level #01) and other dashboards ( level#02, 03 etc.,)

If you plan to show Severity wise alarm count, you may represent colors in Pie chart control with severity counts. Additionally you can have a ContextSelector with severity list and a table to show the alarms for the selected severity. Once a specific severity is selected, you can have table refreshed with selected severity with all alarm details. You can use a parameter for ContextSelected, the value selected will be available in Table datasource query with ${parameter} notation.

Rgds,

Rajesh B

[Miller Echagarreta]

Hi Rajesh, thanks for your comments.

Yes my plan is show severity count but from a datasource like dashboards.

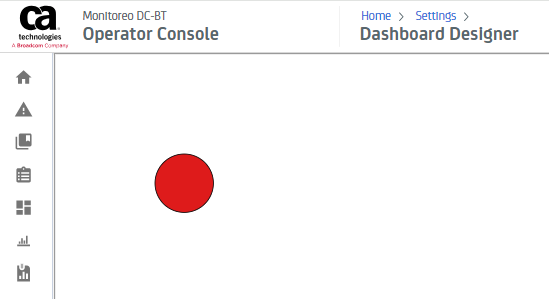

For example, on this dahsboard, the circle show it color from datasource dashboard  ---->

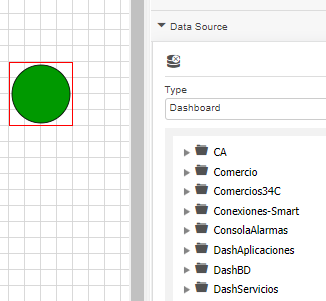

datasource (dashboard) selected ---->

The circle has a number of alarms that come from the dashboard, how can I represent this number of alarms numerically?

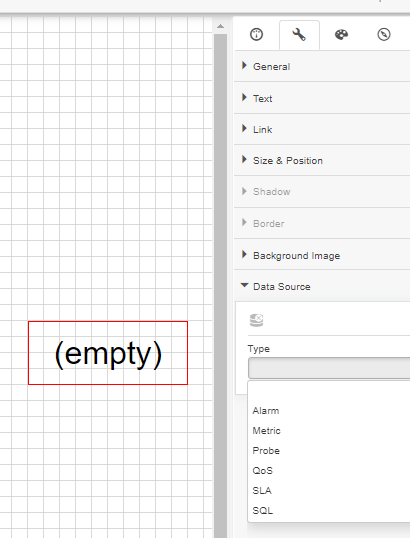

I see that a text not permit select as data source dashboard...

keep in mind that this circle calls a dashboard_A and that dashboard_A calls another dashboard_B

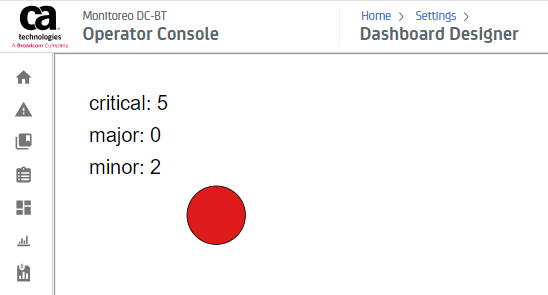

So, my idea is to show for example:

[Rajesh Banuka]

Hi Miller,

Currently Dashboard datasource doesn't provide such functionality to display the count of alarms. You may need to use different data source (Alarm, SQL) in parent dashboard to get severity wise counts.

Rgds,

Rajesh B
