Variable in POSTCONDITION not having value set in Action

[Legacy User]

Hello Community,

Best wishes for the New Year 2018.

I am using ARA version 12.0.1HF2, running on Windows with SQL database.

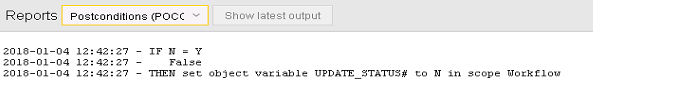

I have an issue when I check the value of a variable in the POSTCONDITION tab.

Users should input file share path in a dynamic property of the package. Latter is reference in a prompt set. The action checks whether a value is entered. If this is the case, the variable &ROUTINE_EXIST#  is set to Y, otherwise it is set to N. In the POSTCONDITION, when &ROUTINE_EXIST# is set to Y, it checks whether the file share exists.. This check is done in the POSTCONDITION of the action.

See attached action_configuration.docx for configuration details. See attached action_report.docx. for the Activation Report of the action.

Is there any configuration error in the flow, which is making this fail?

Cheers and thanks,
Ajay

Attachment(s)

action_configuration.docx   208 KB 1 version

Action_Report.docx   55 KB 1 version

[Vlad Navazhylau]

I am not certain if this is exactly the cause but...

Try to define &ROUTINE_EXIST# output variable at Action Designer level and not as part of Application/Component workflow.

I believe this variable should be defined not at the JOBS (Unix/Windows) level but at JOBP level.

Then in Post-Process of JOBS level have value assigned to your variable.

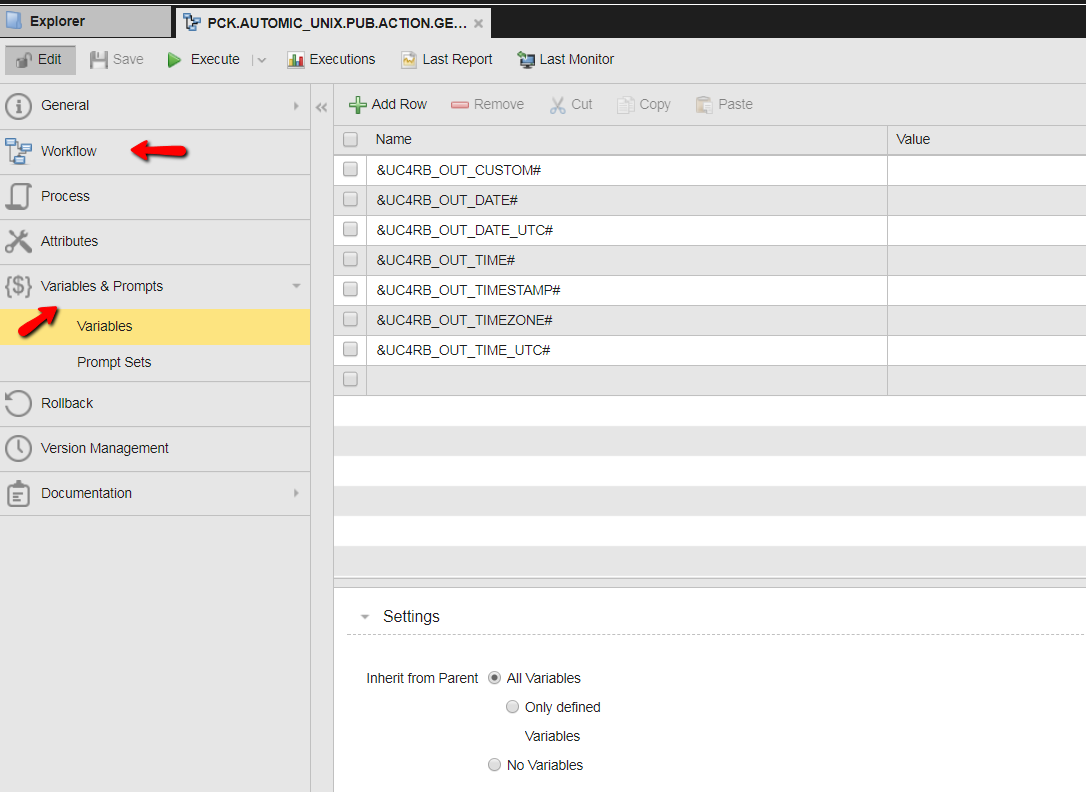

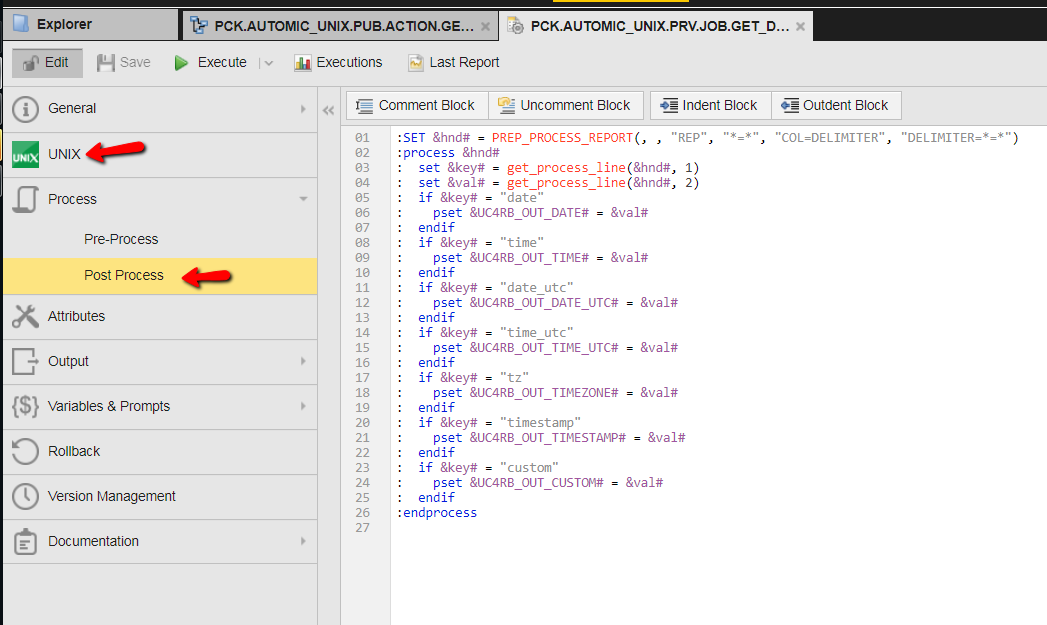

See the example of one of the Automic provided standard Actions...

https://us.v-cdn.net/5019921/uploads/editor/2h/suidkgwd4ynu.png" width="1086">

https://us.v-cdn.net/5019921/uploads/editor/lf/v4kttce5dywr.png" width="1047">

[Legacy User]

Hello Vlad,

Thank you for the response.

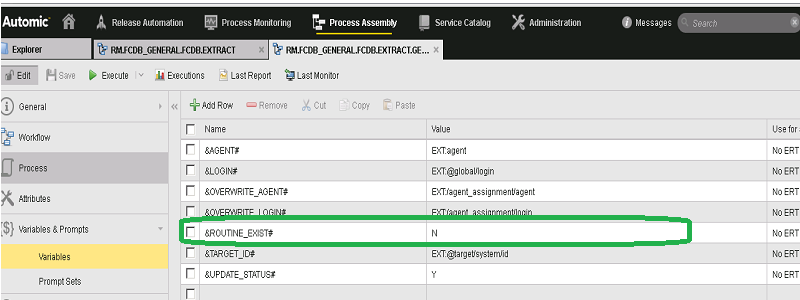

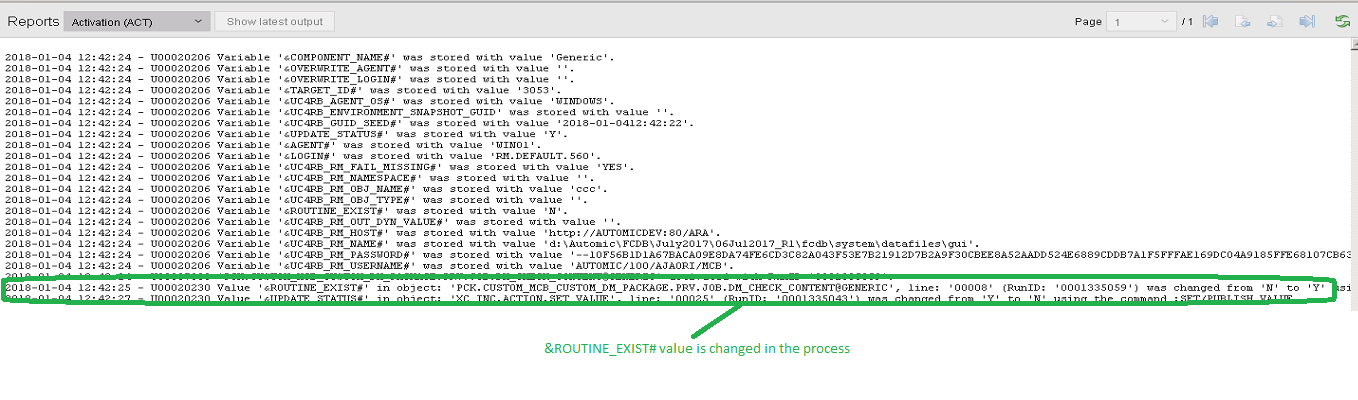

I tried this change, but the issue still persists. Hereunder are screenshots of the change and the resulting flow:https://us.v-cdn.net/5019921/uploads/editor/lz/ahc2pcouoscg.png" width="1358">
https://us.v-cdn.net/5019921/uploads/editor/n1/wbdl4wv7u37a.png" width="800">

[Tran-Hoang_Hau_348]

Hi Ajay Ori

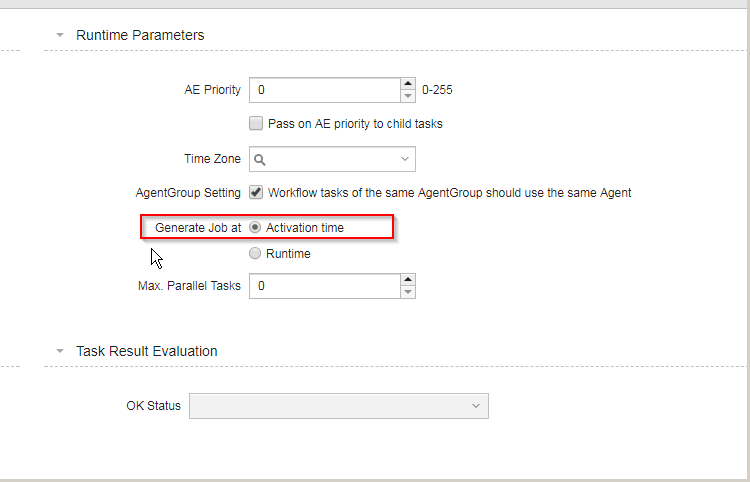

You may want to try to set the activation time instead of run time
https://us.v-cdn.net/5019921/uploads/editor/2h/fdpgka6gv461.png" width="750">

[Legacy User]

Hi Hau,

Thank you so much for the suggestion.

The flow now works perfectly.

Cheers,
Ajay
