How to capture IIS worker process memory usage with CA APM .NET Agent ?

  • 1.  How to capture IIS worker process memory usage with CA APM .NET Agent ?

    Posted 08-25-2015 02:14 AM

    Hello Experts,

    Can anybody share some idea about how to capture IIS Worker Process memory usage in a windows server. There are no perfmon counter available for this. Is there any way around? We are working with APM r9.6.



    Regards,

    Amit.



  • 2.  Re: How to capture IIS worker process memory usage with CA APM .NET Agent ?

    Posted 08-25-2015 02:34 AM

    Hello Amit,

    I think you need to monitor the available Perfmon "Process" metrics relating to memory for the w3wp process

    Is this different to your request Corelating Perfmon Memory Metrics for Diagnostics previously answered by Hiko? Hiko_Davis


    Thanks


    Lynn



  • 3.  Re: How to capture IIS worker process memory usage with CA APM .NET Agent ?

    Posted 08-25-2015 03:44 AM

    Thanks Lynn,

    I am aware of the w3wp Process instance for which we can get a couple of information from the perfmon counters. However I didn't find any counter which can depict the memory consumption of the particular process. I am looking for other way around, if there is any. Kindly suggest.



    Regards,

    Amit.



  • 4.  Re: How to capture IIS worker process memory usage with CA APM .NET Agent ?

    Posted 08-25-2015 04:37 AM

    Memory counters per process are available on the "Process" counter group.



  • 5.  Re: How to capture IIS worker process memory usage with CA APM .NET Agent ?

    Posted 08-26-2015 12:52 AM

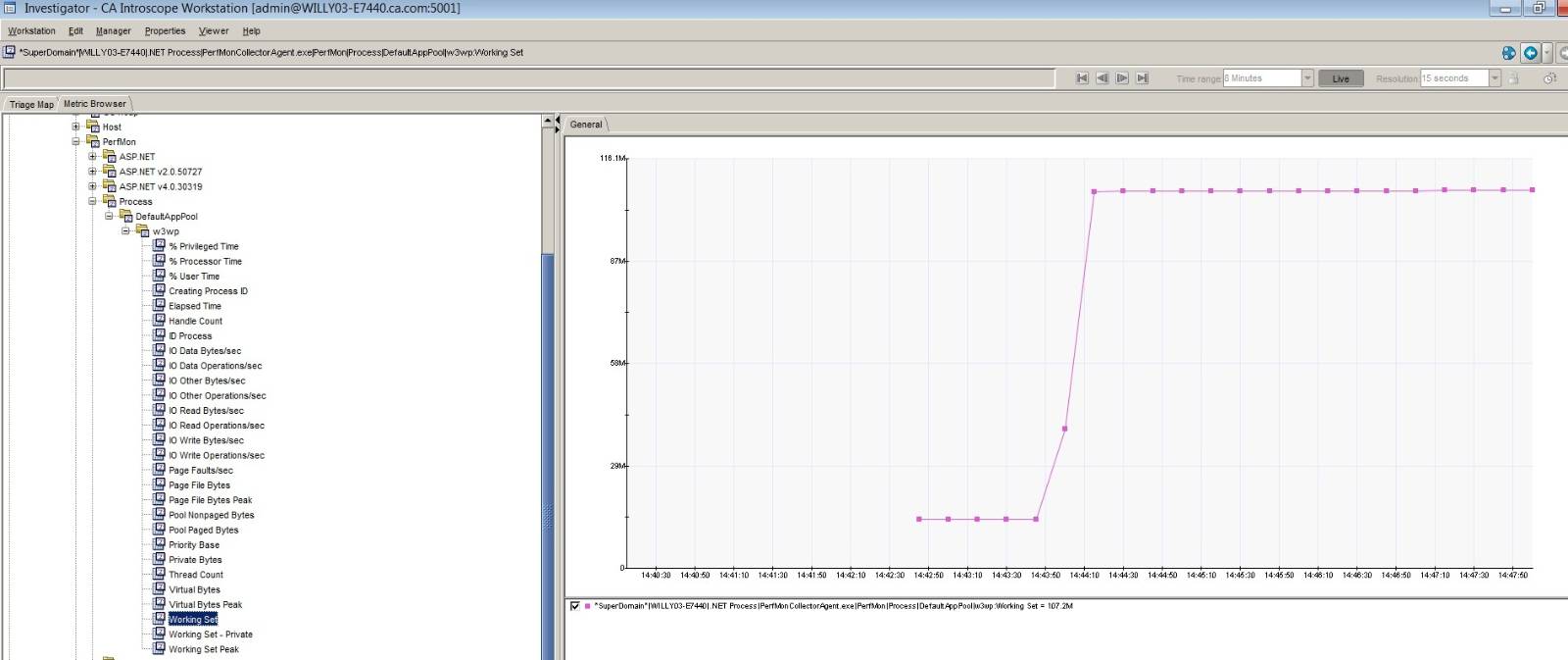

    ... and Amit  "Working Set" is probably what you are looking for to get the "Memory Usage" e.g see this explanation:

    https://social.technet.microsoft.com/Forums/en-US/6608ebac-a7ec-43b0-88d6-e8d95ab8d9cd/memory-usage-vs-memory-private-working-set?forum=perfmon


    Hope this helps.
