CA AM 10 duplicate Service configuration problem

[Legacy User]

Hello CA Communities,



When I migrate to APM 10 had this error en MOM logs:



8/16/15 10:37:22.513 AM PET [ERROR] [Thread-1770] [Manager.com.timestock.tess.services.tim.TimIoSubThread] enable monitor: exception processing monitor 700000000000000359

org.hibernate.NonUniqueResultException: query did not return a unique result: 2

  at org.hibernate.impl.AbstractQueryImpl.uniqueElement(AbstractQueryImpl.java:813)

  at org.hibernate.impl.AbstractQueryImpl.uniqueResult(AbstractQueryImpl.java:804)

  at com.timestock.tess.services.tim.TimIo.initChildServices(TimIo.java:1060)

  at com.timestock.tess.services.tim.TimIo.enable(TimIo.java:1009)

  at com.timestock.tess.services.tim.TimIo$EnableMonitorThread.perform(TimIo.java:3701)

  at com.timestock.tess.services.tim.TimIoSubThread.run(TimIoSubThread.java:74)

8/16/15 10:37:23.132 AM PET [INFO] [btpool0-79] [Manager.com.timestock.tess.services.tim.TimIoSubThread] enable monitor: updated monitor 700000000000000359

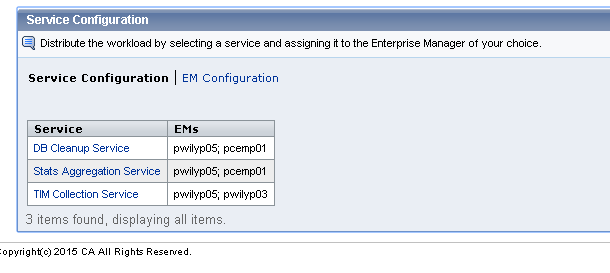

And Services configuration had a duplicate EM's by Service:





Any suggest please !



Aldo !

[Lynn Williams]

Hello,

From the error and service configuration UI It looks like the ts_monitor_child_service table has duplicate entries for each service.

For this type of problem the best resolution is normally to:?

- shutdown all EMs in the cluster

- in the APM DB backup table ts_entity & then drop all its rows (will in turn drop all rows from dependent table ts_monitor_child_service) i.e. run SQL "delete from ts_entity" followed by a "commit"

- start MOM and then the Collectors in turn, beginning with the EM you want to assign to the TIM Collection Service



Hope this helps



Lynn

[Hallett German]

I am not online. There are 1  or 2 KBs that outline these seven steps as well



Hal German

[Lynn Williams]

Thanks Hal: 4 listed

http://www.ca.com/us/support/ca-support-online/support-by-product/ca-application-performance-management.aspx?d=t&language=en&type=Knowledge&q=ts_entity



[David Lewis]

I had this with a customer last week, the stack trace was very similar, some of the previous kBs relate to ts_settings table but this was something else.

The ts_entity_service had six rows (duplicated) one set linked to MOM and one set linked to TIM Collector (customer intended to run all 3 CEM Services on the same collector)

All of the child services were linked to a completely different entity that didn't exist in the records (ts_entity)

However also, the entity service definitions for the TIM Collector didn't link to the actual service definition, but the set for the MOM did.

I'm not sure if deleting ts_entity fixes that scenario but I can probably replicate it again to see if it would.

[Guenter DI Grossberger]

IMHO there should be an option in the import if the EM services and TIM monitors should be imported, too. For in place upgrade yes; if any server name or role changes, then no!



Ciao,

Guenter
