VPC connectivity profile not visible in vcenter during supervisor creation.

[Alister Correia]

Trying to set up the supervisor cluster in VCF 9

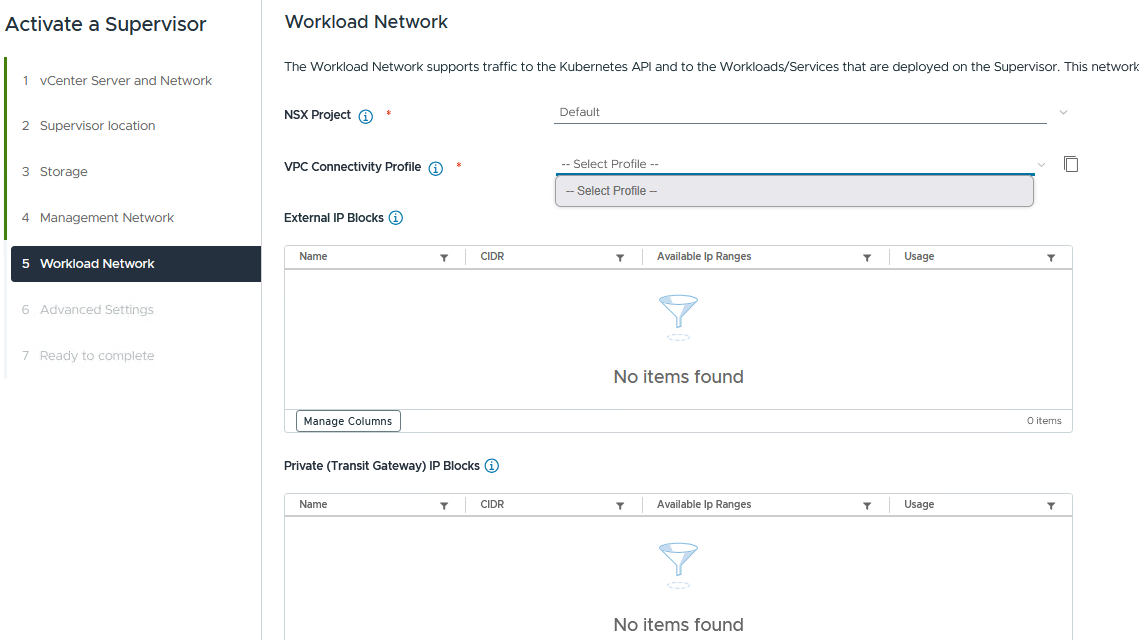

Unable to see the VPC connectivity profile in the drop down. (screenshot below)
There is only 1 project in NSX

I have even created a new VPC profile in NSX which is also not visible, rebooted the vc, ensured the inventory sync is latest.

.VPC view in NSX:

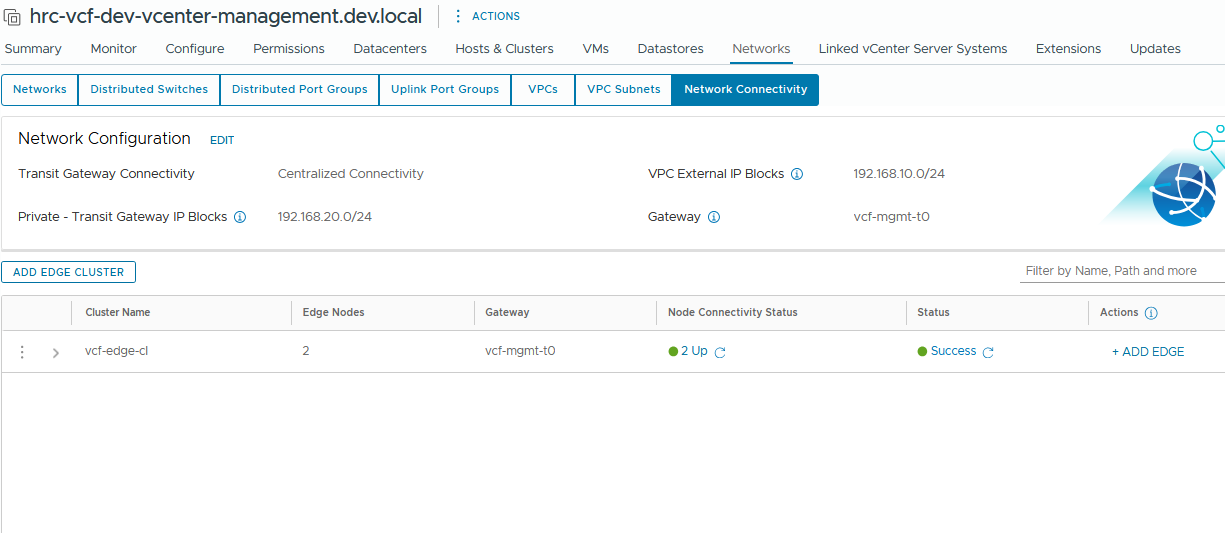

Network connectivity view in vcenter:

Please let me know what Im missing here

~TIA

[Phil Bendeck]

@Alister Correia – I ran into the same issue.

1. T0 must be in Active-Standby
2. Create a Centralized Transit GW (Just like you have in your screenshot)

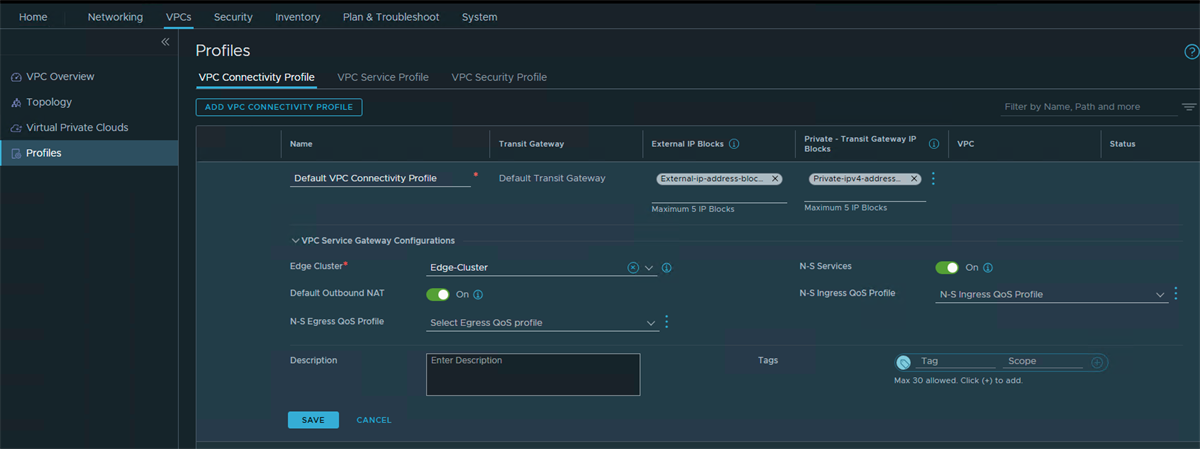

3. In the VPC Connectivity Profile, make sure you have the following:

[Thomas Vigneron]

Hi,

This screen would filter only the valid Connectivity Profiles.
I see your TGW has Centralized Connectivity which is good.
Can you check your VPC Connectivity Profile has an External IP Block, an Edge Cluster and Default Outbound NAT?
Supervisor cluster need to be able to have source NAT outside for his workloads on private networks.

One common thing is that Supervisor Cluster requires services on TGW which requires in 9.0 both the TGW and the T0 in A/S.
Is that how the environment is configured.
