Windows server cloning, how to automate joining domain

[n3o]

We have a test group that at anytime has about a hundred test servers. When they move to a new platform, they typically present a gold image of a Windows server, and request that the VMware admins turn it into a template and push out a hundred machines, which are then manually joined to the domain. I am trying to automate the process (especially of joining to the domain), and this is a new concept for me, any ideas/suggestions?

[daphnissov]

Use a vCenter customization spec which has the domain information as well as account embedded. When you deploy from that template, select the customization spec and it will automatically join the domain.

[n3o]

thanks for the response, would you mind sharing a screenshot of a typical customization template as you described?

[LucD]

There is a great example in How to change IP and join a VM into domain by PowerCLI in VMware.
It doesn't require you to use OSCustomizationSPec.

[n3o]

thanks I will be looking at the link you provided

[vespavbb]

Hey,

is it possible to use the script without entering the password again for $DomainAccountPWD

Because if the Script is already running with domainadminrights, i want to pass the pwd direct in the invoke command.

[LucD]

Do you mean to use the credentials from the account under which the script is running?
If yes, I don't think it is possible to retrieve the user/password for the current user to pass along.

You will at least need to enter credentials once in the script.

You could consider storing the credentials locally via the New-VICredentialStoreItem cmdlet, and then retrieving them via the Get-VICredentailstoreItem cmdlet.

That way you could a prompt for credentials

[vespavbb]

Yes, I wanted to avoind typing the pw twice... but ok..



maybe you can help me here. This is not wokring, I want to joing a VM via script invoke command. I´m not sure about the @"

And how could I join the computer to a certain OU?

# Domain account passowrd

$vm = testvm1

$userid = whoami

$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force



$cmd = @"

$domain = mydomain.local

$password = $DomainAccountPWD # | ConvertTo-SecureString -asPlainText -force

$username = $userID

$credential = New-Object System.Management.Automation.PSCredential($username,$password)

Add-computer -DomainName $domain -Credential $credential

"@

Invoke-VMScript -VM $vm -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

VERBOSE: 9/27/2019 6:34:54 PM Invoke-VMScript Finished execution

ScriptOutput

-----------------------------------------------------------------------------------------------------------------------| At line:4 char:72

| + ... ew-Object System.Management.Automation.PSCredential

| + ~

| Missing argument in parameter list.

| At line:5 char:72

| + ... ew-Object System.Management.Automation.PSCredential(

| + ~

| Missing argument in parameter list.

| + CategoryInfo : ParserError: (:) [], ParentContainsErrorRecordException

| + FullyQualifiedErrorId : MissingArgument

|

|

-----------------------------------------------------------------------------------------------------------------------

[vespavbb]

without # of course-> # | ConvertTo-SecureString -asPlainText -force

[LucD]

Try escaping (with a back-tick) the variables you don't want to be substituted in the here-string

$cmd = @"

`$domain = mydomain.local

`$password = $DomainAccountPWD # | ConvertTo-SecureString -asPlainText -force

`$username = $userID

`$credential = New-Object System.Management.Automation.PSCredential(`$username,`$password)

Add-computer -DomainName `$domain -Credential `$credential

"@

[vespavbb]

Thanks LucD so far,

but still not working, the script hangs on, nothing happens, any idea?

Microsoft Windows [Version 10.0.14393]

(c) 2016 Microsoft Corporation. All rights reserved.



## Domain account passowrd

$userid = whoami

$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force



　

cmd = @"



`$domain = $domain

`$password = $DomainAccountPWD | ConvertTo-SecureString -asPlainText -force

`$username = $userID

`$DomainCredential = New-Object System.Management.Automation.PSCredential(`$username,`$password)

Add-computer -DomainName `$domain -DomainCredential `$credential

"@

Write-Host "Invoke Script"

Invoke-VMScript -VM $vm -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

sleep -Seconds 5

Restart-VM -VM $VM -Confirm:$false

sleep -Seconds 5

[LucD]

Do you initialise the $domain variable somewhere?

I still suspect the script might be hanging on the UAC prompt.

[vespavbb]

sure $domain is set

UAC is off on the VM... the VM is 2016win.

[LucD]

I noticed you did the ConvertTo-SecureString twice.

Can you try like this?

$domain = 'my.domain'

$userid = whoami

$DomainAccountPWD = (Get-Credential -UserName $userID).GetNetworkCredential().Password

$cmd = @"

`$domain = $domain

`$password = $DomainAccountPWD | ConvertTo-SecureString -asPlainText -force

`$username = $userID

`$DomainCredential = New-Object System.Management.Automation.PSCredential(`$username,`$password)

Add-computer -DomainName `$domain -DomainCredential `$credential

"@

Write-Host "Invoke Script"

Invoke-VMScript -VM $vm -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

sleep -Seconds 5

Restart-VM -VM $VM -Confirm:$false

sleep -Seconds 5

[vespavbb]

no, still same problem

Is there maybe a other option like netdom?

##

$userid = whoami

$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force

$vm = get-vm -Name vmtest

$domain = 'my.domain'

cmd = @"

`$domain = $domain

`$password = $DomainAccountPWD

`$username = $userID

`$credential = New-Object System.Management.Automation.PSCredential(`$username,`$password)

Add-computer -DomainName `$domain -Credential `$credential

"@

Write-Host "Invoke Script"

Invoke-VMScript -VM $vm -ScriptType Powershell -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

sleep -Seconds 5

Restart-VM -VM $VM -Confirm:$false

  sleep -Seconds 5



##reboot and wait until vm is back

Wait-Tools -VM $vm

[vespavbb]

if I run only this, it will not complete do not go on...

cmd = @"

`$domain = $domain

`$password = $DomainAccountPWD

`$username = $userID

`$credential = New-Object System.Management.Automation.PSCredential(`$username,`$password)

Add-computer -DomainName `$domain -Credential `$credential

"@

[LucD]

That is not the code I posted in my previous reply.
You still have the ConvetTo-SecureString in there, when assigning $DomainAccountPWD

[vespavbb]

If i run your script with my var,

its asking fo a values

cmdlet Get-Credential at command pipeline position 1

Supply values for the following parameters:

Message:

$DomainAccountPWD = (Get-Credential -UserName $userID).GetNetworkCredential().Password    -> is not asking for a password, just text??

[LucD]

Seems you need to provide a Message when using UserId

(Get-Credential -Message 'Provide Credentials' -UserName $userID).GetNetworkCredential().Password

[vespavbb]

better, but till not running. and the join is not working as well I dont get it:-(

on all Variables i get this message

not recognized as the name of a cmdlet,

|  function, script file, or operable program. Check the spelling of the name, or

|  if a path was included, verify that the path is correct and try again.

|  At line:2 char:11

is there an other way instead of @"

maybe something like that?

$userid = whoami

$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force

$vm = get-vm -Name testvm

$domain = 'my.domain'

$credential = New-Object System.Management.Automation.PSCredential($userid,$DomainAccountPWD)

$cmd = 'Add-Computer -DomainName ' + $domain + ' -Credential ' + $credential

#Invoke-VMScript -VM $vm -ScriptType Powershell -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

Write-Host "Invoke Script"

Invoke-VMScript -VM $vm -ScriptType Powershell -ScriptText $cmd -Verbose -GuestUser $GuestUserName -GuestPassword $GuestPassword

sleep -Seconds 5

[LucD]

Could you share the exact error message you are getting back?

[vespavbb]

It looks like something is wrong inside the VM

I´m using a script to set the ip inside the VM as well, but there is a problem, i have 2 networkadapter called Ethernet and the ip route is not set correctly. Let me fix that first, maybe thats the reason why the join is not working.

[vespavbb]

Hi  Luc,

I did a workaround with the the netdom command, this works better, I don know the thing with @´ is not working at all

first question. I need to do a password trick to get it back in plaintext, otherwise the invoke command has problems to get the password

$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force is not working, $DomainAccountPWD will not be correct transferd in the invoke command. Is there a better way to do it? or i use the plaintext trick

second question

reboot and wait-tools is not working reliable, mostly the script is running over.. whats wrong?

thanks

#######################################

#

cls

$userid = whoami

#$DomainAccountPWD = Get-Credential $userID | ConvertTo-SecureString -asPlainText -force   ### not working

$domain = 'mydomain'

Param(

    $DomainAccountPWD = (Read-Host "Dein Domain Admin Password für den Join" -AsSecureString)

)

Write-Host "Encrypted Password: $(ConvertFrom-SecureString $DomainAccountPWD)"

$ADpass = [Runtime.InteropServices.Marshal]::PtrToStringAuto([Runtime.InteropServices.Marshal]::SecureStringToBSTR($DomainAccountPWD))

#VM Inventory names to match

$matchVMs = "VMTEST01"

#Guest Credentials - Must have required permissions to change IP address

$GuestUserName = "Administrator"

$GuestPassword = "localpassword!"

##############NO CHANGES BEYOND THIS POINT##############

#List of VMs (vCenter Inventory Names) to change

Write-Host "Getting list of VMs from Inventory where Inventory Name contains $matchVMs"

$VM = (get-vm | where {$_.Name -match $matchVMs -and $_.PowerState -eq "PoweredOn"}).Name

$netdom = "netdom join $vm /domain:$domain /userd:$userID /passwordd:$ADpass"

Invoke-VMScript -vm $vm -scriptType bat -ScriptText $netdom -GuestUser $GuestUserName -GuestPassword $GuestPassword

##reboot and wait until vm is back

Restart-VMguest -VM $VM -Confirm:$false | out-null

sleep -Seconds 5

write-host $vm "VM is rebooting"

Wait-Tools -VM $vm

write-host $vm "VM is online again"

$VMs

write-host " VM Domain Join done"

[LucD]

1) You have to remember that the here-string uses variable substitution in a string.
So you can't use composite objects, only simple types like string, int...

So yes, you will have to use the plaintext,

2) Correct Wait-Tools is not reliable to know when you can launch an Invoke-VMScript.

That is why I'm using the GuestOperationsReady property.

Something like this

while (-not $vm.ExtensionData.Guest.GuestOperationsReady)

{

    Start-Sleep 2

    $vm.ExtensionData.UpdateViewData('Guest.GuestOperationsReady')

}

In fact, after the Restart-VMGuest, you first have to wait till the VM is powered off, and then use the above loop.

[vespavbb]

ok thanks

and how could i fetch this two stati? How can i do the -or ?

Write-Host “Waiting for VM Tools to Start on $VM”

do {

Set-Variable -name ToolsStatus -Value (Get-VM $VM).extensiondata.Guest.ToolsStatus

Write-Host $toolsStatus

sleep 3

}

until ($toolsStatus -eq ‘toolsOk’ -or ‘toolsOld’ )

[LucD]

Sorry, not following.
I was talking about the GuestOperationsReady property.

The restart and wait to launch Invoke-VMScript could look like this

Restart-VMGuest -VM $vm -Confirm:$false | Out-Null

while ($vm.PowerState -ne 'PoweredOff')

{

    Start-Sleep 1

    $vm = Get-VM -Name $vm.Name

}

while (-not $vm.ExtensionData.Guest.GuestOperationsReady)

{

    Start-Sleep 2

    $vm.ExtensionData.UpdateViewData('Guest.GuestOperationsReady')

}

[Ed Fraser]

Running vCenter 6.5 U3.  Noticed guest customization specific settings is deprecated now?

Moved from the clunky 5.5 thick client vCenter.  Guest customization had specific network/machine name settings during deploy.

Is running this script the only way now to add specific static IP settings to the machine during clone/template deploys?

[LucD]

Where did you see that deprecated message?

[Ed Fraser]

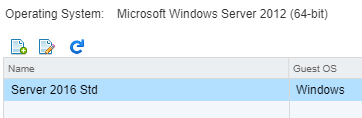

I only see add new or modify existing...  the thick client had an option to specify custom settings without creating a new customization.

[LucD]

That was only when you clone a VM or deploy from a Template, afaik.
And that is still there.

And you can assign an OSCustomizationSpec to an existing VM with Set-VM.

[vespavbb]

Hi luc,

if I run the loop, an it never end.... I was waiting about 10 min and nothing happend. VM was restartet less than a minute. Am I doing something wrong?

Restart-VMGuest -VM $vm -Confirm:$false | Out-Null

while ($vm.PowerState -ne 'PoweredOff')

{

    Start-Sleep 1

    $vm = Get-VM -Name $vm.Name

}

while (-not $vm.ExtensionData.Guest.GuestOperationsReady)

{

    Start-Sleep 2

    $vm.ExtensionData.UpdateViewData('Guest.GuestOperationsReady')

}

[LucD]

No, that looks ok.

Try to determine in which loop it gets stuck.

Preferably with a debugger, but you can also add some Write-Host lines in the code.
