VRSLCM failed to fetch necessary information when creating environment integrated to SDDC

[omar_study74]

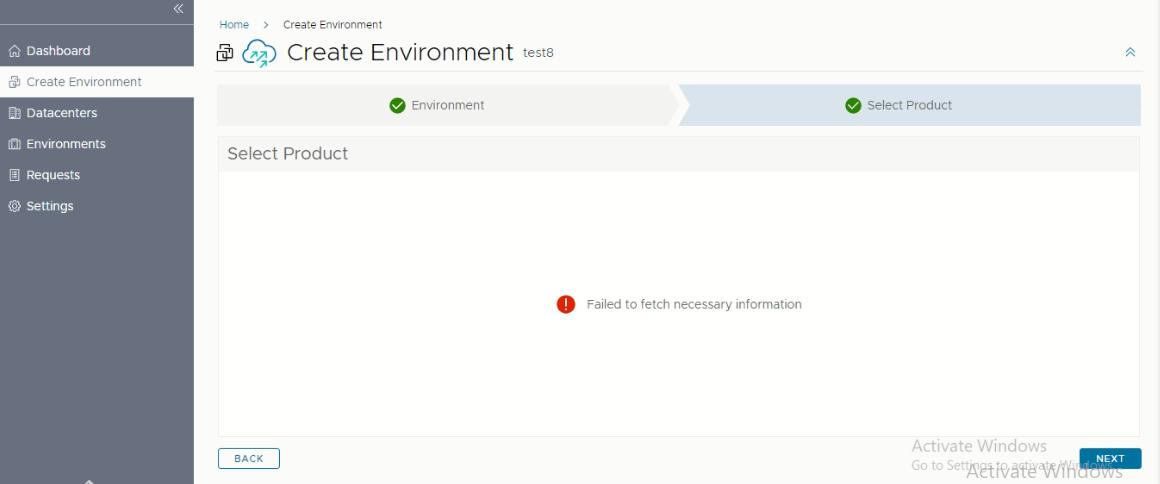

when I try to create an environment inside VRSLCM that is integrated with SDDC manager , it fails to fetch products and show error " failed to fetch necessary information



I changed VRSLCM certificate with authorized one , uploaded support pack 17 and applied it but nothing changed

I investigated Logs in VRSLCM

in vmware_vrlcm.log file I found that the error occurs every time when trying to fetch "cloud proxy" products

example:

2023-11-11 00:22:30.674 INFO [every-boot-thread] c.v.v.l.c.c.ContentDownloadController - -- INSIDE isContentExists
2023-11-11 00:22:30.674 INFO [every-boot-thread] c.v.v.l.c.c.ContentDownloadController - -- URL :: /productSpecRepo/cloudproxy/1.0.0/sizingInfo.json
2023-11-11 00:22:30.705 WARN [every-boot-thread] c.v.v.l.c.s.ContentDownloadUrlServiceImpl - -- contentDownloadUrl is not present with given URL ::/productSpecRepo/cloudproxy/1.0.0/sizingInfo.json
2023-11-11 00:22:30.707 INFO [every-boot-thread] c.v.v.l.c.c.ContentDownloadController - -- URL :: /productSpecRepo/cloudproxy/1.0.0/sizingInfo.json not exists.
2023-11-11 00:22:30.708 ERROR [every-boot-thread] c.v.v.l.l.s.ProductPolicyServiceImpl - -- policy path does not exist: /productSpecRepo/cloudproxy/1.0.0/sizingInfo.json
2023-11-11 00:22:30.709 INFO [every-boot-thread] c.v.v.l.c.u.StringUtil - -- QUERYING CONTENT :: ProductPolicy::products->vropscloudproxy::productVersion
2023-11-11 00:22:30.710 INFO [every-boot-thread] c.v.v.l.d.i.u.InventorySchemaQueryUtil - -- GETTING ROOT NODE FOR :: ProductPolicy



Logs file is attached

versions of products are

VCF 5.0.0.0

VRSLCM 8.10

note : It's a nested lab with 4 ESXI hosts , consolidated domain

Attachment(s)

vmware_vrlcm.log   13.59 MB 1 version

[Muhammad Toffaha]

Hi Omar,

did you try vRSLCM patch 1?

which vIDM version imported?

[omar_study74]

Hi mohammad

VRLCM is already on patch 1 and I upgraded it to to support pack 17 but did not make any change

I have not used vIDM yet , I just try to create environment without selecting option (install identity manager)

[Mohamed Hamdy Boraik Ahmed]

Did you tried to create a certificate during installation?

If that

Try to create the certificate before the installation and then select these during installation

[omar_study74]

can you clarify which certificate do you mean ?



[Mohamed Hamdy Boraik Ahmed]

Look at this

https://youtu.be/jJ8_oEoOb0I?si=e2WMiVzL6XaDrDNd

[omar_study74]

May be it's not clear in the subject

If I create a non-integrated environment with vcf ( like the steps in the video ), it succeeds without any problem

But if i select the option " Activate SDDC manager integration on the environment " while creating the environmet,  it fails and gives this error " failed to fetch necessary information " !

And this error before it asks me about any certificate

[omar_study74]

finally the problem is solved !!

first , I found that the step of fetching products taking much time before it releases the error " failed to fetch necessary information "

then I discovered the nginx error.log file in vrealize life cycle manager vm

ssh to vrlcm vm with root account hen run this code

 tail -f /var/log/nginx/error.log



and I found this line repeated many times

2024/01/31 09:49:52 [error] 25657#0: *28 upstream timed out (110: Connection timed out) while reading response header from upstream, client: 172.16.11.1, server: vrlcm.ssc.local, request: "GET /lcm/lcops/api/policy/products?includeAllProducts=true&vcfEnabledEnvironment=true HTTP/1.1", upstream: "http://127.0.0.1:8080/lcm/lcops/api/policy/products?includeAllProducts=true&vcfEnabledEnvironment=true", host: "vrlcm.ssc.local", referrer: "https://vrlcm.ssc.local/lcm/lcops/environment-workflow/globalenvironment"



that made me to check nginx.conf to figure proxy time out

 vi /etc/nginx/nginx.conf

and I found this configuration in products policy



location /lcm/lcops/api/policy/products {
limit_req zone=mylimit burst=20 nodelay;
proxy_pass http://vrlcm-server;
proxy_read_timeout 2m;
proxy_send_timeout 2m;
}



so i edited them from 2m to 10m

location /lcm/lcops/api/policy/products {
limit_req zone=mylimit burst=20 nodelay;
proxy_pass http://vrlcm-server;
proxy_read_timeout 10m;
proxy_send_timeout 10m;
}

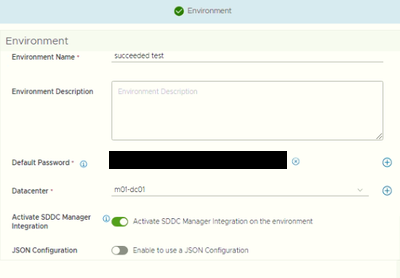

and now fetching products with option "Activate SDDC Manager Integration on the environment" works successfully
