vRO PS return bug

[odesey]

I am encountering a very weird issue with vRO 8.10.



I am following the simple example demonstrated in this post using PS -> Python -> NodeJS (all scriptable tasks)

https://blogs.vmware.com/management/2020/04/whats-new-in-vrealize-orchestrator-8-1.html

In the PS portion, if I do the following, the object that I return is correct in my Python scriptable task:

function Handler($context, $inputs) {
    Write-Host "Welcome to PowerShell," $inputs.Name

    Write-Host "*** PowerShell Version:" $PSVersionTable.PSVersion

    $output=@{strOutput = '[PowerShell]'}

    return $output
}



In the example above my `$output` object will have a value of {strOutput: '[PowerShell]'} in my Python scriptable task.

However, if I add the following line to my PS scriptable task, my `$output` object is null in my Python/NodeJS scriptable task:

function Handler($context, $inputs) {
    Write-Host "Welcome to PowerShell," $inputs.Name

   #the line below is breaking things
   Set-PowerCLIConfiguration -DisplayDeprecationwarnings:$false -InvalidCertificateAction Ignore -Confirm:$false

    Write-Host "*** PowerShell Version:" $PSVersionTable.PSVersion

    $output=@{strOutput = '[PowerShell]'}

    return $output
}



I also tried putting the scriptable task in an action, same result.

Is this a bug? How can I work around this?



Thanks



[Stefan Schnell]

Hello ,

it seems that the CmdLet Set-PowerCLIConfiguration set PowerShell into NonInteractive Mode and therewith inputs and outputs no longer work.

Without the Set-PowerCLIConfiguration command all works as expected, and with the command the first Write-Host works well and then the error message appears. Comment out your Write-Host after the Set-PowerCLIConfiguration and check your workflow if the error still occurs. Let us know your results.

Best regards
Stefan

[odesey]

Hi thanks for your response. I tried your suggestion like so:



function Handler($context, $inputs) {
    #Write-Host "Welcome to PowerShell," $inputs.Name

   #the line below is breaking things
   Set-PowerCLIConfiguration -DisplayDeprecationwarnings:$false -InvalidCertificateAction Ignore -Confirm:$false

    #Write-Host "*** PowerShell Version:" $PSVersionTable.PSVersion

    $output=@{strOutput = '[PowerShell]'}

    return $output
}





I still get a `null` value for the `strOutput` variable in my Python and NodeJS scriptable tasks.

[Stefan Schnell]

Hello ,

first I want to apologize, the misbehavior I pointed out is because there is a line break in the Set-PowerCLIConfiguration command. PowerShell needs an backtick in multi-line commands, I have forgotten that. If the whole command is written in one line, Write-Host works as well. So that's definitely not the problem.

I tried this:

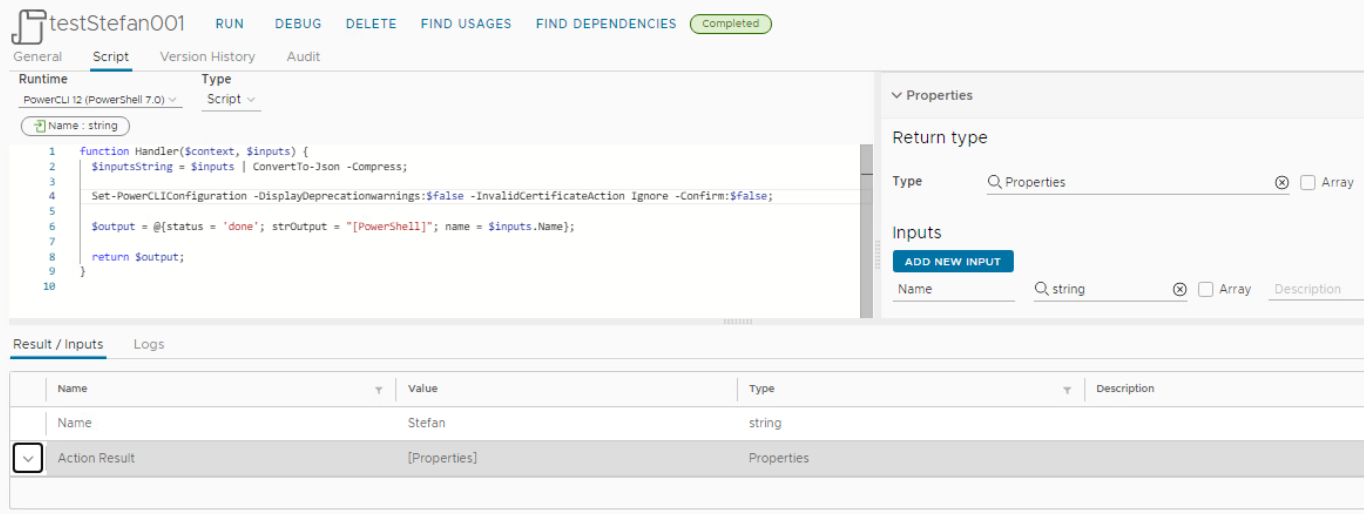

The output type is Properties and the Set-PowerCLIConfiguration is disabled. In the Action result we see all values.

After enabling the Set-PowerCLIConfiguration I got no ActionResult.

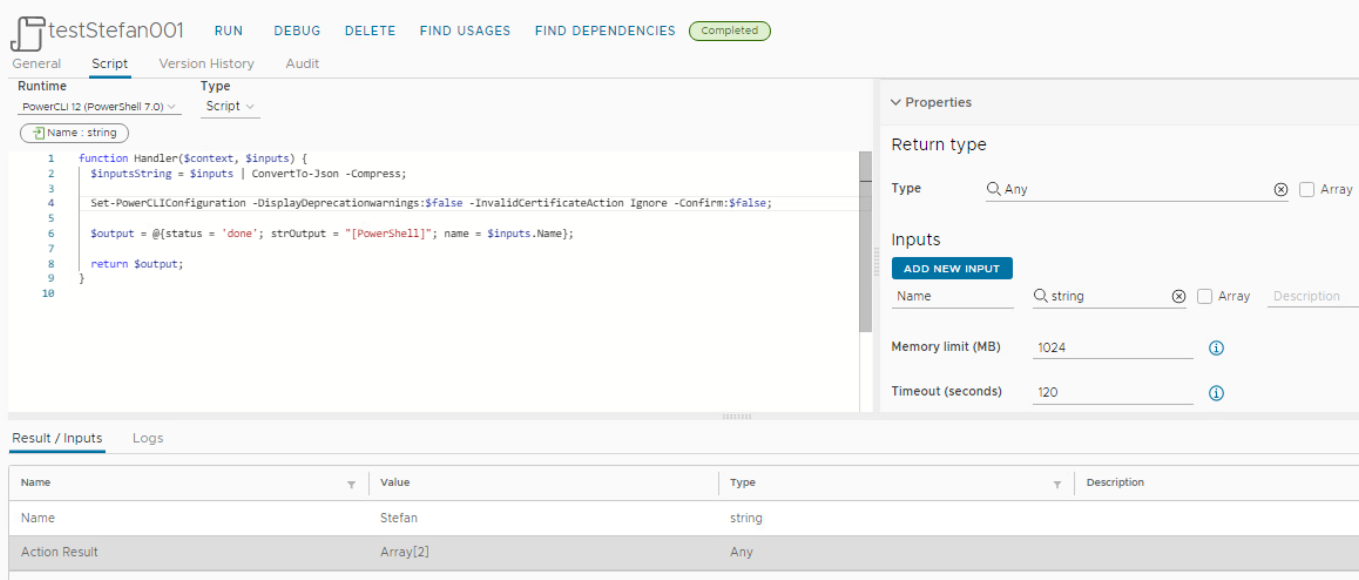

So I changed the Return type to Any and here I get a result, an array with two entries:

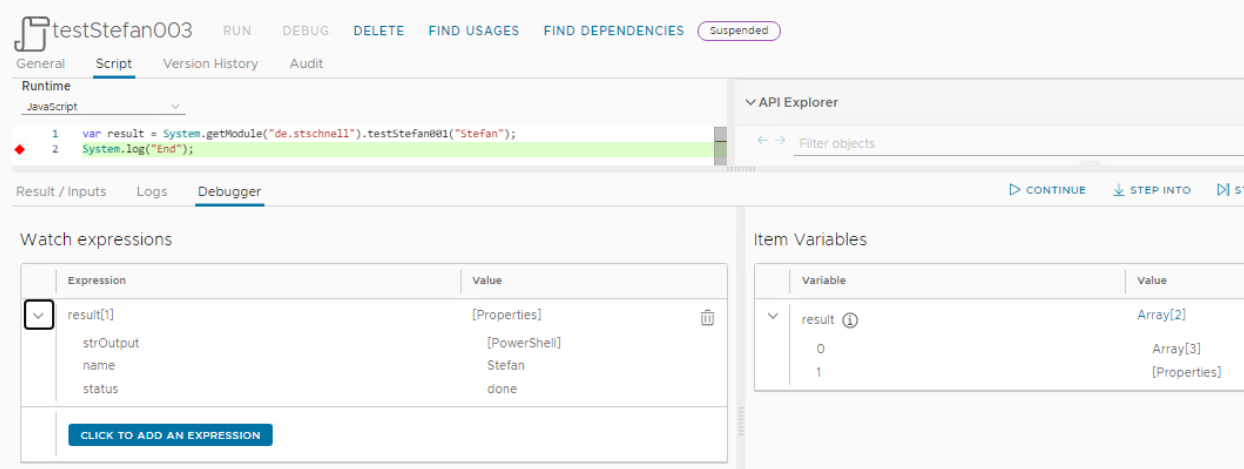

Hmm, now I tried this:





var result = System.getModule("de.stschnell").testStefan001("Stefan");
System.log(result.constructor.name);





If Set-PowerCLIConfiguration is disabled the return type is Object, if it is enabled it is Array.

It seems that the return variable type changes with the Set-PowerCLIConfiguration command. Weird.

If you use Set-PowerCLIConfiguration command you can find the properties in the array.

Otherwise it is direct in the action result.

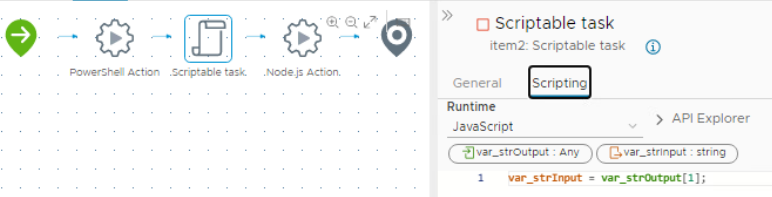

One workaround to handle this is to add a scriptable task in the workflow and to set a variable to strOutput[1].

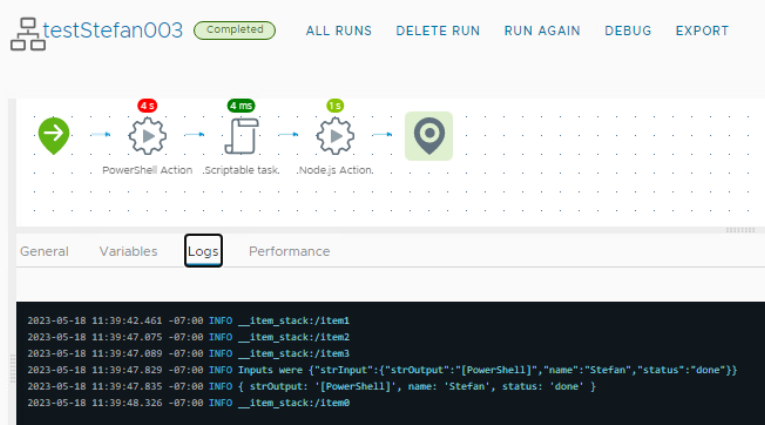

On this way you can then pass it to the Node.js action, as you can see here.

Best regards
Stefan



[odesey]

Thanks ! Your suggestion pointed me in the right direction. To anyone else having this issue, the solution is to create:

Action Element (Language 1) --->  Action Element (Language 2)

Make sure that your output is of Type Any for your PowerShell language

Using a scriptable Task will not work!



Thanks again

[Stefan Schnell]

Thanks for sharing your solution
