VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

  • 1.  VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 14, 2023 06:57 AM

    Hi,

    I created a custom tag and assigned it on some vm's.

    In Aria I created a custom group and selected the tag but no vm's are showing up.

    I tried the same with a custom attibute but even that is not show up.

    When I lookup the VM in Aria I see the tag is assigned and visible. So Aria knows the tag.

    Why are the vm's not showing up in the custom group with the assigned tag selection ?













  • 2.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:03 AM

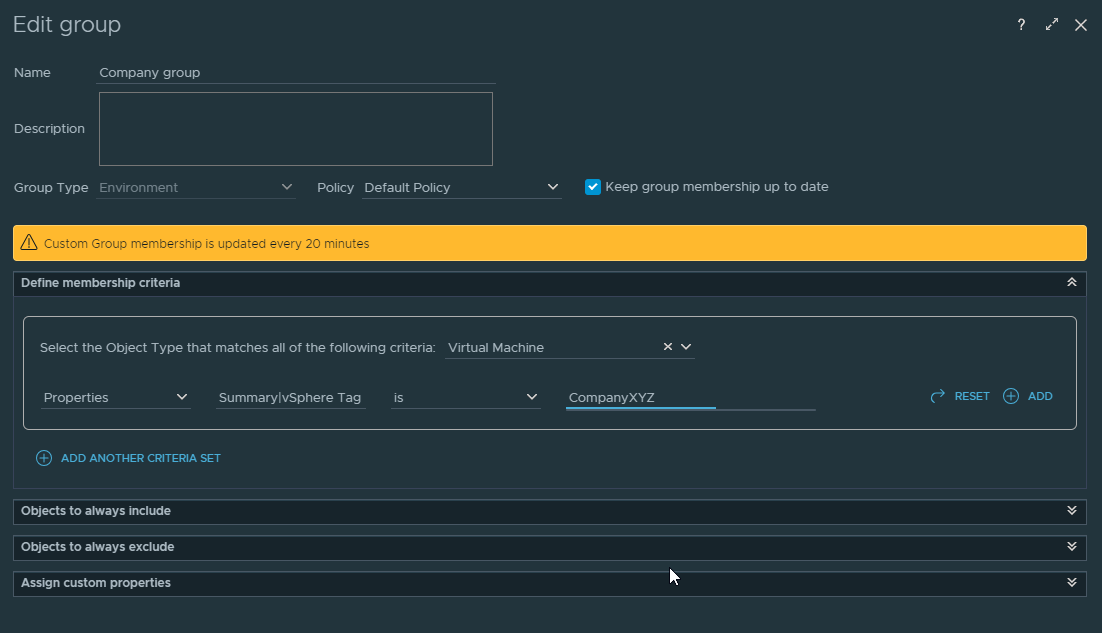

    Does the field get auto populated? Let's say you remove CompanyXYZ and only type C... does is auto fill?

    Do you have tags enabled in the policy?



  • 3.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:10 AM

    Hi,

    no it's not populated. Even when I type 'c' it show nothing.

    Maybe the issue is in the policy, I didn't know I need to enable this in a policy ?





  • 4.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:13 AM

    Check which policy is in use, edit it and search for tag in the "Metrics and Properties" tile



  • 5.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:28 AM
      |   view attached

    Hi,

    I checked the policy (I use the default policy) and searched for TAG, but I see all tag info is already "activated" and green.

    So It should be available...



  • 6.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:32 AM

    Indeed then it should work. How and where did you create the custom tags?



  • 7.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:35 AM

    Custom tag was created in vcenter -> administration -> tags.

    But when I lookup a VM in Aria I can see it in the metadata, so it's available in Aria, but not selectable in the custom groups.







  • 8.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:40 AM

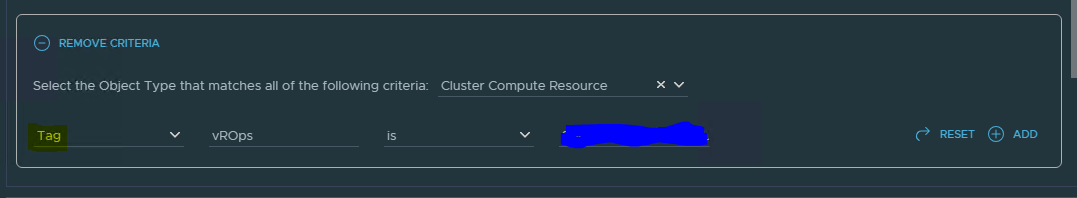

    You selected the "wrong" type, try selecting "tag" and not  "properties"








  • 9.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:57 AM

    I tried with Tag, but even with Tag the value does not show up.

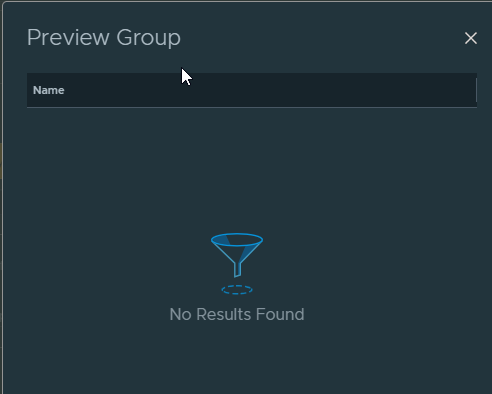

    I tried like on your screenshot but no value's and gives 0 results. Even when I try with "is not" or "contain" / "does not contain" it makes no difference.



  • 10.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 20, 2023 09:59 AM

    My vROps tags are in the tag category "vROps". Be sure you change that according your setup.



  • 11.  RE: VM custom tag or custom attribute not visible in Aria 8.12.1 (custom groups)

    Posted Sep 21, 2023 11:10 AM

    no success yet... I will now try to cleanup everything and start all over.

    keep you posted when I have success
