Hello All,
I recently deployed holodeck version 5.2.1, both the management domain and workload domain. The NSX Edge cluster in the management domain works fine, however, when I try to deploy the NSX Edge cluster in the workload domain, it fails when trying to get the NSX BGP Peering to work. I was told that this was a design issue in this version of holodeck 52, but I would like to know if anyone got it to work in their workload domain.
Here are the errors I have with their screenshots:
Firstly, when trying to deploy NSX Edge Cluster in workload domain through the SDDC Manager, it fails at this step "Verify NSX BGP Peering"

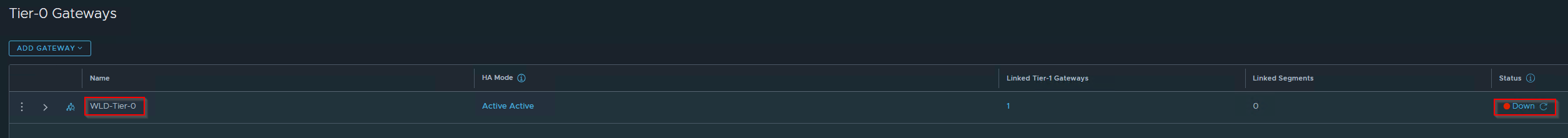

When I login into the NSX Manager UI for the workload domain, I see that the Tier-0 gateway is down
On Further investigation, looks like the BGP Peering is not working in the workload domain like how it works in the management domain.

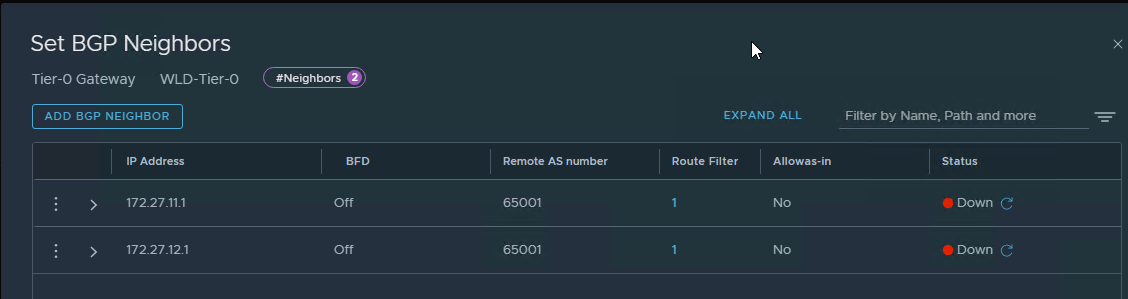

Both the BGP Neighbors show as Down, but their gateways actually work (Able to ping the gateways 172.27.11.1 and 172.27.12.1)

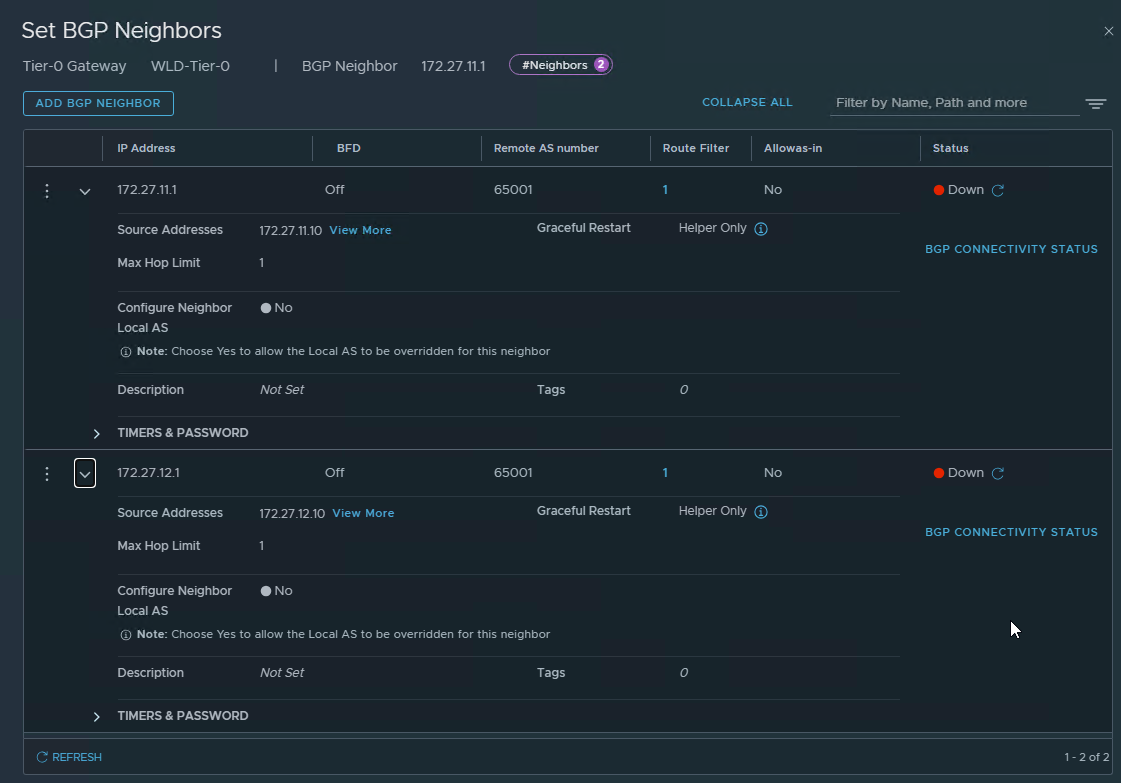

Here is the configuration of these BGP Neighbors
I also checked the BGP Connectivity status and don't see any packet info or anything useful to troubleshoot.
Any ideas on how to get this working?
------------------------------
Pradeep Adapa
------------------------------
