Script to capture Cluster level CPU and memory usage

[Loagu]

HI Guys

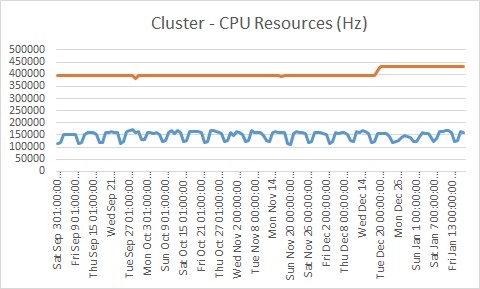

Can someone help me in getting powershell script to capture the report on cluster wise cpu and memory usage for past 6 months   like the attached screen shot

[LucD]

Those screenshots turn out to be rather smallish.
Can you attach a bigger version?

[Loagu]

Hi Lucd

Attached the screenshot again

[Loagu]

Guys any help on this

[LucD]

You do something like this.
Adapt the start date to your requirements.

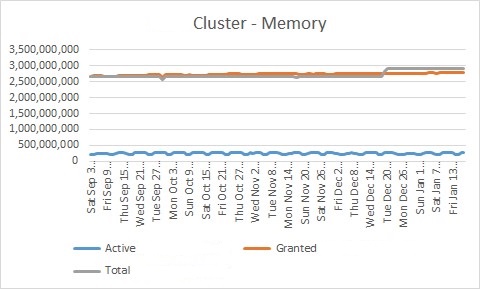

Not sure which memory metrics are shown in that 2nd graph. Can you find out?
In any case, that would be the same code, just with different metrics.

$clusterName = 'MyCluster'

$stat = 'cpu.usagemhz.average','cpu.totalmhz.average'

$start = (Get-Date).AddDays(-14)

$cluster = Get-Cluster -Name $clusterName

Get-Stat -Entity $cluster -Stat $stat -Start $start

[Loagu]

Hi Lucd

Am getting below error message

Get-Stat : 24/04/2017 18:12:28    Get-Stat        A specified parameter was not correct.

querySpec.size

At line:1 char:9

+ Get-Stat <<<<  -Entity $cluster -Stat $stat -Start $start

    + CategoryInfo          : NotSpecified: (:) [Get-Stat], InvalidArgument

    + FullyQualifiedErrorId : Client20_RuntimeDataServiceImpl_GetStats_ErrorRetreivingPerfMetrics,VMware.VimAutomation.ViCore.Cmdlets.Commands.GetViStats

[LucD]

That's most probably the issue described in KB2107096
