POWERCLI Script Resize VMFS Datastore

[DanielOprea]

Hi,

I have a problem when expanding datastores in 5.0.U1, U2, U3 versions. When large disk cabin, ESXi recognizes the new size, but in "Properties" Datastorage the button "Increase" this is disabled:

I have opened a case with vmware and was told that is a workaround for versions 5.0.X and 5.1.x and  in the 5.5.x version is corrected. He sent me this link: VMware KB:    Cannot grow VMFS datastore, the Increase button is disabled  but I can not apply because it involves service stop.

I found this KB VMware KB:    Growing or expanding a VMFS volume or datastore  and following the steps sometimes allows me to do the expansion, I enable the "Increase", but  many times the button  not working, continues disabled.

I found thisl post "Scripted resize of VMFS datastores" but the script fails me, I can not make it work.

The script is this:

$ds = Get-Datastore -Name "Volume05"
$dsscsi = get-datastore $ds | get-scsilun
$dscanonical = $dsscsi.CanonicalName
$esx = Get-View $ds.ExtensionData.Host[0].Key
$storSys = Get-View $esx.ConfigManager.StorageSystem
$dsSys = Get-View $esx.ConfigManager.DatastoreSystem
$vmfsPath = $ds.ExtensionData.Host[0].MountInfo.Path
$storSys.RescanAllHba()
$extent = $dsSys.QueryVmfsDatastoreExpandOptions($ds.ExtensionData.MoRef)
$spec = New-Object VMware.Vim.HostScsiDiskPartition
$spec.diskName = $dscanonical
$spec.partition = "1"
if($extent.Count -ne 0){
  $storsys.ExpandVmfsExtent($vmfspath,$spec)
}

The error I get is:

Excepción al llamar a "ExpandVmfsExtent" con los argumentos "2": "A specified parameter was not correct.
"
En E:\Resize_VMFS_01.ps1: 15 Carácter: 3
+   $storsys.ExpandVmfsExtent($vmfspath,$spec)
+   ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [], MethodInvocationException
    + FullyQualifiedErrorId : VimException

Please can someone help me?

Regards

Daniel

[LucD]

Did you already check the vpx logs on the vCenter ?

There is sometimes more information about the error available in there.

[DanielOprea]

Hi LucD,

I see the log, and i see this fail:

2014-09-04T16:56:13.825+02:00 [06852 verbose 'Default'] [VpxVmomi] Invoking [expandVmfsExtent] on [vim.host.StorageSystem:storageSystem-248] session [52825573-1aaa-1f33-a1f7-153f75433f20(52e66350-8c12-35c0-a008-b3840d7b6986)]

2014-09-04T16:56:13.825+02:00 [06852 verbose 'PropertyProvider' opID=babd66e] RecordOp ASSIGN: info.reason, task-262761

2014-09-04T16:56:13.825+02:00 [06852 verbose 'PropertyProvider' opID=babd66e] RecordOp ASSIGN: info.eventChainId, task-262761

2014-09-04T16:56:13.840+02:00 [06852 verbose 'PropertyProvider' opID=babd66e] RecordOp ADD: recentTask["task-262761"], host-248

2014-09-04T16:56:13.840+02:00 [06852 verbose 'PropertyProvider' opID=babd66e] RecordOp ADD: recentTask["task-262761"], TaskManager

2014-09-04T16:56:13.840+02:00 [09644 verbose 'PropertyProvider'] RecordOp ASSIGN: info.startTime, task-262761

**********2014-09-04T16:56:13.840+02:00 [09644 verbose 'Default'] [VpxLroList::ThreadMainEntry] Unlocked _propProvider to call into external code

2014-09-04T16:56:13.840+02:00 [09644 verbose 'Default'] [VpxLRO::LroMain] Invoking _currentMain

2014-09-04T16:56:13.840+02:00 [09644 verbose 'PropertyProvider' opID=babd66e] RecordOp ASSIGN: info.state, task-262761

2014-09-04T16:56:13.840+02:00 [09644 verbose 'PropertyProvider' opID=babd66e] RecordOp ASSIGN: info.cancelable, task-262761

2014-09-04T16:56:13.840+02:00 [00260 verbose 'QsAdapter.HTTPService'] HTTP Response: Complete (processed 2862598 bytes)

2014-09-04T16:56:13.856+02:00 [09644 info 'Default' opID=babd66e] [VpxLRO] -- BEGIN task-262761 -- host-248 -- vim.host.StorageSystem.expandVmfsExtent -- 52825573-1aaa-1f33-a1f7-153f75433f20(52e66350-8c12-35c0-a008-b3840d7b6986)

2014-09-04T16:56:13.856+02:00 [04152 verbose 'QsAdapter.HTTPService'] User agent is 'VMware vim-java 1.0'

2014-09-04T16:56:13.856+02:00 [04152 verbose 'QsAdapter.HTTPService'] HTTP Response: Complete (processed 4432 bytes)

2014-09-04T16:56:13.871+02:00 [00260 verbose 'QsAdapter.HTTPService'] User agent is 'VMware vim-java 1.0'

2014-09-04T16:56:13.871+02:00 [00260 verbose 'QsAdapter.HTTPService'] HTTP Response: Complete (processed 4432 bytes)

2014-09-04T16:56:13.871+02:00 [09644 error 'Default' opID=babd66e] (Log recursion level 2) vmodl.fault.InvalidArgument

------ In-memory logs end   --------

2014-09-04T16:56:13.871+02:00 [09644 error 'Default' opID=babd66e] Section for VMware VirtualCenter, pid=16992, version=5.0.0, build=build-455964, option=Release

-->

2014-09-04T16:56:13.871+02:00 [09644 info 'Default' opID=babd66e] [VpxLRO] -- FINISH task-262761 -- host-248 -- vim.host.StorageSystem.expandVmfsExtent -- 52825573-1aaa-1f33-a1f7-153f75433f20(52e66350-8c12-35c0-a008-b3840d7b6986)

2014-09-04T16:56:13.871+02:00 [09644 info 'Default' opID=babd66e] [VpxLRO] -- ERROR task-262761 -- host-248 -- vim.host.StorageSystem.expandVmfsExtent: vmodl.fault.InvalidArgument:

--> Result:

--> (vmodl.fault.InvalidArgument) {

-->    dynamicType = <unset>,

-->    faultCause = (vmodl.MethodFault) null,

-->    invalidProperty = <unset>,

-->    msg = "A specified parameter was not correct.

--> ",

--> }

--> Args:

-->

--> Arg vmfsPath:

--> "/vmfs/volumes/540726c1-b26f3c27-2e13-e41f13908ee6"

--> Arg extent:

--> (vim.host.ScsiDisk.Partition) {

-->    dynamicType = <unset>,

-->    diskName = "naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672 naa.60a98000417636726d2b4544706c4672",

-->    partition = 1,

--> }

[LucD]

The issue seems to be the diskName property, that should hold only 1 canonicalname.

Try changing

$dscanonical = $dsscsi.CanonicalName

into

$dscanonical = $dsscsi.CanonicalName | Select -First 1

[DanielOprea]

Hi LucD,

The error now is this:

No se puede convertir el argumento "datastore", con el valor: "System.Object[]", para "QueryVmfsDatastoreExpandOptions", al tipo

"VMware.Vim.ManagedObjectReference": "No se puede convertir el valor "System.Object[]" de tipo "System.Object[]" al tipo

"VMware.Vim.ManagedObjectReference"."

En E:\1D\UTILIDADES_MIAS\Scripts_PowerShell_PowerGUI\ESX\Resize_VMFS_01.ps1: 10 Carácter: 1

+ $extent = $dsSys.QueryVmfsDatastoreExpandOptions($ds.ExtensionData.MoRef)

+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    + CategoryInfo          : NotSpecified: (:) [], MethodException

    + FullyQualifiedErrorId : MethodArgumentConversionInvalidCastArgument

Excepción al llamar a "ExpandVmfsExtent" con los argumentos "2": "An error occurred during host configuration."

En E:\1D\UTILIDADES_MIAS\Scripts_PowerShell_PowerGUI\ESX\Resize_VMFS_01.ps1: 15 Carácter: 3

+   $storsys.ExpandVmfsExtent($vmfspath,$spec)

+   ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    + CategoryInfo          : NotSpecified: (:) [], MethodInvocationException

    + FullyQualifiedErrorId : VimException

[LucD]

It looks as if more than 1 object is returned for the Get-Datastore.

Try like this perhaps

$ds = Get-Datastore -Name "Volume05" | Select -First 1

$dsscsi = Get-ScsiLun -Datastore $ds | Select -First 1

$dscanonical = $dsscsi.CanonicalName

$esx = Get-View $ds.ExtensionData.Host[0].Key

$storSys = Get-View $esx.ConfigManager.StorageSystem

$dsSys = Get-View $esx.ConfigManager.DatastoreSystem

$vmfsPath = $ds.ExtensionData.Host[0].MountInfo.Path

$storSys.RescanAllHba()

$extent = $dsSys.QueryVmfsDatastoreExpandOptions($ds.ExtensionData.MoRef)

$spec = New-Object VMware.Vim.HostScsiDiskPartition

$spec.diskName = $dscanonical

$spec.partition = "1"

if($extent.Count -ne 0){

   $storsys.ExpandVmfsExtent($vmfspath,$spec)

}

[DanielOprea]

Hi LucD,

I tested the script, is giving error, gives another error:

=========================================================================================================

In the powegui i see this error:

Excepción al llamar a "ExpandVmfsExtent" con los argumentos "2": "An error occurred during host configuration."

En C:\Users\x091683\AppData\Local\Temp\d5636c20-5e9c-4106-9bac-471ed0fbaf65.ps1: 14 Carácter: 4

+    $storsys.ExpandVmfsExtent($vmfspath,$spec)

+    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    + CategoryInfo          : NotSpecified: (:) [], MethodInvocationException

    + FullyQualifiedErrorId : VimException

=========================================================================================================

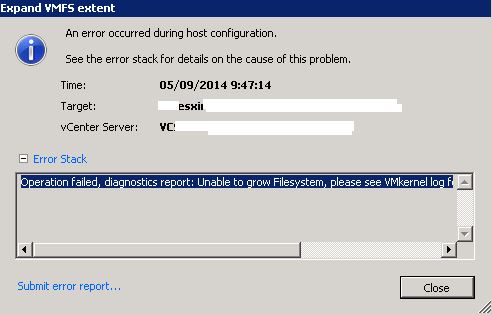

And in the VC i see this error:

Operation failed, diagnostics report: Unable to grow Filesystem, please see VMkernel log fordetails : Underlying device has no free space.

=========================================================================================================

In "error report" show this error:

Event Details:

Type: info

Time: 05/09/2014 9:47:14

Task Details:

Name: ExpandVmfsExtent

Description: Expand VMFS extent

Error Stack:

Operation failed, diagnostics report: Unable to grow Filesystem, please see VMkernel log fordetails : Underlying device has no free space

Additional Event Details:

  Type ID: Info

Target Object Type: ClusterComputeResource

DataCenter Object Type: Datacenter

Host Object Type: HostSystem

Host Build: 1117897

ChainId: 12240846

Additional Task Details:

  VC Build: 455964

Task Id: Task

Cancelable: False

Cancelled: False

Description Id: host.StorageSystem.expandVmfsExtent

Event Chain Id: 12240846

=========================================================================================================

In the ESX, in the vmkernel.log show this error:

2014-09-05T08:32:01.800Z cpu17:33352330)VmkAccess: 207: ipAddr = 0.0.0.0, port = 68

2014-09-05T08:32:04.210Z cpu9:126562)LVM: 7972: No unused capacity on device naa.60a98000417636726d2b4544706c4672:1

2014-09-05T08:32:04.210Z cpu9:126562)LVM: 7887: Error adding space (0) on device naa.60a98000417636726d2b4544706c4672:1 to volume 540726c1-6294532b-5943-e41f13908ee6: Underlying device has no free space

=========================================================================================================

But this is not right. Is free space on the disk.

[lmaxfield]

Just got this working in 5.5. I think the issue is that you're using the wrong function for your intended purpose (should perhaps be using ExpandVmfsDatastore instead of ExpandVmfsExtent).

# The start of a datastore name. E.g., if you have multiple datastores:
# ds1, ds2, ds3
# and want to expand all of them, put 'ds' here.
$dsPrefix = 'dsprefix'

connect-viserver vcenter
Write-Host
$rds = get-datastore | ? { $_.Name -match "^$($dsPrefix).*$" } | sort-object
if ($rds.Count -ge 0) {
    $vmhost = get-vmhost -id $rds[0].ExtensionData.Host[0].Key
    $vmhostView = get-view $vmhost
    $dsSys = get-view $vmhostView.ConfigManager.DatastoreSystem
    $rds | % {
        $ds = $_
        $expandOpts = $dsSys.QueryVmfsDatastoreExpandOptions($ds.ExtensionData.MoRef)
        if (($expandOpts.Count -gt 0) -and ($expandOpts[0].Spec.GetType().Name -eq "VmfsDatastoreExpandSpec")) {
            $userResponse = Read-Host -Prompt "Expand VMFS datastore '$($ds.Name)' [Y/N] (default 'Y')?"
            if ((-not $userResponse) -or ($userResponse -eq '') -or ($userResponse -ieq 'y')) {
                Write-Host "Expanding VMFS datastore '$($ds.Name)'"
                $dsSys.ExpandVmfsDatastore($ds.Id, $expandOpts[0].Spec)
            }
        }
    }
}
else {
    Write-Host "No datastores found."
}
disconnect-viserver -confirm:$false -force
