Local Disk appearing as HP Enclosure SVC Dev on Esxi 6.5 Under vSAN

  • 1.  Local Disk appearing as HP Enclosure SVC Dev on Esxi 6.5 Under vSAN

    Posted Dec 13, 2017 05:25 AM

    In one of the Host Local disk appearing as Local HP Enclosure SVC Dev and showing type as Enclosure & capacity "0". Checked from ILO everything look good from Hardware side.

    The disk has been added to vSAN and this disk not getting added due to disk type : enclosure .



  • 2.  RE: Local Disk appearing as HP Enclosure SVC Dev on Esxi 6.5 Under vSAN

    Posted Dec 19, 2017 09:10 AM

    Hi peerbasha,

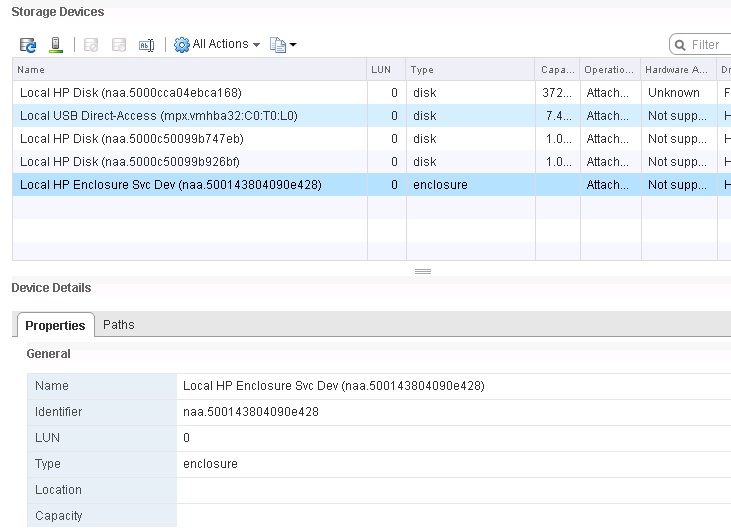

    What you are seeing is no error: Check my PrintScreen:

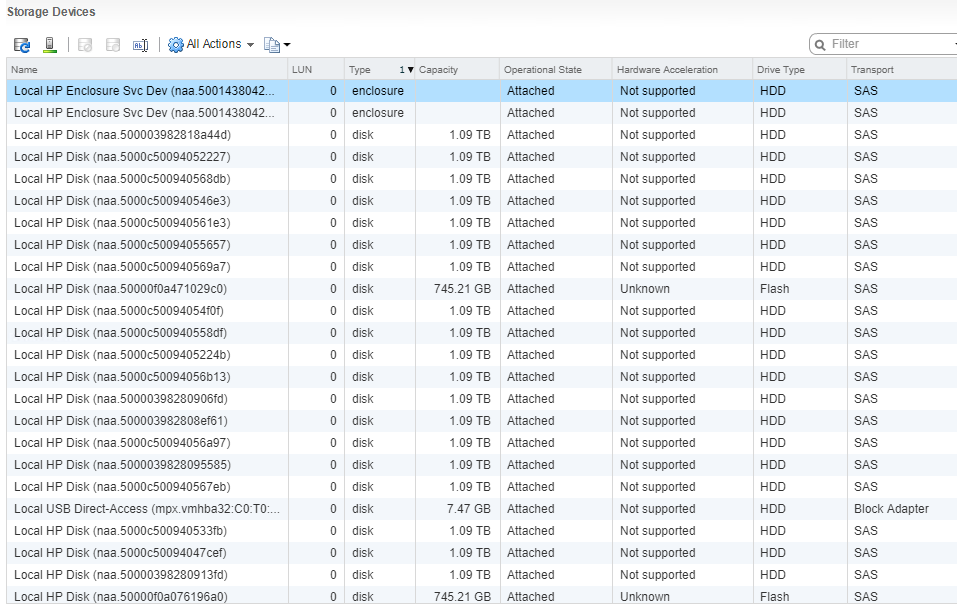

    The enclosure you are seeing is the HBA Part, where it shows you the HBA Ports, in my case I do have 2, with a total of 24 Disks that can be hold

    When you check the Disk in USE in the diskgroups, you will not finde those and this is a normal behaivor.

    Best regards,

    Marco
