  • 1.  How to WAN-OPT Management Console login

    Posted Oct 21, 2021 07:19 AM

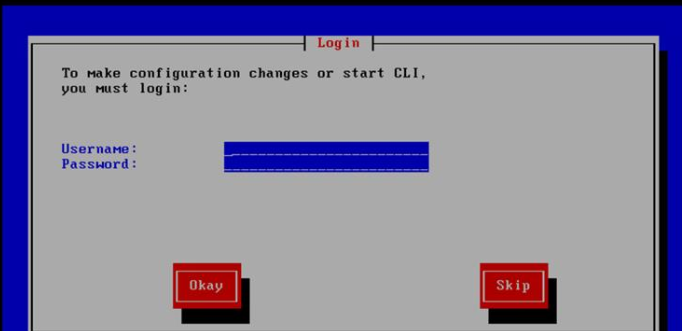

    I would like to enable the WEB UI of HCX WAN Optimizer.However, I was asked for login information and I searched for the documentation but could not find it.If you skip it, the settings will not be reflected.What is the user/password to enter here?




  • 2.  RE: How to WAN-OPT Management Console login

    Broadcom Employee
    Posted Oct 21, 2021 08:01 AM

    HI  - the WAN OPT is only accessible by VMware support.



  • 3.  RE: How to WAN-OPT Management Console login

    Posted Oct 21, 2021 09:23 AM
      |   view attached

    Thank you for your reply, ChrisFD2.
    Is there a way to enable WEB UI and monitor bandwidth from WAP OPT?I want to be able to see a screen like "capture2.png", but can I only use support?I want to check the transfer speed at the time of migration.



  • 4.  RE: How to WAN-OPT Management Console login
    Best Answer

    Broadcom Employee
    Posted Oct 21, 2021 09:25 AM

    I'm afraid not, the only way to monitor traffic is to look at the IX NICs at transmit rate under VM monitoring.



  • 5.  RE: How to WAN-OPT Management Console login

    Posted Oct 21, 2021 09:32 AM

    OK.Thank you for your quick reply.



  • 6.  RE: How to WAN-OPT Management Console login

    Posted Oct 12, 2023 03:59 AM

    I could not able to see the solution , what is the user id and password , so that i can configure the ip and view the bandwidth ,



  • 7.  RE: How to WAN-OPT Management Console login

    Broadcom Employee
    Posted Oct 12, 2023 08:10 AM

    As I posted above, this is not possible via the GUI. The only supported method is via CCLI.

    HCX Manager >> CCLI >> Go <IX_Appliance associated with WO> wanopt flow OR wanopt stats.
