get-stat network script

[TheVMinator]

I'm looking to use get-stat to get some network related info.  Here is what I need to do:

select a group of vms

for each vm, select only virtual network adapter 1 (vnic1) not vnic 2. (some vms have 2 or more vnics)

find the avg peak throughput in Mbps for that virtual network adapter only.  Make it as accurate as I can based on statistics level 1.   Peak of last 24 hours is OK. (I'd like to plan for the peaks)

Create a table such as below I can export to csv.

Ideas?

Thanks!

VirtualMachineName	NetworkAdapater1PeakThroughputMbps
vm1	136
vm2	234
vm3	16

[LucD]

The counter net.throughput.usage.average per instance is statistics level 4.

You can go for the summation of net.received.average and net.transmitted.average, but these 2 are statistics level 3 for instances.

So I don't get what you mean by your statistics level 1 comment.

And there is an issue with these counters in vSphere 5.5, see KB2083590

[TheVMinator]

OK thanks.  I wrongly assumed I could do this with only statistics level 1 enabled.  What if I were to be willing to be content with just realtime metrics, could I run a script that would create a snapshot of the above requirements just for the present moment and get a rough idea what was happening at a given moment?

[LucD]

Yes, these are available in the Realtime interval (for +/- 1 hour), but only transmitted and received, not the aggregated throughput.

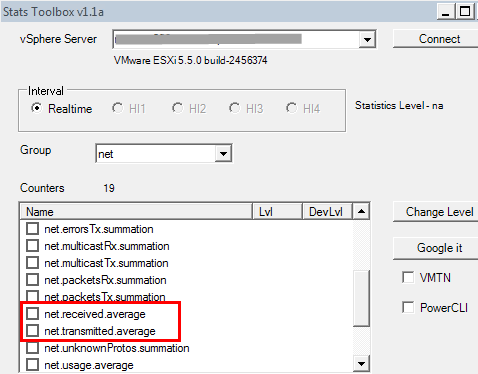

As you can see with my Stats Toolbox :smileygrin:

To get the throughput value, just do a summation of these 2

[TheVMinator]

OK great.  Is net.received.average measured in units of percentage, or in units of Kbps?  (In order for this to work I have to be able to get the value in Kbps / Mbps)

[LucD]

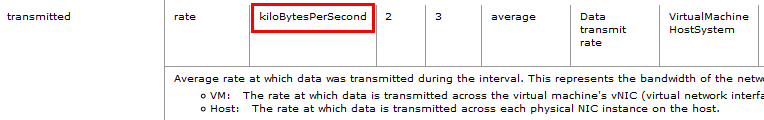

In KBps, see the PerformanceManager table.

[TheVMinator]

OK thanks - problem though:  In the "entity" column, the only metrics that give throughput for virtual NICS appear to be level 3 metrics.

I don't see any level 1 metrics for vitul nics.  The level 1 metrics all appear to be for the entire virtual machine, and don't break out the statistics on a single vm by vnic.

http://pubs.vmware.com/vsphere-55/index.jsp#com.vmware.wssdk.apiref.doc/network_counters.html

[LucD]

For the Realtime interval the Statistics Levels do not play, those are only for the historical intervals.

Every counter, except for the aggregated ones, are available in the Realtime interval

[TheVMinator]

OK thanks.  It appears not to work though.

$vnic1s = get-vm vm100  | get-networkadapter | where {$_.name -eq 'Network adapter 1'}

get-stat -entity $vnic1s -stat net.received.average -realtime

get-stat : 5/23/2015 12:55:06 AM    Get-Stat        Invalid entity type. Performance statistics are collected only for Clusters, Hosts, Virtual Machines, Resource Pools, Datastores,

Datastore Clusters, Datacenters, VApps and VIServers.

At  char:1

+ get-stat -entity $vnic1s -stat net.received.average -realtime

+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    + CategoryInfo          : InvalidArgument: (:) [Get-Stat], InvalidArgument

    + FullyQualifiedErrorId : Core_GetStat_TryValidateParameterList_InvalidType,VMware.VimAutomation.ViCore.Cmdlets.Commands.GetViStats

Are you sure why I'm trying to do is possible (compare net.received.average between network adapter 1 and network adapter 2 on the same vm)?  It seems like this error is saying that virtual machines are valid entities but virtual nics on those VMs are not.

thoughts?

Thanks!

[LucD]

You should retrieve those counters on a VM or an ESXi node, not on the network adapter.

With the Instance property you can filter which vnic you want to report on.

[TheVMinator]

OK thanks - ran this code and looked at the instance property

$a = get-stat -entity (get-vm vm100) -stat net.received.average -realtime

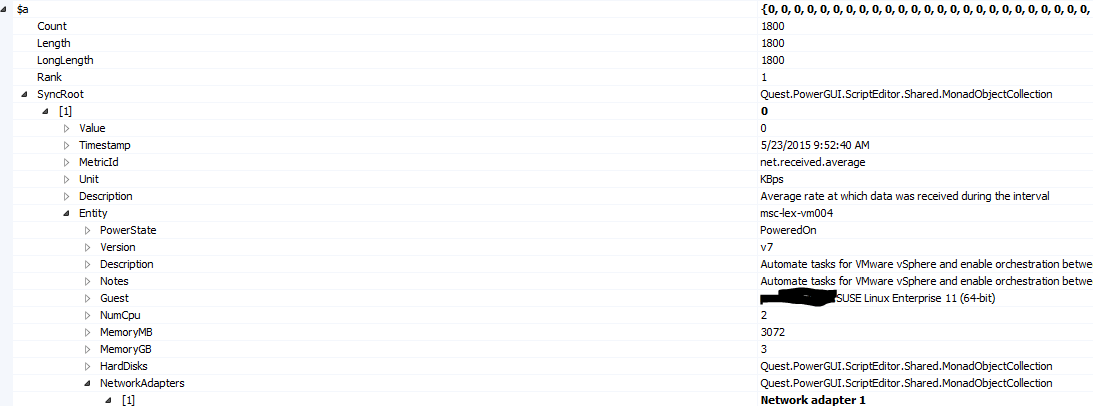

Under $a -> syncroot -> [1] -> instance

I see this: vmnic0

vmnic0 uplink that provides connectivity to a port group.  I'm not sure it would help to get statistics on that because that vmnic carries traffic for every VM on the port group.

what I am trying to find is the traffic statistics for the virtual machines own vmxnet3 network adapter 1, and distinguish that from networkadapter2.

For example, I see the network adapter 1 in the following location:

$a -> syncroot -> [1] -> entity -> networkadapters -> [1]

Is it possible to get traffic just on this networkadapter1?

I see a "value" field for the object as a whole in the property inspector, but I don't see a "value" field associated with the individual network adapter.

Any ideas?

[LucD]

You should see one or more instances with a number (for example 4000).

This number corresponds with the Key of a vNIC on your VM.

Something like this for example (looks at the last 2 minutes)

$vmName = 'MyVM'

$vnicName = 'Network adapter 1'

$vm = Get-VM -Name $vmName

$vnic = Get-NetworkAdapter -VM $vm -Name $vnicName

$stat = 'net.transmitted.average','net.received.average'

Get-Stat -Entity $vm -Stat $stat -Realtime -MaxSamples 6 -Instance $vnic.ExtensionData.Key |

Group-Object -Property Entity,Timestamp |

Select @{N='Timestamp';E={$_.Group[0].Timestamp}},

  @{N='Entity';E={$_.Group[0].Entity}},

  @{N='Received';E={$_.Group | where{$_.MetricId -match 'received'} | Select -ExpandProperty Value}},

  @{N='Transmitted';E={$_.Group | where{$_.MetricId -match 'transmitted'} | Select -ExpandProperty Value}},

  @{N='Throughput (KBps)';E={$_.Group | Measure-Object -Property Value -Sum | Select -ExpandProperty Sum}} |

Format-Table -AutoSize

[TheVMinator]

OK great  - thanks.  One more thing - what if I want to do this for a group of VMs and create a total?  Should create a loop and run this for each Vm or can I put a variable representing a collection of VMs into a single get-stat call?

For example if I'm looking to get the total throughput of all "networkadapter1's" and network adapter2s put together for all VMs in cluster1

VMgroup	Total_Throughput_NetworkAdapter1	TotalThroughputNetworkAdapter2
Cluster1	3450Mbps	2000Mbps

[LucD]

You could do something like this.

In your case you would get all the VMs in the cluster.

$vmName = 'ClusterVM*'

$vnicName = 'Network adapter 1'

$vms = Get-VM -Name $vmName

$vnic = Get-NetworkAdapter -VM $vm -Name $vnicName

$stat = 'net.transmitted.average','net.received.average'

$report = Get-Stat -Entity $vms -Stat $stat -Realtime -MaxSamples 6 -Instance $vnic.ExtensionData.Key |

Group-Object -Property Entity,Timestamp |

Select @{N='Timestamp';E={$_.Group[0].Timestamp}},

  @{N='Entity';E={$_.Group[0].Entity}},

  @{N='Received';E={$_.Group | where{$_.MetricId -match 'received'} | Select -ExpandProperty Value}},

  @{N='Transmitted';E={$_.Group | where{$_.MetricId -match 'transmitted'} | Select -ExpandProperty Value}},

  @{N='Throughput (KBps)';E={$_.Group | Measure-Object -Property Value -Sum | Select -ExpandProperty Sum}}

# Total

$totals = $report | Measure-Object -Property Received,Transmitted,'Throughput (KBps)' -Sum

$report += New-Object PSObject -Property @{

  Entity = 'Totals'

  Received = $totals | where{$_.Property -eq 'Received'} | Select -ExpandProperty Sum

  Transmitted = $totals | where{$_.Property -eq 'Transmitted'} | Select -ExpandProperty Sum

  'Throughput (KBps)' = $totals | where{$_.Property -eq 'Throughput (KBps)'} | Select -ExpandProperty Sum

}

$report | Format-Table -AutoSize

[TheVMinator]

This is great MUCH appreciated!
