Get List of VMs, Datastores and Folder name per Cluster

[2448Charles]

Hello!!  I'm hoping someone can assist me with a PowerCLI script that can pull the subject info into a txt or csv file.  In an effort to get our environment cleaned up before our next DR exercise with SRM, I want to get a list that shows each VM, the datastore(s) it resides on, and the Folder name within VMs and Templates view.  We keep our VMs organized by creating folder names that correspond to the app running on the VM.  I mention SRM because last year our Protected Groups matched the Rcopy groups from our 3PAR array.  However, we've added over 200 new VMs since that time and my team members basically placed these new VMs on the first available datastore that had enough free space.  Unfortunately, we're not utilizing Storage Profiles...it's scheduled for next year.

The extracted info would look similiar to the following:

Servername    Datastore   Folder Name

Server1            LUN0           ActiveDirectory

Server2            LUN0           ActiveDirectory

Server3            LUN1           ActiveDirectory

Server4            LUN3           Argo

Server5            LUN7           Argo

Server6            LUN6           Lockbox

Server7            LUN5           Lockbox

Server8            LUN9           Citrix

etc...

Any help with extracting this info from vCenter would be greatly appreciated.

Thanks,

Charles

[LucD]

Try something like this

Get-VM |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}}

[2448Charles]

Thanks LucD!!!  That appears to provide me with what I'm looking for.  However, the above command is outputting the info screen.....what can be added to pipe it to a TXT file?

Thanks,

Charles

[LucD]

You can pipe the result to a CSV file for example

Get-VM |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}} |
Export-Csv C:\report.csv -NoTypeInformation -UseCulture

[2448Charles]

LucD, I've marked this as "correct answer".  Is there anything else I need to do to get it closed?

Thanks,

Charles

[LucD]

No, when you mark a reply as Correct, the thread is marked Answered automatically.

[2448Charles]

LucD, I have 2 additonal columns of info I forgot to mention.  I need to know how much stoarge has been provisioned and how much storage is being used.

Example:

Servername    Datastore     Provisioned     Used        Folder Name

Server1            LUN0            80GB                 45GB       ActiveDirectory

Server2            LUN0            1.2TB                730GB     ActiveDirectory

Thanks,

Charles

[LucD]

No problem, try this

Get-VM |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="UsedSpaceGB";E={[math]::Round($_.UsedSpaceGB,1)}},
@{N="ProvisionedSpaceGB";E={[math]::Round($_.ProvisionedSpaceGB,1)}},
@{N="Folder";E={$_.Folder.Name}} |
Export-Csv C:\report.csv -NoTypeInformation -UseCulture

[russjar]

Hi how's it going?

I haven't done any powershell for years and I'm trying to remember how to do this stuff...

The example script is pretty good bit it's missing something for me.

I'm looking for the following in a list form if possible;

HOST     VM     DATASTORE NAME     DATASTORE CAPACITY      DATASTORE FREE SPACE

I'd really appreciate some help :smileyhappy:

Thanks in advance.

[LucD]

You mean like this ?

foreach($vm in Get-VM){

    Get-Datastore -RelatedObject $vm |

    Select @{N='Host';E={$vm.VMhost.Name}},

    @{N='VMName';E={$vm.Name}},

    Name,

    @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

    @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}

}

[russjar]

Champion thank you.

[matt_jo]

How do you pipe that to a .csv like your earlier commands?  I keep getting this error:

PowerCLI C:\Program Files (x86)\VMware\Infrastructure\vSphere PowerCLI> foreach($vm in Get-VM){ Get-Datastore -RelatedObject $vm | Select @{N='Host';E={$vm.VMhost.Name}}, @{N='VMName';E={$vm.Name}}, Name,@{N='Capacity';E={[math]::Round($_.CapacityGB,1)}}, @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}} | Export-Csv C:\vm-full-report-2.csv -NoTypeInformation -UseCulture

At line:1 char:235

+ ... eSpaceGB,1)}}} | Export-Csv C:\vm-full-report-2.csv -NoTypeInformation -UseCultu ...

+                    ~

An empty pipe element is not allowed.

    + CategoryInfo          : ParserError: (:) [], ParentContainsErrorRecordException

    + FullyQualifiedErrorId : EmptyPipeElement

PowerCLI C:\Program Files (x86)\VMware\Infrastructure\vSphere PowerCLI>

And is there a way to also list the RDMs for each VM if any?

[LucD]

Try like this, a ForEach doesn't place anything in the pipeline.

Use the call operator (&) to force that.

&{foreach($vm in Get-VM){

Get-Datastore -RelatedObject $vm |

Select @{N='Host';E={$vm.VMhost.Name}},

  @{N='VMName';E={$vm.Name}},

  Name,

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv C:\vm-full-report-2.csv -NoTypeInformation -UseCulture

You can get the RDM info through the Get-Harddisk cmdlet, but that would require a somewhat different organisation of the script.

Perhaps you better make a new thread for that.

[nmedard]

Hello,

I am very new to powercli and I think that it is a great tool to manage vmware infrastructure.

however, I do not know where to start.

Could someone tell me what the following code does

Get-ResourcePool | Where {$_.Name -ne “Resources“ }| Select Name, @{N=“NumVM“;E={($_ | Get-VM).Count}} | Sort Name|Export-Csv -NoTypeInformation c:\res-numvm.csv

Globally I know that it list ressource pools etc, but what I want to know is

1. Why do we use "$_.xxx"

2. Why and where do we use the "@"

3. What the "N" means

4. What the "E" means

5. Why the codes "$_ | Get-VM" is like it is and not like "$_Get-VM"

6. What the use of "|"

Nicolas

[aaronmiller85]

To nmedard

Could someone tell me what the following code does

Get-ResourcePool | Where {$_.Name -ne “Resources“ }| Select Name, @{N=“NumVM“;E={($_ | Get-VM).Count}} | Sort Name|Export-Csv -NoTypeInformation c:\res-numvm.csv

1. $_ represents the objects in the pipeline, so:

Get-ResourcePool | Where {$_.Name -ne “Resources“ }

if you had 3 resource pools, A, B, C when you do a 'get-resourcepool | where{$_.name}

It will call 'get-resourcepool' and go through them individually, each one represented by the $_ object. When you are looking at $_.xxx those are properties of that object, so $_.name calls the name of the object.

get-resourcepool | foreach{$_.name} -this example will go through each resourcepool and just display their name.

2. @ is used for different reasons, such as creating a hash @{} or an @() etc

3. N means name, this is creating an expression that has a column header represented by N (NumVM) and then the value that NumVM is represented by the E, or the expression, ($_ | get-vm) -this is running the get-VM command on the resource pool (represented by $_) and then doing a .count on it to count the number of vm objects inside of the $_ object

The pipe, "|", passes the information of a command that can further be manipulated. Such as the example below:

get-resourcepool - this will spit out a lot of information, but if we want to manipulate it further we can pipe it...

get-resourcepool | where {$_.name -eq "A"} - This command will only return information for a resource pool that has the name of "A".

[RaviMV]

Hi Luc,

Good to see that script you have provided. its worked for entire VM in a cluster/ VCenter.

I'm looking for the script that can provide the report, only list of the VMs.

Eg :

VM1

VM3

VM10

VM14 ....

Could you please help me out on this ?

[LucD]

On the Select-Object, only keep the VMName property.

[RaviMV]

Could you please gimme the correct syntax ?

[RAJ_RAJ]

Hi ,

just run this command and you will get only vm names

Get-VM | Select Name

to export to csv use this   - Get-VM | Select Name | Export-Csv C:\data .csv

[umanmd707]

You can store list of VMs in a text file. and call it using

$VMs = Get-Content "Text file complete path"

foreach ($VM in $VMs)

{

Code goes in here.

}

Hope that helps.

[bernz]

Hi LucD

How about if I want it to be granular?

Need to extract this by Cluster.

[LucD]

Can you give a sample layout of the desired output ?

[bernz]

Hi LucD

Here is the sample output needed:

Cluster Name	Datastore Name	NAA	VM	Capacity	Free

[LucD]

Try like this

&{foreach($vm in Get-VM){

Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

  Name,

  @{N='VMName';E={$vm.Name}},

  @{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv C:\vm-full-report-2.csv -NoTypeInformation -UseCulture

[esxi1979]

LucD‌

Get-VM |

Select Name,

@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N="Folder";E={$_.Folder.Name}}

Can we pull resource pool the vm is part of in this as well ?

thanks

[LucD]

Try like this

Get-VM |

Select Name,

@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N="Folder";E={$_.Folder.Name}},

@{N='ResourcePool';E={Get-ResourcePool -VM $_ | Select -ExpandProperty Name}}

[bernz]

Hi LucD

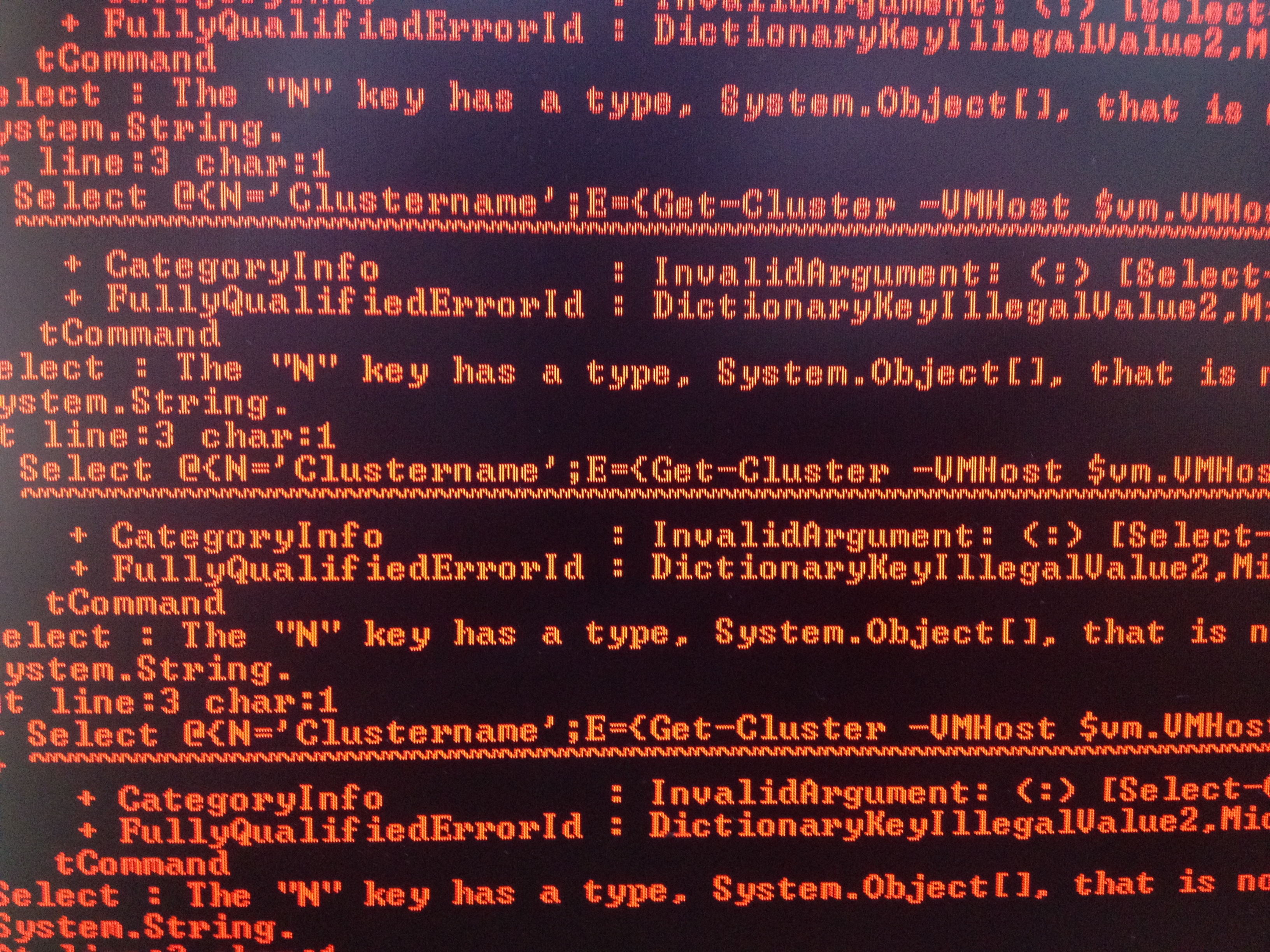

Getting this error >>>

[LucD]

Can you attach the code you are using ?

[bernz]

Hi LucD

It's now working!

#####

&{foreach($vm in Get-VM){

Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

  Name,

  @{N='VMName';E={$vm.Name}},

  @{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv C:\vm-full-report-2.csv -NoTypeInformation-UseCulture

#####

How about if I will run the script on a per cluster basis? Like selecting which cluster.

Also, can we add "VM folder path"?

[LucD]

You can add an outer ForEach loop, that runs through all your clusters.

And then use the Location parameter on the Get-VM cmdlet.

For the folder path, which path are you referring to ?

The path on the datastore where the VM's VMX is located, the "yellow" folderpath (under Clusters & Hosts) or the "blue" folderpath (under VMs & Templates) ?

Perhaps it would be handier if you created a new thread for these new questions ?

[Virtualduty]

Hi,

This script was very helpful , thank you !

Is there any parameter that can get the storage vendor details. I am looking for list of VMs, corresponding datastores for all the virtual disks, naa id and storage vendor name. We are using Hitachi, EMC and NetApp.

[LucD]

One way of doing that would be through this calculated property.

  @{N='Vendor';E={(

    Get-EsxCli -VMHost (Get-VMHost -Datastore $_ |

    Select -First 1)).storage.core.device.list($_.ExtensionData.Info.Vmfs.Extent[0].DiskName).Vendor}},

[Virtualduty]

Works like a charm ! Thank you !

[Virtualduty]

I am also looking for provisioned space on all the VMs in these clusters. I ran the below script but the provisionspacegb column in the output file was all blank.

&{foreach($vm in Get-VM){&{foreach($vm in Get-VM){

Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

  Name,

  @{N='VMName';E={$vm.Name}},

  @{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N="ProvisionedSpaceGB" ;E={(Get-VM -ProvisionedSpaceGB)}},

  @{N='Vendor';E={(

    Get-EsxCli -VMHost (Get-VMHost -Datastore $_ |

    Select -First 1)).storage.core.device.list($_.ExtensionData.Info.Vmfs.Extent[0].DiskName).Vendor}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv  C:\Users\CA\vm-full-report-2.csv -NoTypeInformation -UseCulture

Could you help me understand what's wrong in my script ?

[LucD]

There are a few too many curly braces at the end

Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

  Name,

  @{N='VMName';E={$vm.Name}},

  @{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N="ProvisionedSpaceGB" ;E={(Get-VM -ProvisionedSpaceGB)}},

  @{N='Vendor';E={(

    Get-EsxCli -VMHost (Get-VMHost -Datastore $_ |

    Select -First 1)).storage.core.device.list($_.ExtensionData.Info.Vmfs.Extent[0].DiskName).Vendor}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}} |

Export-Csv  C:\Users\CA-VISM-ADM-P003\vm-full-report-2.csv -NoTypeInformation -UseCulture

[Virtualduty]

I ran below

&{foreach($vm in Get-VM){
Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

  Name,

  @{N='VMName';E={$vm.Name}},

  @{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

  @{N="ProvisionedSpaceGB" ;E={(Get-VM -ProvisionedSpaceGB)}},

  @{N='Vendor';E={(

    Get-EsxCli -VMHost (Get-VMHost -Datastore $_ |

    Select -First 1)).storage.core.device.list($_.ExtensionData.Info.Vmfs.Extent[0].DiskName).Vendor}},

  @{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}} |

Export-Csv  C:\Users\CA\vm-full-report-2.csv -NoTypeInformation -UseCulture

I get below error

Missing closing '}' in statement block or type definition.
    + CategoryInfo          : ParserError: (:) [], ParentContainsErrorRecordException
    + FullyQualifiedErrorId : MissingEndCurlyBrace

[LucD]

You changed the script, now you need an extra { at the end of the Select (to close the &{)

[tkdreamer2]

Thank you Luc! As usual: your work is amazing!

I know it's been a long time since your last answer but if I need to also get the OS version?

I can get it this way, but I can't put it in the precedant script:

Get-VM | Get-View -Property @("Name", "Config.GuestFullName", "Guest.GuestFullName") | Select -Property Name, @{N="Configured OS";E={$_.Config.GuestFullName}},  @{N="Running OS";E={$_.Guest.GuestFullName}} | Format-Table -AutoSize

[LucD]

You mean like this?

Get-VM |

  Select Name,

@{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

@{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N = "Folder"; E = {$_.Folder.Name}}

[tkdreamer2]

Thank you.

But I also need the Provisioned Space and the used space.

Could you help me out?

[LucD]

Which of the scripts in this thread are you using?

[tkdreamer2]

this one:

Get-VM |

Select Name,

@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N="UsedSpaceGB";E={[math]::Round($_.UsedSpaceGB,1)}},

@{N="ProvisionedSpaceGB";E={[math]::Round($_.ProvisionedSpaceGB,1)}},

@{N="Folder";E={$_.Folder.Name}}

[LucD]

Ok, just add that new calculated property.

Get-VM |

Select Name,

@{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

@{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N = "UsedSpaceGB"; E = {[math]::Round($_.UsedSpaceGB, 1)}},

@{N = "ProvisionedSpaceGB"; E = {[math]::Round($_.ProvisionedSpaceGB, 1)}},

@{N = "Folder"; E = {$_.Folder.Name}}

[tkdreamer2]

Thank you!

It works perfectly! I've made a mistake earlier ;-) That's why it didn't work right away

[tkdreamer2]

I would also like to sort the VMs per folder, as we are manipulating objects, how could I insert "Sort-Object -Descending" for the folders?

[tkdreamer2]

Never mind: @{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name | Sort-Object -Descending))}},

[LucD]

[tkdreamer2]

Hi Luc

I'd like to improve the script: orderding the output by folder name.

I tried to add this " | Sort-Object -descending " at the end of " @{N="Folder";E={$_.Folder.Name}} "

But I didn't worked out

Any idea?

[LucD]

Try like this

Get-VM |

  Select Name,

@{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

@{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N = "UsedSpaceGB"; E = {[math]::Round($_.UsedSpaceGB, 1)}},

@{N = "ProvisionedSpaceGB"; E = {[math]::Round($_.ProvisionedSpaceGB, 1)}},

@{N = "Folder"; E = {$_.Folder.Name}} |

  Sort-Object -Property Folder

[tkdreamer2]

It works! I was almost there!

Thank you Luc

[tkdreamer2]

Hello LucD

I know this work: Get-VM vmname | Get-NetworkAdapter | Select -ExpandProperty MacAddress

But, do you know how to put it to the script to also get the MacAddress of each vm?

[LucD]

Create an additional calculated property for that.

I added the -join in case you have VMs with more than 1 vNIC.

Get-VM |

Select Name,

   @{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

   @{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

   @{N = "UsedSpaceGB"; E = {[math]::Round($_.UsedSpaceGB, 1)}},

   @{N = "ProvisionedSpaceGB"; E = {[math]::Round($_.ProvisionedSpaceGB, 1)}},

   @{N = "Folder"; E = {$_.Folder.Name}},

   @{N = 'MAC';E={(Get-NetworkAdapter -VM $_).MacAddress -join '|'}} |

Sort-Object -Property Folder

[tkdreamer2]

Thank you!

It works fine

I was able to notice that someone cloned a vm and I had 2 identicals mac addresses - -' and to see several mac addresses for a single vm...

In fact I had alarm on duplicated MacAddresses but this KB VMware Knowledge Base ​ couldn't help me because my vCenters do not have the same ID..

[TX_Tundra]

This works great!  Thank you for all you provide us!

&{foreach($vm in Get-VM){

Get-Datastore -RelatedObject $vm |

Select @{N='Cluster';E={Get-Cluster -VMHost $vm.VMhost | select -ExpandProperty Name}},

Name,

@{N='VMName';E={$vm.Name}},

@{N='NAA';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

@{N='Capacity';E={[math]::Round($_.CapacityGB,1)}},

@{N='Free';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv C:\Temp\vm-full-report-2.csv -NoTypeInformation -UseCulture



Using the above script, how can we pull only the VMs that have VMDKs split between two LUNs?  Our SDRS default is to keep VMDKs together but we are finding some VMs are split.  We're putting in some monitoring to determine how this is happening but it would be nice to be able to pull out those with split storage only, especially in an environment with nearly 3,500 VMs on 130+ hosts.

Thank you Sir!

[LucD]

Would something like this work for you?

Get-VM | ForEach-Object -Process {
  $ds = Get-Datastore -RelatedObject $_
  if($ds.Count -gt 1){
    New-Object -TypeName PSObject -Property @{
      VM = $_.Name
      Datastore = $ds.Name -join '|'
    }
  }
}

[TX_Tundra]

That absolutely works!  You are a lifesaver Sir!

Thank you again.

[YuvarajSekar01]

Hi,

Thanks for the script. Its working fine to me.

Can you please help me in downloading the output in csv format. Also, I ma very new to the scripting world. Please give me the fake path for the storing the data.

Regards,

Yuvaraj

[Kumar_Chidi]

@LucD, Can you please help me how to add "data store folder --> data store  in the script?

&{foreach($Cluster in Get-Cluster){

Get-Datastore -RelatedObject $Cluster |

Select @{N='Cluster';E={$Cluster.Name}},

  @{N='ESXi Host';E={Get-VMHost -Datastore $_}},

  @{N='Datastore Cluster';E={Get-Datastorecluster -Datastore $_}},

  @{N='Datastore Folder';E={Get-Folder -Type Datastore $_.Datastore.Name}},

Name,

  @{N='CanonicalName';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity (GB)';E={[math]::Round($_.CapacityGB,1)}},

  @{N='Free Space (GB)';E={[math]::Round($_.FreeSpaceGB,1)}}}} |

Export-Csv "C:\Datastore_info1.csv" -NoTypeInformation -UseCulture

[LucD]

Try like this

Get-Cluster -PipelineVariable cluster |

Get-Datastore |

Select @{N='Cluster';E={$Cluster.Name}},

  @{N='ESXi Host';E={Get-VMHost -Datastore $_ | Select -ExpandProperty Name}},

  @{N='Datastore Cluster';E={Get-Datastorecluster -Datastore $_ | select -ExpandProperty Name}},

  @{N='Datastore Folder';E={

    $parent = Get-View -Id $_.ExtensionData.Parent

    while($parent -isnot [VMware.Vim.Folder] -or $parent.MoRef.Type -eq 'StoragePod'){

        $parent = Get-View -Id $parent.Parent

    }

    $parent.Name

  }},

  Name,

  @{N='CanonicalName';E={$_.ExtensionData.Info.Vmfs.Extent[0].DiskName}},

  @{N='Capacity (GB)';E={[math]::Round($_.CapacityGB,1)}},

  @{N='Free Space (GB)';E={[math]::Round($_.FreeSpaceGB,1)}} |

Export-Csv "C:\Datastore_info1.csv" -NoTypeInformation -UseCulture

[Kumar_Chidi]

It worked perfectly. Thanks LucD.

[Sathish_K]

---

 wrote:

You can pipe the result to a CSV file for example



Get-VM |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}} |
Export-Csv C:\report.csv -NoTypeInformation -UseCulture

---

if my vm disk has three or more datastores and in the join command i am unable to add thrid datastore id in the column value. how to run on multiple computers

[LucD]

Sorry, I don't understand what you mean.

Perhaps an example or a screenshot could clarify.

[Sathish_K]

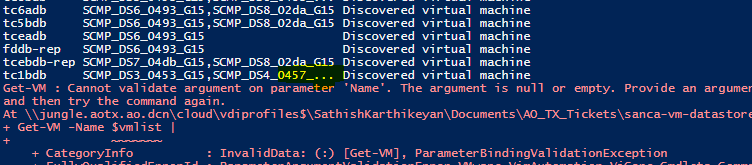

if u see the yellow highlight the third datastore name value (second column) is missing with dots...

[LucD]

That is because the PowerShell output engine can't fit the value on the screen.
Pipe the result to Format-List, or export the results to a CSV with Export-Csv.

[Sathish_K]

i tried with passing export excel output but since it is loop varibale it isnot updating for all servers and only one server it is updating in excel sheet. pls advise

foreach($vmlist in (Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt)){

#$vm = Get-VM -Name $vmlist

#echo $vm



Get-VM -Name $vmlist |



Select Name,

@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

@{N="Folder";E={$_.Folder.Name}} |

#sleep 30



Export-Csv C:\Users\SathishKarthikeyan\sanca-vm-datastore.csv  -NoTypeInformation -UseCulture



}



[LucD]

A foreach statement doesn't place anything in the pipeline.
Try like this, no need for a foreach

$vmlist = Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt

Get-VM -Name $vmlist |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}} |
Export-Csv C:\Users\SathishKarthikeyan\sanca-vm-datastore.csv  -NoTypeInformation -UseCulture



[Sathish_K]

i tried without loop as well before but Get-VM doesnt work that way for some reason and i dont know why. As said above i ran the above script and the script didnt even execute at all throwing error as below

PS C:\Users\SathishKarthikeyan> $vmlist = Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt

Get-VM -Name $vmlist |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}} |
Export-Csv C:\Users\SathishKarthikeyan\sanca-vm-datastore.csv -NoTypeInformation -UseCulture
Get-VM : Cannot validate argument on parameter 'Name'. The argument is null or empty. Provide an argument that is not null or empty,
and then try the command again.
At line:3 char:14
+ Get-VM -Name $vmlist |
+ ~~~~~~~
+ CategoryInfo : InvalidData: (:) [Get-VM], ParameterBindingValidationException
+ FullyQualifiedErrorId : ParameterArgumentValidationError,VMware.VimAutomation.ViCore.Cmdlets.Commands.GetVM



[LucD]

What do you have in the TXT file?
On each line a name of a VM?

Does the following returns the lines from the TXT file?

Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt



[Sathish_K]

i have just a list of server names in the text file thats all sir. it is a bug with Get-VM command as per Microsoft for some reason it is not working or parsing the values to next line of commands



PS C:\Users\SathishKarthikeyan> Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt
tc3bdb-rep
tc7adb
tc6ddb-rep
fielda1db-rep
tc7bdb
tc9bdb-rep
tcfbdb
tc2ddb-rep
tc6bdb
tc8bdb
tc6adb
tc5bdb
tceadb
fddb-rep
tcebdb-rep
tc1bdb



[LucD]

"...it is a bug with Get-VM command as per Microsoft"

Are you by any chance using the Get-VM cmdlet from the Hyper-V module and not the PowerCLI module?
What does this show as the Source?

Get-Command -Name Get-VM

[Sathish_K]

Probably ur right it shows vmware mule and not hyper-v





Get-Command -Name Get-VM

CommandType Name Version Source
----------- ---- ------- ------
Cmdlet Get-VM 13.0.0.... VMware.VimAutomation.Core

[LucD]

Very strange.
So the following doesn't work for you?

$vmlist = Get-Content -Path C:\Users\SathishKarthikeyan\sanca-vm-on.txt
Get-VM -Name $vmlist

And which MSFT source are you referring to with regards to the Get-VM cmdlet?

[Sathish_K]

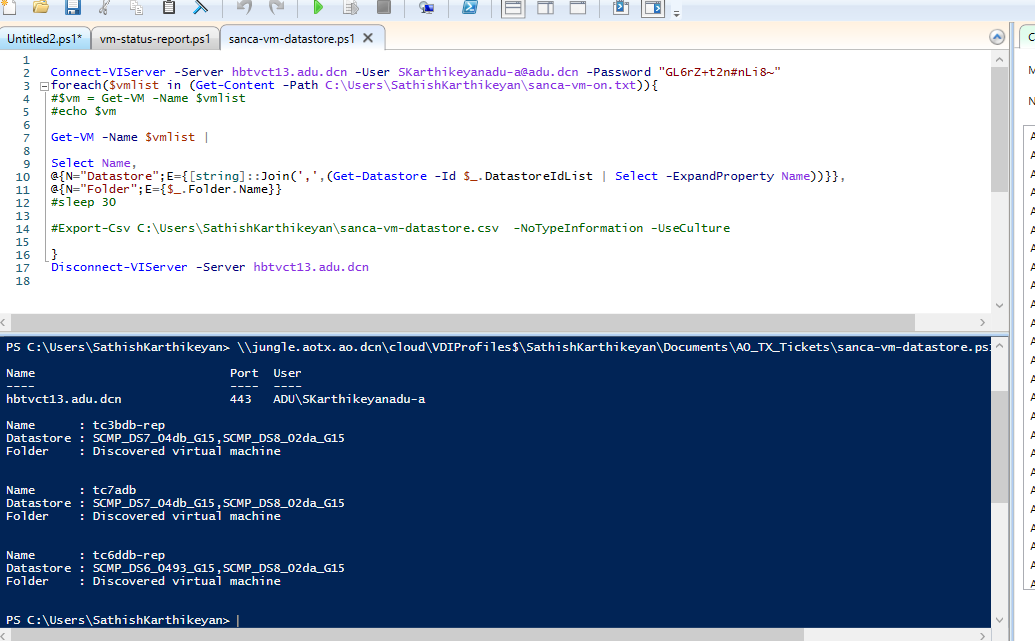

yes the below format works for me but i cannot parse it to excel sheet bcz the loop is not working for excel parse output but it works for display at PS IDE for all servers

[LucD]

I'm utterly confused now.

This works, but before you showed me an error stating that the Name parameter received a Null value.

And like I explained before, the foreach statement doesn't place anything in the pipeline, hence nothing will be written by Export-Csv.
The previous snippet I posted bypasses the foreach statement by placing everything in a pipeline construct.

I give up.

[Apv_09]

Hi,

How can i get the same using pyvmomi in python.

[LucD]

Ask in the vSphere Automation SDK for Python Forum - VMware {code}

[Apv_09]

HI,

How to get the following?

VM  Datastore   LUN  Vserver(SVM)   Volume  Aggregate

I could get till the Datastore (using PowerCLI). But the other parameters Iam not sure how to go about.

Get-View -ViewType virtualmachine |  ForEach-Object {

# Capture the name of the virtual machine as a variable

$vmname=$_.Name

# Capture the details of the VMDK file(s) for the virtual machine, including path(s)

$vmdkname=$_.layoutex.file.name

# Capture the name of the datastore for the virtual machine, as reported by the vm

$dsname=$_.config.DatastoreUrl.name

# For each virtual machine, capture datastore details, using the

# name of the datastore AS REPORTED BY THE VIRTUAL MACHINE for the filter,

# capture the NAA ID of the LUN for the datastore,

# then export select properties to the CSV file named previously

Get-View -ViewType datastore -Filter @{"Name"= "^$dsname$"} |Select-Object @{n="VM Name";e={$vmname}}, @{n="VMDK Name";e={$vmdkname}}, @{n="VM Datastore Name";e={$dsname}}, name,@{n='NAA';e={$_.info.vmfs.extent.diskname}}

}

how to proceed to get corresponding lun id , vserver, volume, aggregate and node

[AlLatshaw247]

Is there a way to Get a exported List in vsphere client of all virtual machines attached to LUNS Storage. I need to see what Virtual machines are connected to what LUN?

[rama5591]

Hello,

As mentioned below, the result returns list of VMS and exact Folder name per Cluster. In my scenerio I have to produce list of DatastoreClusters and their exact folder names.

I tried the same script,  but instead of "Get-VM" have put Get-DataStoreCluster.. But didnt worked.

List of VMS and Folder name.

Get-VM |
Select Name,
@{N="Datastore";E={[string]::Join(',',(Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},
@{N="Folder";E={$_.Folder.Name}}

List of DatastoreClusters and Folder Names. (It is not working)

Get-DataStoreCluster |
Select Name,
@{N="Folder";E={$_.Folder.Name}}

Could you please give some suggestions on it?

[LucD]

Which Foldername is that, the Folder in which the Datastorecluster is located ( a Storage folder)?

[rama5591]

yes.

[rama5591]

The structure in Vcenter:

DataCenter

     Folder1

               Cluster1

                    Datastore1

                    Datastore2

               Cluster2

                    Datastore3

                    Datastore4

     Folder2

          Cluster2

                    Datastore5

                    Datastore6

Here I want to get Folder1 and Folder2 names.

[LucD]

Try like this

Get-DatastoreCluster |

Select Name,

    @{N='Folder';E={

        $parent = Get-View -Id $_.ExtensionData.Parent

        while($parent -isnot [VMware.Vim.Folder]){

            $parent = Get-View -Id $parent.Parent

        }

        $parent.Name

    }}

[rama5591]

Yes Great, Its working.

Thank you so much :smileyhappy:

[skolvikings]

Can you elaborate on the [string]::Join syntax? I get that you are calling a .net string.join method but what are you joining here and why?

[LucD]

The reason is because we want to have a single value in this calculated property.
So if the VM is located on several datastores, we join the names of the datastores (the 2nd operand to the Join method) with the 1 st operand character.

[skolvikings]

oh gotcha, so if more than one item is returned it joins them into a comma delineated list. Thanks man!

[phatk]

Is it also possible to list the VM's on certain datastores. I want to look for those VM's who resides on datastores with for instance "NACL" in de datastore name, and to also show me the corresponding VM folder where the VM's resides in. Thank you in advance!

[LucD]

Use the Datastore parameter and OBN.

Like this

Get-VM -Datastore "*NACL*" |

Select Name,

   @{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

   @{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

   @{N = "UsedSpaceGB"; E = {[math]::Round($_.UsedSpaceGB, 1)}},

   @{N = "ProvisionedSpaceGB"; E = {[math]::Round($_.ProvisionedSpaceGB, 1)}},

   @{N = "Folder"; E = {$_.Folder.Name}},

   @{N = 'MAC';E={(Get-NetworkAdapter -VM $_).MacAddress -join '|'}} |

Sort-Object -Property Folder

[phatk]

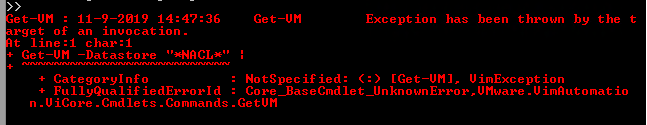

I get this after using the script:

[LucD]

Do you get the same error when you just do Get-VM?

[phatk]

No I don't, I then get a list of all the VM's. But most of the mentioned criteria in the query I don't need, like UsedSpace/MAC/ProvisionedSPace. I only need the VM name, Datastore name and the VM folder it resides in. If we were te exclude this, is the below query then valid. Also to view this in a comma delimited fashion with three columns next to eachother:

Get-VM -Datastore "*NACL*" |

Select Name,

   @{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}}

   @{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

   @{N = "Folder"; E = {$_.Folder.Name}} |

Sort-Object -Property Folder

[phatk]

I forgot to mention to also add ClusterName to the query, this would also be of good use.

[LucD]

Which PowerCLI version are you using?
There is no point in adapting the selection if you can't get the Get-VM working.

[phatk]

Version 6.3

Get-VM does work, I get a list of the VM's.

[LucD]

I would suggest you upgrade your PowerCLI installation.

[phatk]

Thank you Luc, will do!

[LucD]

Try like this

Get-VM -Datastore "*NACL*" |

Select Name,

   @{N = 'GuestOS'; E = {$_.ExtensionData.Guest.GuestFullName}},

   @{N = "Datastore"; E = {[string]::Join(',', (Get-Datastore -Id $_.DatastoreIdList | Select -ExpandProperty Name))}},

   @{N= 'Cluster';E={(Get-Cluster -VM $_).Name}},

   @{N = "Folder"; E = {$_.Folder.Name}} |

Sort-Object -Property Folder

[phatk]

That worked partially! I encountered the error that was posted before again and had to wait an awfull long time before the query ended and not all of the datastores with the phrase *NACL* was shown in the result. So yes, I think our ancient PowerCLI version needs to be updated before we continue :-)

Thanks again Luc!
