get cluster utilization info

[tdubb123]

hi,

how do I modify the below to show cluster name as well

$clusters = get-cluster

foreach ($clustername in $clusters) {

$days = 30

$start = (Get-Date).AddDays(- $days)

$stat = "cpu.usage.average","mem.usage.average","mem.vmmemctl.average",

  "mem.shared.average","mem.active.average","mem.swapused.average"

$cluster = get-cluster -name $clustername

$esx = Get-VMHost -Location $cluster

Get-Stat -Entity $esx -Start $start -Stat $stat |

Group-Object -Property {$_.Entity.Name} |

Select @{N="Cluster";E={$cluster.Name}},

    @{N="VMHost";E={$_.Name}},

    @{N="Total memory";E={$_.Group[0].Entity.MemoryTotalGB}},

    @{N="Total CPU";E={$_.Group[0].Entity.NumCpu}},

    @{N="Average memory used";E={$_.Group | Where {$_.MetricId -eq "mem.usage.average"} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

    @{N="Average CPU used";E={$_.Group | Where {$_.MetricId -eq "cpu.usage.average" -and $_.Instance -eq ""} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

    @{N="Average memory ballooning";E={$_.Group | Where {$_.MetricId -eq "mem.vmmemctl.average"} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

    @{N="Average shared memory";E={$_.Group | Where {$_.MetricId -eq "mem.shared.average"} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

    @{N="Average active used";E={$_.Group | Where {$_.MetricId -eq "mem.active.average"} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

    @{N="Average memory swapped";E={$_.Group | Where {$_.MetricId -eq "mem.swapused.average"} |

      Measure-Object -Property Value -Average | Select -ExpandProperty Average}} | export-csv "c:\scripts\clusterreport.csv" -notypeInformation

}

[tdubb123]

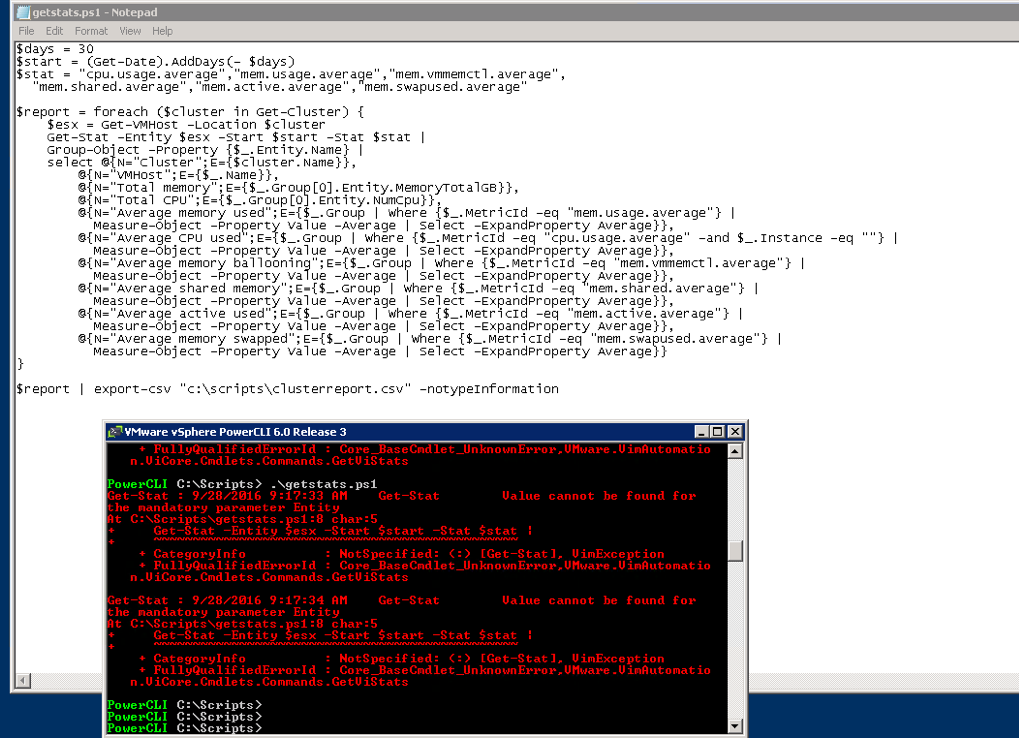

I keep getting the error:

[LucD]

Try like this

Note that some of the metrics you are using require Statistics Level 4 for Historical Interval 3 (Past Month)

$days = 30

$start = (Get-Date).AddDays(- $days)

$stat = "cpu.usage.average","mem.usage.average","mem.vmmemctl.average",

  "mem.shared.average","mem.active.average","mem.swapused.average"

$report = foreach ($cluster in Get-Cluster) {

    $esx = Get-VMHost -Location $cluster

    Get-Stat -Entity $esx -Start $start -Stat $stat |

    Group-Object -Property {$_.Entity.Name} |

    select @{N="Cluster";E={$cluster.Name}},

        @{N="VMHost";E={$_.Name}},

        @{N="Total memory";E={$_.Group[0].Entity.MemoryTotalGB}},

        @{N="Total CPU";E={$_.Group[0].Entity.NumCpu}},

        @{N="Average memory used";E={$_.Group | Where {$_.MetricId -eq "mem.usage.average"} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

        @{N="Average CPU used";E={$_.Group | Where {$_.MetricId -eq "cpu.usage.average" -and $_.Instance -eq ""} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

        @{N="Average memory ballooning";E={$_.Group | Where {$_.MetricId -eq "mem.vmmemctl.average"} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

        @{N="Average shared memory";E={$_.Group | Where {$_.MetricId -eq "mem.shared.average"} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

        @{N="Average active used";E={$_.Group | Where {$_.MetricId -eq "mem.active.average"} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

        @{N="Average memory swapped";E={$_.Group | Where {$_.MetricId -eq "mem.swapused.average"} |

          Measure-Object -Property Value -Average | Select -ExpandProperty Average}}

}

$report | export-csv "c:\scripts\clusterreport.csv" -notypeInformation

[tdubb123]

Hi LUcd

I am getting the same error

[LucD]

Do you have an empty cluster in your environment?

A cluster with no ESXi nodes.

Can you eventually try with a specific cluster (Get-Cluster -Name MyCluster)?

[tdubb123]

yes I have some empty clusters. IF I do it per cluster it works fine. but I need to get all the hosts from each cluster

[LucD]

Since there are no ESXi nodes in an empty cluster, you could just generate an entry with the clustername.

Something like this

$days = 30

$start = (Get-Date).AddDays(- $days)

$stat = "cpu.usage.average","mem.usage.average","mem.vmmemctl.average",

  "mem.shared.average","mem.active.average","mem.swapused.average"

$report = foreach ($cluster in Get-Cluster) {

    $esx = Get-VMHost -Location $cluster

    if($esx){

        Get-Stat -Entity $esx -Start $start -Stat $stat |

        Group-Object -Property {$_.Entity.Name} |

        select @{N="Cluster";E={$cluster.Name}},

            @{N="VMHost";E={$_.Name}},

            @{N="Total memory";E={$_.Group[0].Entity.MemoryTotalGB}},

            @{N="Total CPU";E={$_.Group[0].Entity.NumCpu}},

            @{N="Average memory used";E={$_.Group | Where {$_.MetricId -eq "mem.usage.average"} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

            @{N="Average CPU used";E={$_.Group | Where {$_.MetricId -eq "cpu.usage.average" -and $_.Instance -eq ""} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

            @{N="Average memory ballooning";E={$_.Group | Where {$_.MetricId -eq "mem.vmmemctl.average"} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

            @{N="Average shared memory";E={$_.Group | Where {$_.MetricId -eq "mem.shared.average"} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

            @{N="Average active used";E={$_.Group | Where {$_.MetricId -eq "mem.active.average"} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}},

            @{N="Average memory swapped";E={$_.Group | Where {$_.MetricId -eq "mem.swapused.average"} |

              Measure-Object -Property Value -Average | Select -ExpandProperty Average}}

    }

    else{

        $cluster | select @{N="Cluster";E={$_.Name}},

            @{N="VMHost";E={}},

            @{N="Total memory";E={}},

            @{N="Total CPU";E={}},

            @{N="Average memory used";E={}},

            @{N="Average CPU used";E={}},

            @{N="Average memory ballooning";E={}},

            @{N="Average shared memory";E={}},

            @{N="Average active used";E={}},

            @{N="Average memory swapped";E={}}

    }

}

$report | export-csv "c:\scripts\clusterreport.csv" -notypeInformation

[tdubb123]

lucd

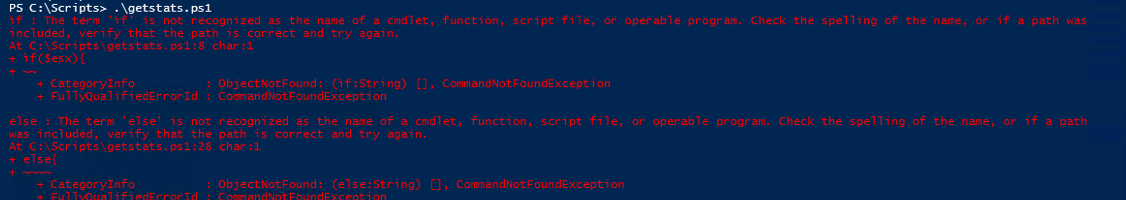

got this error

[LucD]

The 'i' in if was not a normal 'i'.

I corrected it above, please try again.

[tdubb123]

Thanks Lucd

[markshannon]

Hi LucD.

How would I get this only for Mon-Fri in a month?

Thanks in advance

Mark

[LucD]

With an additional Where-clause after the Get-Stat.
See an examples in my PowerCLI & VSphere Statistics – Part 2 – Come Together post.

More specifically the one which uses $_.Timestamp.DayOfWeek
