Failed to Add VSAN to VMKernal

[insearchof]

VMWare 6.5

I have two vCenters both running 6.5

I have 9 ESXI hosts all running 6.5 and up to date will all patches.

Trying to implement VSAN on both ESXI Hosts.

1. Created a Datacenter on both vCenters.

2. Add VSAN to my VMkernal on each ESXI host.

I had a VMkernal already defined the same name on all 9 hosts.

I started to add VSAN to each one and on several it added but a few it did not.

After a while I tried again and they added the VSAN

I have one ESXI 6.5 host that will not add it.

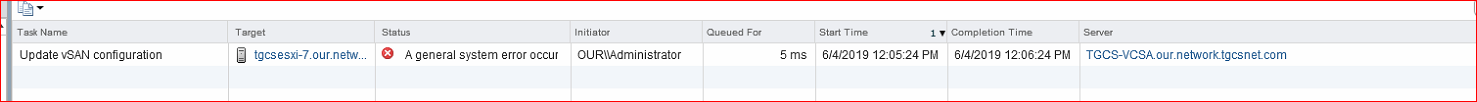

A General System error occurred     any ideas?

Thank you

[TheBobkin]

From what you have said it seems like a vCenter/client/account issue - are you positive all hosts have the same build version installed and the vCenter is on equivalent or higher build? (e.g. be more specific - build 8294253 not '6.5 U2').

Any of the above potential causes can be ruled out via setting this via CLI e.g.

# esxcli vsan network ip add -i vmkX

# esxcli vsan network list

Bob

[insearchof]

Thebobkin

First thank you for responding.

The command failed and all hosts are at same version as you can see below.  Any other command to try?

[root@TGCSESXI-7:~] esxcli vsan network ip add -i list

Unable to complete Sysinfo operation.  Please see the VMkernel log file for more details.: Sysinfo error: Not foundSee VMkernel log for details.

[root@TGCSESXI-7:~] esxcli vsan network list

[root@TGCSESXI-7:~] esxcli system version get

   Product: VMware ESXi

   Version: 6.5.0

   Build: Releasebuild-13635690

   Update: 2

   Patch: 88

[root@TGCSESXI-5:~] esxcli system version get

   Product: VMware ESXi

   Version: 6.5.0

   Build: Releasebuild-13635690

   Update: 2

   Patch: 88

[root@TGCSESXI-6:~] esxcli system version get

   Product: VMware ESXi

   Version: 6.5.0

   Build: Releasebuild-13635690

   Update: 2

   Patch: 88

[root@TGCSESXI-8:~] esxcli system version get

   Product: VMware ESXi

   Version: 6.5.0

   Build: Releasebuild-13635690

   Update: 2

   Patch: 88

Thank you

Tom

Update   I tried this     VMK3 is the interface that I am trying to add VSAN to

[root@TGCSESXI-7:~] esxcli network ip interface tag get -i vmk0

   Tags: Management

[root@TGCSESXI-7:~] esxcli network ip interface tag get -i vmk1

   Tags:

[root@TGCSESXI-7:~] esxcli network ip interface tag get -i vmk2

   Tags: VMotion

[root@TGCSESXI-7:~] esxcli network ip interface tag get -i vmk3

   Tags:

So then I ran this

[root@TGCSESXI-7:~] esxcli network ip interface tag add -i vmk3 -t VSAN

[root@TGCSESXI-7:~] esxcli network ip interface tag get -i vmk3

   Tags: VSAN

[root@TGCSESXI-7:~]

Now it has the Tag but when I look on vcenter the vmkernal still does not show the VSAN

Thoughts

[TheBobkin]

Hello Tom,

You ran the commands wrong and thus the fail message - please look at these carefully - if ever in doubt about syntax simply type most of the command and -h , it will show you the next available options and syntax.

Please also inform of both vCenter build versions.

Bob

[insearchof]

Hi this time I copied it from your posting

[root@TGCSESXI-7:~] esxcli vsan network ip add -i vmk3

Unable to load module /usr/lib/vmware/vmkmod/cmmds: Out of memory

vCenter  6.5.0

Build 7119157

OUT OF Memory??????????

[TheBobkin]

Unlikely your problem here but don't manage hosts with a vCenter of lower version - this needs to be on the same or higher release version (e.g. 6.5 U2 here):

VMware Product Interoperability Matrices

So, the network configuration can't be configured because one of the underlying vSAN services (CMMDS) is having issues - are these nested hosts or physical servers and with what specs?

Bob

[insearchof]

Bob

They are all Physical hosts

On this vCenter/Cluster

Dell PowerEdge R210     Host 1   VSAN working

Dell PowerEdge R300     Host 2  VSAN working

Dell PowerEdge R210     Host 3 VSAN NOT WORKING

Dell PowerEdge R310     Host 4 VSAN Working

I tried running this   ./sbin/services.sh restart   but I did not receive any responses on the console.

I thought about restarting the services on the host but that did not work

Any ideas?

[TheBobkin]

None of those servers are supported to run anything past ESXi 5.5 so random instability such as this comes with the territory - I hope this is a homelab :smileygrin: .

You *might* fare better with ESXi 6.0 on these.

If there are zombie processes that can't be stopped and/or something hogging inits (already limited) memory then restarting services likely isn't going to help (as the services don't cleanly go down). Try rebooting the host. If you have any 3rd-party plug-ins, monitoring tools or utilities that eat resources (e.g. RecoverPoint) then consider temporarily disabling these.

Bob

[insearchof]

restarting the host took care of this

Thanks everyone
