Bulk Standard port adding

[fborges555]

Hi all.

I have an esxi host 6.0.0 that I need to add a bunch of port/Vlan to it but they are a bunch , has any gone through the steps of adding this using PSCLI

Instead of adding one by one import a text file

Netowrk label             VLAN ID

xxx.xxx.xxx.xxx                 01

xxx.xxx.xxx.xxx                 02

Thanks

[Nawals]

You can use my blog for this.PowerCLi Script to Automate to configure vSwitch, add Uplink and bulk virtual port groups

[LucD]

Ok, you want to add a number of Portgroups?

That is quite straightforward.

Does the switch already exist?

From your screenshot it looks as if this is a VSS.

Correct?

In that case you could do something like this

$esxName = 'MyEsx'

$vssName = 'vSwitch1'

$esx = Get-VMHost -Name $esxName

$vss = Get-VirtualSwitch -Name $vssName -VMHost $esx

Import-Csv -Path .\pg.csv |

ForEach-Object -Process {

    New-VirtualPortGroup -VirtualSwitch $vss -Name $_.'Network Label' -VLanId $_.'VLAN ID'

}

[fborges555]

L.

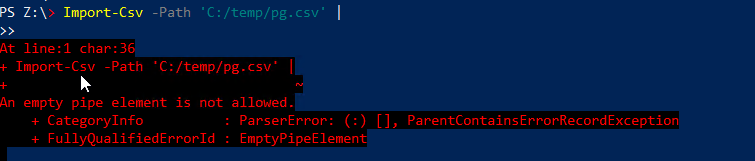

When running your script  I get

"an empty pipe element is not allow"

Thanks

[LucD]

On which line?
Can you show the complete error message?

There is only 1 pipeline in that code, it's on the Import-Csv.

Did you copy the pipeline symbol (|) at the end of that line?

[fborges555]

L.

Right after the import-CSV

[fborges555]

L.

PG.CSV file = xxx.xxx.xxx.xxx,xx

I had it  working with no error by doing the following

Import-Csv -path .\pg.csv | Foreach-object {

But after it run NO portgroup is added to switch0 or host

[fborges555]

L.

as always thank for your help, I was missing my header on my CSV therefore the loop was failing.

Thanks a bunch
