Audit Licenses

[PGuibordCharter]

I am trying to get license details from my vCenter, specifically when they expire.  I can get the edition, total used, etc., however I cannot seem to find the property/key for the license expire value.  Here is what I have so far-



ForEach ($Licenses in (Get-View $Global:DefaultVIServer.ExtensionData.Content.LicenseManager).Licenses){



ForEach ($Property in $Licenses){

$licenseObj = New-Object PSObject

$licenseObj | Add-Member -Name "vCenter Name" -MemberType NoteProperty -Value $Global:DefaultVIServer.Name

$licenseObj | Add-Member -Name "License Name" -MemberType NoteProperty -Value $Property.Name

$licenseObj | Add-Member -Name "License Key" -MemberType NoteProperty -Value $Property.LicenseKey

#$licenseObj | Add-Member -Name "Expiration Date" -MemberType NoteProperty -Value $Property.?????

$licenseObj

}

}





Commented out the line I am missing

[LucD]

Have a look at Re: Fetch ESXi license name & expiration date with... - VMware Technology Network VMTN

[PGuibordCharter]

Thank you sir- appreciate the help!

I am pulling this detail from vCenter, about each license that is installed.  Not the individual hosts but rather vCenter version/license key, vSAN version/license key, etc. for each product registered in vCenter.  The column I can't get details on is the Expired check box.  I know there are some vCenter's that have a 60 day or 90 key or even one that expires every year!  Is there a way to expose this value?

Thanks!

[LucD]

Ok, then try like this

$LicenseManager= Get-view LicenseManager
$LicenseManager.Licenses | where{$_.Total -ne 0} |
Select Name,LicenseKey,Used,Total,
  @{N='ExpirationDate';E={$_.Properties | where{$_.Key -eq 'expirationDate'} | Select -ExpandProperty Value}}

[vsrini_blr]

Hi

Can anyone help me on this script to include license remaining days to expire in the below script, this is bit urgent.

ForEach ($vc in $vcservers){
Connect-VIserver -Server $vc -User $user -Password $password
$licenseManager = Get-View $Global:DefaultVIServers.ExtensionData.content.LicenseManager
$licenseAssignmentManager = Get-View $LicenseManager.licenseAssignmentManager
$assignedLicenses = $licenseAssignmentManager.QueryAssignedLicenses($global.defaultviservers.instanceuuid) | Group-Object -Property EntityDisplayName

foreach ($license in $assignedLicenses)
{
#$vCenterName = ([System.uri]$license.Client.ServiceUrl).Host
$lic = $license.Group[0]
$licenseObj = [PSCustomObject]@{
vcenter = $vc
EntityDisplayName = $lic.EntityDisplayName
Name = $lic.AssignedLicense.Name
LicenseKey = $lic.AssignedLicense.LicenseKey
EditionKey = $lic.AssignedLicense.EditionKey
ProductName = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ProductName'} | Select-Object -ExpandProperty Value

ProductVersion = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ProductVersion'} | Select-Object -ExpandProperty Value
ExpirationDate = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ExpirationDate'} | Select-Object -ExpandProperty Value
ExpirationHours = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'expirationHours'} | Select-Object -ExpandProperty Value
ExpirationMins= $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'expirationMinutes'} | Select-Object -ExpandProperty Value

}
$licenseObj
$licenseUsage += $licenseObj
}
}

[LucD]

Add this property

            DaysToExpiration = [math]::Round((New-TimeSpan -End ($lic.AssignedLicense.Properties | Where-Object { $_.Key -eq 'ExpirationDate' }).Value -Start $now).TotalDays,0)

[vsrini_blr]

Hi Luc

I get this error msg as below when i execute

New-TimeSpan : Cannot bind parameter 'End' to the target. Exception setting "End": "Cannot convert null to type "System.DateTime"."
At S:\srini\scripts\licdetailextract_final.ps1:29 char:61
+ ... meSpan -End ($lic.AssignedLicense.Properties | Where-Object { $_.Key ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : WriteError: (:) [New-TimeSpan], ParameterBindingException
+ FullyQualifiedErrorId : ParameterBindingFailed,Microsoft.PowerShell.Commands.NewTimeSpanCommand

[LucD]

That means there are entries where there is no expiration date

[vsrini_blr]

Hi LucD

Thanks for your response, I really appreciate it.

Please find the enclosed script output in this post for your references, there are no values in expiration date except few.

Attachment(s)

scriptoutput.xlsx   10 KB 1 version

[LucD]

To cope with missing values, you could do

            DaysToExpiration = &{
                $daysExp = $lic.AssignedLicense.Properties | Where-Object { $_.Key -eq 'ExpirationDate' }
                if($daysExp -ne $null){
                    [math]::Round((New-TimeSpan -End $daysExp.Value -Start $now).TotalDays,0)
                }
                else{'na'}
            }

[vsrini_blr]

Nope, it didnt work, below is the error message:

Where-Object : A positional parameter cannot be found that accepts argument 'if'.
At line:30 char:76
+ ... roperties | Where-Object { $_.Key -eq 'ExpirationDate' } if($daysExp ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
+ CategoryInfo : InvalidArgument: (:) [Where-Object], ParameterBindingException
+ FullyQualifiedErrorId : PositionalParameterNotFound,Microsoft.PowerShell.Commands.WhereObjectCommand

[LucD]

Looks like you are missing some CR-LF in the copy-paste.
That If should start on a new line

[LucD]

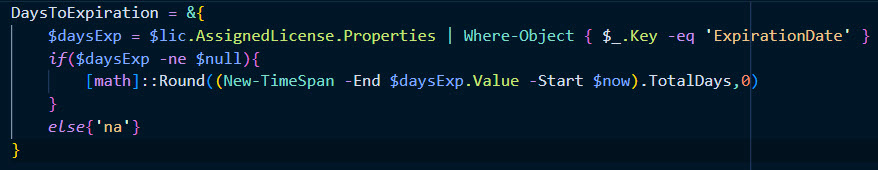

It should look like this

[vsrini_blr]

Thanks a lot LucD, it worked, I was pasting to single line.

Thanks again for all your help.

[vsrini_blr]





[vsrini_blr]

Hi Luc

For some reason, Iam seeing 2 entries for each line, can you check on the script and let me know if you see any findings.

Srinivas

[LucD]

You are importing the same file twice

[vsrini_blr]

Luc, Can you fix the script, I couldnt find where its importing twice.

[LucD]

You are importing the same CSV in $html and $html2

[vsrini_blr]

Hi,

Before html conversion also ie in raw output Iam seeing double entries.

[vsrini_blr]

I get the error msg as below:

Connect-VIServer : Cannot validate argument on parameter 'Server'. The argument is null or empty. Provide an argument that is not null or empty, and then
try the command again.
At line:5 char:26
+ Connect-VIserver -Server $vcservers -User $user -Password $password
+ ~~~~~~~~~~
+ CategoryInfo : InvalidData: (:) [Connect-VIServer], ParameterBindingValidationException

[LucD]

Your script says

Connect-VIserver -Server $vc -User $user -Password $password

Why do you use $vcservers now?

[vsrini_blr]

Hello Luc

Iam seeing couple of issues in the outcome of this script, few values doesnt corelate with actual data, specifically on license expiration date and entity display name for few line items.

vcenter actual expiration date for vcenter vc01 and vc02 is 01/02/2023 but in script output it is showing as 01/03/2023...not sure is there any mis calculation or data fetching is wrong here.

I have enclosed output of this script for your reference, can you please take a look and help to get the issue fixed at the earliest.

Regards

Srinivas



 

[vsrini_blr]

Hope you understood the issue, let me know if not, will try to explain in detail.

[vsrini_blr]

Hello Luc

Any update on this.

[vsrini_blr]

Hi Luc

Issue is resolved after removing loop for each vcenter. Thanks for your support as always.



[vsrini_blr]

Luc, can you help me to get vcenter name for each line item.

foreach ($license in $assignedLicenses)
{

$lic = $license.Group[0]
$licenseObj = [PSCustomObject]@{
vcenter = $licenseManager | Where-Object {$_.Key -eq 'Licensededition'} | Select-Object -ExpandProperty Value
EntityDisplayName = $lic.EntityDisplayName
Name = $lic.AssignedLicense.Name
LicenseKey = $lic.AssignedLicense.LicenseKey
EditionKey = $lic.AssignedLicense.EditionKey
ProductName = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ProductName'} | Select-Object -ExpandProperty Value

ProductVersion = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ProductVersion'} | Select-Object -ExpandProperty Value
ExpirationDate = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'ExpirationDate'} | Select-Object -ExpandProperty Value
ExpirationHours = $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'expirationHours'} | Select-Object -ExpandProperty Value
ExpirationMins= $lic.AssignedLicense.Properties | Where-Object {$_.Key -eq 'expirationMinutes'} | Select-Object -ExpandProperty Value
DaysToExpiration = &{
$daysExp = $lic.AssignedLicense.Properties | Where-Object { $_.Key -eq 'ExpirationDate' }
if($daysExp -ne $null){
[math]::Round((New-TimeSpan -End $daysExp.Value -Start $date).TotalDays,0)
}
else{'na'}
}

}
$licenseObj
$licenseUsage += $licenseObj
}
#}
Disconnect-viserver -Server * -Force –Confirm:$false

[vsrini_blr]

Hi Luc

Can you help with to fix this below script to generate a html output if there is a table content else write "no license due to expire"

$date = GET-DATE
$htmlformat = '<title>Lic_info</title>'
$htmlformat += '<H1>VMware license forecast notification</H1>'
$htmlformat += '<p>The following report was generated on </p>' + "$date"
$htmlformat += '<style type="text/css">'
$htmlformat += 'BODY{background-color:#E5E8E8 ;color:#000000;font-family:Arial Narrow,sans-serif;font-size:12px;}'
$htmlformat += 'TABLE{border-width: 3px;border-style: solid;border-color: black;border-collapse: collapse;}'
$htmlformat += 'TH{border-width: 1px;padding: 3px;border-style: solid;border-color: black;background-color:#FCF3CF}'
$htmlformat += 'TD{border-width: 1px;padding: 6px;border-style: solid;border-color: black;background-color:#CACFD2}'
$htmlformat += '</style>'
$bodyformat = '<h1> VMware Environment </h1>'



$html = Import-Csv -delimiter ',' -Path "F:\\licdetails.txt" | Select EntityDisplayName,Name,LicenseKey,EditionKey,ProductName,ProductVersion,ExpirationDate,DaysToExpiration | Sort-Object DaysToExpiration | where-object {($_.DaysToExpiration -ne "na") } |

if($_.DaysToExpiration -match "^\d+$")

convertTo-Html -Head $htmlformat -Body {} else {Write-Host "<h1>No licenses due to expire</h1>"}



$html | Out-File F:\VMware_Environment_license_notification.html

Invoke-Expression F:\VMware_Environment_license_notification.html

[LucD]

Then you have probably more than 1 connection open.
Check what is in $global:defaultVIServers
