Code creates a regular-clone when it should create a linked-clone....

[Chris Seline]

My code creates a regular-clone when it should create a linked-clone, please help.



# Confirm we can new-VM to a storageCluster
# BUT IT IS NOT LINKED.  IT IS LARGE AND TAKES TIME TO COPY

$BaseVM = "daa-snap-all-U2204-DESK"
$ResultingVMName = "chris-test-snapclone-to-datastore-cluster"
$ResourcePool = get-resourcepool rp-ti-ucs
$FirstSnapShot = (get-vm $BaseVM | Get-Snapshot)[0]

Measure-Command {
    $LinkedClone = New-VM `
        -Name $ResultingVMName `
        -VM $BaseVM `
        -Datastore (Get-DatastoreCluster)[0] `
        -ResourcePool $ResourcePool `
        -LinkedClone `
        -ReferenceSnapshot $FirstSnapShot
}

Get-VM $BaseVM          | Select-Object Name, ProvisionedSpaceGB, @{n = "HardDiskSizeGB"; e = { (Get-HardDisk -VM $_       | Measure-Object -Sum CapacityGB).Sum } } | ft -a
$FirstSnapShot          | Select-Object Name, SizeGB,             @{n = "HardDiskSizeGB"; e = { (Get-HardDisk -Snapshot $_ | Measure-Object -Sum CapacityGB).Sum } } | ft -a
Get-VM $ResultingVMName | Select-Object Name, ProvisionedSpaceGB, @{n = "HardDiskSizeGB"; e = { (Get-HardDisk -VM $_       | Measure-Object -Sum CapacityGB).Sum } } | ft -a

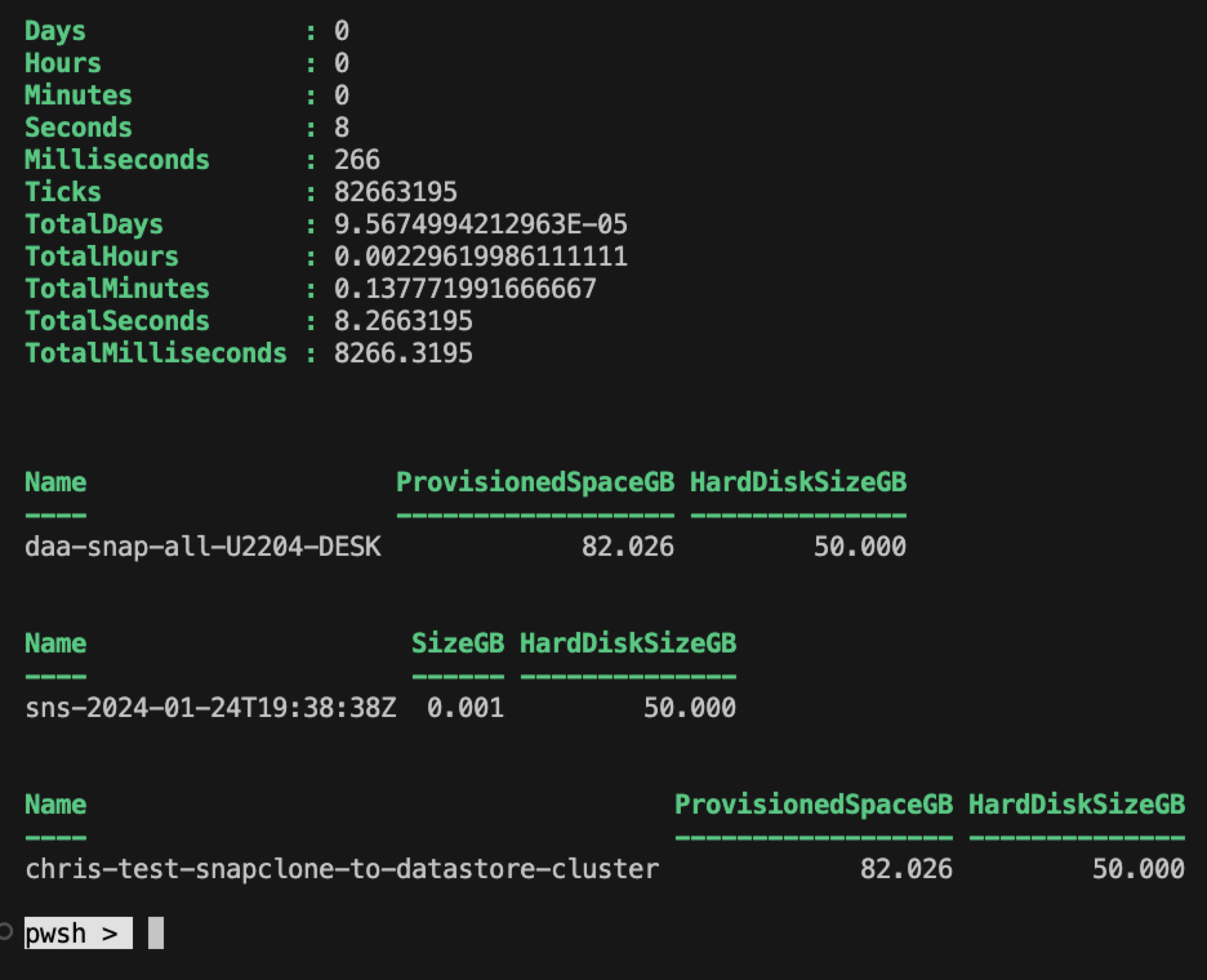

Output is:





[LucD]

Is the reference snapshot located on the same DatastoreCluster?

[Chris Seline]

Yes.  The reference snapshot is located on the same DatastoreCluster.

[LucD]

Strange, it should work when on the same DatastoreCluster.

For testing, can you try to create the linkedclone on the same Datastore as where the reference snapshot is located?

[Chris Seline]

I was able to successfully create a linkedclone on the same Datastore as where the reference VM is located.

Changed the -Datastore to be the datastore of the reference VM:



        -Datastore (get-vm $BaseVM    | Get-datastore)[0] `

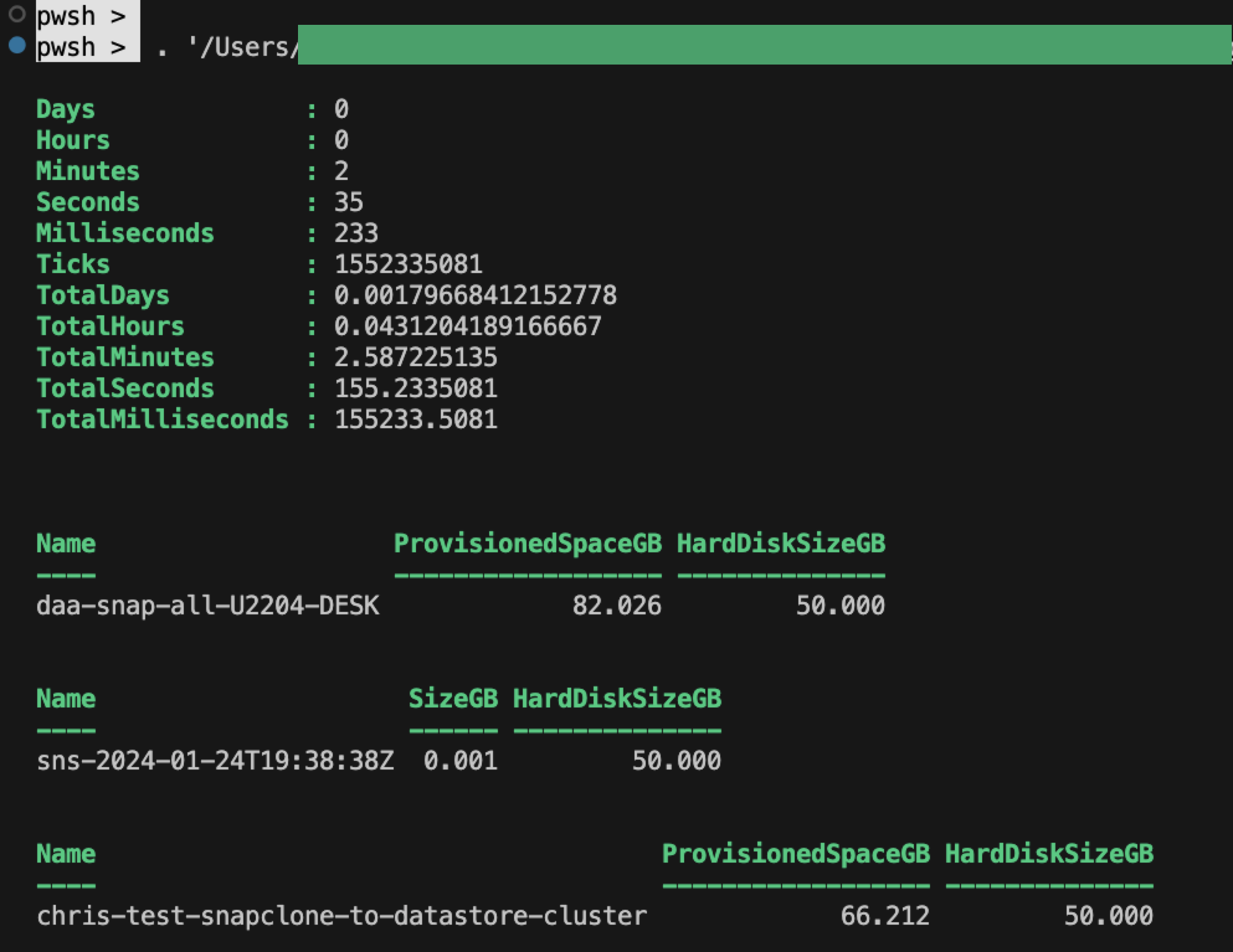

Output is:

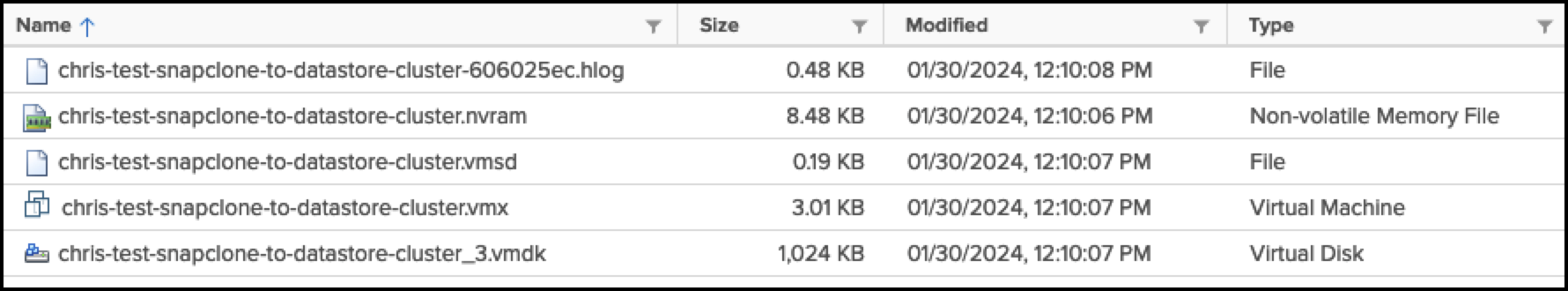

Although the output shows "chris-test-snapclone-to-datastore-cluster" with a HardDiskSizeGB of 50.000, the actual size is smaller:

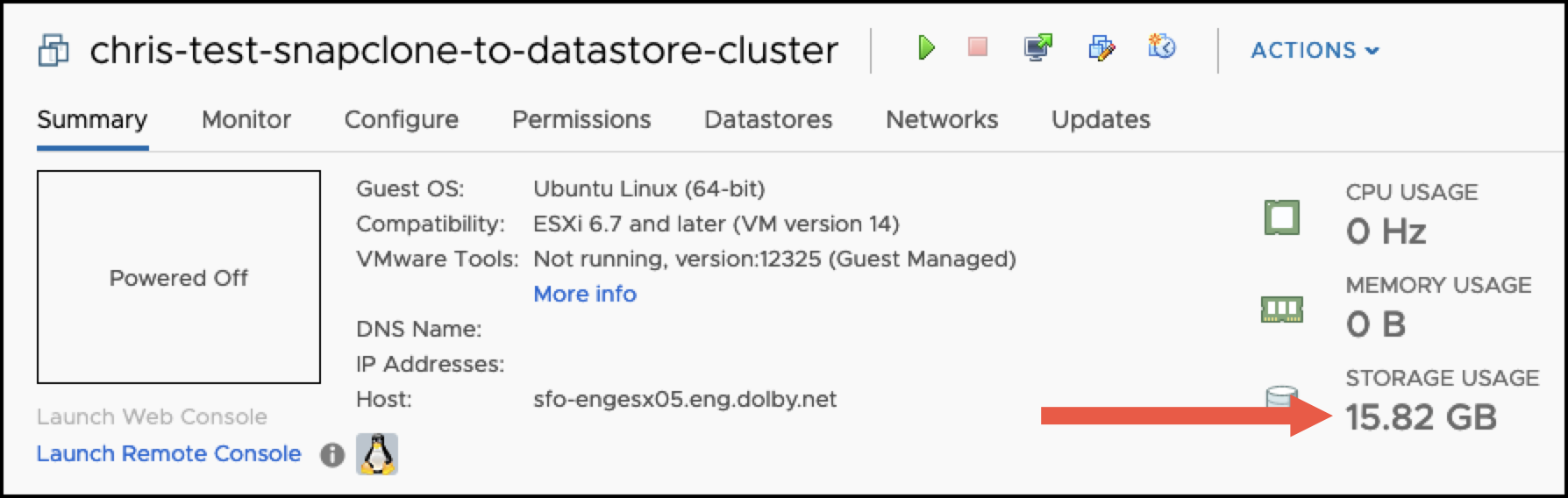

Although the actual size is small, the vCenter GUI shows the new VM as consuming over 15.82GB of storage:



[LucD]

If that doesn't work with any other datastore in that datastorecluster then there seems to be an "issue".

According to the doc a DatastoreCluster should work as well.

Perhaps open an SR?

[Chris Seline]

Will do!

Thanks
